Laia Cute Up 4k Pro Video Conferencing Bar With Intelligent Tracking User Manual

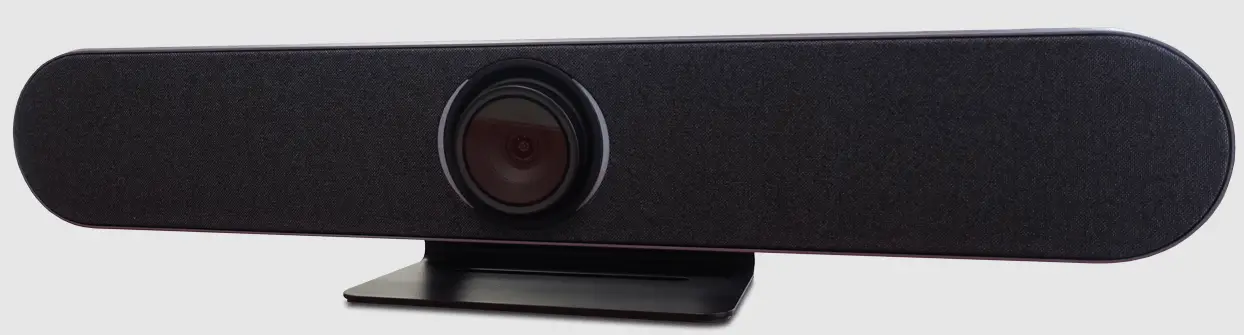

Laia Cute UP 4K Pro Video Conferencing Bar with Intelligent Tracking

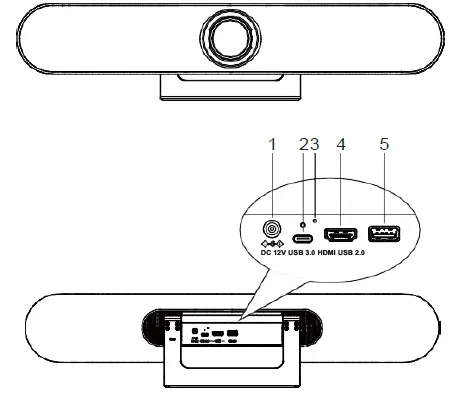

Appearance and Interface

Packing List

Product Features

Applicable Scene
It is specially designed for small and medium-sized meeting rooms, especially for the Huddle Room with 4 to 6 people, to help enterprises re-tap the potential of using the small and micro meeting space inside. On one hand, it can hold meetings more efficiently, on the other hand, it can also save the rental cost.
Product Value
It is convenient for small and medium-sized enterprises to conduct daily business negotiation and team cooperation in different places flexibly, so as to create a relaxed, free, and smooth conversation
environment, make decisions quickly, and improve efficiency.
All-in-one Design
The three-in-one design of a 4K ultra HD camera, beamforming microphone, and full-frequency loudspeaker reduces wiring and makes video communication easy. Bluetooth 5.0
Using Bluetooth 5.0 technology. Compared with the previous generation technology, the transmission rate is increased by 2 times, and the transmission distance is increased by 4 times. It can better transmit high-quality audio between the mobile phone and tablet devices to achieve wireless Bluetooth streaming.
4K UHD
Using 1/2.5 inch, 8.51M pixel high-quality UHD CMOS sensor, 4K
(3840×2160)@30fps ultra-high-resolution clear image, and downward compatible with 1080P, 720P, and other resolutions. It can meet the needs of users for different video experiences and can provide clearer, real, smooth, and accurate communication.
Wide Field View
121°wide field of view (110° horizontal field of view), 5 times zoom, optical lens customized for the conference scene, built-in electric head (horizontal and pitch ±15° motion range), no need to worry about the camera position, participants can easily enter the scene clearly.
Beamforming Microphone
Beam Forming (BF) microphone is built-in, with a pickup distance of 6 meters. Low-distortion transverse beamforming algorithm can direct the microphone directly to the speaker, with better sound, clearer communication, fuller and more authenticity.
Audio 3A Algorithm
Built-in audio 3A algorithm (AEC/AGC/ANS), full-duplex dialogue, can meet the communication needs of different room structures, whether sitting at a conference table, sitting against the wall, or standing, can have a comfortable experience for calling.
Full Frequency Speaker
Full frequency Hi-Fi loudspeaker, professional acoustics design, reduce noise interference, provide the outstanding sound effect.
Plug and Play Type
Through plug-and-play USB interface connection with the computer or business display screen, very easy to use. Less wiring, and convenient video communication, reduce the user’s learning cost.
Speaker Phone
It can be used as a Bluetooth microphone and speaker while connected to a mobile phone or other devices via Bluetooth connection, and the call
can be connected to the audio and video conference.
Intelligent Analysis
Built-in intelligent analysis algorithm, listening to the speaker position, automatic framing of participants, automatic tracking of speakers, switching the speaker screen, to ensure that the speaker is always clearly in the picture.
Rich Interfaces
Support HDMI and USB 3.0 audio video output simultaneously.
Easy Installation
Flexible installation options such as countertops, walls, and TV/display screens are available for quick installation and deployment in a crowded meeting room.

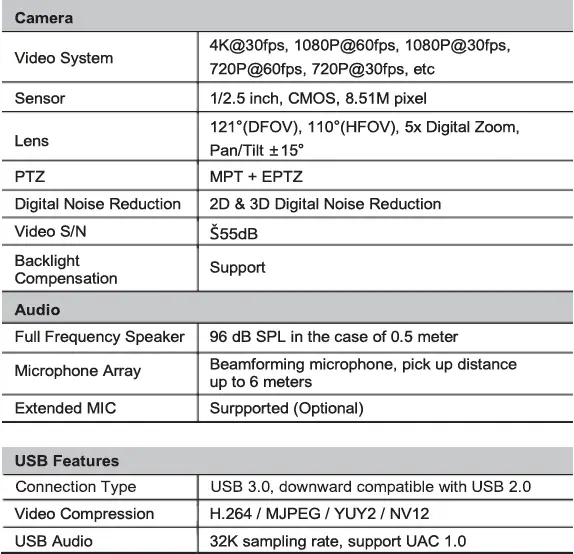

Product Specifications

NOTE

Product specifications and parameter information are subject to change without notice.

Safety Precautions

Careful Transportation
Transportation, custody, and installation process to prevent heavy pressure, violent vibration, and immersion damage to the product.
Careful Installation
This product should be placed on a smooth desktop. The shell of the product is an organic material and is strictly prohibited from contact with any liquid, gas, or solid material that may cause corrosion to the shell.
Do not Unauthorized Disassemble
This product has no parts which can be repaired by the user. The damage caused by the user’s own disassembly is not covered by the warranty.
NOTICE
Electromagnetic fields at specific frequencies may affect the image of the machine.

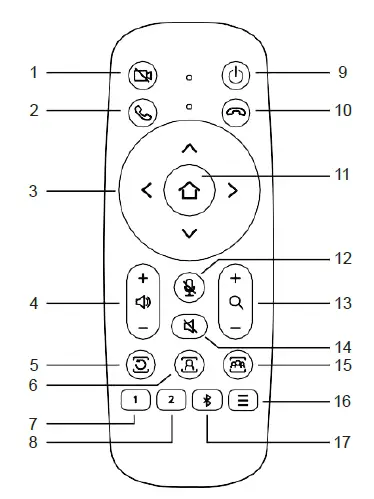

Remote Control

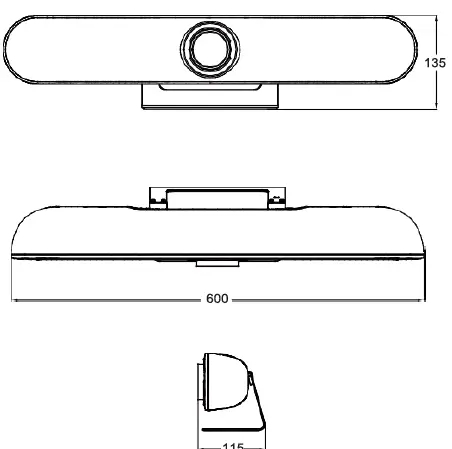

Product Dimension

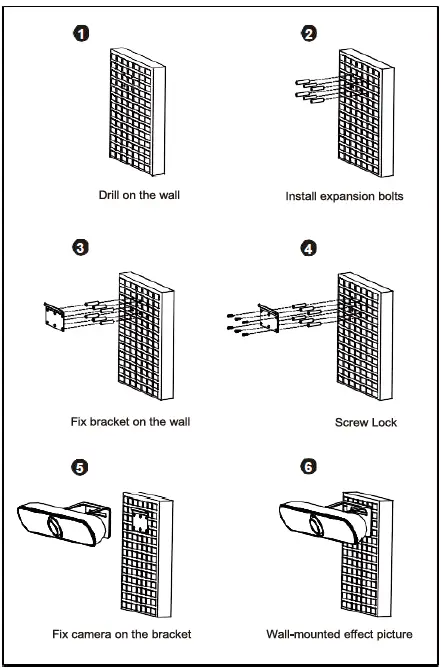

Installation and Connection

Remote Control Pairing

Note: The remote control has been paired with the whole machine when it leaves the factory, and it can be used normally without special operations. Unless there is an abnormal remote control, the whole remote control is confused, the remote control is missing, etc., and the remote control needs to be re-matched, the following steps are used to repair.
Step 1 Connect the camera to the power supply and wait for the camera
initialization to complete, and the camera can output pictures normally.
Step 2 Clear the paired status of the remote control:
Press and hold the Menu + OK button at the same time until the remote control indicator light with steady red, release the buttons to clear the paired status of the remote control.
Step 3 Trigger the camera to enter the remote control pairing mode: Use the card pin to poke the reset button of the camera, the camera’s LED light will switch to a blue marquee effect when it enters the pairing mode normally. (Note: There is only 15s operation time while entering the pairing mode. After the timeout, the pairing mode will be automatically exited and the LED is not a blue marquee effect. Press the reset button again to reenter the remote control pairing mode.)
Step 4 Start pairing: Press and hold the Menu button until the indicator the complete. When the normal pairing is successfully paired, the camera’s remote control light with red, and then wait for the matching to LED light is blue with a flashing effect. Now, your camera can be operated through
the remote control normally. If the pairing fails, please repeat steps 2, 3, and 4 until the matching is successful.

GUI Settings

MENU

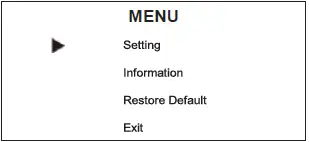

Press【MENU】key under a normal image, and the screen will display as below:

Setting
Move the cursor to “Setting” in the main menu, and press [OK] to enter the setting page as below:
Language: Optional items: English, Chinese & Francais.
H, Osd Mirroring
Video Setting: Setting 2D NR, 3D NR, WD R Enable, Flip-H, Osd Mirroring.
Audio Setting: Setting 3A Enable, Mic Equalizer.
EPTZ: Optional items: On, Off.
Zoom Limit: Optional items: 1.5x, 2x, 3x, 4x, 5x.
HDMI Format: Optional items: 1080P@60, 1080P@50, 1080P@30, 4K@30. Tracking Mode: Optional items: Off, Participants, Speaker.
Tracking Effect: Optional items: Smooth, Instantaneous (Effective only in Participants or Speaker of Tracking Mode).
Tracking Speed: Optional items: Slow, Normal, Fast (Effective only in Participants or Speaker of Tracking Mode).

Information

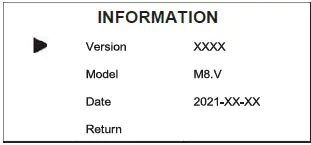

Move the cursor to “Information” in the main menu, and press [OK] to enter the information page as below:

Note: The above information is for reference only, please refer to the real product for the actual specifiction.

Restore Default

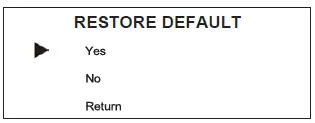

Move the cursor to “Restore Default” in the main menu, and press [OK] to enter the restore default page as below:

Yes / No: Confirm or cancel restore factory settings.
NOTE
GUI menu and parameter information are subject to change without notice.

Maintenance & Troubleshooting

Camera Maintenance

If the camera is not used in long term, please disconnect the power switch after use.

• Use soft cloth or cotton paper to remove dust from the camera housing.
• When cleaning the camera lens, please use a dry soft cloth to wipe, if dirt is serious, use neutral cleaner gently. Do not use strong or corrosive detergent, lest the lens scratch, affect the image effect.

Avoid Using

• The camera should avoid shooting particularly bright objects, such as sunlight, lights, etc.
• The camera should not work under unstable lighting conditions, otherwise, the image will flash.
• Do not use around facilities that can transmit high-power radio waves, such as television stations or radio-transmitting stations.

Troubleshooting
The video image displayed by the camera lens has a jitter.

1. Check whether the camera installed position be stabled.
