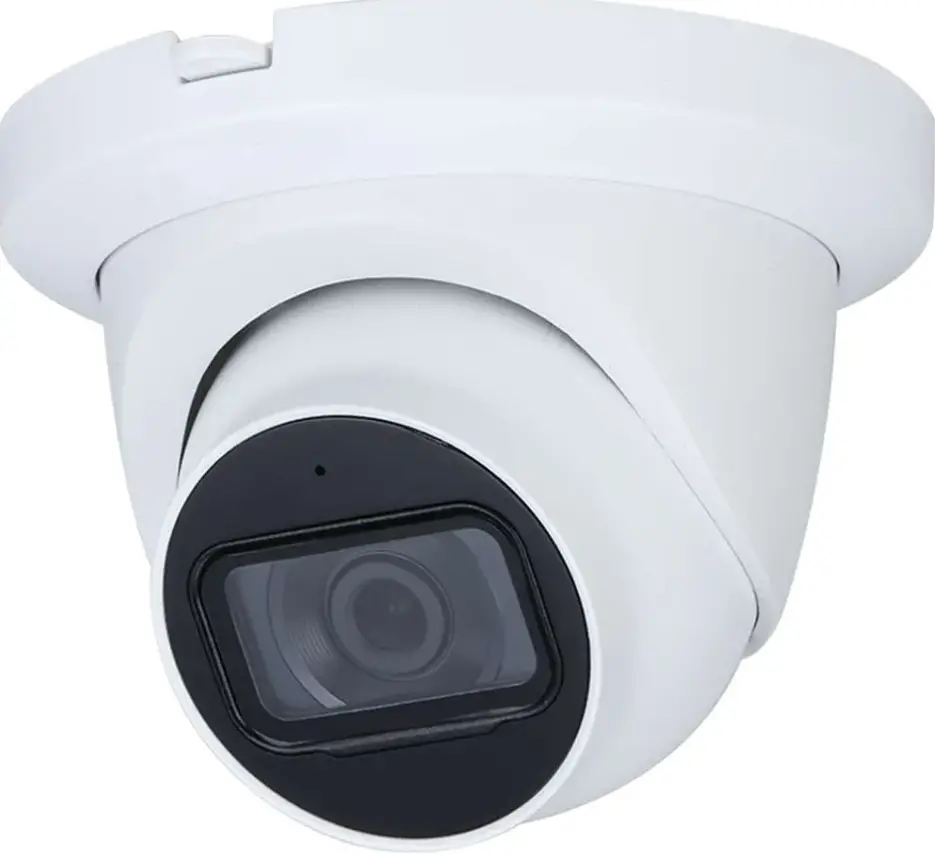

WORLD EYECAM HCC3320TLMQ-IRA/28 2MP HDCVI Quick to Install IR Turret Camera
Product Information
- Product Name: HCC3320TLMQ-IRA/28
- Product Type: 2MP HDCVI Quick-to-install IR Turret Camera
- Resolution: 1080p
- Series: Lite
- Infrared Range: 30m
- IP Rating: IP67
- Audio: Supported
- Power Supply: DC 12V
Product Usage Instructions
Functions
- 4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras. - Installation:
The HDCVI Quick-to-install turret camera is designed for easy installation. It comes with a quick-to-install pedestal that simplifies the installation process compared to conventional eyeball cameras. This reduces both time and labor costs. - Transmission:
The HDCVI technology used in this camera allows for long-distance transmission without any loss.
It supports up to 800m (1080p)/1200m (720p) transmission via coaxial cable, and up to 300m (1080P)/450m (720P) via UTP cable. - Simplicity:
The HDCVI technology inherits the simplicity of traditional analog surveillance systems, making it an ideal choice for investment protection. It can seamlessly upgrade existing analog systems without the need to replace coaxialcabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. - Smart IR:
The camera is equipped with IR LED illumination for optimal low-light performance. The Smart IR technology ensures brightness uniformity in black and white images under low illumination. It adjusts the intensity of the camera’s infrared LEDs to compensate for the distance of an object, preventing overexposure as the object gets closer to the camera. - Multi-formats:
The camera supports multiple video formats including HDCVI, CVBS, and other common HD analog formats in the market. The formats can be switched through the OSD menu or by using a PFM820(UTC controller), allowing compatibility with most existing HD/SD DVRs. - Multi-language OSD:
The OSD menu provides multiple image adjustments and function settings to meet different monitoring scenes. It offers configurations such as backlight mode, day/night settings, white balance, privacy mask, and motion detection. The camera supports 11 languages for the OSD menu, including Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian, and Polish. - Protection:
The camera is designed with outstanding reliability and is protected against water and dust with an IP67 ranking. This makes it suitable for both indoor and outdoor environments.
For more information, please visit www.enssecurity.com
System Overview
Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
Technical Specification
Camera
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 1920(H)×1080(V) |
| Pixel | 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
| S/N Ratio | >65dB |
| Min. Illumination | 0.02Lux/F1.9, 30IRE, 0Lux IR on |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Max. Aperture | F1.9 | ||||
| Field of View | 2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical) 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) | ||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 2.8 mm: 0.5 m (1.7 ft) 3.6 mm: 0.8 m (2.6 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 38.6 m (126.6 ft) | 15.4 m (50.5 ft) | 7.7 m (25.3 ft) | 3.9 m (12.8 ft) | |
| 3.6 mm | 49.7 m (163.1 ft) | 19.9 m (65.3 ft) | 9.9 m (32.5 ft) | 5 m (16.4 ft) | |
Video
| Frame Rate | CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Electronic Defog | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
Certification
| CE (EN55032:2015, EN 61000-3-2:2014, EN 61000- | |
| 3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, | |
| Certifications | EN50130-4:2011+A1:2014) |
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Port
| Audio Output | One channel built-in mic (-A) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
Power
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 2.9W (12V DC, IR on) |
Envirnoment
| Operating Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Storage Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Protection Grade | IP67 |
Structure
| Casing | Metal dome+metal cover+plastic decorative ring |
| Camera Dimensions | φ109.9 mm × 88.1 mm ( φ4.33″ × 3.47″ ) |
| Net Weight | 0.33 Kg (0.73 lb) |
| Gross Weight | 0.44 Kg (0.97 lb) |

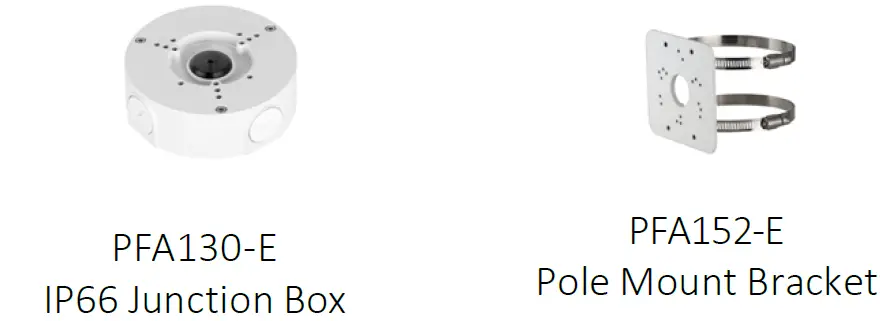

Accessories

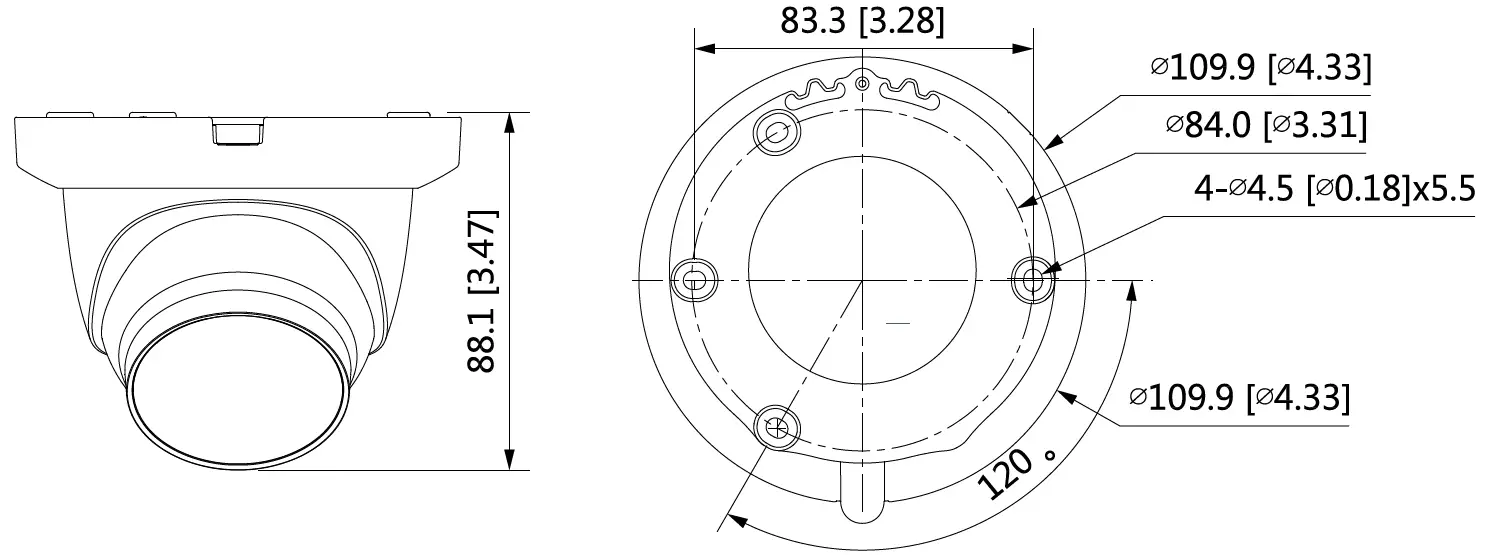

Dimensions (mm[inch])
