Model	HNC2V320T1-IR/28-QH2

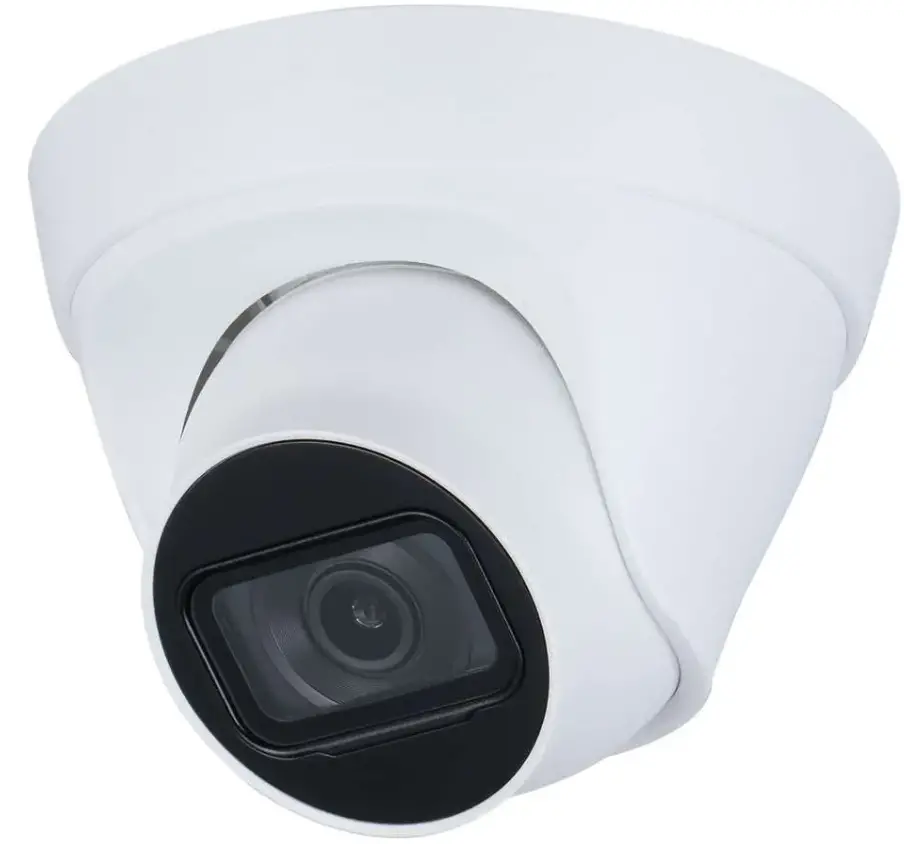

Product Name	2MP Entry IR Fixed-Focal Turret Network Camera
Features	Simple installation, easy operation, high performance-cost ratio
Applicable Scenes	Small and medium-sized scenes such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises

*Video* *Standard*
Video Compression	H.265 / H.264 / H.264B / MJPEG (Sub stream only)
Smart Codec	Smart H.265+ / Smart H.264+
Video Frame Rate	Main stream: 1920 × 1080 @ (1–25/30 fps) Sub stream: 704 × 576 @ (1–25fps) 704 × 480 @ (1–30fps)
Streaming Capability	2 Streams
Video Resolution	1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR, VBR
Video Bitrate	H264: 32 Kbps ~ 6144 Kbps H265: 12 Kbps ~ 6144 Kbps
Day / Night	Auto (ICR) / Color / B / W
BLC Mode	Yes
HLC Mode	Yes
Wide Dynamic Range	DWDR
White Balance	Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control	Auto / Manual
Digital Noise Reduction	3D DNR
Motion Detection	On / Off (4 areas, rectangular)
Region of Interest	4
Smart Illumination	Yes
Mirror	Yes
Privacy Masking	Yes (4 areas)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 ×1560 resolution and lower)

*Alarm*
Alarm Event	Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception

*Network* & *Interface*
Ethernet	RJ-45 (10/100 Base-T)
SDK and API	Yes
Cyber Security	Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trust- ed boot; trusted execution; trusted upgrade
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Network Interoperability	ONVIF (Profile S/Profile T); CGI; P2P; Genetec
Streaming Method	N/A
Network Max. Users	6 (Total bandwidth: 36 M)
Storage	FTP
Web Viewer	IE / Chrome / Firefox
Management Software	Smart PSS / DSS / DMSS
Mobile	iOS / Android
BNC	N/A
Audio I/O	N/A
Alarm I/O	N/A
Audio Compression	N/A
RS485	N/A
Built-in MIC	N/A

*General*
Power Supply	12 V DC / PoE (802.3af)
Power Consumption	Basic: 1.4 W (12 V DC); 2.2 W (PoE); Max. (ICR+ H.265 + IR intensity): 3.3 W (12 V DC); 4.3 W (PoE)
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F) / ≤ 95% RH
Storage Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Protection	IP67
Casing	Metal and Plastic

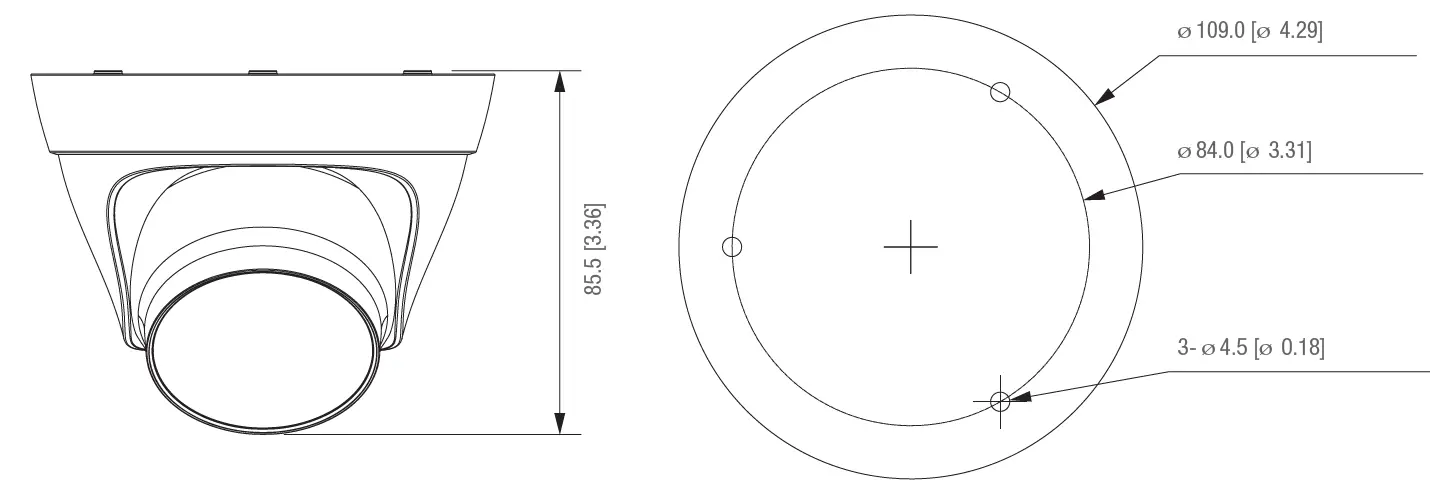

Dimensions	85.5 mm × ø 109 mm (3.4” × ø 4.3”)
Net Weight	240 g (0.5 lb)
Gross Weight	370 g (0.8 lb)
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
Outputs max. 2MP (1920 × 1080) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate Built-in efficient IR illuminator, and the max. illumination distance is 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
12 V DC/PoE power supply
IP67 protection
