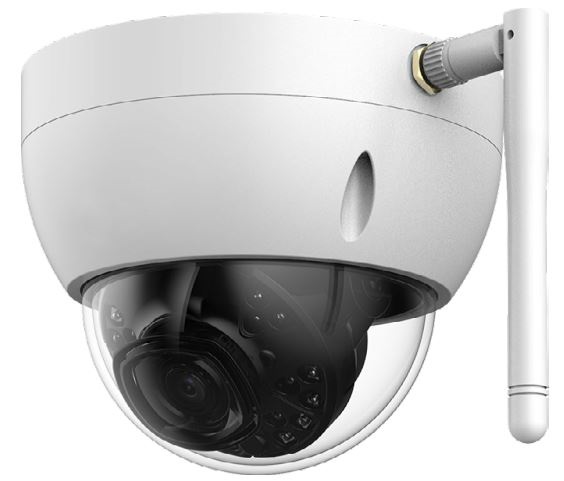

WORLD EYECAM HNC3V241E-IR/28-W-S2 4MP IR Dome WiFi Camera
Product Information
HNC3V241E-IR/28-W-S2
The HNC3V241E-IR/28-W-S2 is a 4MP IR Dome Wi-Fi Camera with features of simple installation, easy operation, and high performance-cost ratio. It is designed for small and medium-sized scenes such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises. The camera offers high-resolution image capture and various advanced features for enhanced security.
Product Usage Instructions
Installation
Follow the steps below to install the HNC3V241E-IR/28-W-S2 camera:
- Choose a suitable location for camera placement.
- Mount the camera securely using the provided accessories (PFA136, PFB203W, PFA152-E).
- Ensure proper power supply and connect the camera to a stable network (Ethernet or Wi-Fi).
Operation
Once the camera is installed, follow the instructions below to operate it:
- Access the camera’s web viewer or mobile app using a compatible browser or device.
- Log in to the camera using the provided credentials.
- Adjust camera settings such as image resolution, video compression, and motion detection according to your preferences.
- Monitor the live feed from the camera and access recorded videos if applicable.
- Utilize advanced features like wide dynamic range, defog, and region of interest for enhanced video quality.
- Manage audio input/output and alarm input/output settings as needed.
Note: Refer to the user manual for detailed instructions on accessing and using specific features of the HNC3V241E-IR/28-W-S2 camera. If you encounter any issues or have further questions, please contact our customer support at the provided contact numbers for assistance.
Please refer to the product’s official website for more information: www.enssecurity.com
MODEL(S) AVAILABLE
- HNC3V241E-IR/28-W-S2
With features of simple installation, easy operation, and high performance-cost ratio, this series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
KEY FEATURES
- 4MP, 1/3” CMOS image sensor, low illuminance, high
- image definition
- Outputs max. 4MP (2560 × 1440) @ 20 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Max. IR distance: 98 ft (30 m) ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Supports 256 GB Micro SD card
- 12 V DC power supply, easy for installation
- IP67, IK10 protection
- Supports Wi-Fi
Product Specifications
Camera
| Image Sensor | 1/1.3” 4MP Progressive CMOS |
| Image Resolution | 2560 (H) × 1440 (V) |
| Electronic Shutter | Auto/Manual 1/3 s ~ 1/100,000 s |
|
Minimum Illumination | Manual 1/30 s 0.8872 Lux @ F2.0 (Color, 80 IRE); 1.0275 Lux @ F2.0 (W/B, 80 IRE); 0 Lux (IR on) |
| Manual 1/3 s 0.0936 Lux @ F2.0 (Color, 80 IRE); 0.1543 Lux @ F2.0 (W/B, 80 IRE); 0 Lux (IR on) | |
| S/N Ratio | > 51.025 dB |
| IR LEDs | 18 (IR LED) |
| IR Distance | 98 ft (30 m) |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Angle of View | Horizontal: 97° |
| Vertical: 52° | |
| Vertical: 116° | |
| Max. Aperture | F2.0 |
| Close Focus Distance | 2.6 ft (0.8 m) |
| Pan / Tilt / Rotation | Pan: 0°~360° / Tilt: 0°~90° / Rotation: 0°~355° |
Video Standard
| Video Compression | H.265 / H.264 / H.264H / H.264B / MJPEG |
| Smart Codec | Smart H.265+ / Smart H.264+ |
|
Video Frame Rate | Main stream: 2560×1440 @ 20 fps / 2304×1296 @ 25/30 fps |
| Sub stream: 640×480 @ 25/30 fps | |
| Streaming Capability | 2 Streams |
| Video Resolution | 4M (2560 × 1440); 2M (2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); VGA (640 × 480); QVGA (320 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bitrate | H264: 24 Kbps ~ 8192 Kbps H265: 9 Kbps ~ 7424 Kbps |
| Day / Night | Auto (ICR) ; Color; B/W |
| BLC Mode | Yes |
| HLC Mode | Yes |
| Wide Dynamic Range | DWDR |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Gain Control | Auto / Manual |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | On / Off (4 areas, rectangular) |
| Region of Interest | 4 |
| Smart Illumination | Yes |
| Defog | N/A |
| Exposure Mode | N/A |
| Mirror | Yes |
| Privacy Masking | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with all resolution) |
Network & Interface
| Ethernet | RJ-45 (10/100 Base-T) |
| Wi-Fi | Yes |
| SDK and API | Yes |
| Network Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QoS; NTP |
| Network Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Milestone |
| Streaming Method | N/A |
| Network Max. Users | 20 (Total bandwidth: 40 M) |
| Storage | FTP; SFTP; NAS Micro SD Card Slot (support max. 256 GB) |
| Web Viewer | IE / Chrome / Firefox |
| Management Software | DMSS |
| Mobile | iOS / Android |
| BNC | N/A |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| RS485 | N/A |
| Built-in Mic | N/A |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering |
Video Intelligent
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
General
| Power Supply | 12 V DC / PoE (802.3af) |
| Power Consumption | < 4.9 W (IR full intensity) |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) / ≤ 95% RH |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Protection | IP67, IK10 |
| Casing | Metal |
| Dimensions (L × W × H) | 146.2 mm × 110.7 mm × 90.6 mm (5.8” × 4.4” × 3.6”) |
| Net Weight | 408 g (0.9 lb) |
| Gross Weight | 729 g (1.6 lb) |
|
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU CE-RED: Radio Equipment Directive 2014/53/EU FCC: 47 CFR FCC Part 15, Subpart B FCC ID: FCC PART 15C |

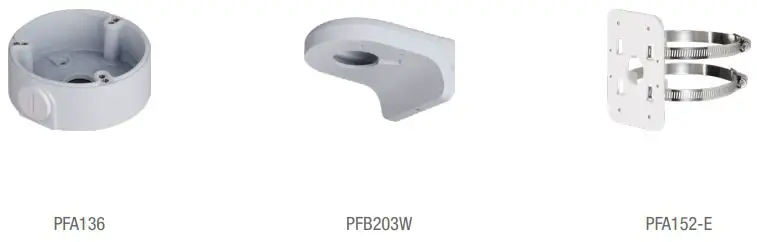

Product Accessories

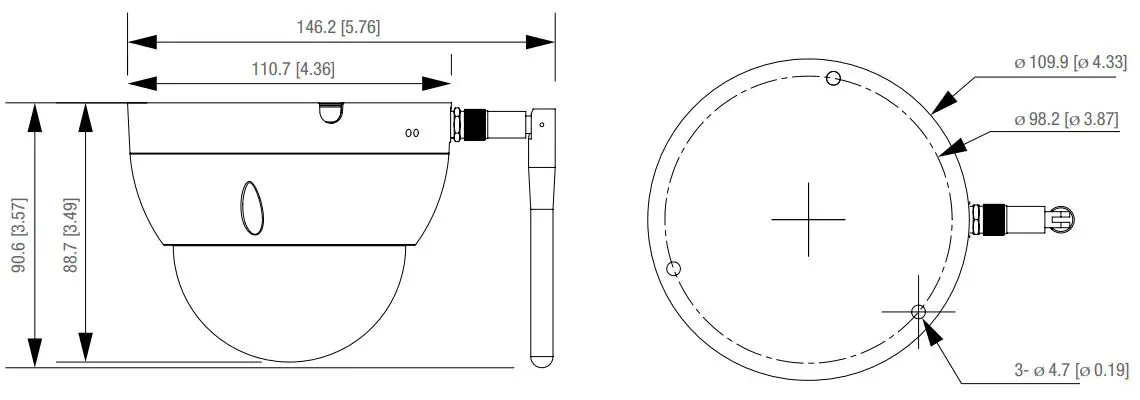

Product Dimensions
Product Dimensions ( mm [inch] )
