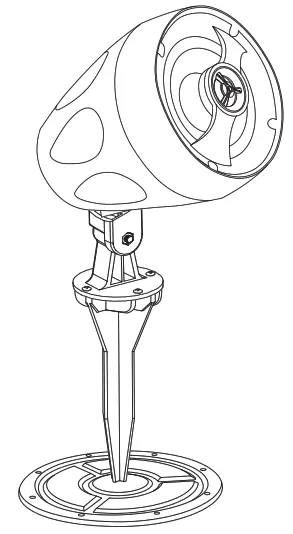

Jade Pps-600 Landscape Speaker Instruction Manual

Landscape Speaker
PPS-600
Instruction Manual

SAFETY INSTRUCTIONS

1. Please read the instructions carefully before installation and use. Keep the manual safe for future reference.
2. When installing these speakers outside do not submerge or place them in direct contact with water (e.g., ponds, waterfalls, fountains).
3.  Damage to the woofer and tweeter may occur if the speaker is dropped or hit – resulting in no sound or distorted sound.
4. Use only approved and certified wiring in your installation, do not stretch or place the wire in contact with sharp objects.
5. Never overdrive your speakers to the point of distortion and always reduce volume prior to switching input sources (e.g.: FM to CD).
6. Prior to removing cables ensure all power to your amplifier and other components are turned OFF.
7. Turn off the power to the speaker when unused for long periods of time.

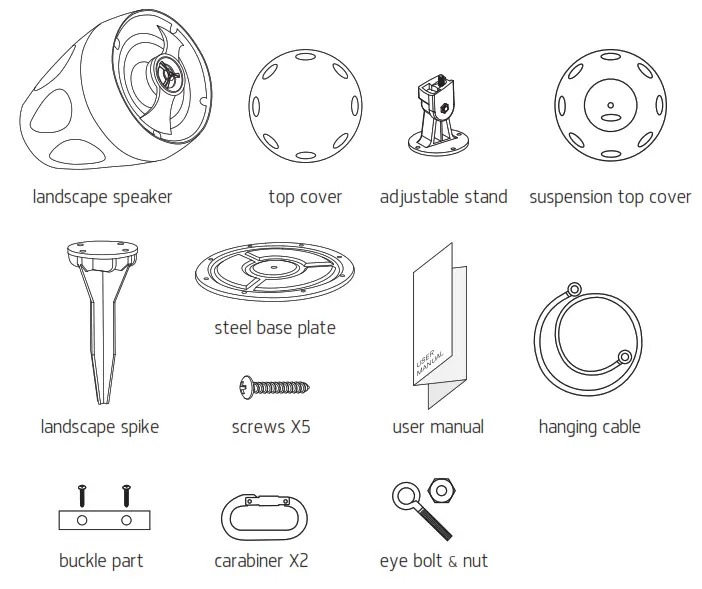

PACKING LIST

INSTALLATION

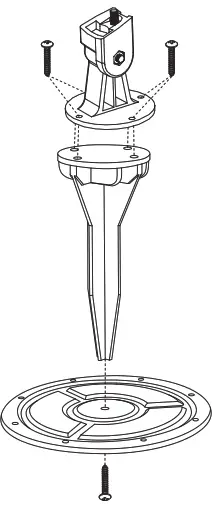

1. Attach the landscape spike to the adjustable stand and steel base plate.
2. Attach the landscape spike to the speaker.

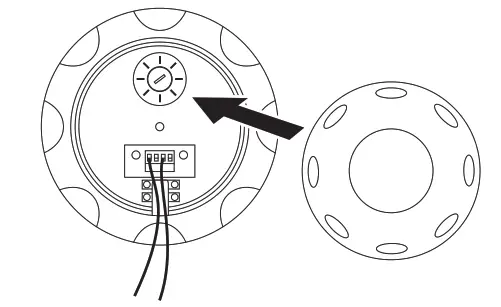

3. Connect the wire to the speaker and attach the top cover to the speaker.

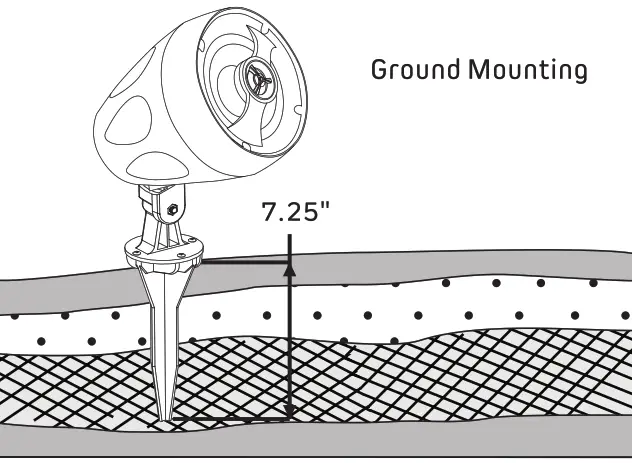

4.

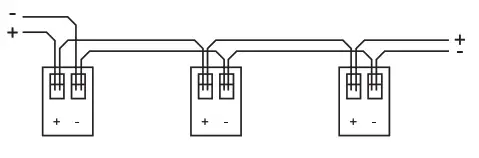

5. Connections (For Speakers with Transformer) Ensure that the speaker is unplugged from the mains before making any connections.
   For 4″ Speakers (From Power Amplifier to Next Speaker)For 6.5″ Speakers (from power amp ifier to next speaker)


SPECIFICATIONS

CARE AND MAINTENANCE

Ensure all equipment is turned OFF prior to cleaning. Surfaces and cabinets need only occasional dusting/cleaning. Never touch the speaker drivers. Never use chemicals or solvents as they may damage the surface. Always clean using a dry cloth.
