RHTS Assembly Instructions

Thank you for purchasing these RHTS Wood Speaker Stands. Please read these instructions carefully before use. Make sure all parts are included. If any parts are missing please contact our technical helpline at 1-646-758-0144, Monday through Thursday, 9 am to 10 pm EST., and Fridays, 9 am to 3 pm EST.
ROCKVILLE Wood Speaker Stand - APP
Who Reads Manuals?
Go to vimeo.com/000000000 or scan the OR code and watch a short video, which shows you how to set this item up and how to use it.

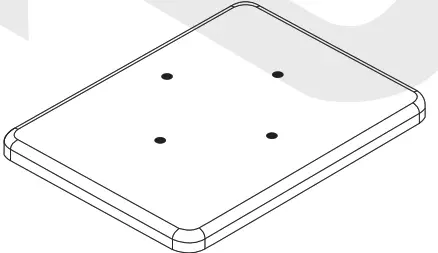

BaseplateROCKVILLE Wood Speaker Stand - BASE PLET2 pcs
Small platformROCKVILLE Wood Speaker Stand - BASE PLET2 pcs
Large platformROCKVILLE Wood Speaker Stand - BASE PLET2 pcs

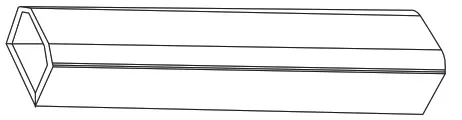

Stand bodyROCKVILLE Wood Speaker Stand - BODY2 pcs
EVA isolation padsROCKVILLE Wood Speaker Stand - ISOLATION8 pcs
Phillips- head ScrewsROCKVILLE Wood Speaker Stand - SCREW16 pcs
Brass isolation spikesROCKVILLE Wood Speaker Stand - SPEAKS8 pcs
Rubber isolation spikesROCKVILLE Wood Speaker Stand - SPEAKS 28 pcs
Cable clipsROCKVILLE Wood Speaker Stand - CLIPS4 pcs
Zip tiesROCKVILLE Wood Speaker Stand - ZIP4 pcs

RockvilleAudio.com

Specifications

  • Stand height: 36″
  • Load capacity: 60 Lbs
  • Large platform size: 11.8″x 9.25″
  • Small platform size: 7.28″x 9.25″
  • Base plate: 11.8″x 9.25″
  • Stand weight: 12.5 lbs

Tools needed:

  • Phillips-head screwdriver

ROCKVILLE Wood Speaker Stand - FIG 1

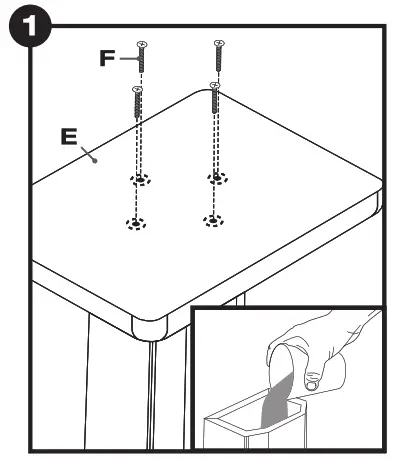

Attach the base plate (E; flat side up) by aligning The screw holes with the stand body as in figure 1. Use four screws (F) to secure it in place. After attaching the base plate you may consider partially filling the stand body with sand for additional stability (see inset).

ROCKVILLE Wood Speaker Stand - FIG2

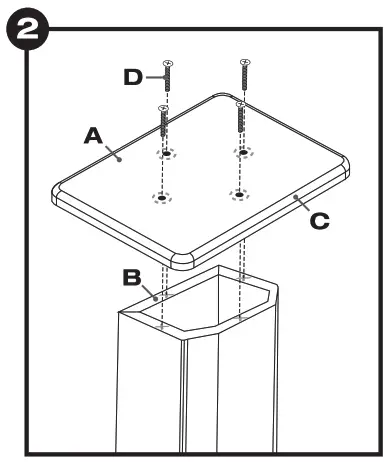

Select the appropriate size platform (A; there are two included). Align the holes on the platform with the edges of the stand body (B). Make sure that the beveled side of the platform (C) is facing up. Use four screws (D) to secure it in place.

ROCKVILLE Wood Speaker Stand - FIG3

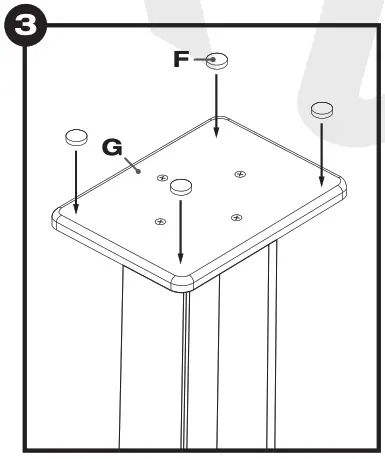

Peel back the cover on the adhesive side of the EVA sound isolation pads (F) and place one on each corner of the top plate (G). These pads help to minimize resonance.

ROCKVILLE Wood Speaker Stand - FIG 4

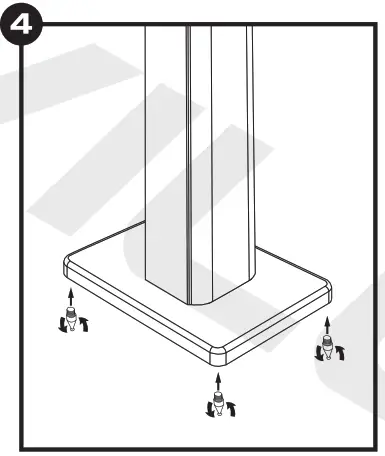

Now attach the isolation spikes to the bottom of the base plate. If needed, adjust the spike height to keep the stand level. To place the stand on a carpeted floor, use brass spikes. If you are placing the stand on wood, laminate, tile, or bare floor you should use the included rubber spikes.

ROCKVILLE Wood Speaker Stand - FIG 5

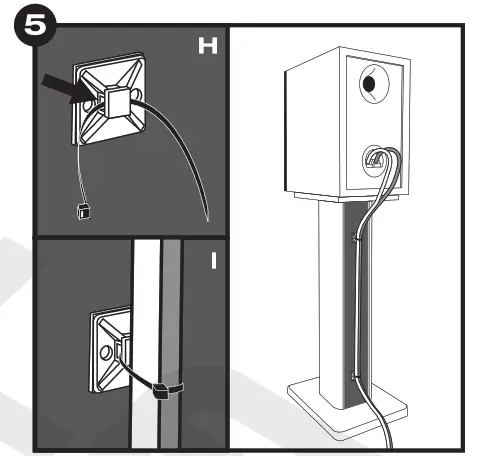

The final step is to attach the cable clips to the back of the unit. Peel the cover off of the adhesive backing and place the clips in the desired locations. Once the clips are in place, slide a zip tie through the opening on the side of the clip (see inset H). Use the zip tie to secure the speaker cables (see inset I).
2021 ROCKVILLE // The information presented is subject to change and or improvement without notice.
