CCTSCK4936791 ServersCheck Indoor Dust Particle Sensor Probe
Overview
The Particle Sensor (ENV-PARTICLE) is used in detecting particle concentration in HVAC and air quality applications. This document aims to guide the user in installing our ENV-PARTICLE in your facilities and also to provide recommendations for sensor placement. You may visit our Particle sensor page at: https://infrasensing.com/sensors/sensor_particle.asp
What you need
- Power source (PoE or 12V DC)

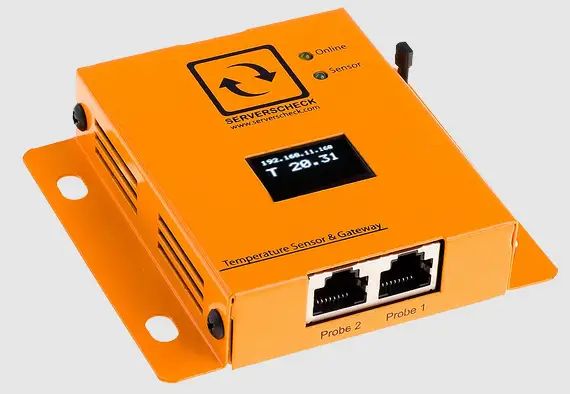

- BASE-WIRED
- LAN cable
- ENV-PARTICLE
Recommended placements

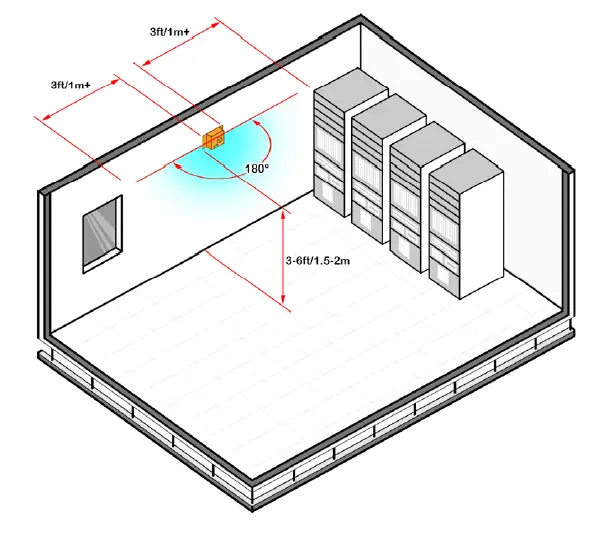

For air quality monitoring, the sensor should be placed:
- Within the breathing level in the room, this is between 3-6ft or 1.5-2m from the floor.
- At least 3ft/1m away from any obstacles, openings, and ventilations.
- At 180 ° free of any obstruction.
- Not being close to any pollutants that may impact its result.
For particle air inlet and outlet:

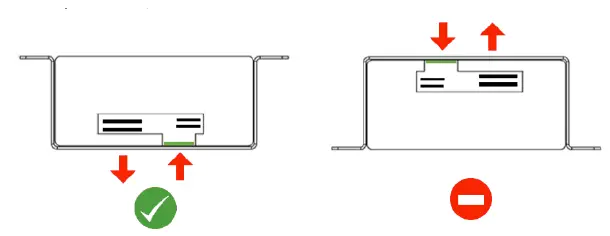

- The ENV-PARTICLE is housed in a metal frame that has 2 air inlets and 1 air outlet that should remain unobstructed at all times.

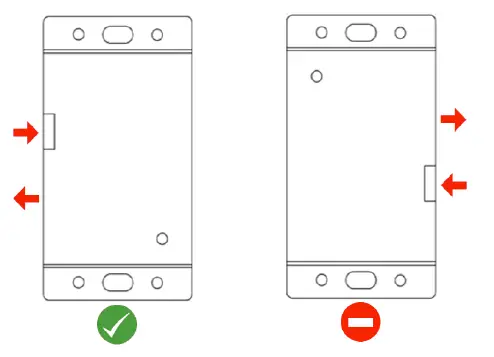

- In vertical orientation, the inlets/outlets should be facing down to avoid dust accumulation.
- In lateral placement, the inlets should be above the outlet to avoid returning of particles to the inlets.

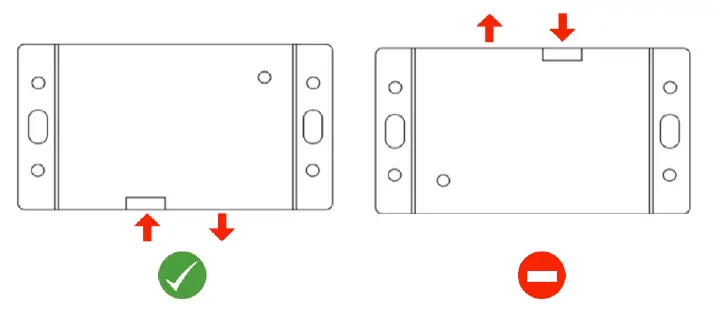

- In horizontal placement, the green marked inlet should be facing the ground.
Installation

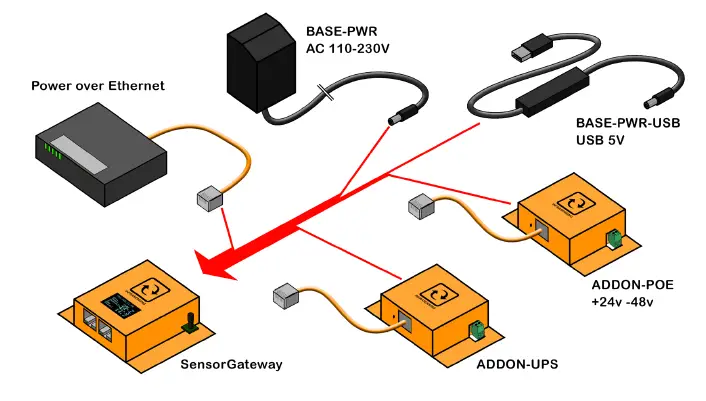

Supply power to the BASE-WIRED via PoE(power over ethernet or 12V DC adapter/BASE-PWR) Other power options include BASE-PWR-USB, ADDON-POE, ADDON-UPS.
Connecting the BASE-WIRED to the ENV-PARTICLE

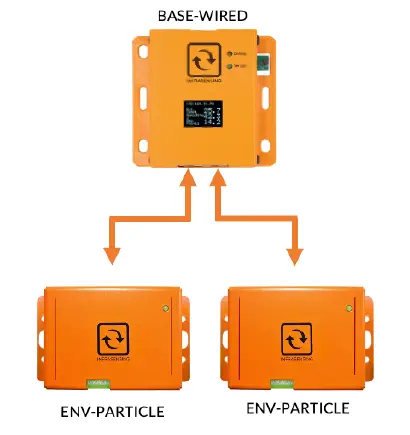

- Via direct LAN connection

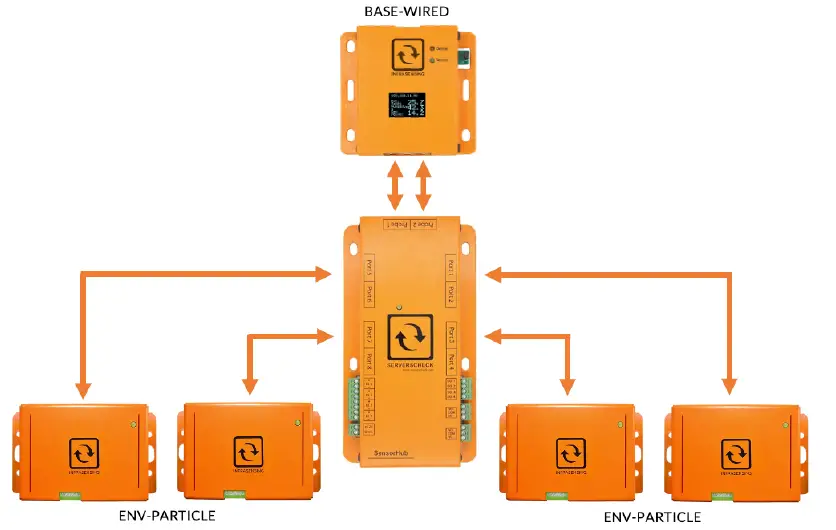

- Via SensorHub(EXP-8HUB)

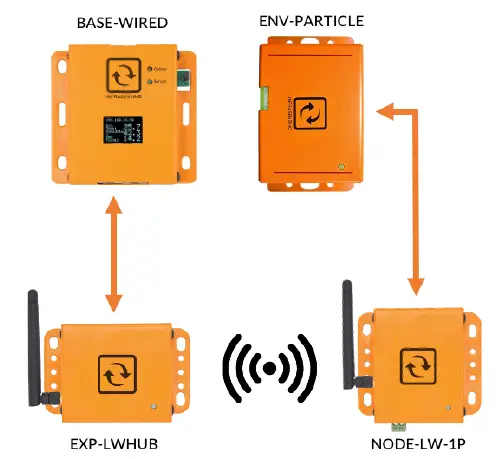

- Via LoRa (EXP-LWHUB and NODE-LW-1P)
You can wirelessly connect your sensor probe to the BASE-WIRED, each LoRa Hub can support up to 20 LoRa Node. The LoRa Hub’s power is supplied by the BASE-WIRED while the LoRa Node’s power can be supplied by 12/24V DC or a USB-C type.
Digital PM1,2.5,4 & 10 particle sensor
