greencreative PLS BYPASS AND HYBRID
FEATURES
- Built-in universal driver – Bypass installation operates directly on 120 – 277V line voltage
- Hybrid Bypass versions can also operate directly on most magnetic ballasts*
- Bypass versions replace 7W-13W CFL lamps with 2G7 & 2GX7 bases Hybrid Bypass versions replace 7W-13W CFL lamps with G23 & GX23 (2-pin) bases Exceptional efficacy up to 113 LPW
- Suitable for damp locations
- Lamp ambient temperature: -4°F to 113°F (-20°C to 45°C)
- Fixture operating temperature: -4°F to 95°F (-20°C to 35°C)
- Rated lifetime (L70): 50,000hrs
- 5 year limited warranty**/ 10 year available (see EXTENDED WARRANTIES table for information)
SPECIFICATIONS
| SPECIFICATIONS | |||||||||||||
| Product | Model | Equiv. | Input Voltage | Wattage | Lumens | CCT | CRI | Efficacy (LPW) | Power Factor | THD | Beam Angle | Base Rotatable Angle | Fixture Rating |
| 36631 | 3.5PLS/835/BYP/2G7/R | 7-9W | 120-277V | 3.5 | 350 | 3500K | 82 | 100 | 0.9 | ＜20% | 120° | 180° | Enclosed |
| 36637 | 5.5PLS/835/BYP/2GX7/R | 13W | 120-277V | 3.5 | 600 | 3500K | 82 | 109 | 0.9 | ＜20% | 110° | 180° | Enclosed |
| 36627 | 3.5PLS/827/HYB/G23/R | 7-9W | 120-277V | 3.5 | 325 | 2700K | 82 | 93 | 0.9 | ＜20% | 120° | 170° | Enclosed |
| 36628 | 3.5PLS/830/HYB/G23/R | 7-9W | 120-277V | 3.5 | 340 | 3000K | 82 | 97 | 0.9 | ＜20% | 120° | 170° | Enclosed |
| 36629 | 3.5PLS/835/HYB/G23/R | 7-9W | 120-277V | 3.5 | 350 | 3500K | 82 | 100 | 0.9 | ＜20% | 120° | 170° | Enclosed |
| 36630 | 3.5PLS/840/HYB/G23/R | 7-9W | 120-277V | 3.5 | 370 | 4000K | 82 | 106 | 0.9 | ＜20% | 120° | 170° | Enclosed |
| 36632 | 5.5PLS/827/HYB/GX23/R | 13W | 120-277V | 5.5 | 520 | 2700K | 82 | 95 | 0.9 | ＜20% | 110° | 170° | Enclosed |
| 36633 | 5.5PLS/830/HYB/GX23/R | 13W | 120-277V | 5.5 | 550 | 3000K | 82 | 100 | 0.9 | ＜20% | 110° | 170° | Enclosed |
| 36634 | 5.5PLS/835/HYB/GX23/R | 13W | 120-277V | 5.5 | 600 | 3500K | 82 | 109 | 0.9 | ＜20% | 110° | 170° | Enclosed |
| 36635 | 5.5PLS/840/HYB/GX23/R | 13W | 120-277V | 5.5 | 620 | 4000K | 82 | 113 | 0.9 | ＜20% | 110° | 170° | Enclosed |
| 36644 | 5.5PLSH/827/HYB/GX23/R | 13W | 120-277V | 5.5 | 570 | 2700K | 82 | 104 | 0.9 | ＜20% | 110° | 310° | Non-Enclosed |
| 36645 | 5.5PLSH/830/HYB/GX23/R | 13W | 120-277V | 5.5 | 580 | 3000K | 82 | 105 | 0.9 | ＜20% | 110° | 310° | Non-Enclosed |
| 36646 | 5.5PLSH/835/HYB/GX23/R | 13W | 120-277V | 5.5 | 600 | 3500K | 82 | 109 | 0.9 | ＜20% | 110° | 310° | Non-Enclosed |
| 36647 | 5.5PLSH/840/HYB/GX23/R | 13W | 120-277V | 5.5 | 620 | 4000K | 82 | 113 | 0.9 | ＜20% | 110° | 310° | Non-Enclosed |
| 98403 | 5.5PLSV/827/HYB/GX23 | 13W | 120-277V | 5.5 | 570 | 2700K | 82 | 104 | 0.9 | ＜20% | 120° | 310° | Non-Enclosed |
| 98404 | 5.5PLSV/830/HYB/GX23 | 13W | 120-277V | 5.5 | 600 | 3000K | 82 | 109 | 0.9 | ＜20% | 120° | 310° | Non-Enclosed |
| 98405 | 5.5PLSV/835/HYB/GX23 | 13W | 120-277V | 5.5 | 600 | 3500K | 82 | 109 | 0.9 | ＜20% | 120° | 310° | Non-Enclosed |
| 98406 | 5.5PLSV/840/HYB/GX23 | 13W | 120-277V | 5.5 | 620 | 4000K | 82 | 113 | 0.9 | ＜20% | 120° | 310° | Non-Enclosed |

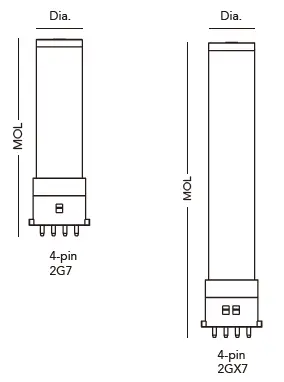

DIMENSION & WEIGHT
| Model | 3.5PLS/xxx/BYP/2G7/R | 5.5PLS/xxx/BYP/2GX7/R |
| Compatible base | 2G7 (4-pin) | 2GX7 (4-pin) |
| MOL | 4-3/4” | 6-9/16″ |
| Dia | 1-7/16″ | 1-7/16″ |
| Weight | 0.06 lb | 0.06lb |

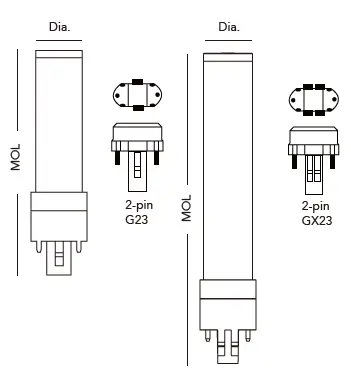

| Model | 3.5PLS/xxx/HYB/G23/R | 5.5PLS/xxx/HYB/GX23/R |
| Compatible base | G23 (2-pin) | GX23 (2-pin) |
| MOL | 5-5/16″ | 7″ |
| Dia | 1-1/4″ | 1-1/4″ |
| Weight | 0.08 lb | 0.08 lb |

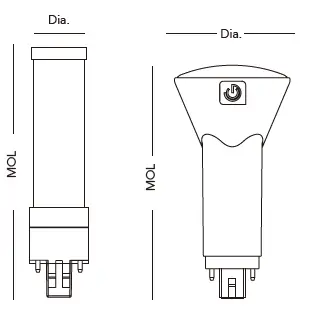

| Model | 5.5PLSH/xxx/HYB/GX23/R | 5.5PLSV/xxx/HYB/GX23 |
| Compatible base | GX23 (2-pin) | GX23 (2-pin) |
| MOL | 5-1/2″ | 5-1/4″ |
| Dia | 1-3/8″ | 2-9/16″ |
| Weight | 0.15 lb | 0.16lb |

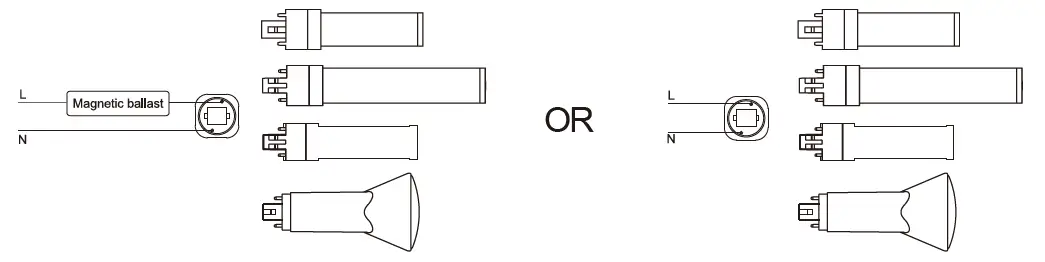

HYBrid Installation – DIRect (Magnetic Ballasts) or BYPass

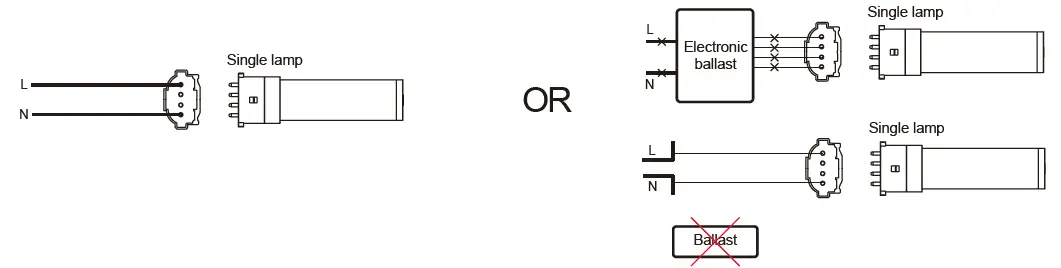

BYPass Installation

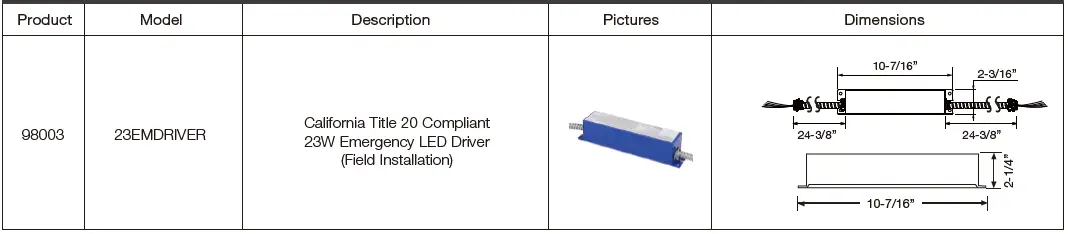

ACCESSORY ORDERING INFORMATION
EXTENDED WARRANTIES
| Model | Description**** |
| 3.5PLS/BYP/10YEARWARRANTY | 10 Year warranty for 3.5PLS/8xx/BYP/2G7/yy |
| 5.5PLS/BYP/10YEARWARRANTY | 10 Year warranty for 5.5PLS/8xx/BYP/2GX7/yy |
| 3.5PLS/HYB/10YEARWARRANTY | 10 Year warranty for 3.5PLS/8xx/HYB/G23/yy |
| 5.5PLS/HYB/10YEARWARRANTY | 10 Year warranty for 5.5PLS/8xx/HYB/GX23/yy |
| 5.5PLSH/HYB/10YEARWARRANTY | 10 Year warranty for 5.5PLSH/8xx/HYB/GX23/yy |
| 5.5PLSV/HYB/10YEARWARRANTY | 10 Year warranty for 5.5PLSV/8xx/HYB/GX23/yy |
Warranty based on a maximum of 4,368 annual operating hours (per year for ten years) and exposure to a maximum fixture operating temperature of 80°F / 27°C xx – Refers to the CCT yy – Refers to model generations within the same nominal performance. Typically blank, ‘R’, or ‘RC’
