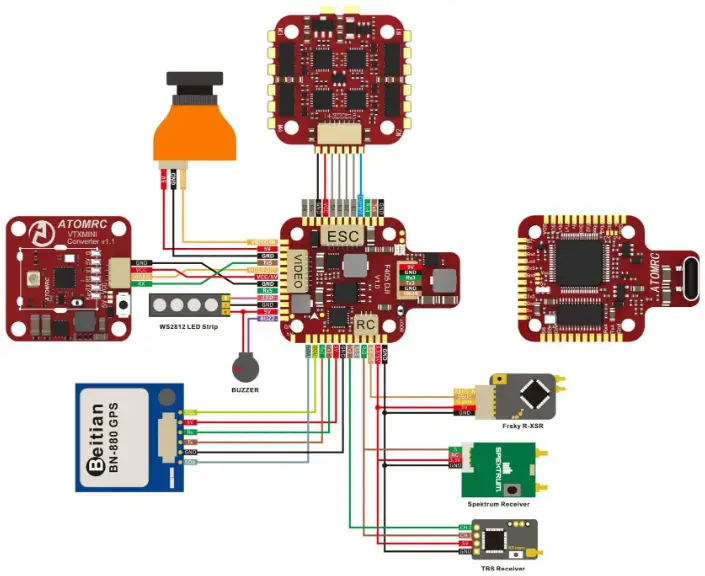

ATOMRC F405 35A AIO Exceed DJI Mini FC Instruction Manual

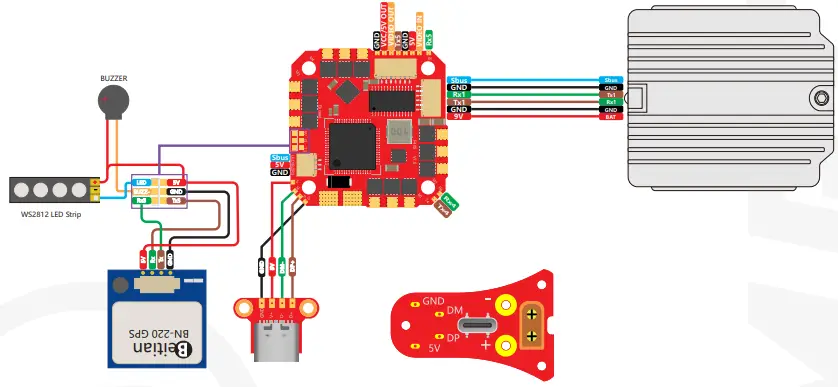

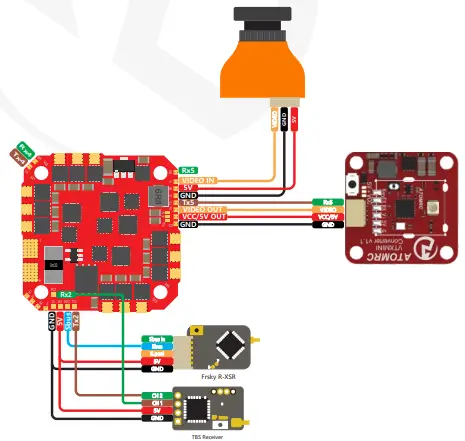

Assembly Instructions
Specification
ATOMRC Exceed F405 35A AIO
| Name | ATOMRC Exceed F405 35A AIO |
| FC MCU | STM32F405RGT6 |
| Gyro | MPU6000 |
| Blackbox | 16Mb Onboard Flash |
| BEC output | 5V 3A 、9V 3A |
| Connector | External USB- C |
| OSD | AT7456E |
| Uart | 5 (UART1、2、3、4、5) |
| Support LED | Yes |
| Support BUZZ | Yes |
| Target | ATOMRCF405(SKZO) |
| Current Sensor | Yes |
| Input | 2-4S LIPO |
| Current | Constant: 30A / Burst: 35A |
| BLHeli | BLHel-iS L_H_50_REV 16_7 |
| Mounting pattern | 25.5*25.5mm φ2mm |
| Dimensions | 34mm*34mm |
| Mosfet | Alpha Omega AON7318 |
| Weight | 9.7g |
Please download the latest user manual at www.atomrc.com/pages/download
