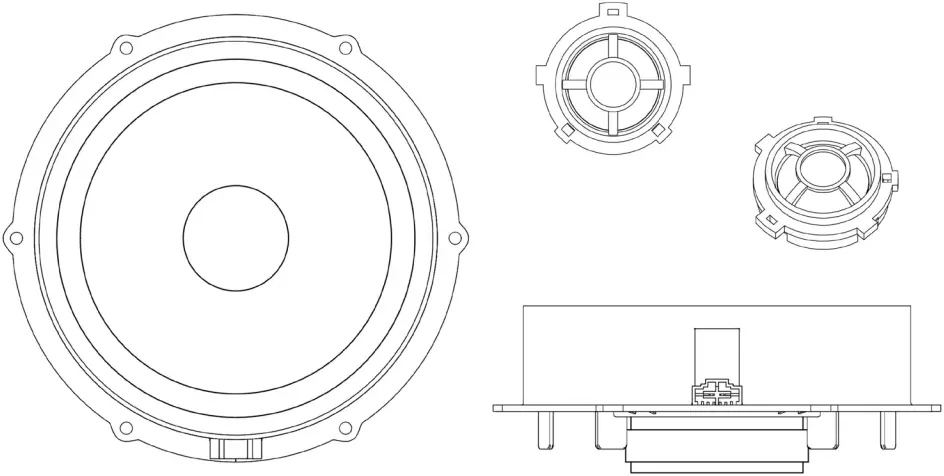

ZD Series
7″/175MM 2-WAY SPEAKER SYSTEM
SUITABLE FOR SELECT SEAT/SKODA/VW VEHICLES
Model: ZDSW7CS
SPECIFICATIONS
- includes 1″ Silk Domed Tweeter
- 7″ Midrange Speaker
- 2-Way Component System
- 180W Max Power Output
- 6dB Crossover
- Ferrite Motor
- Neodymium Motor
- Plug and Play
All specifications subject to change without notice.
ZDSW7CS – 7″/175mm 2-Way Component Speaker System
| SPECIFICATION | ZDSW7CS |
| Speaker | 7” two way system |
| Max Power (Watts) | 180 Watts |
| RMS Power (Watts) | 90 Watts |
| Crossover Filter | 6dB |
| Magnet | Neodymium (Tweeter) / Ferrite (Speaker) |
| Speaker Material | Composite Paper Cone |
| Tweeter Material | Silk |
| Connection | Plug & Play |
Installation
Remove the door cover of the preferred mounting site. Disconnect the original speaker/tweeter and place in storage. Connect the new speaker/tweeter and use pre-existing screws to fix firmly into place.
Make sure the enclosure is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
Compatibility
| Vehicle Make/Model | Chassis | Years | Front Location | Rear Location |
| SEAT Alhambra | 2010 – 2020 | Yes | ZDSW6CS | |
| Skoda Octavia (II) | 1Z | 2004 – 2013 | Yes | – |
| Skoda Octavia Combi (II) | 1Z | 2004 – 2013 | Yes | – |
| Skoda Superb (II) | 2008 – 2015 | Yes | – | |
| Skoda Yeti | 2018 – | Yes | – | |
| VW Arteon | 3H7 | 2017 – | Yes | – |
| VW Arteon (shooting brake) | 2020 – | Yes | – | |
| VW Atlas | CA1 | 2017 – | Yes | ZDSW6CS |
| VW Atlas Cross Sport | 2020 – | Yes | ZDSW6CS | |
| VW Beetle (III) | 2011 – 2016 | Yes | ZDSW6CS | |
| VW Beetle | 2017 – | Yes | – | |
| VW Bora | 2007 – 2013 | Yes | – | |
| VW Caddy (III) | 2K | 2004 – 2015 | Yes | – |
| VW Caddy (IV) | 2K-2C | 2015 – 2020 | Yes | – |
| VW CC | 2017 – | Yes | ZDSW6CS | |
| VW EOS | 1F | 2006 – 2015 | Yes | ZDSW6CS |
| VW Golf (V) | 1K | 2003 – 2008 | Yes | ZDSW6CS |
| VW Golf Plus | 1K | 2005 – 2014 | Yes | ZDSW6CS |
| VW Jetta (V) | 1KM | 2005 – 2010 | Yes | ZDSW6CS |
| VW Lamando | 2014 – 2020 | Yes | ZDSW6CS | |
| VW Magotan | B8 | 2016 – | Yes | ZDSW6CS |
| VW Passat | B8 | 2015 – | Yes | – |
| VW Phideon | 3E | 2016 – | Yes | Yes |
| VW Sharan | 7N | 2010 – 2020 | Yes | ZDSW6CS |
| VW Teramont | CA1 | 2017 – | Yes | ZDSW6CS |
| VW Teramont X | 2020 – | Yes | ZDSW6CS | |
| VW Tayron | 2019 – | Yes | – | |
| VW Tiguan (II) | AD-BW | 2016 – | Yes | – |
| VW Touareg (II) | 7P | 2010 – 2017 | Yes | Yes |
| VW Touareg (III) | CR | 2018 – | Yes | Yes |
| VW Touran (I) | 1T | 2003 – 2010 | Yes | ZDSW6CS |
| VW Touran (II) | 2T | 2011 – 2015 | Yes | ZDSW6CS |
| VW Touran (III) | 5T | 2016 – | Yes | ZDSW6CS |
Disclaimer
Always ensure the enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility for damage or injury in relation to inappropriate securing of this product.
Phoenix Gold Product Warranty
LIMITED WARRANTY ON SPEAKERS
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country’s Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact that country’s reseller for information.
