ZX Series
COMPONENT SPEAKER MANUAL
Model: ZX65C – ZX35C – ZX1TC – ZX65CS – ZX653CS
Features & Benefits
- High efficiency component speakers
- Make your own component system
- Adjustable tweeter level setting
- High power sound paired with high quality detail
- Play loud and retain the same premium sound at lower levels
- The essence of Phoenix Gold power and sonic performance
- Component kits available (ZX653CS – ZX65CS)
- Separate cable filters for easy installation
- Each component includes matched cable filters
All specifications subject to change without notice.
ZX65C – 6.5″/165mm 2-Way Midrange Woofer
| SPECIFICATION | ZX65C |
| Speaker | 6.5” |
| Max Power (Watts) | 120 Watts |
| RMS Power (Watts) | 60 Watts |
| Filter Design (LP) | 6dB |
| Crossover Point (Hz) | 4000Hz (LP) |
| Voice Coil (Diameter) | 25mm |
| Sensitivity | 89dB (1W/1m) |
| Magnet / Cone (Material) | Ferrite / Polypropylene |
| Impedance | 4 Ohm |
| Diameter | 165mm |
| Depth | 64mm |
Installation
Make sure the enclosure is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
This woofer is supplied with a set of custom ZX grills.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right filters with the right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use these filters in the right way.
Low-pass (6dB) filter for use with a 2-way system.
LP Filter for Woofer (4000Hz)
20Hz 20kHz
ZX35C – 3.5″/89mm Midrange Speaker
| SPECIFICATION | ZX35C |
| Speaker | 3.5” |
| Max Power (Watts) | 40 Watts |
| RMS Power (Watts) | 20 Watts |
| Filter Design (BP & LP) | 6dB |
| Crossover Point (Hz) | 350Hz – 4000Hz (BP) |
| Voice Coil (Diameter) | 20.4mm |
| Sensitivity | 86dB (1W/1m) |
| Magnet / Cone (Material) | Ferrite / Paper |
| Impedance | 8 Ohm |
| Diameter | 90mm |
| Depth | 40mm |
Installation
Make sure the enclosure is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right filters with the right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use these filters in the right way.
Band-pass (6dB) filter for use with a 2-way system.
Low-pass (6dB) filter for use with a 3-way system with additional woofer. This filter is supplied in the ZX35C box, but is to be used with a compatible woofer.
LP Filter for Woofer (350Hz)
BP Filter for Midrange (350-4000Hz)
20Hz 20kHz
ZX1TC – 1″/25mm Soft Dome Tweeter
| SPECIFICATION | ZX1TC |
| Speaker | 1” |
| Max Power (Watts) | 40 Watts |
| RMS Power (Watts) | 20 Watts |
| Filter Design (HP) | 12dB |
| Crossover Point (Hz) | 4000Hz (HP) |
| Tweeter Level Adjustment | 0dB & -2dB |
| Sensitivity | 91dB (1W/1m) |
| Magnet / Cone (Material) | Neodymium / Silk |
| Impedance | 4 Ohm |
| Diameter | 25mm |
| Tweeter Depth | 20mm |
| Housing Depth | 39mm |
Installation
Make sure the enclosure is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring.
Located on the tweeter will be 2 thin wires with a male and a female connector – these areto control the tweeter level adjustment. As default the tweeter will register at -2dB. When these wires are connected together, the attenuation level will 0dB.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right filters with the right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use these filters in the right way.
High-pass (12dB) filter for use with a 2-way or 3-way system.
HP Filter for Tweeter (4000Hz)
20Hz 20kHz
ZX65CS – 2-Way Component Speaker Kit
| SPECIFICATION | ZX65CS |
| Speaker | 6.5” Midrange Woofer / 1” Tweeter |
| Max Power (Watts) | 160 Watts |
| RMS Power (Watts) | 80 Watts |
| Filter Design (HP / LP) | 6dB / 12dB |
| Crossover Point (Hz) | 4000Hz (LP & HP) |
| Tweeter Level Adjustment | 0dB & -2dB |
| Voice Coil (Diameter) | 25mm |
| Sensitivity | 89dB (1W/1m) / 90dB (1W/1m) |
| Speaker Magnet / Cone (Material) | Ferrite / Polypropylene |
| Tweeter Magnet / Cone (Material) | Neodymium / Silk |
| Impedance | 4 Ohm |
| Diameter | 165mm / 25mm |
| Speaker Depth | 64mm |
| Tweeter Depth | 20mm |
| Housing Depth | 39mm |
Installation
Make sure the enclosure is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring.
Located on the tweeter will be 2 thin wires with a male and a female connector – these areto control the tweeter level adjustment. As default the tweeter will register at -2dB. When these wires are connected together, the attenuation level will 0dB.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right filters with the right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use these filters in the right way.
High-pass (12dB) filter for use with tweeter in a 2-way system.
Low-pass (6dB) filter for use with midrange woofer in a 2-way system.
LP Filter for Woofer (4000Hz)
HP Filter for Tweeter (4000Hz)
20Hz 20kHz
ZX653CS – 3-Way Component Speaker Kit
| SPECIFICATION | ZX653CS |
| Speaker | 6.5” Woofer / 3.5” Midrange / 1” Tweeter |
| Max Power (Watts) | 200 Watts |
| RMS Power (Watts) | 100 Watts |
| Filter Design (LP / BP / HP) | 6dB / 6dB / 12dB |
| Crossover Point (Hz) | 350-4000Hz |
| Tweeter Level Adjustment | 0dB & -2dB |
| Voice Coil (Diameter) | 25mm / 20.4mm |
| Sensitivity | 89dB / 86dB / 91dB (1W/1m) |
| Impedance | 4 Ohm |
| Diameter | 165mm / 90mm / 25mm |
| Speaker Depth | 64mm / 40mm |
| Tweeter Depth | 20mm |
| Housing Depth | 39mm |
Installation
Make sure the enclosure is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring.
Located on the tweeter will be 2 thin wires with a male and a female connector – these areto control the tweeter level adjustment. As default the tweeter will register at -2dB. When these wires are connected together, the attenuation level will 0dB.
DO NOT mount speaker or tweeter in such a way as to pinch or damage the wires.
Filter Usage
Filters are used to divide the different frequencies to different speakers. It’s very important to use the right filters with the right speakers, as failure to do so will damage the speakers. Please follow the guide below and make sure you use these filters in the right way.
High-pass (12dB) filter for use with tweeter in a 3-way system.
Band-pass (6dB) filter for use with midrange speaker in a 3-way system.
Low-pass (6dB) filter for use with midrange woofer in a 3-way system.
LP Filter (350Hz)
Bandpass Filter (350-4000Hz)
HP Filter (4000Hz)
20Hz 20kHz
ZX653CS / ZX65CS – Component Speaker Kits

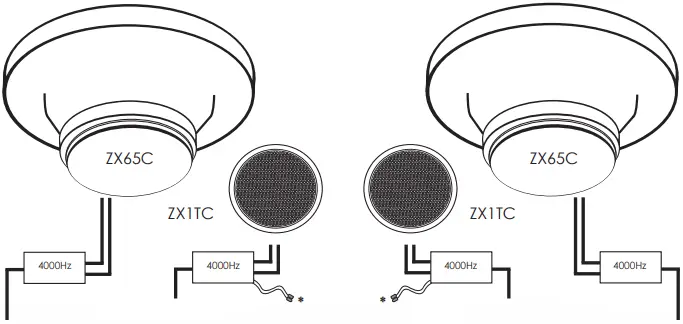

ZX65CS – ZX65C + ZX1TC

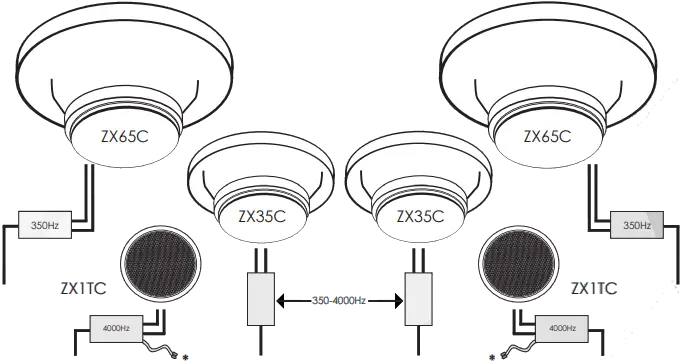

ZX653CS – ZX65C + ZX35C + ZX1TC
* Wires used to adjust tweeter level. Disconnected = -2dB. Connected = 0dB damping.
Disclaimer
Always ensure the enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility for damage or injury in relation to inappropriate securing of this product.
Phoenix Gold Product Warranty
LIMITED WARRANTY ON SPEAKERS
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country’s Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact that country’s reseller for information.
© 2021 Phoenix Gold | A Brand of AAMP Global
www.phoenixgold-eu.com
REV 26/04/22
