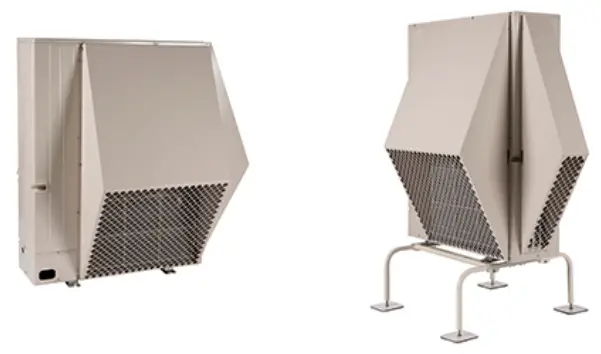

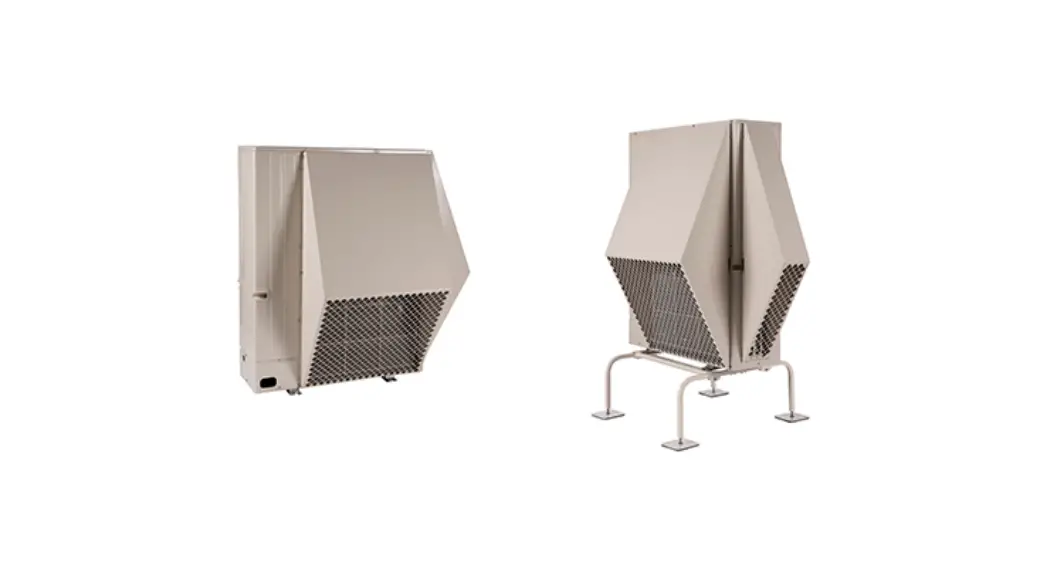

HG-A5
Hail Guard
User Manual
FEATURES
- Compatible with M- and P-Series outdoor units
- Protection from snow and hail
- Engineered using 20 guage galvanized steel to protect from 1” and larger hailstones
- Guards keep heavy accumulation off coil surfaces to protect from compromised performance
SPECIFICATIONS
| Material | Powder Coated 20 gauge, G60 galvanized steel |
| Powder Coat | P1135-G6 Polyester TGIC Erie Powder Coating |
| 3 mil nomiNTI (± 1 mil) uniform thickness over the entire part. | |
| Color | Matches Outdoor Unit |
| Screen | 1 inch (25.4 mm) square hole pattern |
COMPATIBILITY
| Single Zone |
| PUY-A12NKA7(-BS) |
| PUY-A18NKA7(-BS) |
| PUZ-A12NKA7(-BS) |
| PUZ-A18NKA7(-BS) |

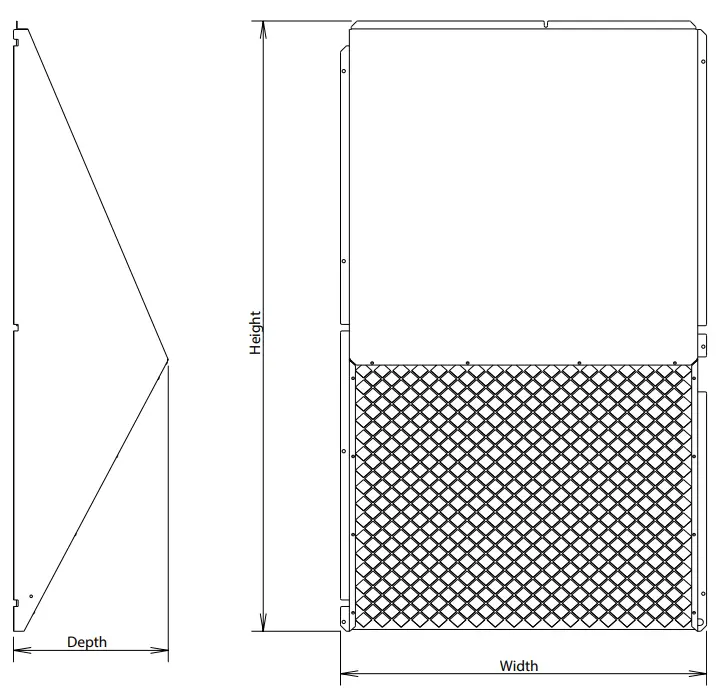

DIMENSIONS
| HG-A5 | ||
| Weight | kg | 3.68 |
| (Ibs) | (8.11) | |
| Height | mm | 551 |
| (in) | (21.69) | |
| Width | mm | 705 |
| (in) | (27.76) | |
| Depth | mm | 201 |
| (in) | (7.9) |
1340 Satellite Boulevard Suwanee, GA 30024
Toll Free: 800-433-4822 www.mehvac.com
FORM# HG-A5 – 202207
Specifications are subject to change without notice.
© 2022 Mitsubishi Electric Trane HVAC US LLC. All rights reserved.
