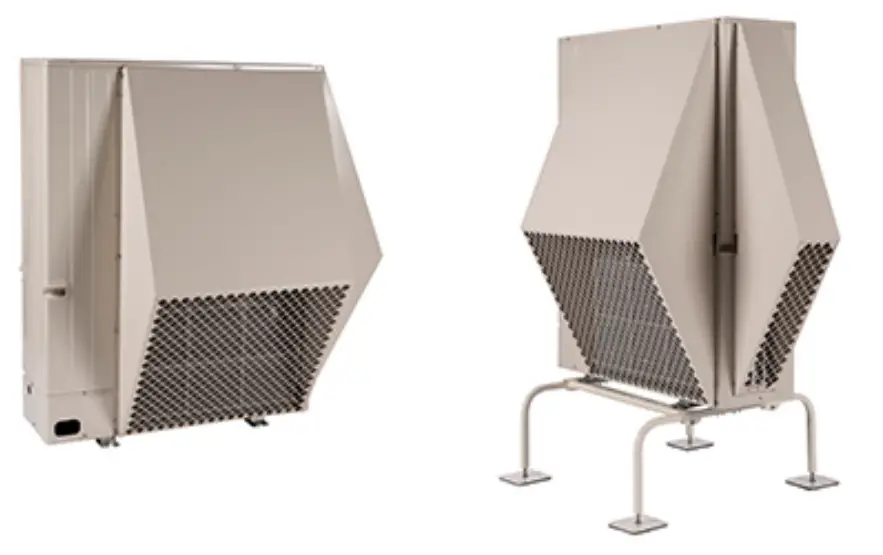

MITSUBISHI ELECTRIC HG-A6 Hail Guard
FEATURES
- Compatible with M- and P-Series outdoor units
- Protection from snow and hail
- Engineered using 20 guage galvanized steel to protect from 1” and larger hailstones
- Guards keep heavy accumulation off coil surfaces to protect from compromised performance
SPECIFICATIONS
| Material | Powder Coated 20 gauge, G60 galvanized steel |
| Powder Coat | P1135-G6 Polyester TGIC Erie Powder Coating |
| 3 mil nomiNTl (± 1 mil) uniform thickness over the entire part. | |
| Color | Matches Outdoor Unit |
| Screen | 1 inch (25.4 mm) square hole pattern |
DIMENSIONS
COMPATIBILITY
| Single Zone |
| PUY-A24NHA7(-BS) |
| PUY-A30NHA7(-BS) |
| PUZ-A24NHA7(-BS) |
| PUZ-HA24NHA1 |
| PUZ-A30NHA7(-BS) |
| SUZ-KA24NAHZ |
HG-A6 | |||
Rear | Side | ||
| Kit | kg | 10.42 | 10.42 |
| (lbs) | (22.97) | (22.97) | |
| Weight | kg | 6.75 | 3.66 |
| (lbs) | (14.89) | (8.08) | |
| Height | mm | 868 | 868 |
| (in) | (34.17) | (34.17) | |
| Width | mm | 715 | 206 |
| (in) | (28.15) | (8.11) | |
| Depth | mm | 333 | 326 |
| (in) | (13.11) | (12.83) | |
Specifications are subject to change without notice.
