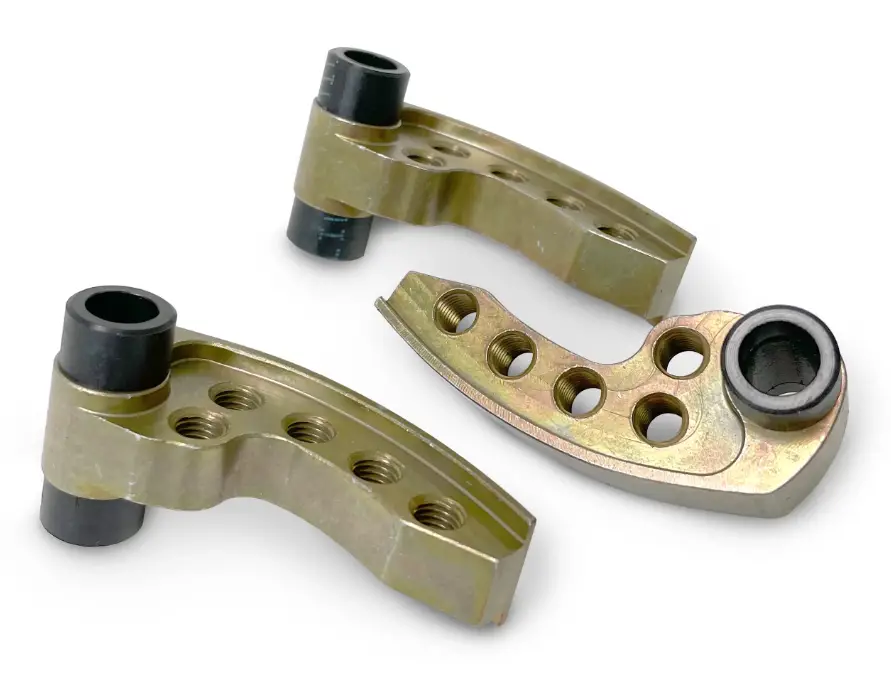

EVOLUTION POWERSPORTS 401FP0001 2016-2021 RZR 1000 General Shift-Tek Clutch Kit
PRODUCT DESCRIPTION
| Stock | Stage 1/1.5 | Stage 2 | Stage 3 | |
| Primary Spring | Stock | Stock | Stock | Stock |

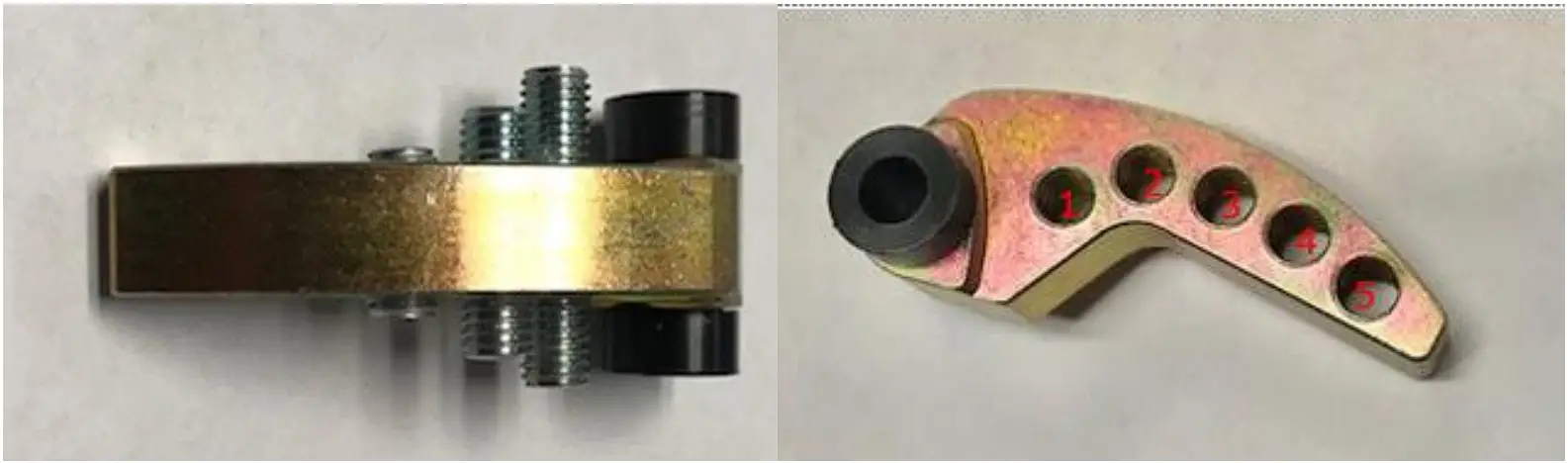

| Hole 1 | 0 | 2. 1/4 ss | 2. 1/4 ss | 0 |
| Hole 2 | 2. 1/4 ss | 2. 1/4 ss | 2. 1/4 ss | 2. 1/4 ss |
| Hole 3 | 2. 1/4 ss | 2. 1/4 ss | 2. 1/4 ss | 2. 1/4 ss |
| Hole 4 | 2. 3/16 ss | 2. 3/16 ss | 2. 3/16 ss | 2. 3/16 ss |
| Hole 5 | 0 | 0 | 0 | 0 |
| Secondary Spring | Stock | Stock | Stock | Stock |
| Helix | Stock | Stock | Stock | Stock |
| Operating RPM | 8200-8400 | 8200-8400 | 8200-8400 | 8200-8400 |
| Tire Size | Stock 27” | Stock 27+” | Stock 27+” | Stock 29” |
| Elevation | 0-3000 | 0-3000 | 0-3000 | 0-3000 |
NOTE: Always install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement.
