Notifications
Alarm
When the alarm is triggered the system will provide feedback to the user. Upon disarm, the system will beep 4x and flash the LED to indicate the Alarm Trigger Zone.

1Shock
2Trunk / Hood
3Door

If the remote start fails to start the vehicle, the system will flash the vehicle parking lights to indicate the cause.

1Runme Expired
2Remote Shutdown
3Brake On
4Manual Mode
5Hood Open
6Low / No Tach
7Tach Programming
8High Tach

Chirp Delete
System ARM/DISARM chirps can be toggled ON or OFF without entering the Feature Bank programming.

  1. Turn the ignition key ON/OFF.
  2.  Press and release the valet button three (3) times.

The system will respond with one (1) chirp for ON and two (2) Chirps for OFF. This feature will not affect alarm trigger or programming.
User Programmable LED
System LED notifications can be turned ON or OFF without entering Feature Bank programming.

  1. Turn the ignition key ON/OFF, ON/OFF.
  2. Press and hold valet button for five (5) seconds.

The LED will flash one (1) time for ON, two (2) times for OFF. This feature will not affect LED flash during programming.

Remote Programming

The APSSECRS does not include an RF remote kit. The RF remote kit Includes two (2) remotes, one (1) antenna, and one (1) cable. When added, remotes must be programmed to the system. Remote Programming is located in Feature Bank 1. To enter Remote Auto Programming:

  1. Turn the ignition key to ON.
  2. Press and release the valet button three (3) times. The system will beep and flash the parking lights one (1) time.

Press the lock button on each remote. The system will beep one  (1) time to indicate the remote has been programmed. If programming one (1) button remotes press the Start button. Only primary remote functions are auto-programmed.  This Includes Lock, Unlock, and Trunk/Start.
If using AUX output control, you must manually program the AUX output channels to the remote. Please see the complete installation guide for manual remote programming
instruction.
Note: If programming 2-Way remotes, wait for the remote to beep before programming additional remotes. This beep is confirmation that a 2-Way response has been received
from the main module.

Feature Programming

The APSSECRS Feature Banks can be programmed by using the valet button and remote.
To enter Feature Bank programming:

  1. Turn the ignition key to ON.
  2.  Press and release the valet button three (3) times. The system will beep and flashlights one (1) time for Feature Bank 1, Remote Programming.
  3. Cycle ignition key OFF/ON. The system will beep and flashlights two (2) times for Feature Bank 2.
  4. Press valet button to cycle features. LED will flash to display the feature number.
  5. Press lock button to cycle options. The system will beep to indicate option number.
  6. Cycle ignition key OFF/ON. The system will beep and flashlights three (3) times for Feature Bank 3.
  7. Press valet button to cycle features. LED will flash to display the feature number.
  8. Press lock to cycle options. The system will beep to indicate the option Number.

Tach Programming

The installer must manually configure the Engine Confirmation method in Feature Bank 3, Feature 5. The default method is “Tach”. When using the default “Tach” method,  the vehicle tach rate must be programmed. To enter tach rate programming:

  1. Turn the ignition key ON.
  2. Press and release the valet button three (3) times.
  3. Turn the ignition key OFF.
  4. Press and hold valet button.
  5. While holding valet button, start the engine using the key.
  6. Hold the valet button for approximately ten (10) seconds. If connected to the vehicle Tach source, the system will flash the parking lights one (1) time every second.
  7. Release the valet button. The system will turn on the parking lights for two (2) seconds to indicate the tach rate is programmed.

The tach rate can also be programmed without the use of a valet button. This is helpful when using the OEM remote of CarLink system to control this module. To program the  tach rate without a valet button:

  1. Turn the ignition key to the ON position and start the vehicle’s engine.
  2. Wait for Engine RPM to lower to a normal idle.
  3. Press and hold the vehicle’s brake pedal.
  4. Press the LOCK button on the OEM remote or the Carlin App.

Note: Programming tach signal via OEM or Telematics control is only available on Firmware v1.47 or Higher.

Data Protocol Selection

The default data port protocol of this model is ADS (iDatalink 2-Way). This model is capable of detecting the correct data port protocol (ADS or DBI) and automatically configuring Feature Bank 2; Feature 18. To initialize the detection procedure:

  1. Press and hold the valet button.
  2. Cycle the vehicle’s Ignition ON/OFF two (2) times.
  3. Release the valet button.

The system will automatically detect and set the correct data port protocol, ADS or DBI. Note: This feature is only available on module firmware v2.0 or higher.
The Feature Banks below can also be programmed using the FlashLogic Weblink or Weblink Mobile.

Feature Bank 2Options
1 Chirp2 Chirp3 Chirp4 Chirp5 Chirp6 Chirp
Features1Lock / Unlock Function500ms3.5sec500ms L, DBL ULDBL L, 5COms ULDBL L, DBL UL500ms L, 350ms UL
2Ignition LockOFFON
3Ignition UnlockOFFUnlock AllUnlock Driver
4Exterior IlluminationOFFWith ArmWith DisarmWith Arm & Disarm
5Auto RelockOFFAuto-Lock OnlyAuto-Lock & Arm
6Auto Arrning/ LockingOFFAuto Arrn OnlyAuto-Lock & Arm
7Notification SoundBothSirenHorn
8Horn Timing16ms30ms40msWens10ms
9Valet Override MethodValetCustom CodeStand Alone Valet
10Driver Priority UnlockOFFON
11Silent ChoiceOFFFrom TransmitterOEM Style
12Security ProfileAll OnDoors offHood/trunk OffAll OffAll On w/ OEM RS
13Door Trigger InputNegativePositive
14Park Light / Trunk SwapOFFON
15Data Port ProtocolADSDBI
16Dome Light Delay TimerOFF/Program15sec30sec45sec60sec120sec
17Alarm Trigger Legnth30sec45sec60sec90sec120sec
Feature Bank 3Options
1 Chirp2 Chirp3 Chirp4 chirpS Chirp6 Chirp


Features

1Defrost OutputPulsed10minRS Runtime
2RS Start NotificationONOFF
3RS Runtime15min20min45min60min5min10min
4RS Parking LightsSteadyFlashing
5Engine ConfirmationTachVoltageDataHybrid
6Voltage Level>0.5v 84 Start<0.5v B4 Start
7Ignition 2 OutputIgnitionAccessoryStart
8Ignition 3 OutputIgnitionAccessoryStart
9Accessory OutputAccessoryIgnitionStart
10TransmissionAutoManual
11Max Crank Time0.8sec1.0sec1.5sec2.0sec3. Osec4. Osec
12Diesel DelayOFFDiesel 5Diesel 10Diesel 15Diesel 20Diesel 30
13Temperature StartOFF14 FSFOF-4 F-14 F
14Crank DurationAveragingPreset
15RS Shock OverrideShunt until ClearShunt RS CycleShunt From TX
16Turbo TimerOFF3min5min10min
17Start ActivationTwo PressOne-PressThree Press
18RS Lock FunctionNo ChangeUL Before L AfterUL Before StartLock After Start
19Factory Disarm OutputSingle PulseDouble Pulse350ms500ms800msSame As Bank 2, Fl
20Additional Unlock PulseNo PulseIGN, ACC, GWRIGN,ACC,GWR,PASD

Dome Delay Programming

This system can be programmed to ignore the vehicle’s theater dimming dome light. This feature will be used when connecting the door trigger input to the dome light circuit for the alarm trigger.
Start with all doors closed and the vehicle dome light off.

  1. Press Lock, Unlock, Lock, Unlock, Lock, Unlock, Lock. LED will light solid.
  2. Open and close the driver’s door.

The system will monitor the dome light circuit. When the dome light turns off the system will set the delay time and add an additional two (2) seconds.
Dome Delay Reset

  1. Key ON/OFF, ON/OFF, ON/OFF.
  2. Press and hold valet button for five (5) seconds.

The system will beep one (1) time to indicate reset is complete.

Programmable Input Control

Programmable Input Control allows any PIC be configured to one of the options listed below. This feature is accessible via FlashLogic Weblink or Weblink Mobile.

Door TriggerFull Shock Trigger
Trunk TriggerParking Brake
Hood TriggerBrake
N.C. Door TriggerExternal Start Activation
Pre-Warn Shock TriggerDiesel Glow Plug

Negative Output Control (NOC)

Negative output control allows any NOC to be programmed for any one of the options

LockGround While Armed
UnlockGround While Disarmed
2nd UnlockDomelight
TrunkHeadlight
Remote Start StatusDefrost
IgnitionLED
Factory DisarmCh. 4 AUX
Factory ArmCh. 5 AUX
AccessoryCh. 6 AUX
Pulse During CrankCh. 7 AUX
Pulse Atier Shutdown

AUX Output Control

Any AUX output can be configured using the AUX Control Menu. This feature is only accessible via FlashLogic Weblink or Weblink Mobile.

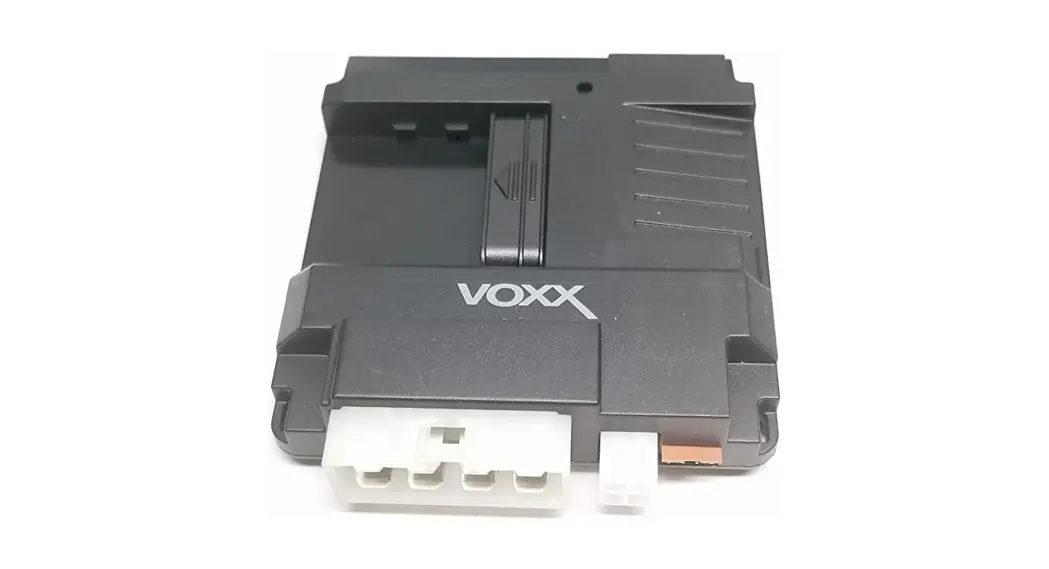

APSSECRS
Security and Remote Start

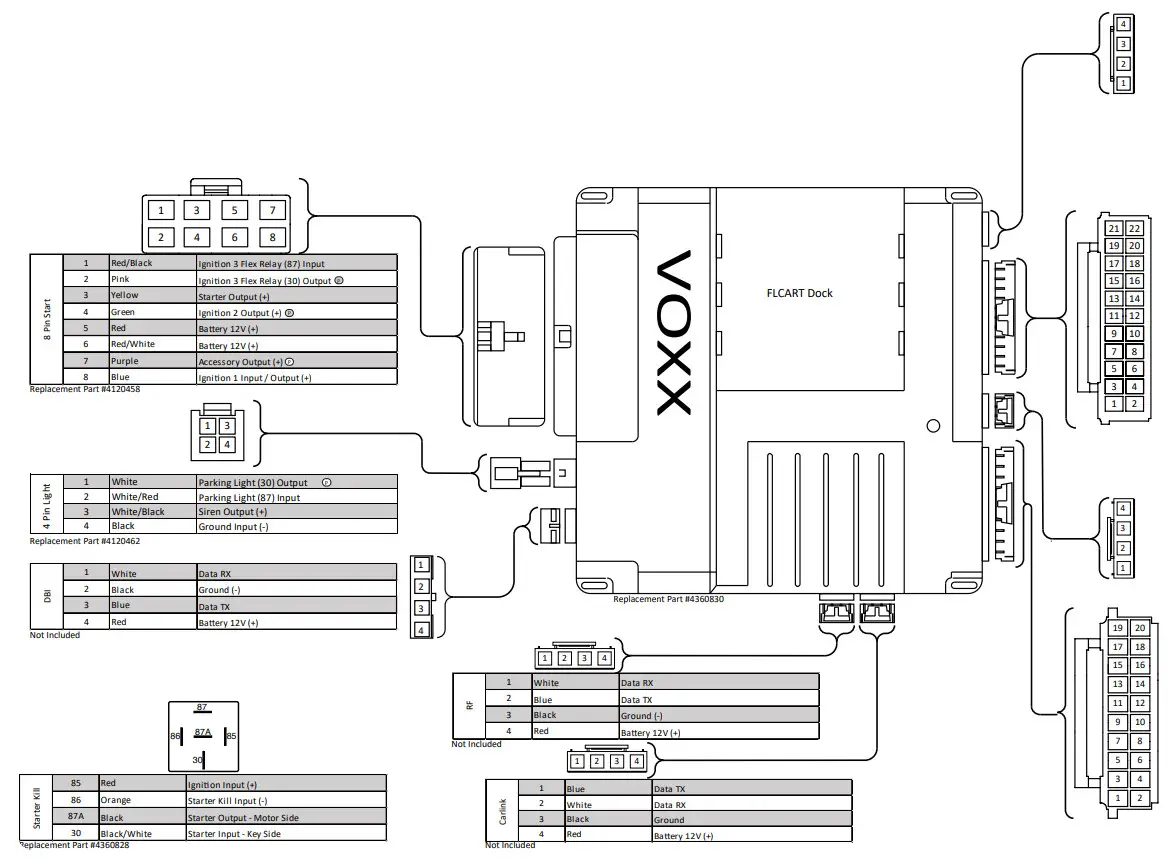

System Layout
Important Update

The default Data Port Protocol of this system is ADS. If using a FLCAN or other external integration modules be sure to choose iDatalink 2-Way when flashing.
This system will also support DBI Protocol. This will require programming Feature Bank 2, Feature 15 to DBI.

PRESTIGE PE1BZ APSSECRS Security and Remote Start

PRESTIGE PE1BZ APSSECRS Security and Remote Start - Shock Sensor

Shock4RedBattery 12V (+)
3BlackData TX
2BlueWarn Away
1GreenFull Trigger

Replacement Part #4120459

22 Pin Input/Output22GreenUnlock Output (-) (NOC 11)
21Dk. BlueTrunk Output (-) (NOC 9)
20RedLock Output (-) (NOC 10)
19Green/Lt. BlueCh. 4 AUX Output (-) (NOC 8)
18Black/WhiteHorn Output (-)
17Lt. Blue/GreenCh. 5 AUX Output (-) (NOC 7)
16Red/Black2nd Unlock Output (-) (NOC 12)
15Black/Lt. GreenFactory Arm Output (-) NOC 6)
14Brown/BlackBrake Input (+) (PIC 6)
13Black/BlueFactory Disarm Output (-) (NOC 5)
12Dk. Blue/BlackExternal Activation Input (-) (PIC 5)
11Black/RedPulse After Shutdown Output (-) (NOC 4)
10Orange/BlackParking Brake Input (-) (PIC 4)
9Black/YellowPulse During Crank Output (-) (NOC 3)
8Green/YellowDiesel Glow Plug Input (4-) (PIC 3)
7Green/WhiteHomeLight Output (-) (NOC 2)
6Purple/BrownDoor Trigger Input (- / +)
5Lt. BlueRemote Start Status Output (-) (NOC 1)
4Green/OrangeTach Input (-)
3Gray/BlackHood Input (-) (PIC 2)
2Lt. GreenTrunk Trigger Input (-) (PIC 1)
1OrangeStarter Kill Relay / Anti-Grind Output (-)

Replacement Part #4120457

Weblink4RedBattery 12V (+)
3BlackGround (-)
2BlueData TX
1WhiteData RX

Not Included

This Harness is included with the FLCART.
For Wire Information and Diagram Please Refer to Vehicle Specific
FlashLogic Install Guide.
Visit www.FlashLogic.com for More Information.
Not Included

Compatible RF Kits
PE1BZPE2LEDZ
PE1BZLRPE2LCDZ
PE1BTWZPE1M2LEDZ
PE5BZPE1M2LCDZ

For Complete Installation Guide and Technical Support Visit www.voxxuniversity.com. Or Call 1-800-225-6074

REV. B
2020 Voxx Electronics. All Rights Reserved.
