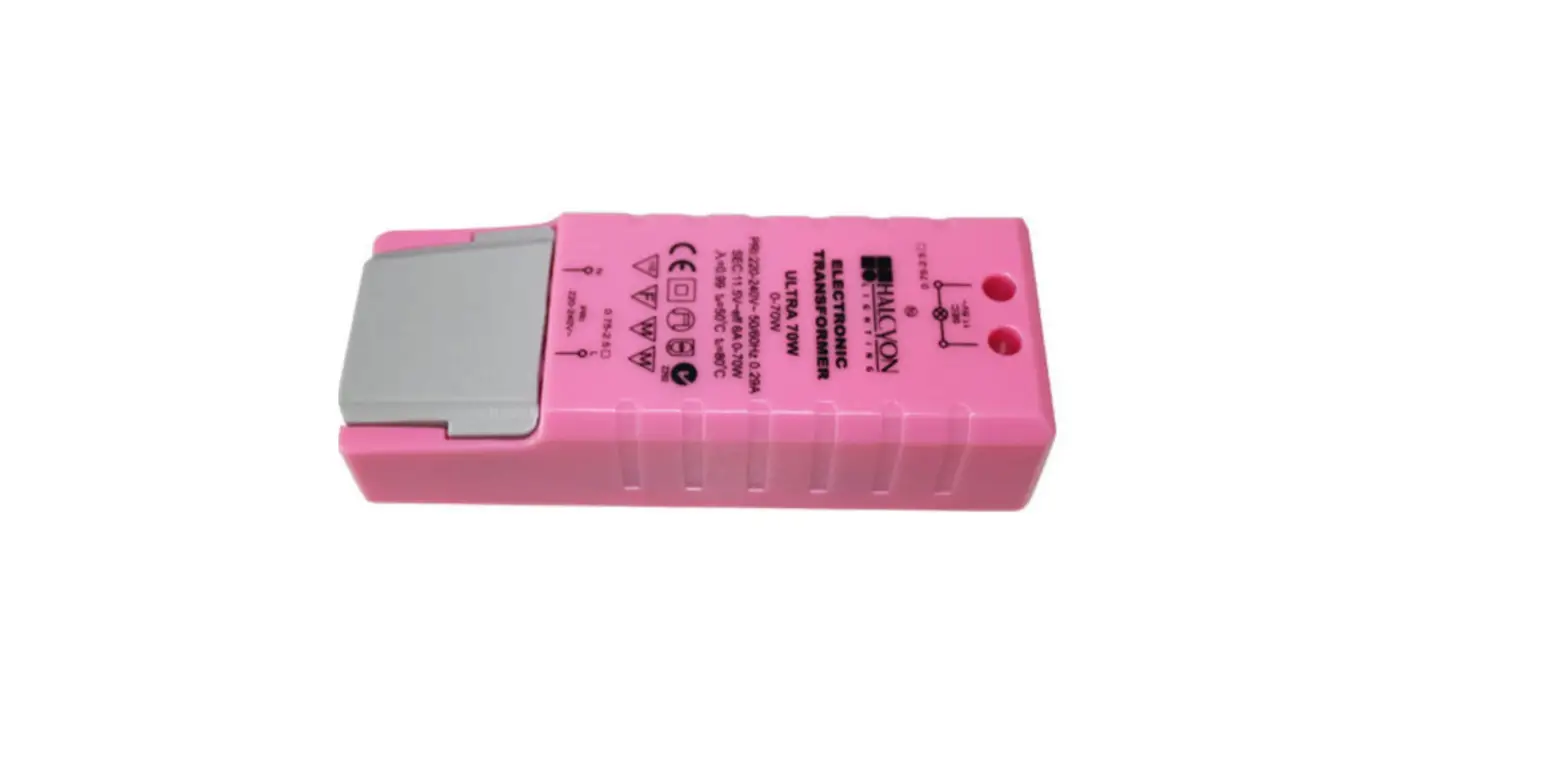

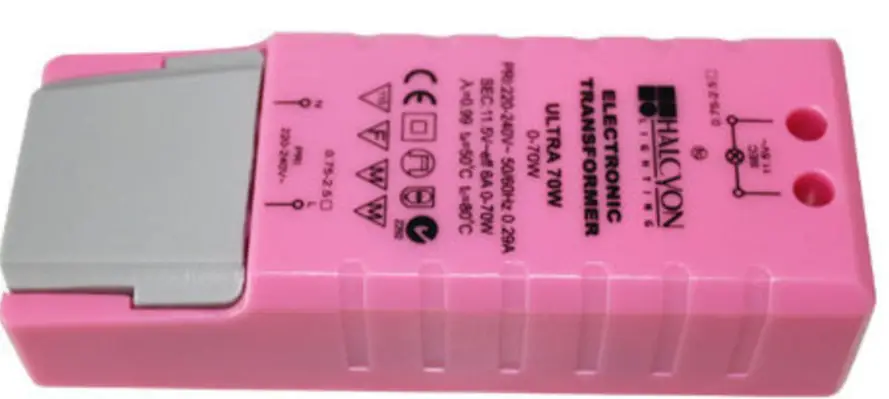

HALCYON Ultra Series Electronic Transformer
Product Features
- Electronic transformer for 12V halogen lamp as well as other type of low loading lamps which require
- Supply of 12V AC
- Captured terminal screws
- High efficiency(95%)
- Safe no-load operation
- Overload & short circuit protection with self resetting
- Over temperature cut off
- Dimmable with leading edge or trailing edge dimmer
- Thermally stable and shatter-proof plastic casings
- Long converter life=50,000 hours
- Simple installation

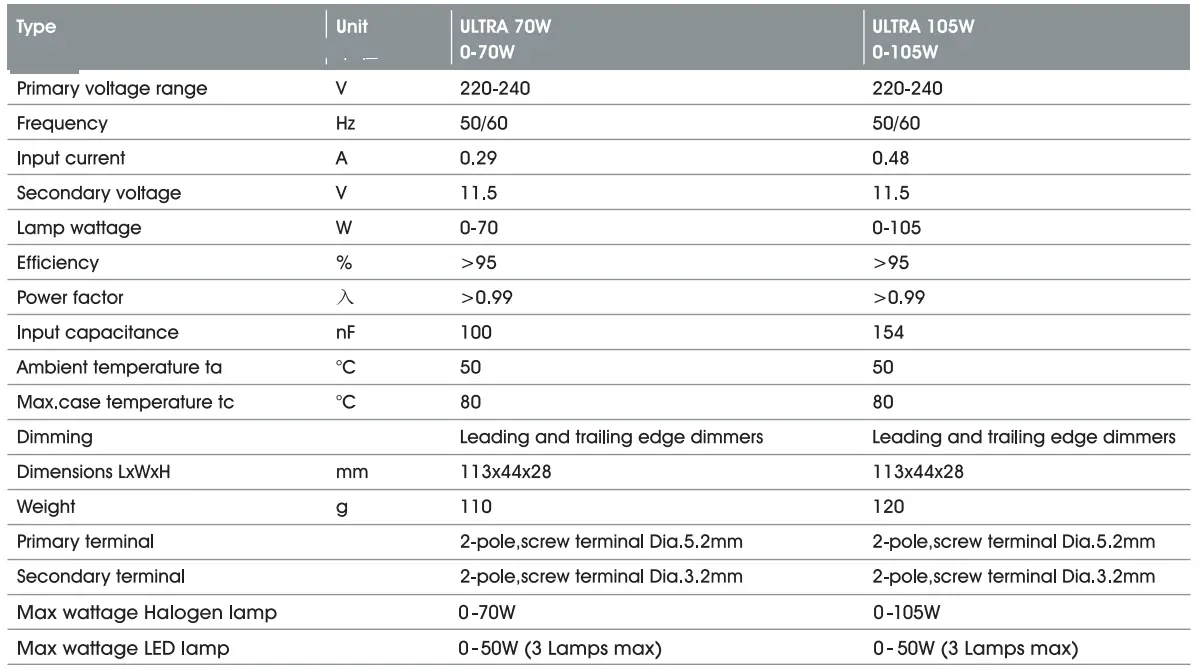

Technical Data
Dimensions(mm)

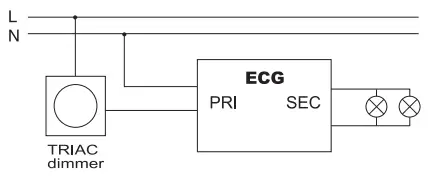

Wiring Details
Standards
- EN 61347-1
- EN 61347-2-2
- EN 55015
- EN 61000-3-2
- EN 61000-3-3
- EN 61547
Important Notes
- Secondary wattage range (eg. 0- 70W), means these transformers are suitable for most smaller wattage
- AC/DC LED MR16 replacements.- Secondary feed cables should not exceed 2 meters in length.
- Transformer dimmable with most Leading/Trailing Edge Dimmers.
- Transformer must be installed above the insulation.
- Transformer must be installed by a qualified electrician.
