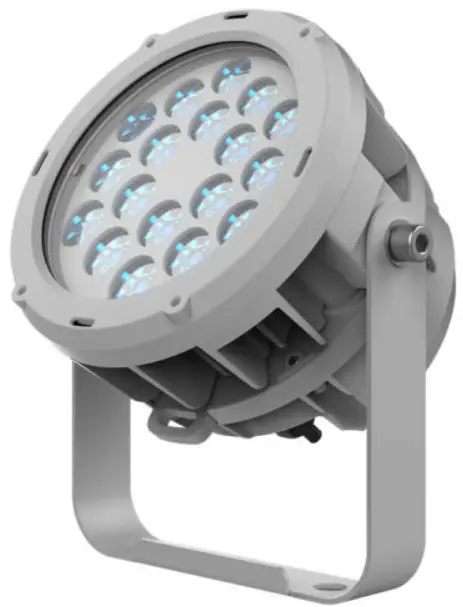

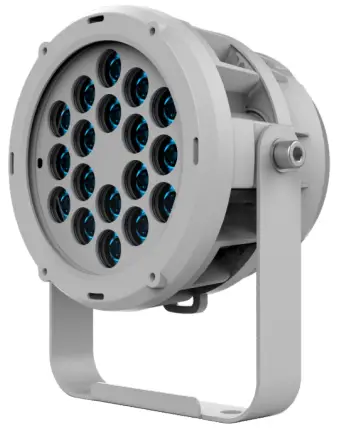

ACME BW 186 Coolie 186 Outdoor Light User Guide
FEATURES
- Compact size, light weight, high light efficiency, low energy consumpon
- Variable CTO: 2,500K-8,000K
- Intelligent light sense can automacally acvate the light and set the light duraon according to the environment
- 0-100% smooth dimming
- Outstanding strobe effect with variable speed
- IP66 protecon rang
- Oponal half or full size an-glare shield
TECHNICAL SPECIFICATIONS
Specifications
- Light Source: 18 x 6W RGBW LED
- Beam Angle: 18°, 22°,24°,43°, 58° (Oponal Lenses)
- Field Angle:37°, 45°,53°, 77°, 95°
- Life Expectancy: 30,000 hours
Control
- Control channels:10/8/5/4
- Protocols: DMX512, RDM
- Firmware Upgrade via DMX link
Construction
- Display: OLED display
- Data In/Out: bare wire output
- Power In/Out: bare wire output
- Hanger: Single hanger
- Protecon Rang: IP66
Electrical and Physical
- Input voltage range: 100-240V~ 50/60Hz
- Power Consumpon: 55 W
- Dimensions: 200x172x113mm (7.9”x6.8”x4.4”)
- Carton Dimensions: 260x230x185mm (10.2”x9.0”x7.3”)
- Weight: 2.2kg (4.9lbs) 2.3kg (5.1lbs)( One-pack per carton )

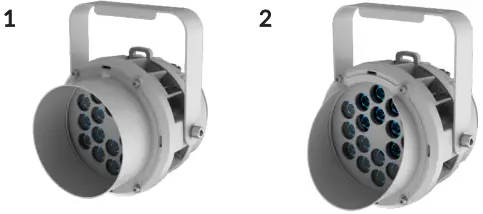

OPTIONAL SHIELD

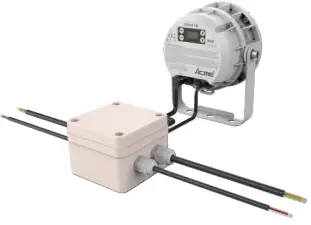

CONNECTION
LIGHT QUALITY PARAMETER

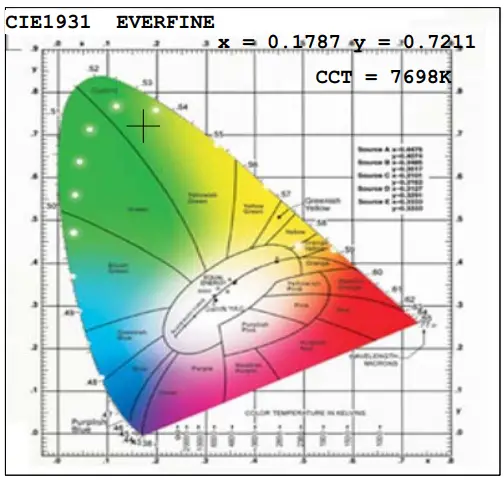

CIE1931 CHROMATICITY COORDINATES(Big Angle)

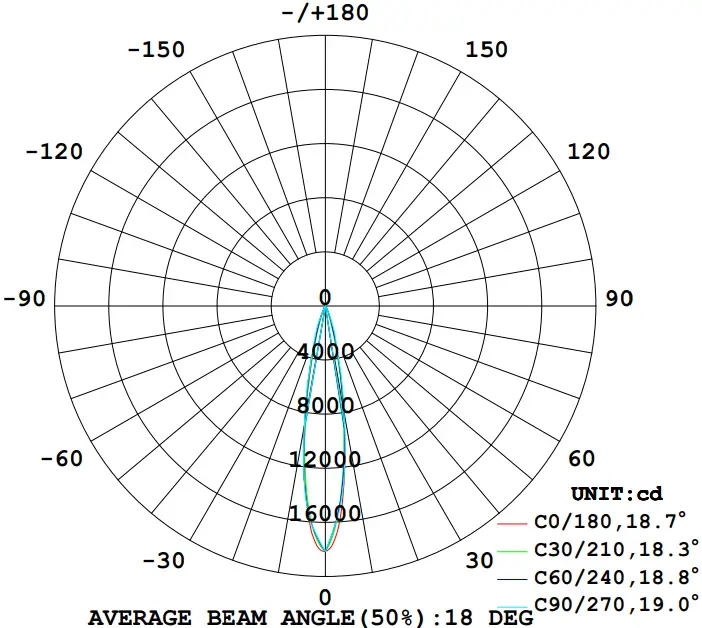

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

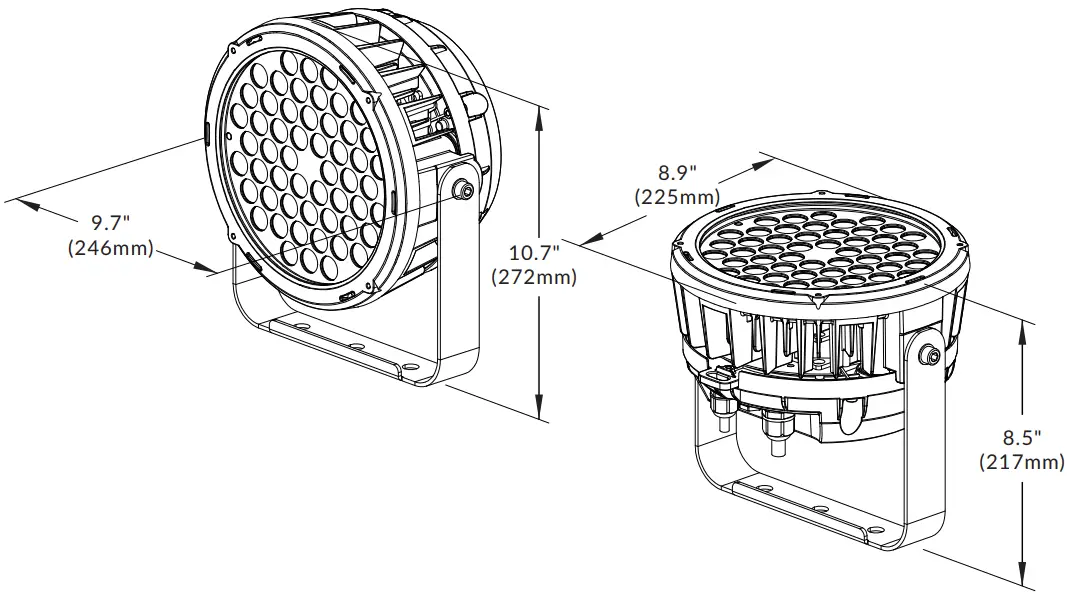

DIMENSIONS mm (in.)

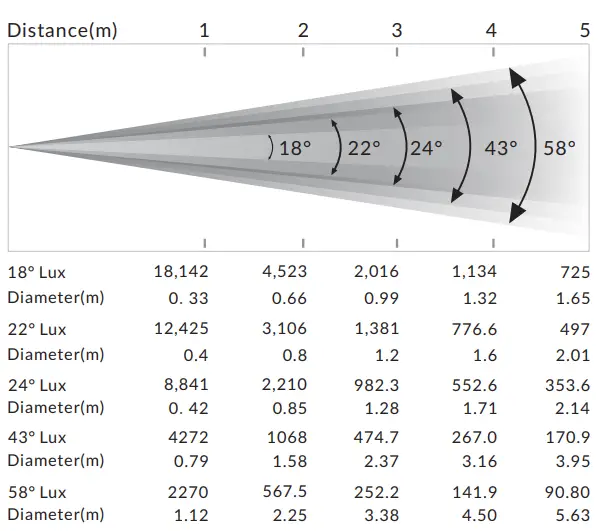

PHOTOMETRICS DIAGRAM
