Luxorparts 64484 LED Strip with Motion Sensor

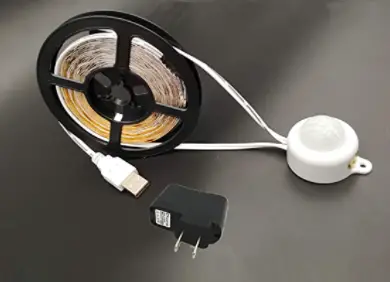

Luxorparts-64484-LED-Strip with Motion-Sensor

Specifications

  • LED strip length: 1 m (8 mm wide)
  • Cable length: 0.5 m
  • Size battery compartment: 135 x 26 x 17 mm
  • Lumen: 110 lm
  • Colour temperature: 3000-3300 K
  • Batteries: 4x AAA
  • Battery time: About 20 hrs
  • Motion detection range: Up to 6.5 m

Use Luxorparts-64484-LED-Strip with Motion-Sensor-FIG-2

Insert 4x AAA batteries in the battery compartment. Mind the polarity.
Plan beforehand where to attach the strip. Peel off the 3M tape from the strip and the battery compartment and carefully attach them carefully to place you have chosen.
Note: Only for indoor use.

Motion sensor

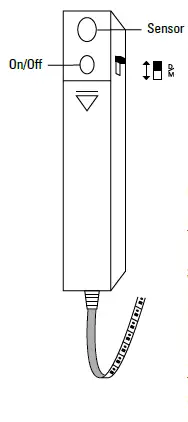

Luxorparts-64484-LED-Strip with Motion-Sensor-FIG-1

Set the switch to “D” to activate the motion sensor. When the sensor detects motion the LED strip lights up for 35 seconds. Set the switch to “M” to manually turn the strip on and off.
