705.13 SimpLED Motion LED Strip Light
Instruction Manual
705.13 SimpLED Motion LED Strip Light
IP20

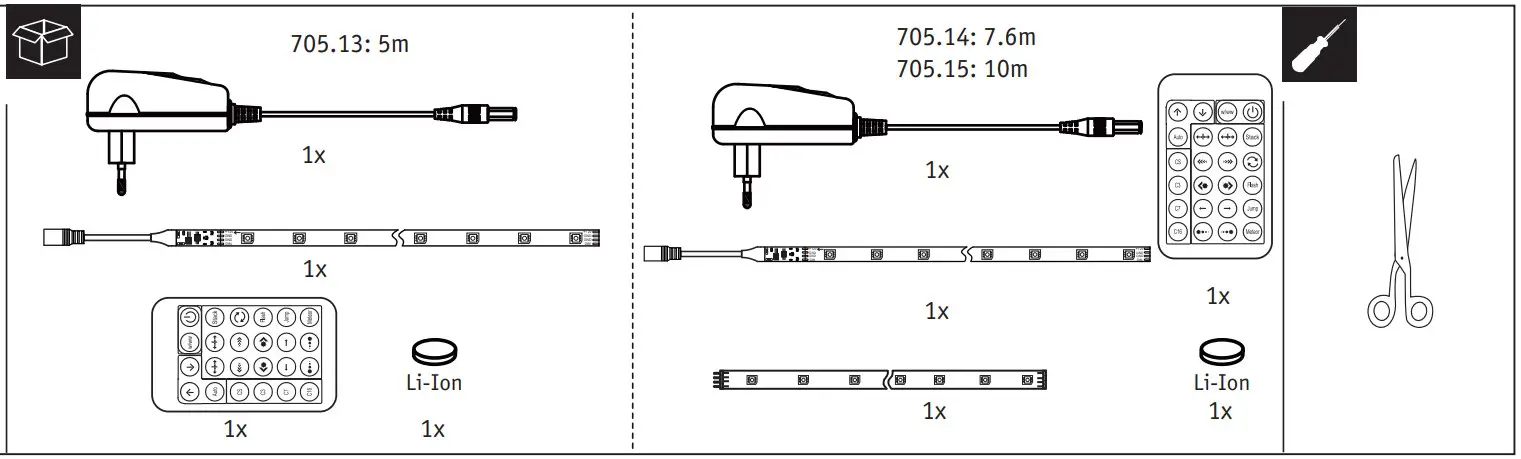

Art.-Nr.: 705.13/705.14/705.15
PLIR 07/22

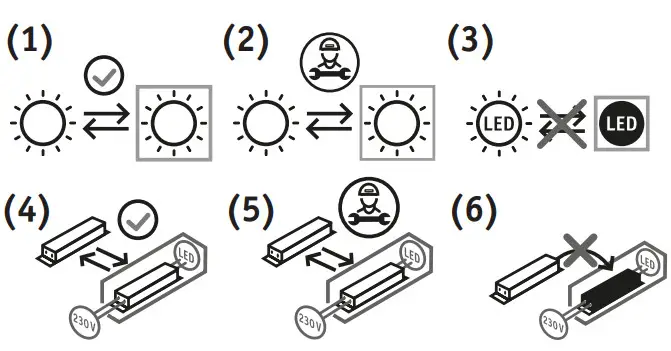

Replaceability: (1) Light source or (4) operating device can be replaced by end users without permanent damage to the luminaire. (2) Light source or (5) operating device can be replaced by a qualified electrician without permanently damaging the luminaire. (3) Light source or (6) operating device is not replaceable, the luminaire must be replaced.
www.paulmann.com/manual-digled/all

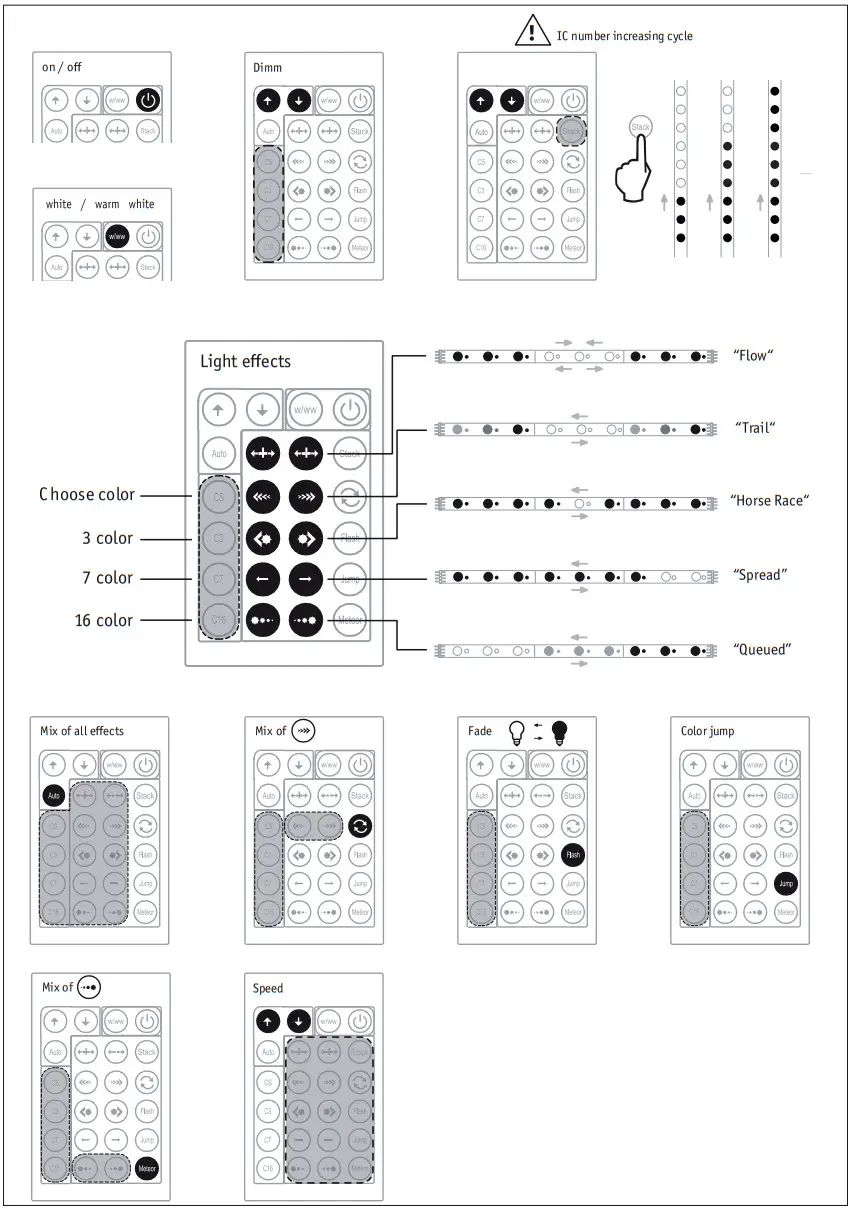

 | Static Light effects: dimming brightness up Dynamic Light effects: increases speed of light effect |  | Static Light effects: dimming brightness down Dynamic Light effects: slows down speed of light effect |
 | W/WW shift key |  | ON/OFF key |
 | Auto-cycle mode |  | flow to two terminals from centre (CS,C3,C7,C1 6) L98 |
| flow to centre from two terminals (CS,C3,C7,C1 6) |  | IC number increasing cycle |
 | eight-color choice key in static model |  | Trail into left (CS,C3,C7,C16) |
 | Trail into right (CS,C3,C7,C16) |  | Trail from two directions in turn |
 | hree-color choice key in static model |  | Horse race to left direction (CS,C3,C7,C16) |
 | Horse race to right direction (CS,C3,C7,C1 6) |  | Flash function key (CS,C3,C7,C16) |
 | seven-color choice key in static model |  | spread to left (CS,C3,C7,C1 6) |
 | spread to right (CS,C3,C7,C1 6) |  | Jump efficient key (CS,C3,C7,C1 6) |
 | sixteen-color choice key in static model |  | Queued color running to left with a tag (CS,C3,C7,C1 6) |
 | Queued color running to right with a tag (CS,C3,C7,C1 6) |  | Queued color running with a tag from two directions in turn |
