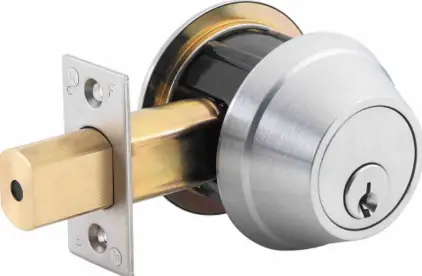

dormakaba T93347 QDB 200 Series Auxiliary Deadbolts
INSTALLATION

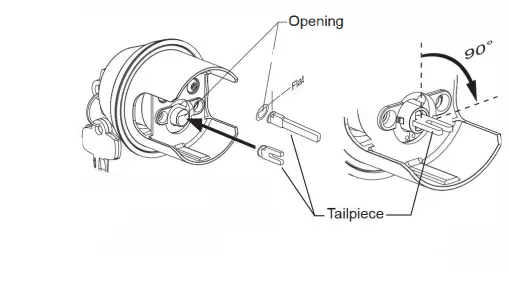

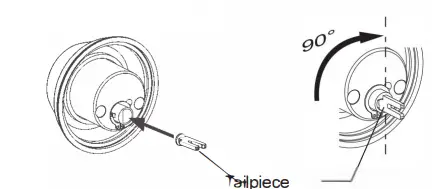

For Exterior Deadbolt
- Insert the tailpiece in a vertical position, (perpendicular to the flat of the opening) then rotate it 90 degrees clockwise to a horizontal position.
For Interior Deadbolt of a Double Cylinder Deadbolt. - Insert the tailpiece horizontally, (perpendicular to the flat of the opening) then rotate it 90 degrees clockwise to a vertical position.
For Interior Deadbolt of a Double Cylinder Deadbolt. DORMA-QDB 100/200 Series T93347_A
