Wave XLR Audio Mixer and 75 db Preamp
User Guide
Part: 51MAG9901
Wave XLR Audio Mixer and 75 db Preamp
- Download the Elgato Wave Link app to get started.

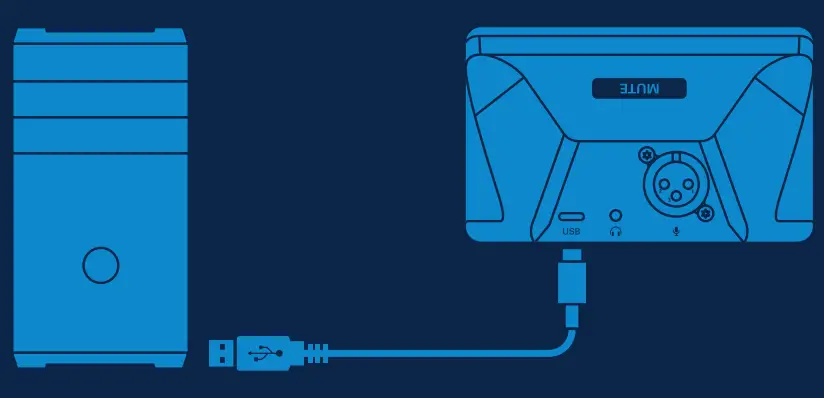

- Use the supplied USB-C cable to connect Wave XLR to your computer.
Condenser microphone = 48V LED must be ON. Dynamic microphone = 48V LED must be OFF.

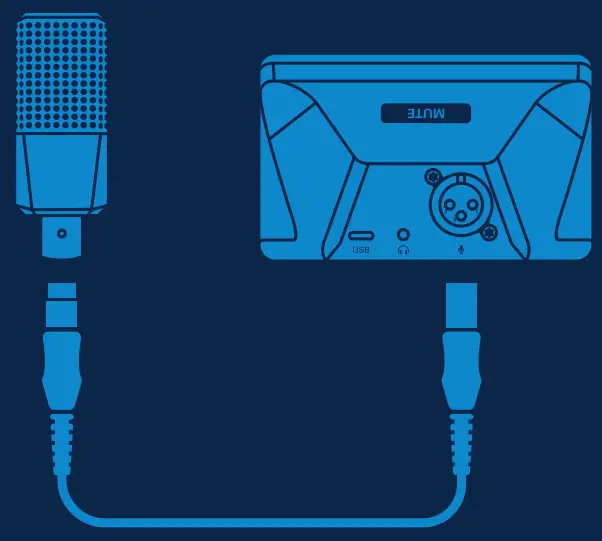

Toggle phantom power by pushing the control dial for 2 seconds.- Connect your mic using a standard XLR microphone cable.

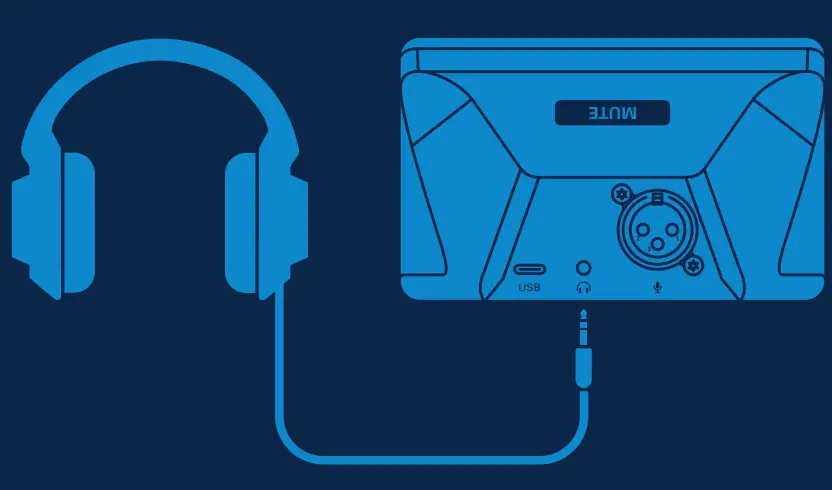

- Connect your headphones to the 3.5 mm jack.
Keep the monitoring volume moderate to protect your hearing!

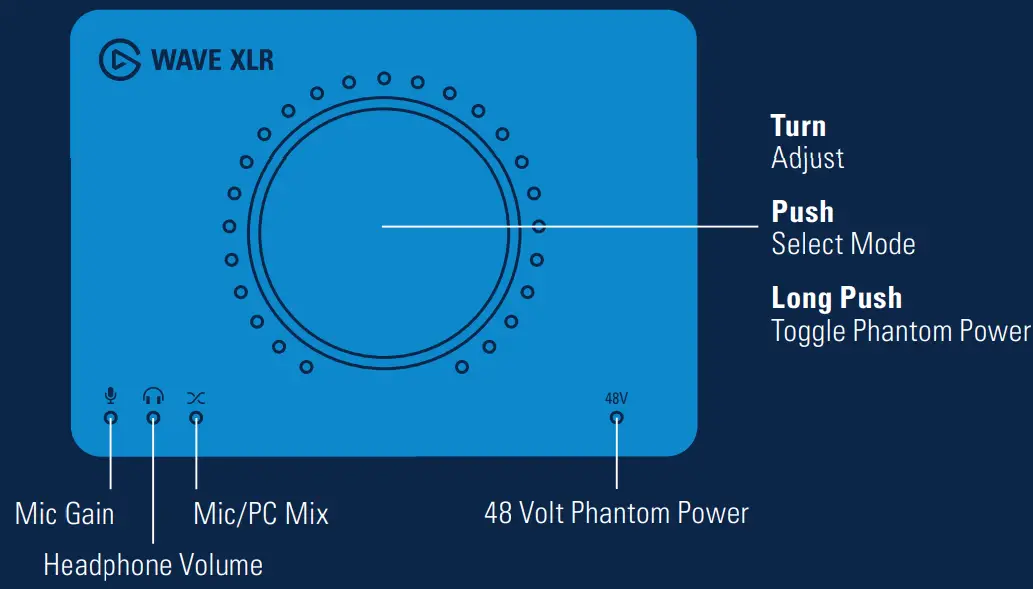

- Push the control dial to toggle between Mic Gain, Headphone Volume, and Mic/PC Mix.

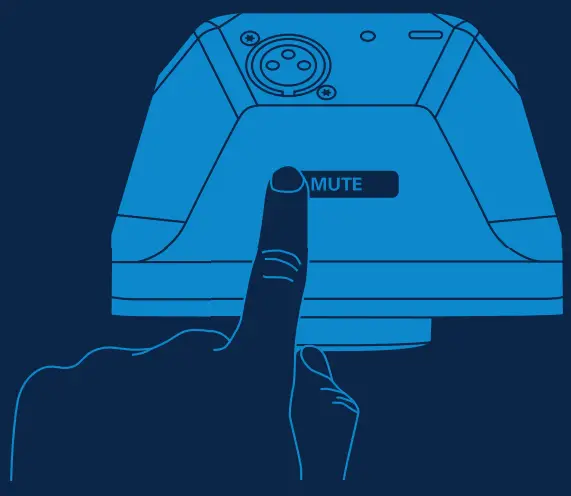

- Tap the capacitive sensor on the back of the unit to mute or unmute.

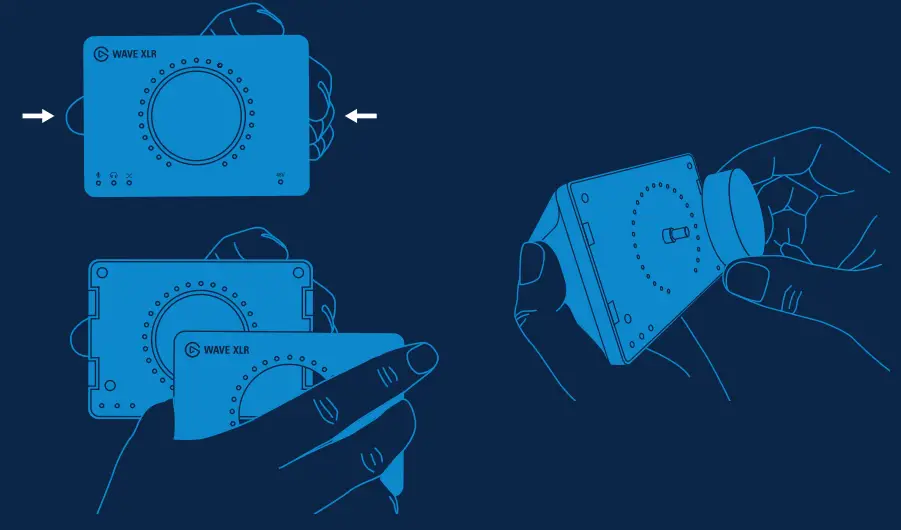

- Easily switch out the faceplate to personalize your setup.
Keep the monitoring volume moderate to protect your hearing!
