500 GPH Bilge Pump & Installation Kit
5614-7
NEW/NOUVEAU
500 GPH Bilge Pump and Installation Kit
ELIMINATES AIR LOCKS
- The easiest, most reliable non-automatic bilge pump ever designed
Installation Kit Includes

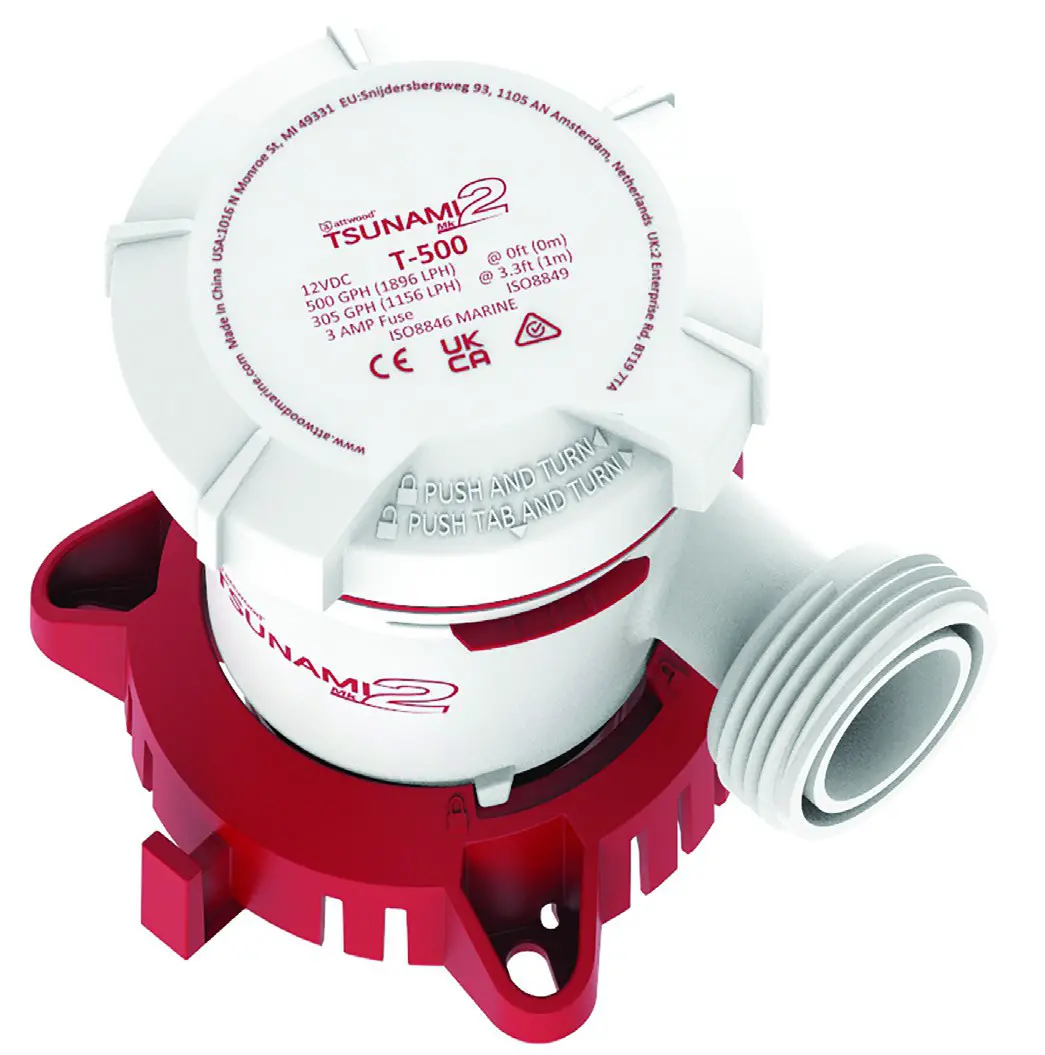

- Attwood Tsunami Mk2 500 GPH Pump
- Washer / Non Return Valve
- 90° Outlet
- Straight Outlet
- 3/4″ x 5′ Pump Hose
- 3/4″ Thru-hull fitting
- 2-way on/off switch with bezel plate
- Snap-It hose clamps
- Wire Kit
- Installation Kit
12-VOLT SPECIFICATIONS :
| ABYC Specifications 13.6-volts DC (6PH=6allons Per Hour) | ISO Specifications 12.0-volts DC (LPH=Liters Per Hour) | ||||||||
| Model | Fuse Required (amps) | NRV Fitted | 0 ft. Head GPH/amps | 3.3 ft. Head GPH/amps | 6.7 ft. Head GPH/amps | Om Head lm Head LPH/amps LPH/amps . | 2m Head LPH/amps | Max Head (ft4D13.6v/ m©12v) | |
| T500 | 3 | N | 536/1.7 | 334/2.2 | 200/2.1 | 1818/1.5 | 1156/1.5 | 0 | 7.6/1.8 |
| 3 | Y | 510/1.8 | 311/2.2 | 186/2.1 | 1692/1.5 | 1116/1.5 | 0 | 7.6/1.8 | |
Flow rates stated are for comparison purposes. Meets ABYC, US Coast Guard and ISO standards. NMMA Listed.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
reliable performance

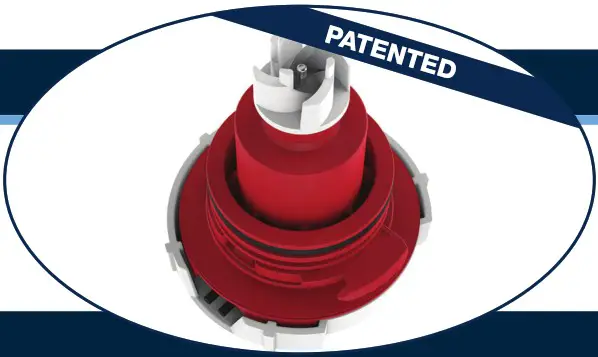

- Patented X-Air™ anti airlock impeller ejects trapped air in the pump and pipework – preventing pump burnout
- 40% better protection against water ingress & electrolysis
easy installation and service

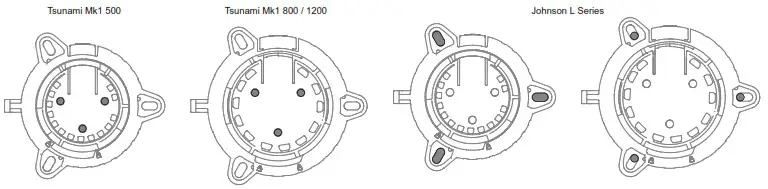

- Compatible mounting patterns with leading pumps – no new drill holes required

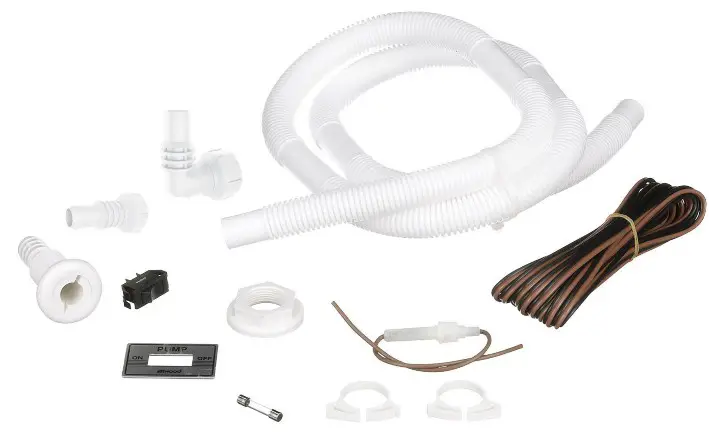

- Installation Kit Includes: Attwood Tsunami Mk2 500 GPH Pump, Washer / Non Return Valve, 90° Outlet, Straight Outlet, 3/4″ x 5′ Pump Hose, 3/4″ Thru-hull fitting, 2-way on/off switch with bezel plate, Snap-It hose clamps, Wire Kit, Installation Kit
Model 5614-7
Made in China
©2021 Attwood Corporation
Lowell, MI, 49331
www.attwoodmarine.com
#21401 Rev A 1021
