45422 2300 GPH Waterfall Pump
Installation Guide
Installation
WARNING
Risk of electric shock – This pump is supplied with a grounding conductor and grounding-type attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle.
Important:
- Always place the unit below water level.
- It is recommened to place the unit horizontally on the ground ensuring its stable position.

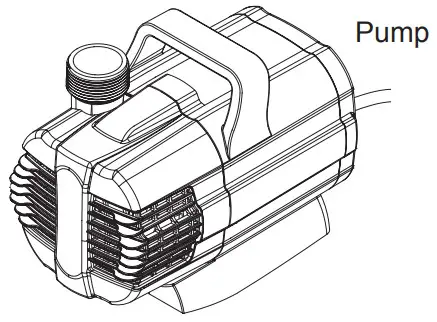

- Do not lift the pump by its power cord. Use the handle to lift and maneuver the pump.
1. For maximum water flow, it is recommended that the largest tubing size for your pump is used.

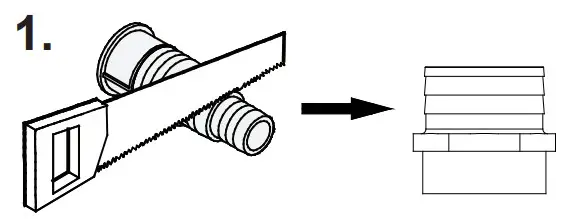

○ If needed, cut the adapter as shown using a hacksaw; consult packaging for tubing size.

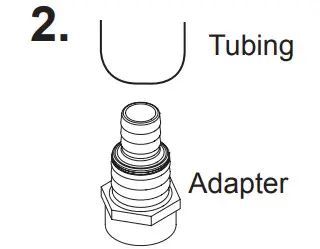

2. Attach the adapter to the pump first, then connect tubing to the adapter.
NOTE: Tubing is NOT INCLUDED.
3. Attach the other end of the tubing to desired water feature or spillway.
Start-up
Attention! The pump must never run dry.
Possible consequences: The pump will be destroyed.
Protective measures: Check the water level at regular intervals. Always place the unit below water level. Attention! The installed temperature sensor automatically turns the pump off, if it is overloaded. The pump automatically switches on again once the motor has cooled down. Risk of accident!
Install the unit so that it is not exposed to direct sun radiation (max. 104 ºF – 40 ºC).
Important:
● The unit switches on automatically when power connection is established.

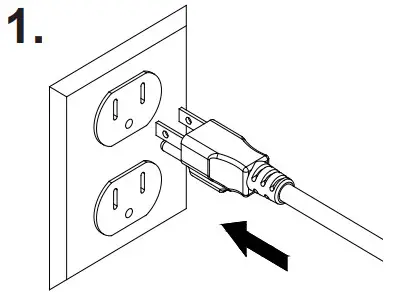

- Switching on: Connect power plug to the socket.
- Switching off: Disconnect the power plug.
