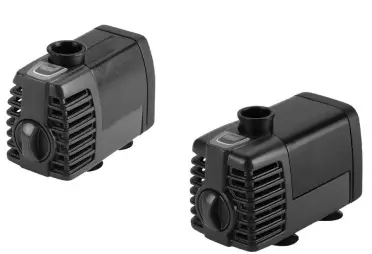

Oase 45413 Fountain Pump 150
Installation
WARNING
Risk of electric shock – This pump is supplied with a grounding conductor and grounding-type attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle.
Important:
- Always place the unit below water level.
- It is recommened to place the unit horizontally on the ground ensuring its stable position.
- Do not lift the pump by its power cord.

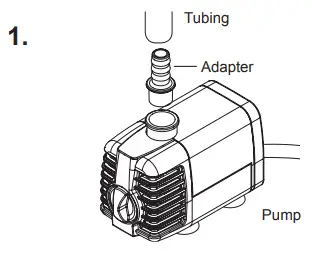

- Attach the adapter to the pump first, then connect the appropriate tubing to the adapter. NOTE: Tubing is NOT INCLUDED.
- Attach the other end of tubing to desired fountain feature.
Start-up
Attention!
The pump must never run dry. Possible consequences: The pump will be destroyed. Protective measures: Check the water level at regular intervals. Always place the unit below water level.
Install the unit so that it is not exposed to direct sun radiation (max. 104 ºF – 40 ºC).
Important:
- The unit switches on automatically when power connection is established.

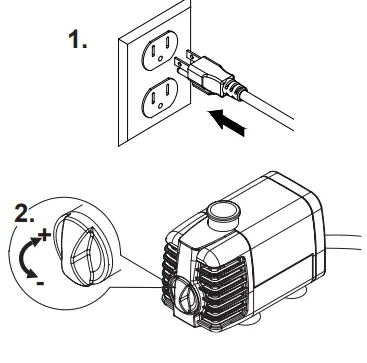

- Switching on: Connect power plug to the socket.
- Adjust the flow control to the preferred setting.
- Switching off: Disconnect the power plug.
