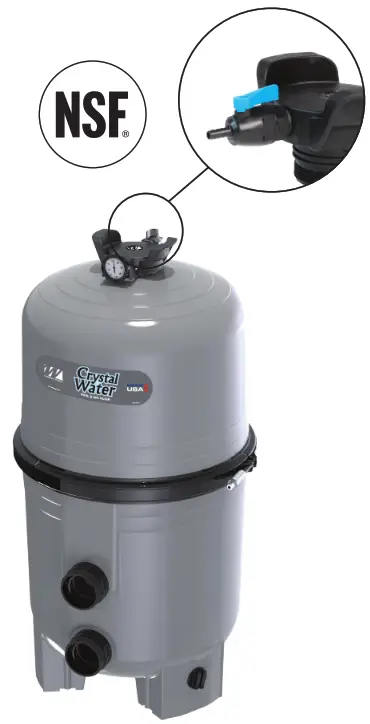

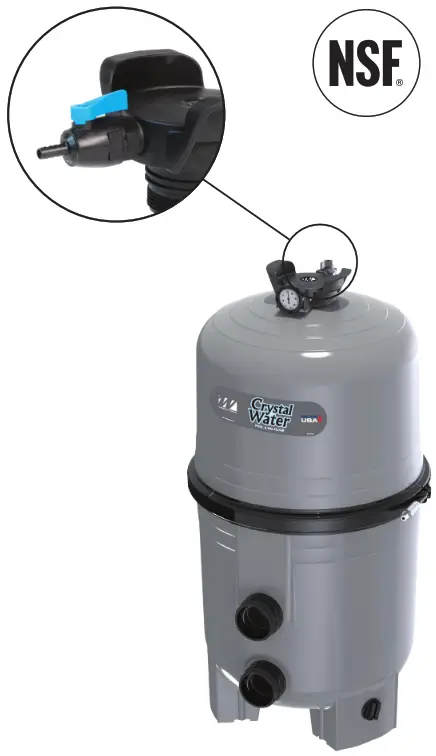

001501 Crystal Water Cartridge Filter
Instructions
Cartridge Filter
The Crystal Water Cartridge Filter is at the top of the list when considering swimming pool and spa filtration. For the clearest, most inviting water, choose the Crystal Water Cartridge Filter.
Features:
- 2 ½” Internal plumbing (largest in the industry) minimizes restrictions and improves water flow
- Comes with 2″ reducer for plumbing versatility
- Four-cartridge design simplifies element removal and extends time between cleaning cycles
- State-of-the-art internal design provides more efficient filtration
- Chemical resistant glass fiber reinforced polypropylene tank for exceptional strength and long life
- Commercial grade stainless steel pressure gauge – Best in the Industry
- New heavy duty manual air relief valve
| Part # | Size | Flow | 6hr | 8hr |
| 570-0325-07 | 325 sq. ft. | 120 GPM | 43,200 | 57,600 |
| 570-0425-07 | 425 sq. ft.* | 150 GPM | 54,000 | 72,000 |
| 570-0525-07 | 525 sq. ft.* | 150 GPM | 54,000 | 72,000 |
*Larger sizes for longer cleaning cycles
DE Filter
DE (diatomaceous earth) filter is sustainable swimming pool and spa filtration. For the clearest, most inviting water, choose the Crystal Water DE Filter.
Features:
- 2 ½” Internal piping (largest in the industry) minimizes restrictions and improves water flow.
- Comes with 2″ reducer for plumbing versatility
- State-of-the-art internal design provides more efficient filtration.
- Easy-out filter grid pack makes servicing easy.
- Chemical resistant glass fiber reinforced polypropylene tank for exceptional strength and long life.
- Commercial grade stainless steel pressure gauge – Best in the Industry
- New heavy duty manual air relief valve
| Part # | Size | Flow | 6hr | 8hr |
| 570-0036-07 | 36 sq. ft | 72 GPM / 5400 GPH | 32,400 | 43,200 |
| 570-0048-07 | 48 sq. ft | 96 GPM / 7200 GPH | 43,200 | 57,600 |
| 570-0060-07 | 60 sq. ft. | 120 GPM / 9000 GPH | 54,000 | 72,000 |
| 600-1500 | 2 ½” CPVC (Hi-Temp) Slide Backwash Valve (includes two 2″ reducers) | |||
| WVD001 | Multi-Port Valve with Union Connections – 2″ FPT | |||
| WVD002 | Multi-Port Valve with Union Connections – 2″ Socket | |||
Designed, Engineered & Manufactured in the USA.
