Wfcdn 2-door Wall Cabinet Installation Guide

ASSEMBLY INSTRUCTIONS

2-Door Wall Cabinet

ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to the possible risk of injury.

WARNING SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don’t use this item for a TV stand or place heavy objects on top of the item. Always use angle braces or anchors to secure furniture to the wall.

THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO  NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 75 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 25 POUNDS PER SHELF OR 75 POUNDS TOTAL WEIGHT,  SHELF MAY TIP FROM WALL AND CAUSE SERIOUS INJURY OR DEATH.

WARNING
SERIOUS OR FATAL INJURIES CAN OCCUR FROM FURNITURE TIP-OVER. TO HELP PREVENT TIP-OVER:

• Always use tip over restraints and/or wall anchors to secure furniture to the wall
• Place heaviest items in the lowest drawers/bins or shelves
• Do not set TV’s or other heavy objects on top of this product
• Never allow children to climb or hang on to the drawers/bins, doors, or shelves of furniture
• Never open more than one drawer at a time or defeat or remove any drawer interlock system

PARTS LIST

NO	PARTS	QTY	DESCRIPTION
A		16PCS	Wood Dowel
B		12PCS	Cam Bolt
C		12PCS	Cam Lock
D		18PCS	Screw (3x12mm)
E		4PCS	Hinge
F		2PCS	Magnet Plate
G		24PCS	Screw (2.5x12mm)
H		1SET	Magnet with 2 Screws
I		4PCS	Shelf Holder
J		4PCS	Machine Screw (4x12mm)
K		2PCS	Handle
L		2PCS	Plastic Anchor
M		2PCS	Screw (4x45mm)
N		1PC	Plastic Connection Strip
		1PC	Wall Mounting Paper Template

TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE  USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE  ITEM IF ANY PARTS ARE MISSING OR DAMAGED

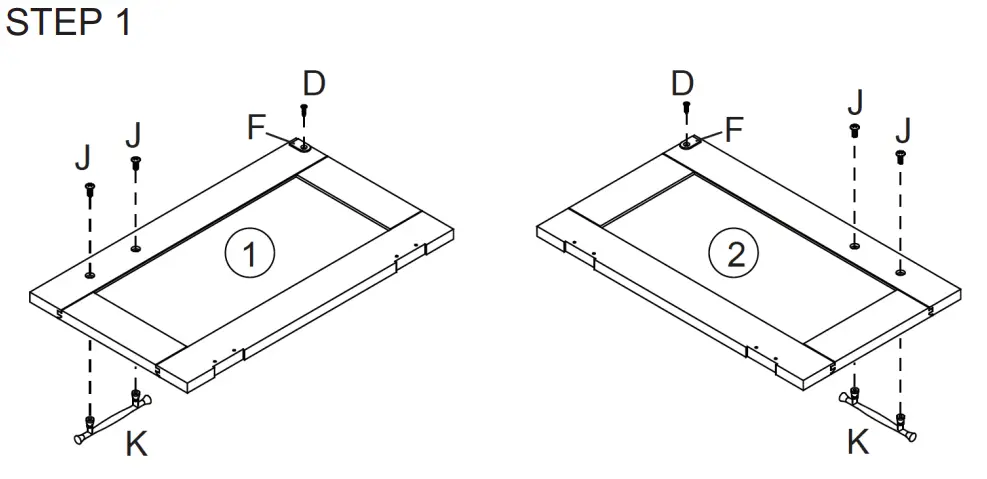

1. Attach 1 magnet plate (F) to left door (1) by inserting 1 screw (D) through hole on magnet plate (F), then tighten to left door (1).
2. Attach 1 handle (K) to left door (1) by inserting 2 machine screws (J) through holes on left door (1), then tighten to handle (K).
3. Repeat above steps to assemble another magnet plate (F) and handle (K) to right door (2).

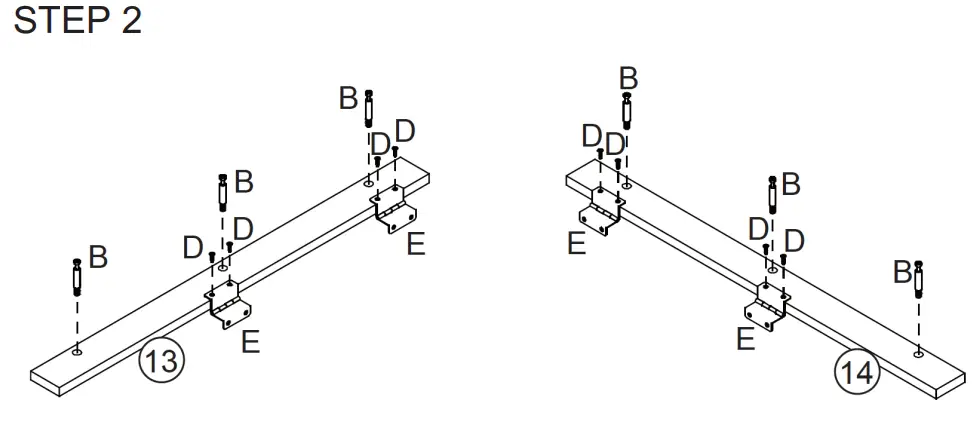

1. Screw 3 cam bolts (B) into cam bolt holes on the right support board (13).
2. Attach 2 metal hinges (E) to the right support board (13) by inserting 4 screws (D) through holes on metal hinges (E), then tighten to the right support board (13).
3. Repeat the above steps for the left support board (14).

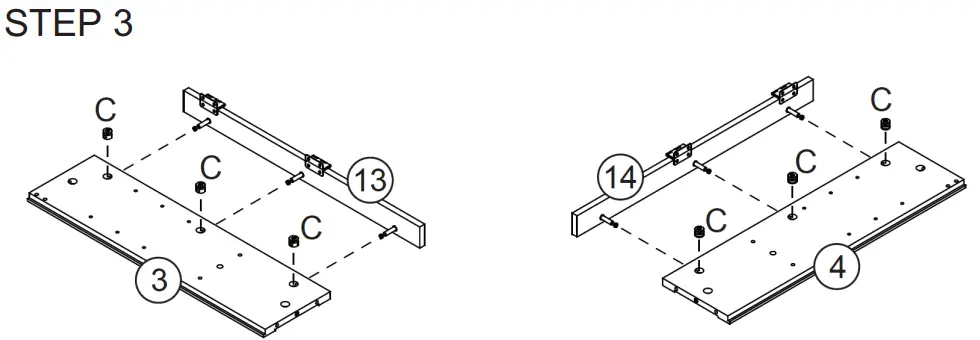

1. Attach left support board (14) to the left side panel (4) by inserting 3 cam bolts (B) into cam lock holes on the left side panel (4).
2. Insert 3 cam locks (C) into cam lock holes on the left side panel (4), then rotate clockwise to secure cam bolts  (B) in place.
3. Repeat the above steps to assemble right-side panel (3) and right support board (13).

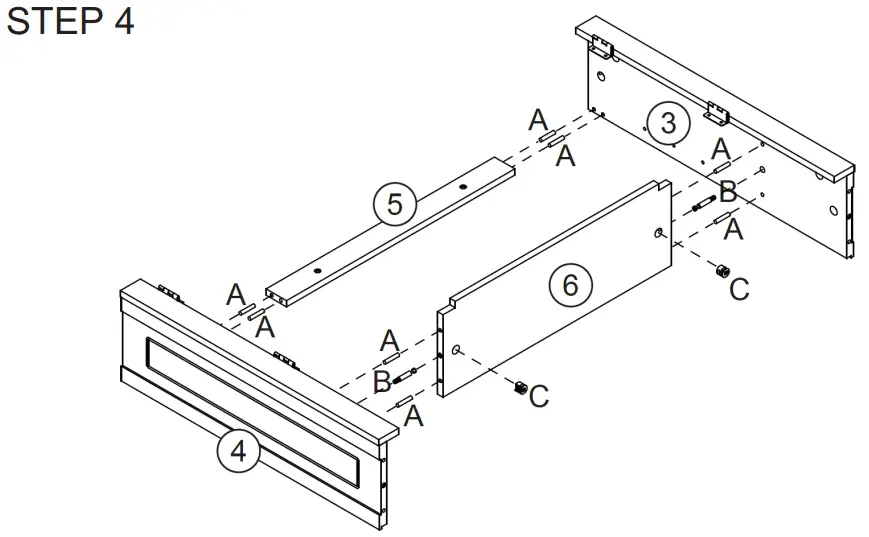

1. Screw 2 cam bolts (B) into cam bolt holes on the left side panel (4) and right-side panel (3).
2. Insert 8 wood dowels (A) into dowel holes on the left side panel (4) and right-side panel (3).
3.  Attach crossbar (5) to the left side panel (4) by inserting wood dowels (A) into dowel holes on the crossbar (5).
4.  Attach shelf (6) to the left side panel (4) by inserting 1 cam bolt (B) and 2 wood dowels (A) into holes on the shelf (6), then insert 1 cam lock (C) into the cam lock hole on the shelf (6) and rotate clockwise to secure cam bolt (B) in place.
5. Attach right side panel (3) to the crossbar (5) and shelf (6) by inserting wood dowels (A) into holes on the crossbar (5), and inserting cam bolt (B) and wood dowels (A) into holes on the shelf (6).
6. Insert 1 cam lock (C) into the cam lock hole on the shelf (6) and rotate clockwise to secure the cam bolt (B) in place.

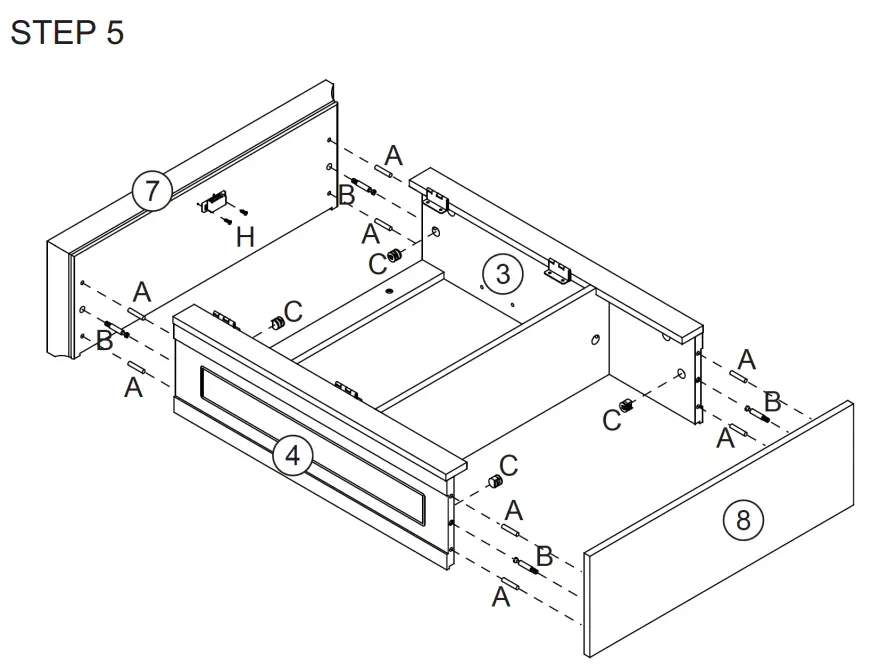

1. Screw 2 cam bolts (B) into the cam bolt holes on the bottom board (8).
2. Insert 4 wood dowels (A) into dowel holes on the bottom board (8).
3. Attach bottom board (8) to the left side panel (4) and right-side panel (3) by inserting cam bolts (B) and wood dowels (A) into holes on the left side panel (4) and right-side panel (3).
4. Insert 2 cam locks (C) into cam lock holes on the left side panel (4) and right-side panel (3), then rotate clockwise to secure cam bolts (B) in place.
5. Attach magnet (H) to the top board (7) by inserting 2 screws (H) through holes on a magnet (H), then tighten to bottom of top board (7).
6. Screw 2 cam bolts (B) into cam bolt holes on top board (7).
7. Insert 4 wood dowels (A) into dowel holes on the bottom of the top board (7).
8. Attach top board (7) to the left side panel (4) and right-side panel (3) by inserting 4 wood dowels (A) and 2 cam bolts (B) into dowel holes and cam lock holes on the left side panel (4) and right-side panel (3).
9. Insert 2 cam locks (C) into cam lock holes on the left side panel (4) and right-side panel (3), then rotate clockwise to secure cam bolts (B) in place.

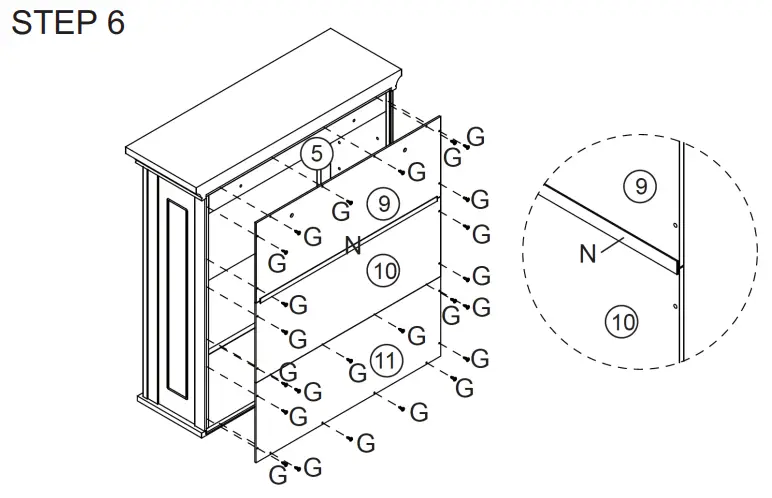

1. Attach upper backboard (9) and middle backboard (10) together by sliding into a plastic connection strip (N).
2. Attach upper backboard (9) and middle backboard (10) to the cabinet by inserting screws (G) through holes on the upper backboard (9) and middle backboard (10), then tighten into the cabinet.
3. Attach lower backboard (11) to the cabinet by inserting screws (G) through holes on the lower backboard (11), then tighten into the cabinet.

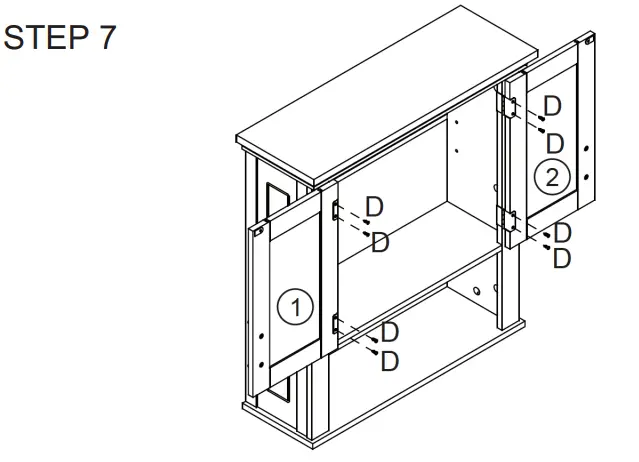

1. Attach left door (1) to left support panel (14) by inserting 4 screws (D) through holes on metal hinges (E), then tighten to left door (1).
2. Repeat above step to assemble right door (2).

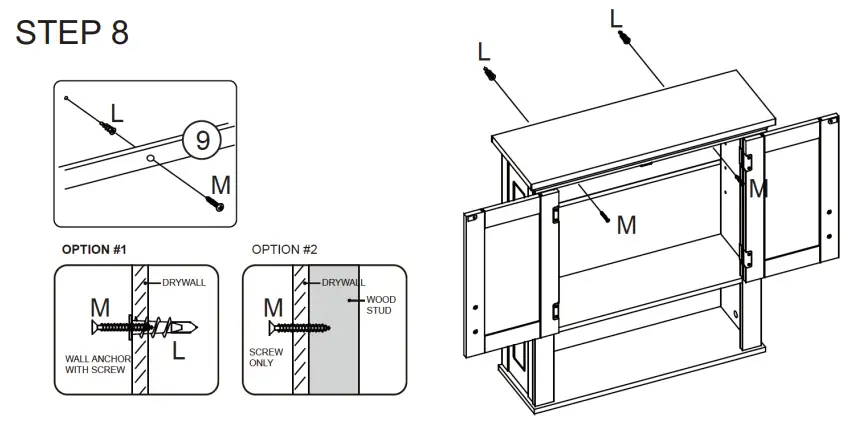

Option #1: Securing to Drywall

1. Using wall mounting paper template to determine position, screw 2 plastic anchors (L) into drywall.
2. Insert 2 screws (M) through holes on the inside of the cabinet and into plastic anchors (L) and tighten.

Option #2: Securing to Drywall and Wood Stud

1. Insert 2 screws (M) through holes on the inside of the cabinet, then tighten through drywall and into wood stud.

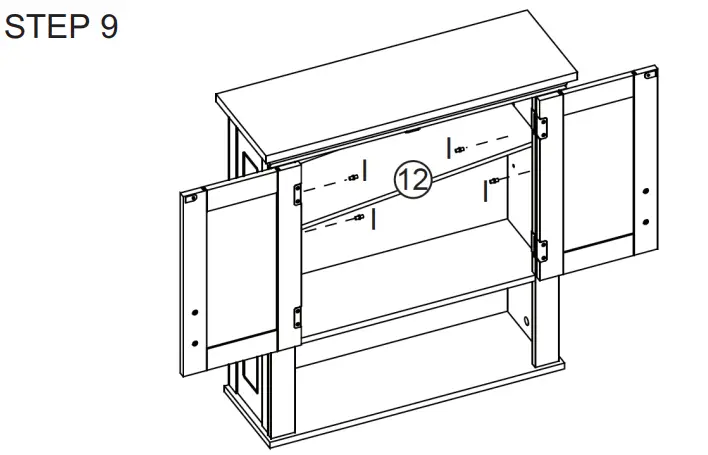

1. Insert 4 shelf holders (I) into holes on left side panel (4) and right-side panel (3) at desired shelf heights.
2. Place adjustable shelf (12) onto shelf holders (I).

ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children.

WARNING Please make sure your item is secured to the wall, per assembly instructions.

CARE INSTRUCTIONS:
Wipe clean with a water-dampened cloth. Wipe dry with a clean cloth.

IMPORTANT:
Keep assembly instructions for future reference.
