WALL FLEX CABINET
U180737 12-21
Wall flex cabinets come with the shelves and dividers you need to configure them your way.
CABINET INSTALLATION
For mounting instructions, refer to the cabinet installation instructions on the carton or enclosed sheet.

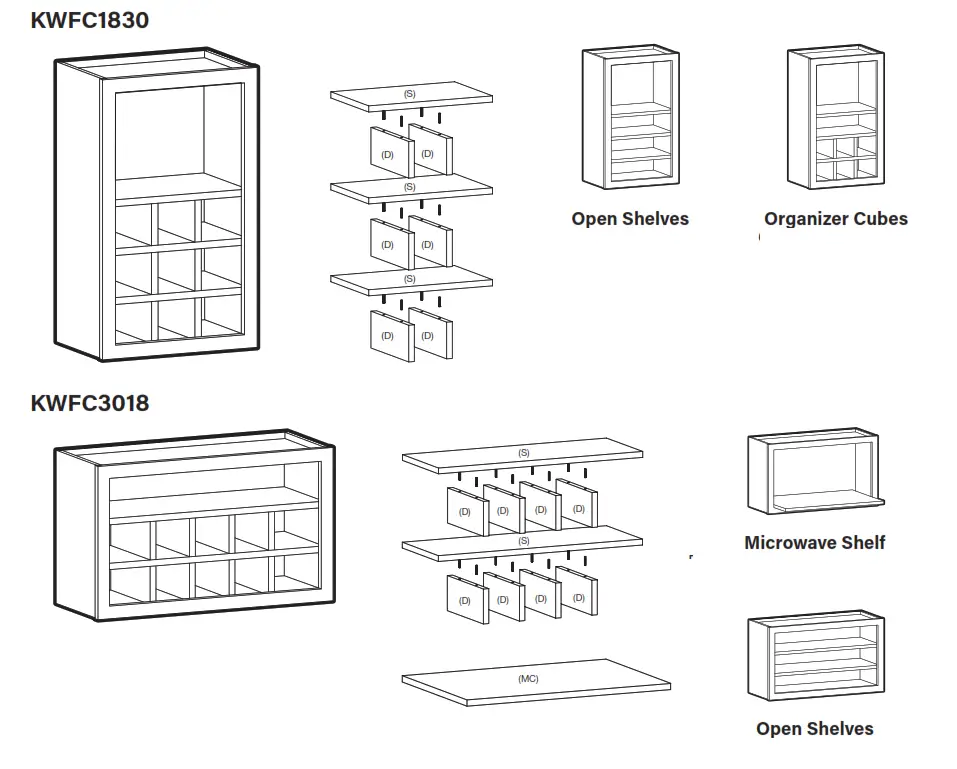

2. SHELF AND DIVIDER INSTALLATION – KWFC1830, KWFC3018
A loose shelf can be installed by inserting the metal shelf pins into the side panels and setting the shelf on top. Dividers are installed by inserting dowels into the holes on the top side of the dividers (D). Select the divider location and insert dividers (D) with attached dowels into the holes of the shelf (S).
3a MICROWAVE SHELF INSTALLATION – KWFC3018 ONLY

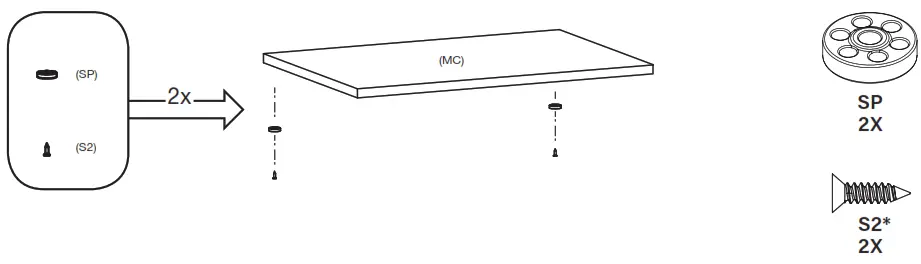

Install spacers (SP) to underside of the microwave shelf (MC) near the back edge with screws (S2).

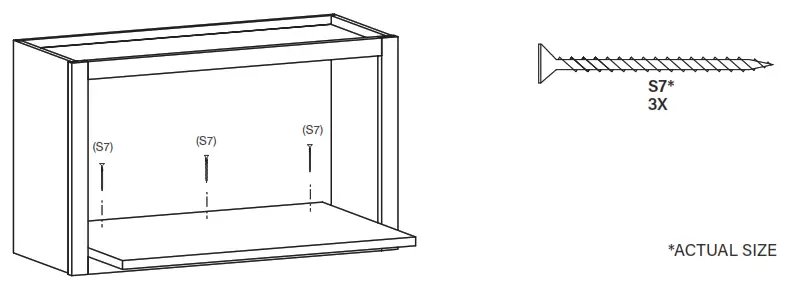

3b Secure the shelf (MC) inside the cabinet using the screws (S7) provided.
EMAIL: HomeProducts_[email protected]
TELEPHONE: U.S. Call (888) 578-4009
WEBSITE: www.AmericanWoodmark.com
American Woodmark Corporation - A Family of Cabinet Brands
