Cabinets Single Door Wall Cabinet Installation Guide

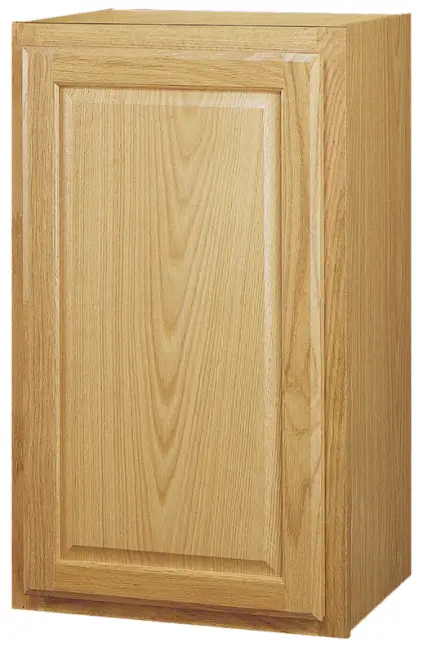

Cabinets Single Door Wall Cabinet

WARNING: SERIOUS OR FATAL INJURIES CAN OCCUR FROM FURNITURE TIP-OVER. TO HELP PREVENT TIP-OVER:

• Always use tip over restraints and/or wall anchors to secure furniture to the wall.
• Place heaviest items in the lowest drawers/bins or shelves.
• Do not set TV’s or other heavy objects on the top of this product.
• Never allow children to climb or hang on to the drawers/bins, doors or shelves of furniture.
• Never open more than one drawer at a time or defeat or remove any drawer interlock system.

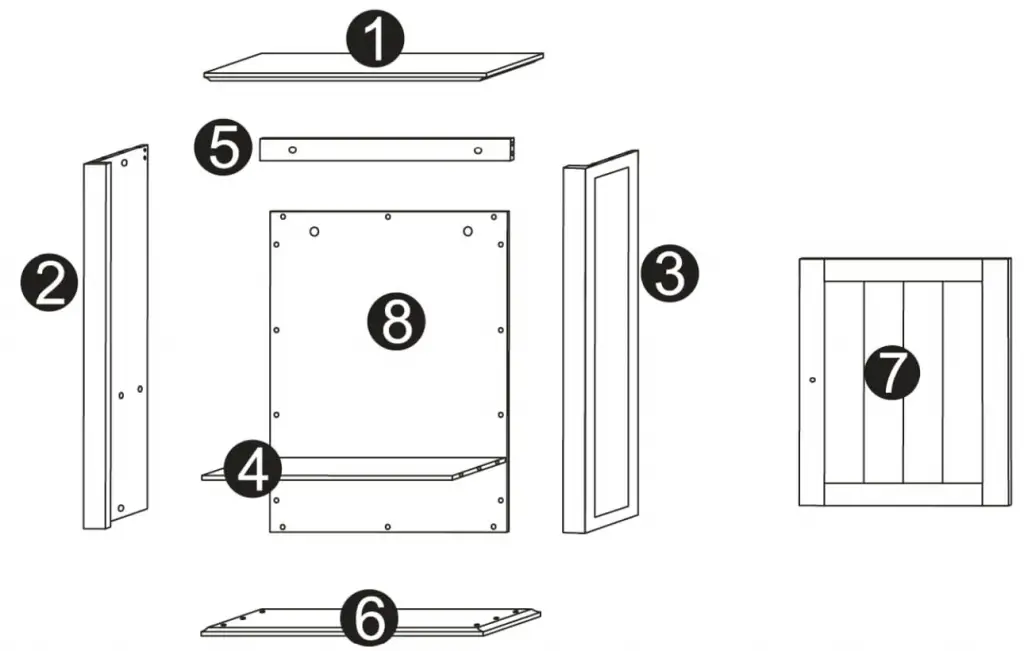

PARTS LIST

TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED.

STEP 1:

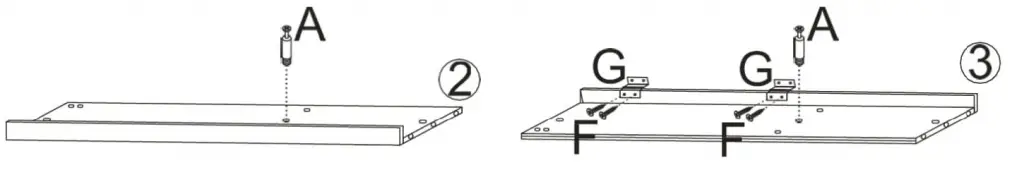

1. Screw 1 cam bolt (A) into cam bolt hole on left side panel (2).
2. Screw 1 cam bolt (A) into cam bolt hole on right side panel (3).
3. Attach 2 metal hinges (G) to right side panel (3) by inserting 4 screws (F) through holes on metal hinges (G), then tighten to right side panel (3).

STEP 2:

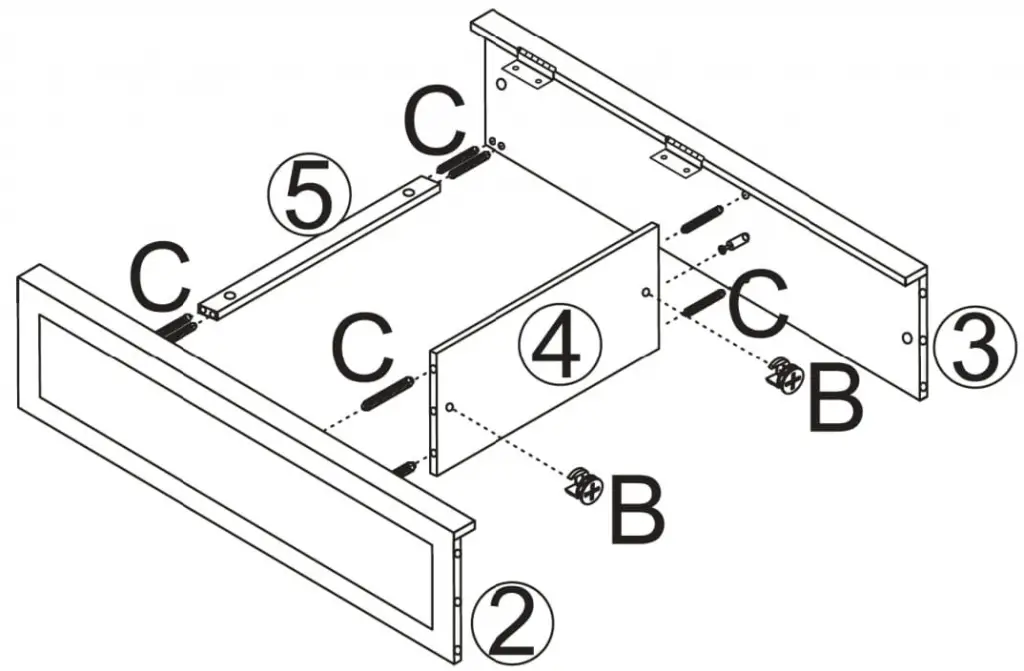

1. Insert 4 wood dowels (C) into holes on ends of rear cross bar(5).
2. Insert 4 wood dowels (C) into holes on ends of shelf (4 ).
3. Attach left side panel (2) to rear cross bar (5) and fixed shelf (4) by inserting wood dowels (C) into wood dowel holes and inserting 1 cam bolt (A) into cam lockhole.
4. Insert 1 cam lock (B) into cam lock hole on fixed shelf (4), then rotate clockwise to secure cam bolt (A) in place.
5. Repeat above steps to assemble right side panel (3) to rear cross bar (5) and fixed shelf (4).

STEP 3:

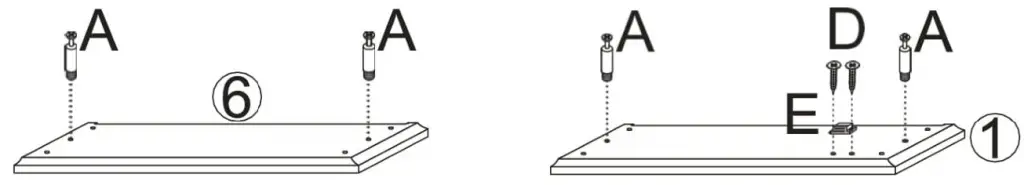

1. Screw 2 cam bolts (A) into cam bolt holes on bottom board (6).
2. Screw 2 cam bolts (A) into cam bolt holes on top board (1 ).
3. Attach 1 magnet (E) to top board (1) by inserting 2 screws (D) through holes on magnet (E), then tighten to top board (1 ).

STEP4:

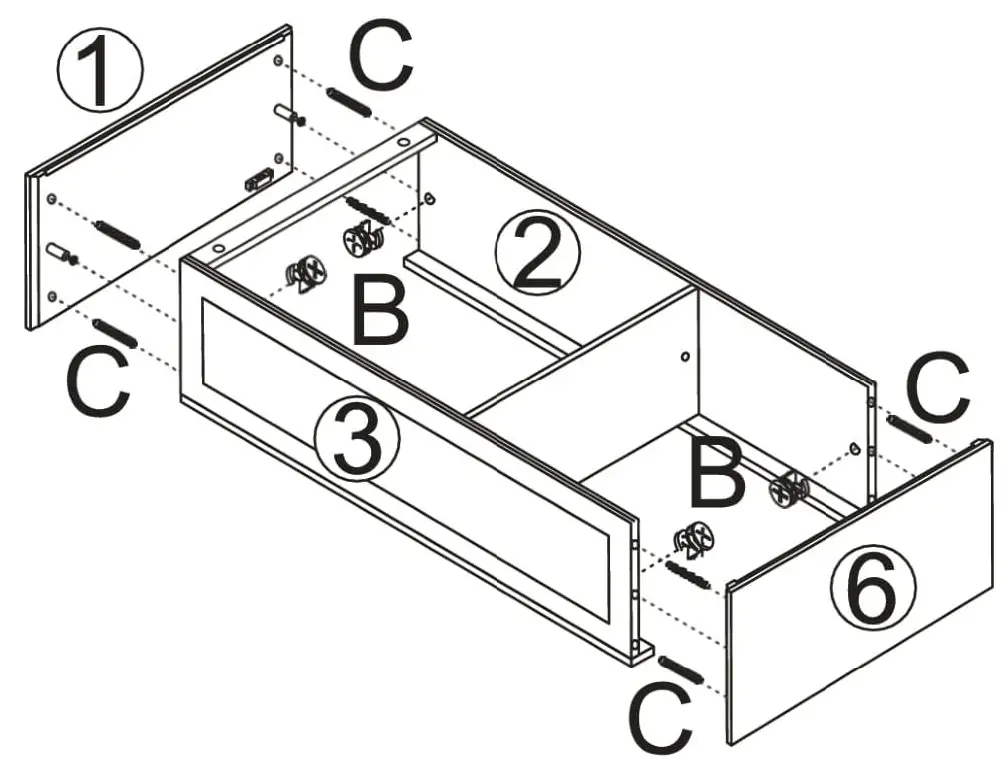

1. Insert 4 wood dowels (C) into wood dowel holes on the bottom board (6).
2. Attach bottom board (6) to pre-assembled unit by inserting wood dowels (C) into wood dowel holes and inserting cam bolts (A) into cam lock holes on side panels (2) and (3).
3. Insert 2 cam locks (B) into cam lock holes on side panels (2) and (3), then rotate clockwise to secure cam bolts (A) in place.
4. Repeat above steps to assemble top board (1) to pre-assembled unit.

STEP 5:

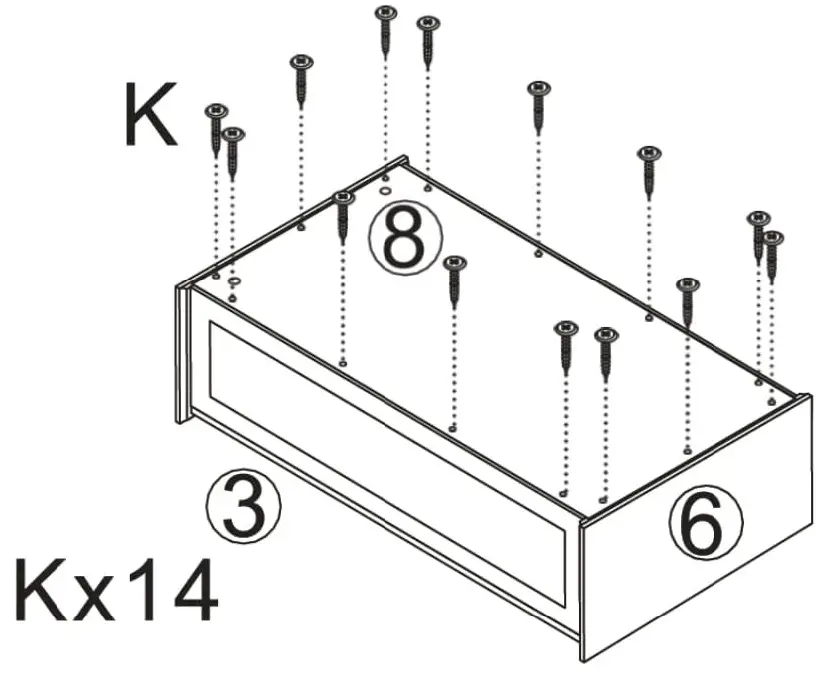

1. Attach back board (8) to pre-assembled cabinet by inserting 14 screws (K) through holes on back board (8), then tighten to back of cabinet.

STEP 6:

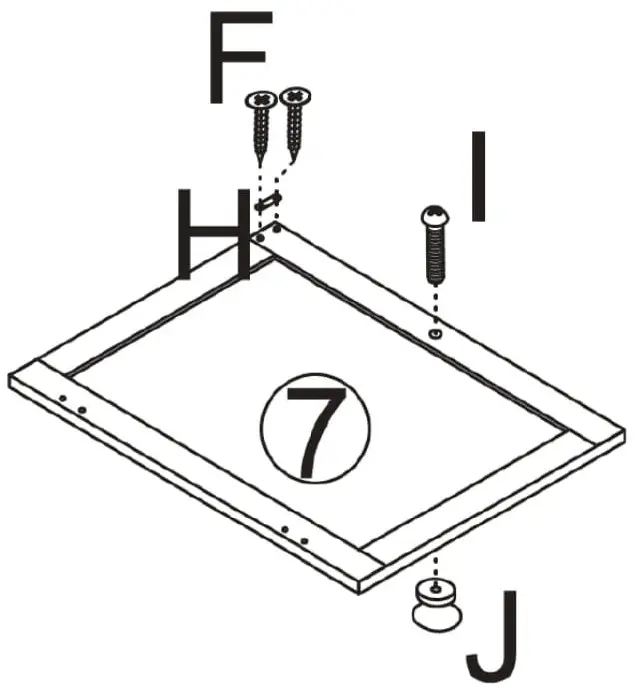

1. Attach magnet plate (H) to door (7) by inserting 2 screws (F) through holes on magnet plate (H), then tighten to door (7).
2. Attach knob (J) to door (7) by inserting 1 machine screw (I) through hole on door (7), then tighten to knob (J).

STEP 7:

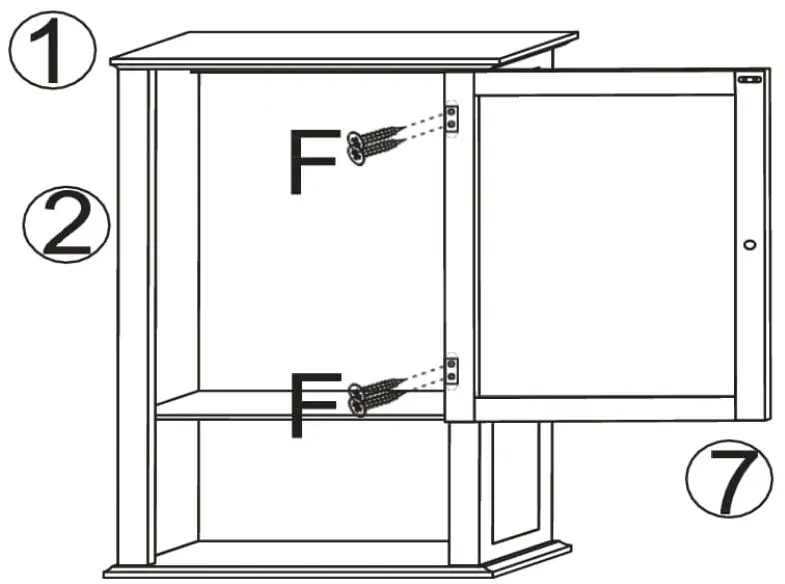

1. Attach door (7) to right side panel (3) by inserting 4 screws (F) through holes on metal hinges, then tighten to right side panel (3).

STEP 8:

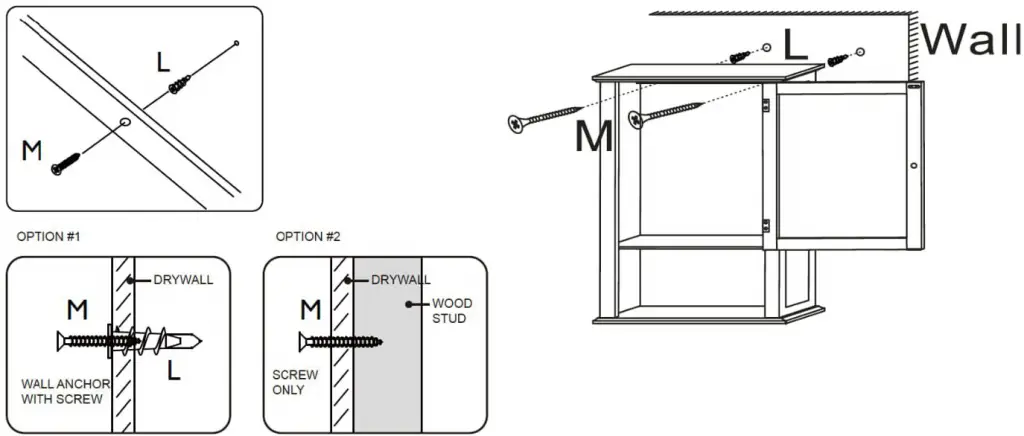

Option 1: Securing to Drywall

1. Using wall mounting paper template to determine position, screw 2 plastic anchors (L) into drywall.
2. Insert 2 screws (M) through holes on inside of cabinet and into plastic anchors (L) and tighten.

Option 2: Securing to Drywall and Wood Stud

1. Insert 2 screws (M) through holes on inside of cabinet, then tighten through drywall and into wood stud.

ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children.

WARNING: Please make sure your item is secured to the wall, per assembly instructions.

CARE INSTRUCTIONS:
Wipe clean with a water dampened cloth. Wipe dry with clean cloth.

IMPORTANT: Keep assembly instructions for future reference.
