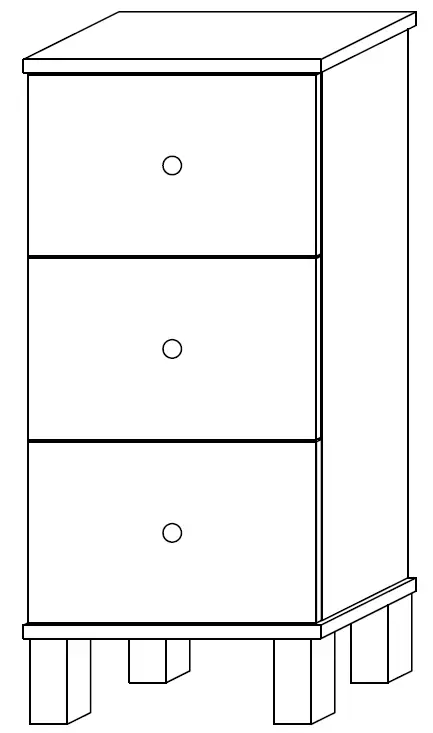

Home 34 cm Affair Bathroom Cabinet Westa

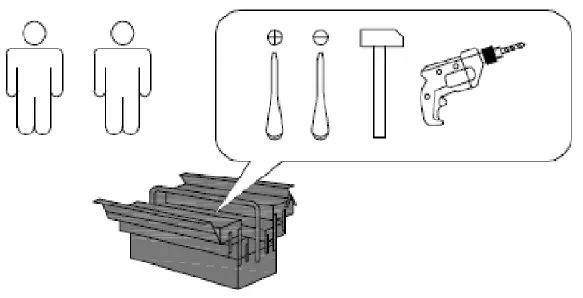

TOOLS

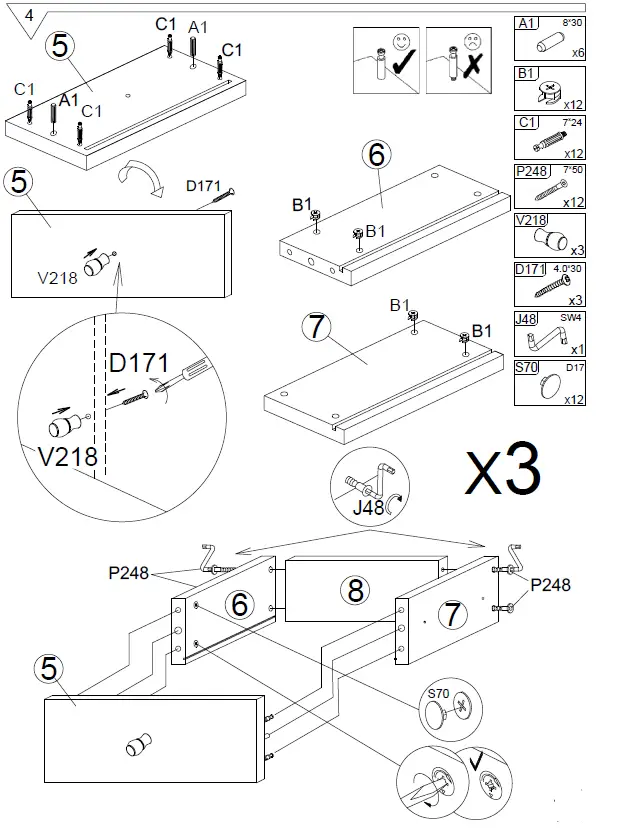

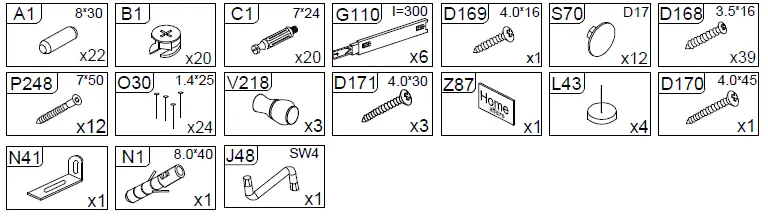

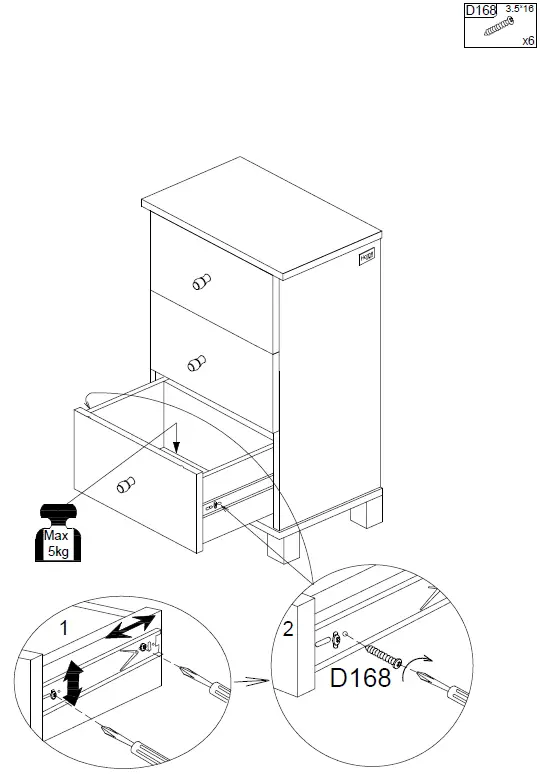

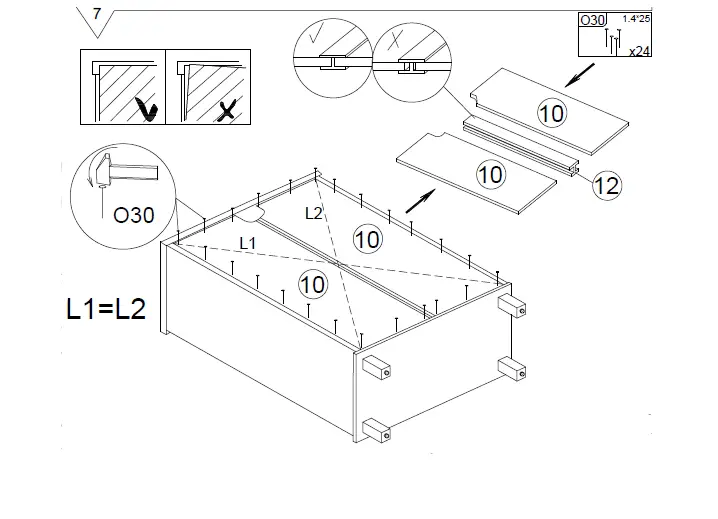

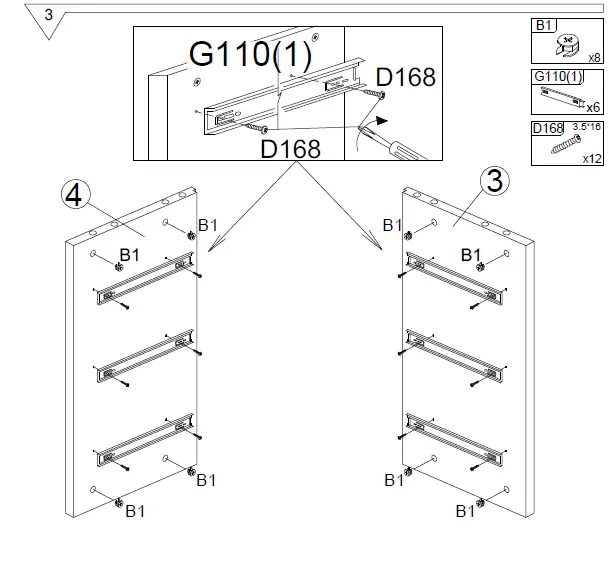

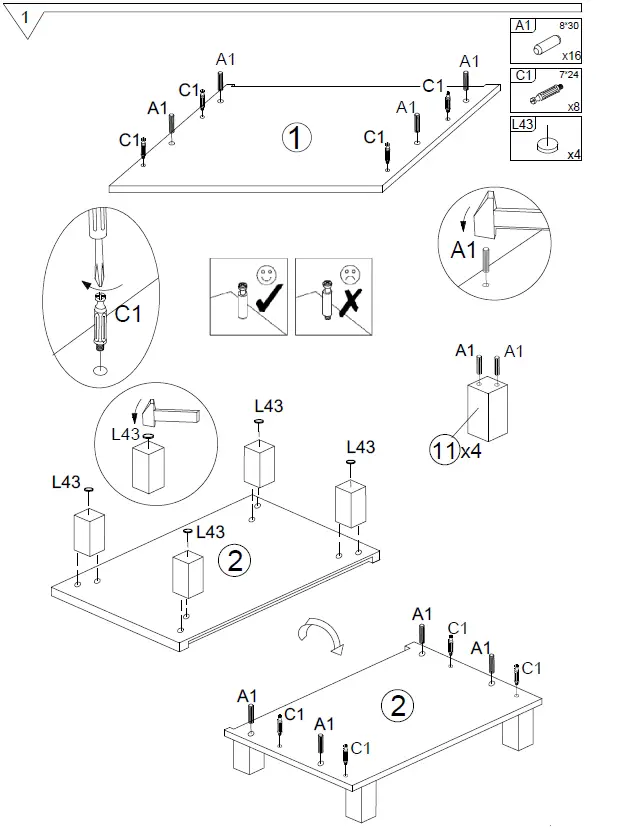

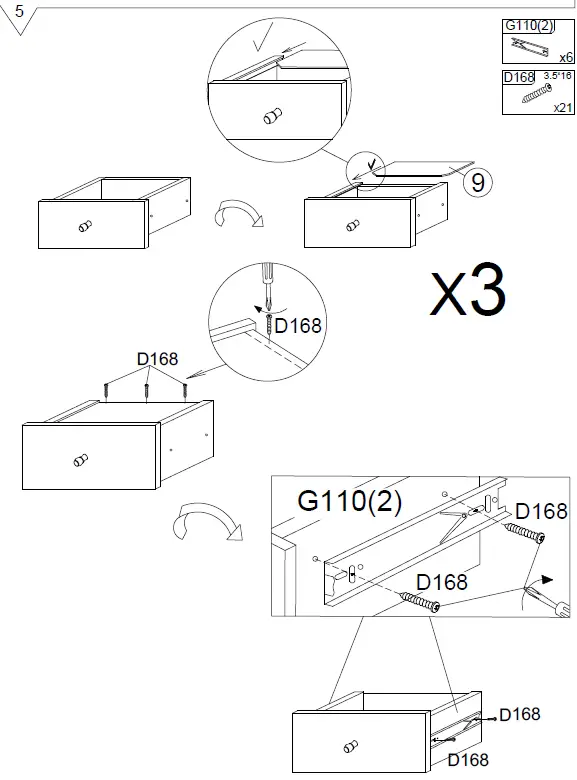

Assembly instructions

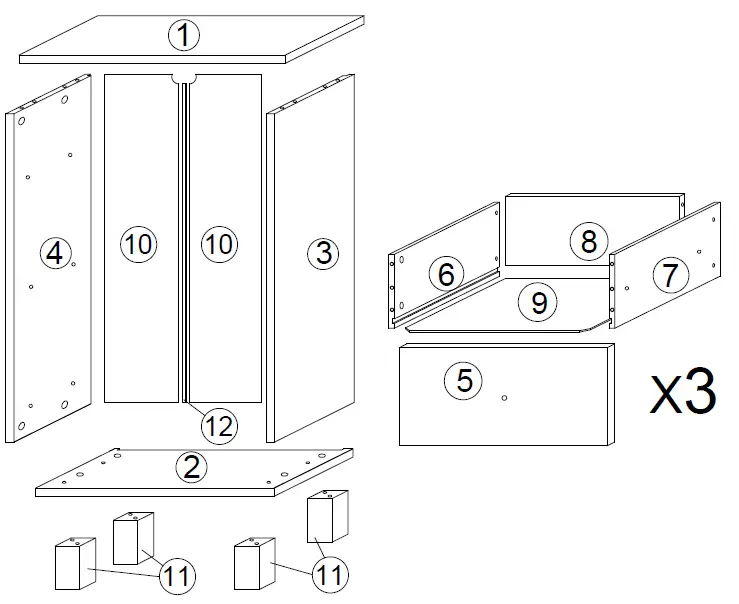

| N | Size/MaB(mm) | Qty | N | Size/MaB(mm) | Qty |
| 1 | 402x341x18 | 1 | 7 | 300x215x18 | 3 |
| 2 | 402x341x18 | 1 | 8 | 298x198x18 | 3 |
| 3 | 747x320x18 | 1 | 9 | 307x300x4 | 3 |
| 4 | 747x320x18 | 1 | 10 | 766x187x4 | 2 |
| 5 | 390x245x18 | 3 | 11 | 116x50x50 | 4 |
| 6 | 300x215x18 | 3 | 12 | L=705 | 1 |

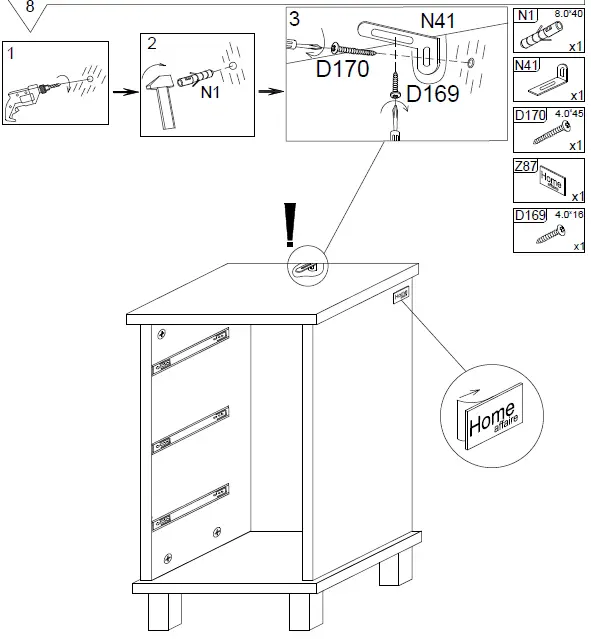

Attention
The wall fastening serves to prevent tipping – be absolutety sure to mount it! For certain wall types, a special wall plug may be necessary!
