SKU No. 1006236686
USE AND CARE GUIDE
Light Oak Accent Cabinet With Panel Doors
Questions, problems, missing parts?
Before returning to the store, call Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in StyleWell through the purchase of this Storage Cabinet.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing StyleWell!
Safety Information
DANGER
Keep small parts away from children during assembly.
- Read and follow instructions carefully.
WARNING
- Read these instructions carefully and keep them in a safe place.
- TO GUARANTEE THE SAFE USE OF THIS PRODUCT, FOLLOW THE WARNINGS, GUIDELINES, AND RECOMMENDATIONS IN THIS MANUAL.
- Adult assembly is required.
- Small parts may present a choking hazard prior to assembly.
- Do not stand, step, or climb on the unit.
CAUTION
- Do not use power tools to assemble your furniture. Power tools may strip or damage parts/product.
- Do not overtighten connectors (screws, bolts, etc.).
Overtightening can lead to product damage. - Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment. If parts are missing, contact THE HOME DEPOT to obtain any missing parts.
- DO NOT USE SUBSTITUTE PARTS.
- This product should only be used on a flat, level surface.
- Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included.
- Assembly requires two people; assembly alone may cause injury.
- Before using the product be sure that it is completely and properly assembled.
- During assembly, children should be kept away from the product to avoid the possible risk of injury.
- Regularly check screws to ensure they are tightened securely.
Warranty
1 YEAR WARRANTY
WHAT IS COVERED
We guarantee this product to be free of manufacturing defects to the original purchaser for one year.
WHAT IS NOT COVERED
This warranty does not cover commercial use, acts of nature, and abusive use.
Pre-assembly
PLANNING ASSEMBLY
- Remove all Packaging materials, staples, and packing straps from the carton.
- Refer to Parts List and Hardware List, and ensure parts and hardware are correct before assembly.
- Contact customer service for missing parts.
- Place all wooden parts on a clean, flat, and soft surface (e.g.carpet or reg) to prevent scratch and damage to parts
TOOLS REQUIRED
 | |||
| Safety goggles (Not Included) | Phillips screwdriver (Not Included) | Slotted Screwdriver (Not Included) | Level (Not Included) |

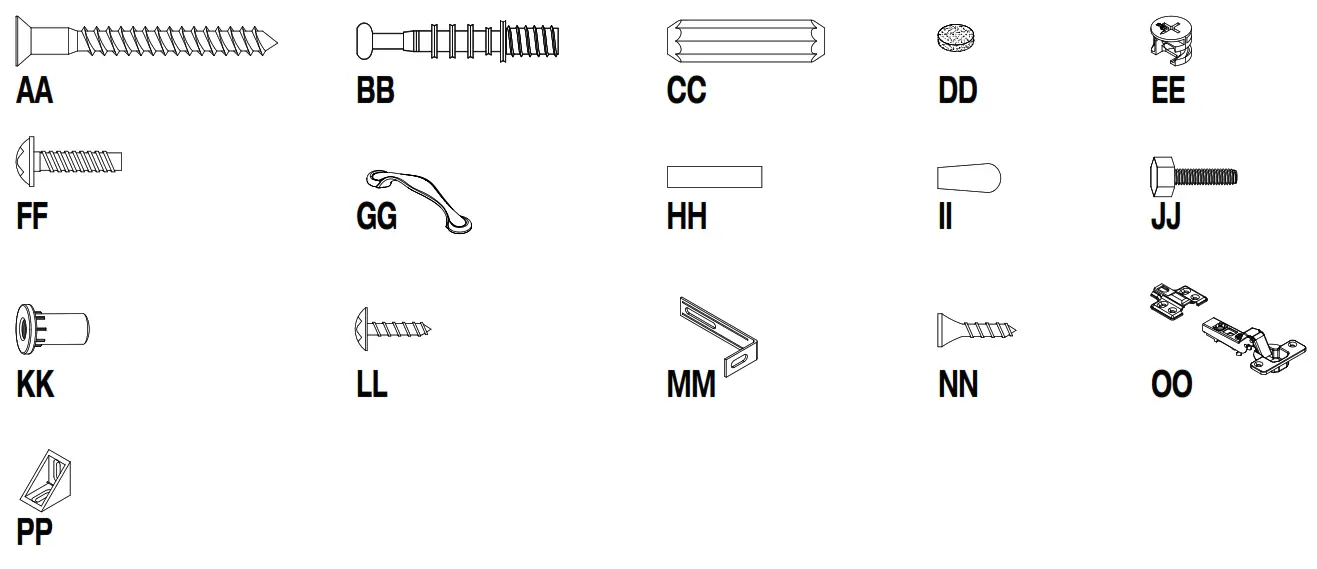

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
| Part | Description | Size | Quantity |
| AA | Screw | 5 x 50 mm | 10 |
| BB | Locking pin | 7 x 39 mm | 8 |
| CC | Dowel | 8 x 30 mm | 18 |
| DD | Door pad | 7 x 1.5 mm | 4 |
| EE | Locking nut | 15 x 12 mm | 8 |
| F | Screw | 4 x 24 mm | 4 |
| GG | Door handle | 126 x 24 x 22 mm | 2 |
| HH | Shelf support | 4 x 18 mm | 12 |
| II | Support cover | 4 x 12 mm | 12 |
| JJ | Leg levelers bolt | 6 x 30 mm | 4 |
| KK | Leg levelers nut | 17 x 6.5 mm | 4 |
| LL | Screw | 4 x 14.5 mm | 8 |
| MM | Bracket | 76 x 32 mm | 2 |
| IN | Screw | 3.5 x 15 mm | 24 |
| OO | Door hinge | 100 x 61.5 x 38 mm | 6 |
| PP | Plinth Bracket | 18 x 22 x 22 mm | 3 |

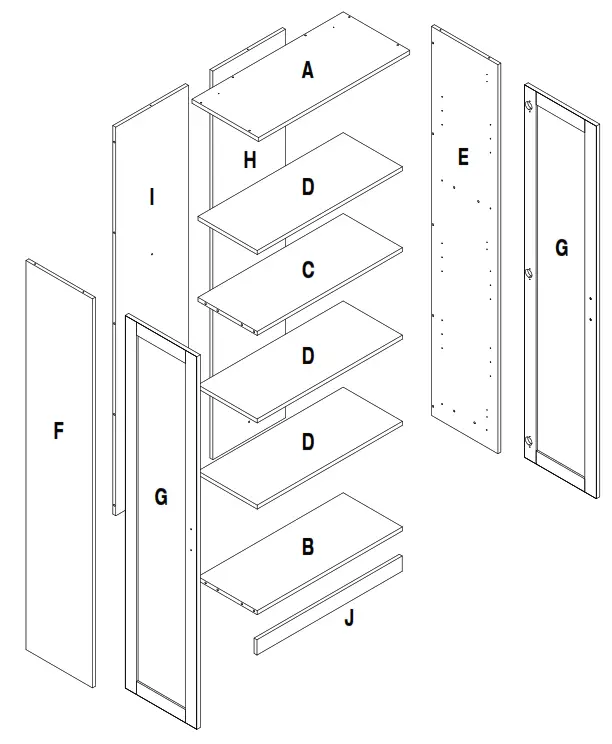

PANELS INCLUDED
| Part | Description | Size | Quantity |
| A | Top panel | 800 x 352 mm | 1 |
| B | Bottom panel | 768 x 313 mm | 1 |
| C | Fixed shelf | 768 x 313 mm | 1 |
| D | Shelf | 768 x 313 mm | 3 |
| E | Right side | 351 x 1782 mm | 1 |
| F | Left side | 351 x 1782 mm | 1 |
| G | Door | 379 x 1707 mm | 2 |
| H | Right back | 384 x 1780 mm | 1 |
| I | Left-back | 384 x 1780 mm | 1 |
| J | Plinth | 768 x 70 mm | 1 |

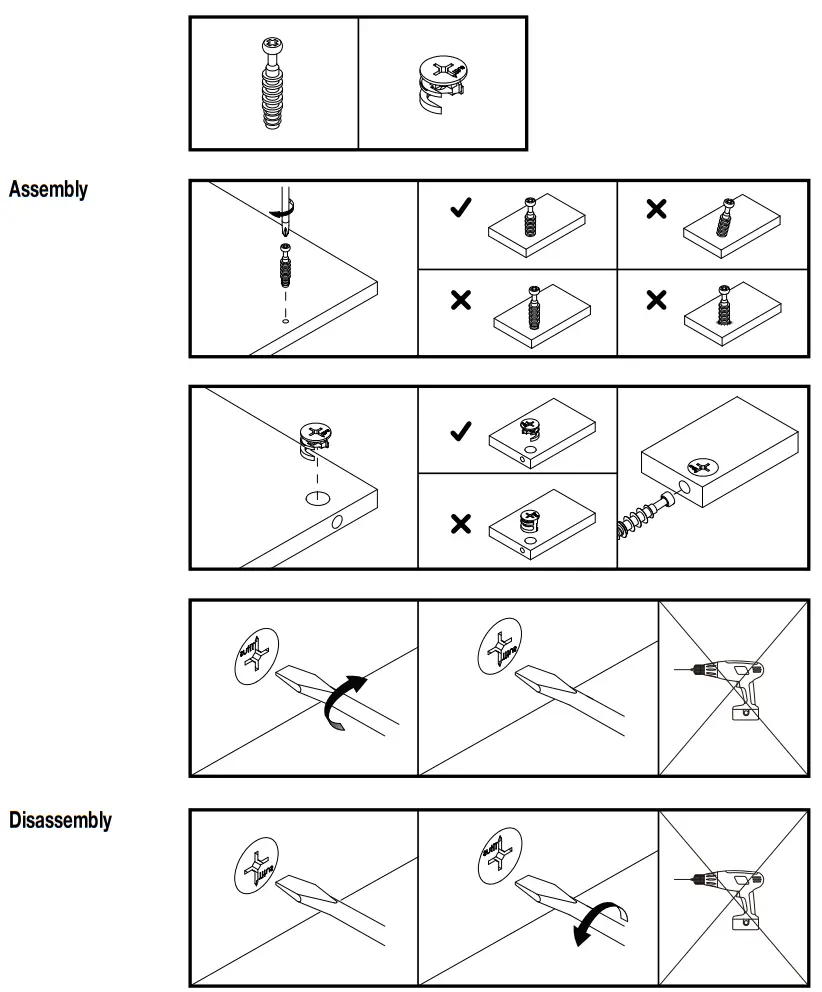

CAM Fastening system
Assembly
Right/plinth/bottom/fixed panel assembly

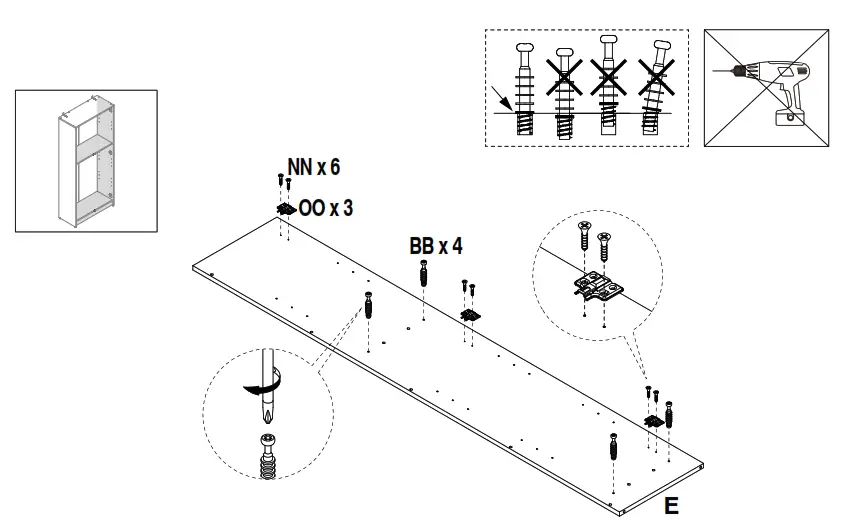

Metal parts preparation

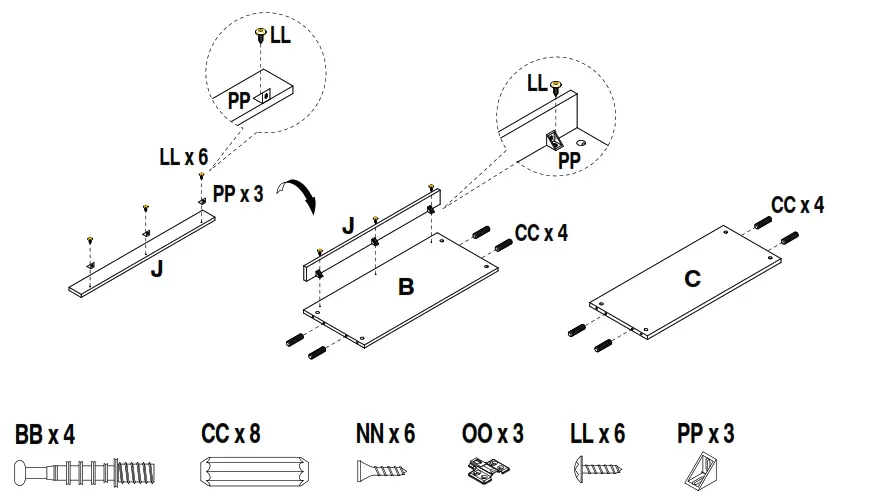

Dowel & plinth bracket preparation

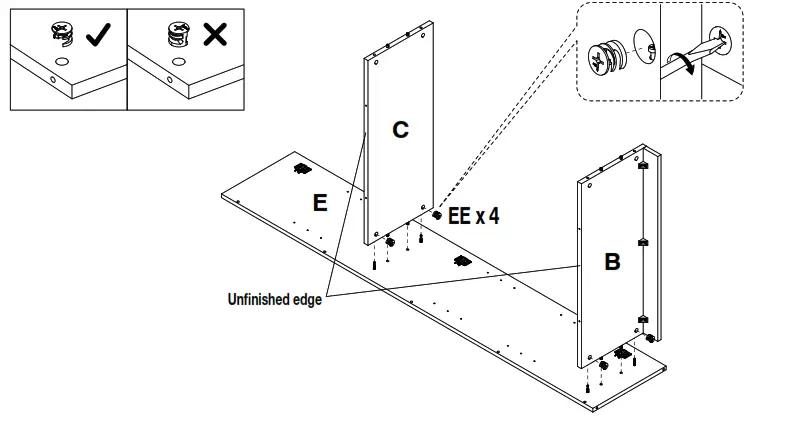

Attaching the bottom panel and fixed shelf
Back panel assembly

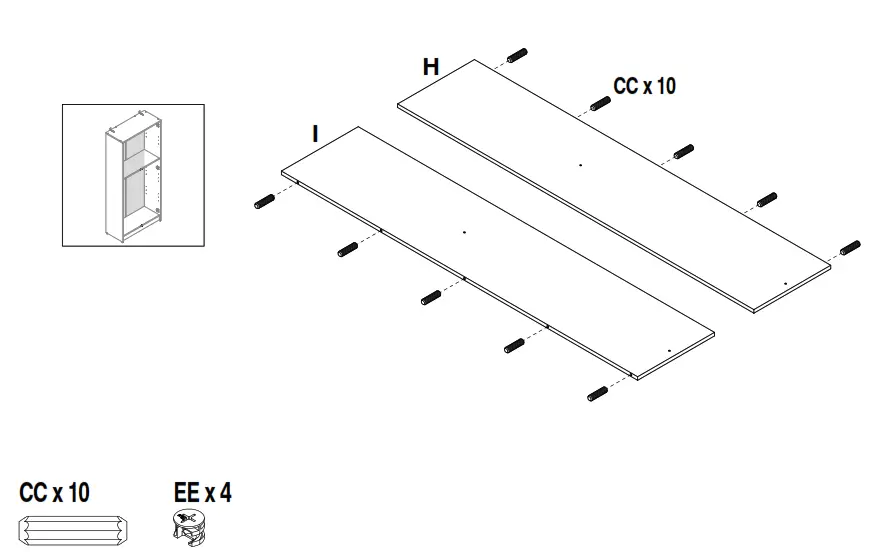

Dowel preparation

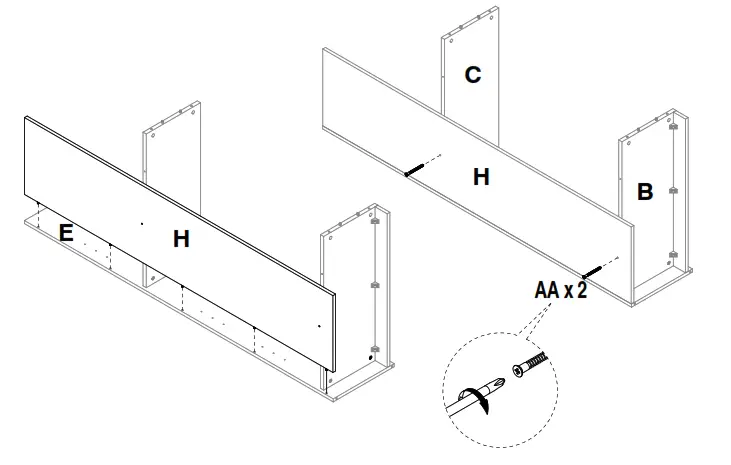

Attaching the right back

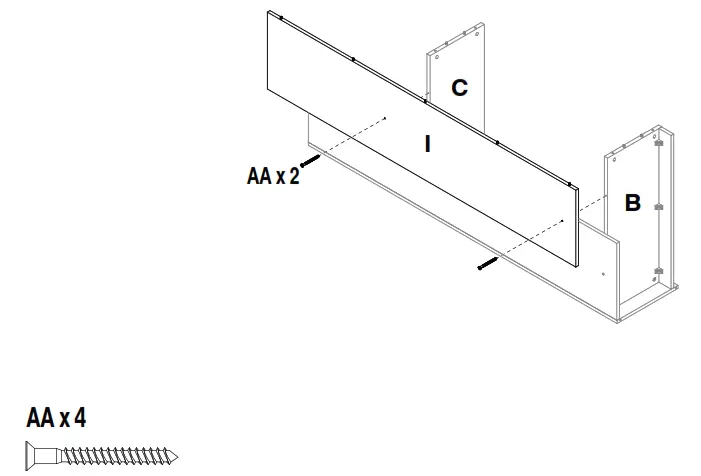

Attaching the left back
Left panel assembly

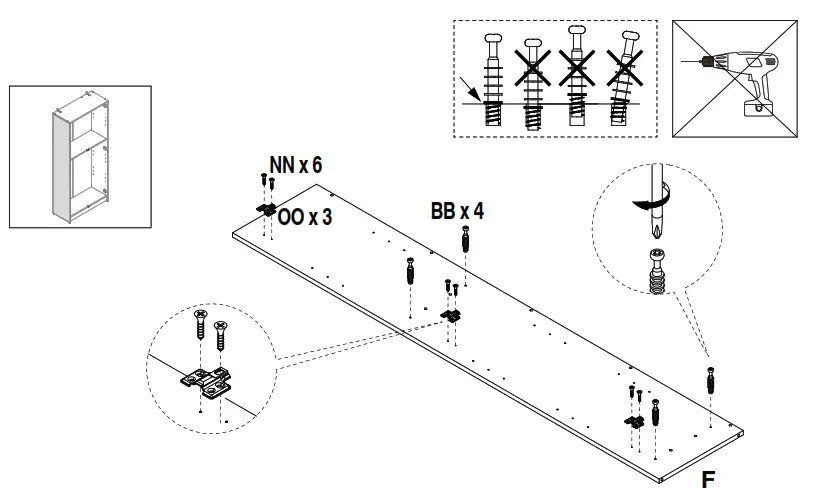

Metal parts preparation

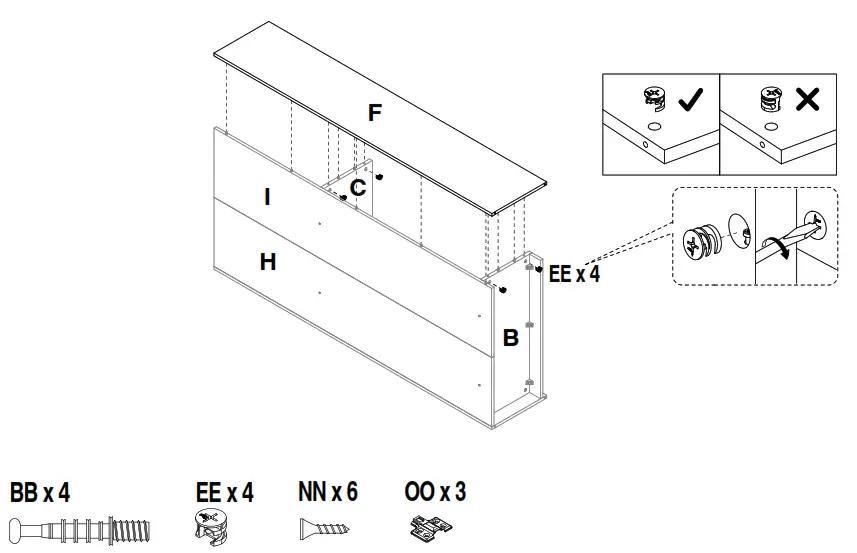

Attaching the left side
Top assembly

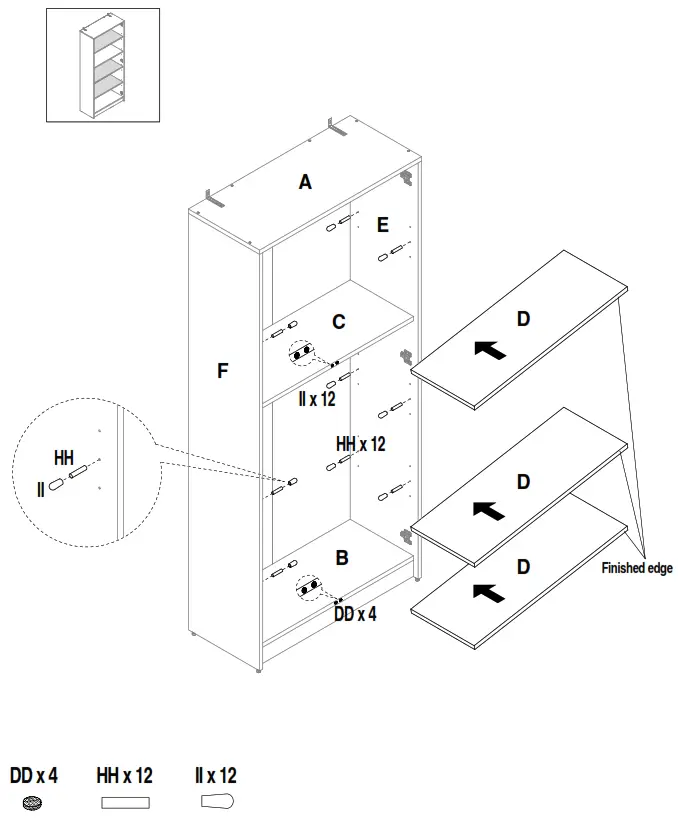

Shelves assembly

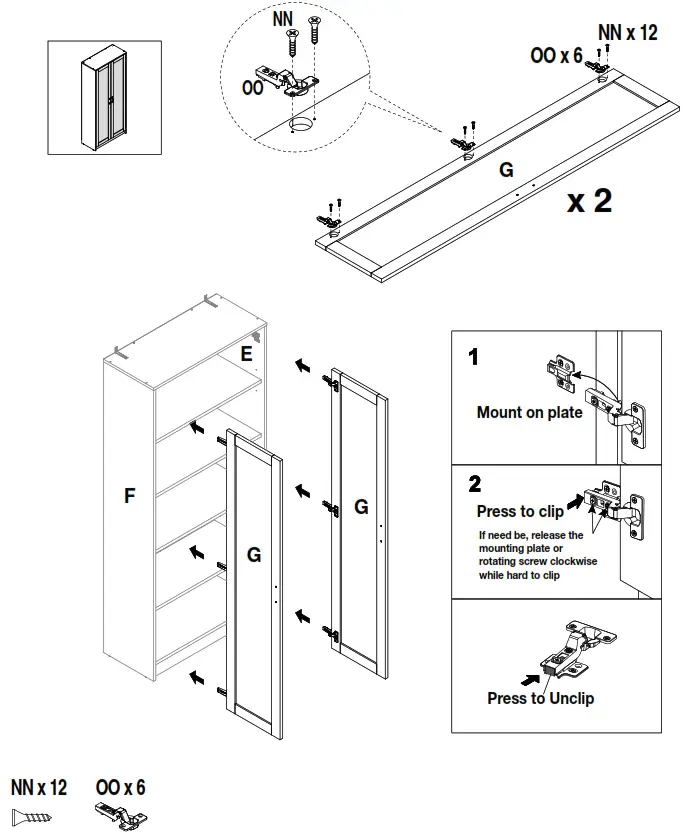

Attaching doors

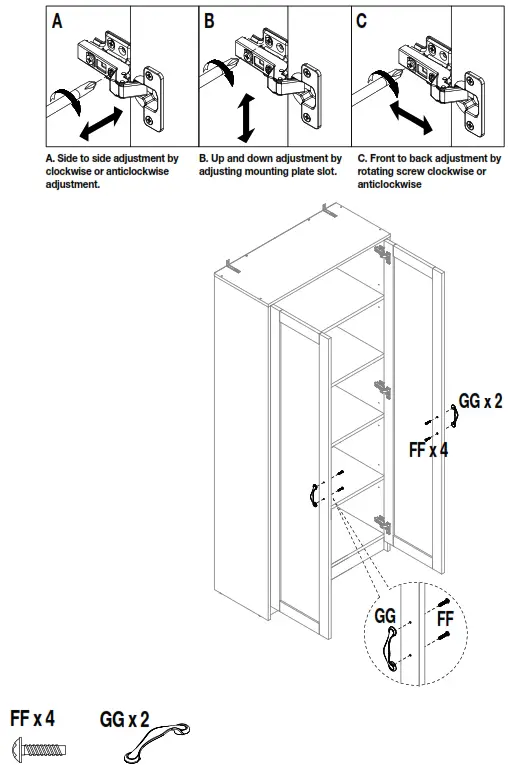

Attaching the handle and hinge adjustment Door hinge adjustment instructions

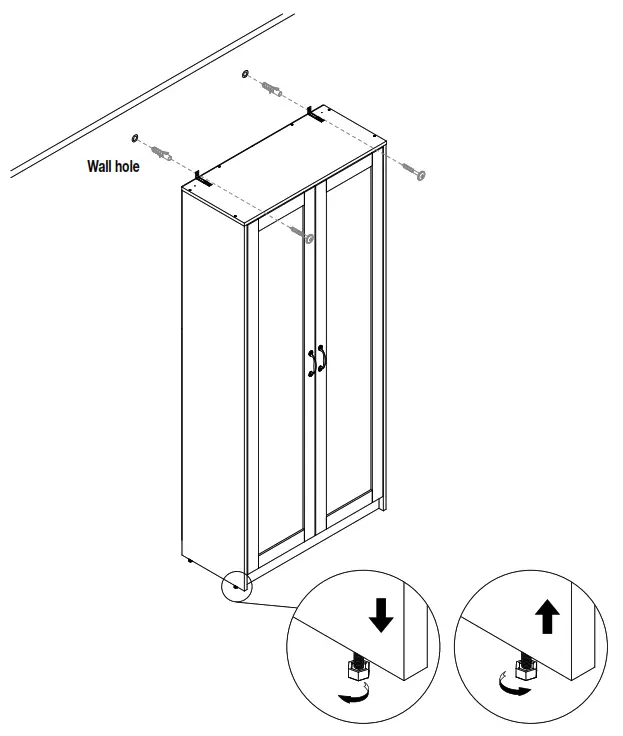

Fixing to wall
- Drill a hole and insert a Wall plug.
- Fixing the unit onto the wall use screw.
NOTE: Make sure that the screws and wall plugs being used are suitable for supporting your unit.
Safety notice
The consumer product safety commission recommends anchoring furniture in homes where children live or visit.
In order to protect you and your family the manufacturer of this product has included an easy-to-install safety device.
To hide the bracket behind the unit, drill the hole lower than the top of the unit.
Warning: Always ensure the intended wall area to be drilled is free from hidden electrical wires, water, and gas pipes.
Tips for proper door alignment:
Adjustable levelers will reduce minor door misalignments caused by an uneven floor.
Use a level to determine if the cabinet top is level. If not, start with the levelers and turn them counterclockwise. To extend the levelers turn them clockwise.
If door misalignment persists, refer back to ”Door hinge adjustment instructions” for additional information. If the cabinet is not square you will need to repeat this step.
Troubleshooting
| Problems | Solutions |
| The drawer cannot be attached to the product | Check if drawer two sideboard slides are assembled backward. |
| The drawer can not pull in or pull out smoothly | Check drawer attached frame slide bearing pull outside before assembly. Please refer to the drawer assembly section. |
| The drawer cannot be removed | When removing the drawer, tip up the safety release tab to remove the drawer from the body. |
| The door cannot be closed / not flat | Adjust the euro hinge to make sure it is assembled in the appropriate position. |
| Not all legs touch the ground | Make sure adjustable center feet levelers are adjusted properly. The levelers are pre-assembled on the bottom of the legs. |
| The panel cannot be assembled | Make sure the panel is in the right direction. Refer to IM details. |
Maintenance
- Keep the product away from direct heat and sunlight.
- Prolonged exposure to heat sources may cause scorching, or even cause the color to fade.
- Regular vacuuming or light brushing helps to remove dirt and prevent soil build-up, which increases the appearance of wear.
- Periodically (every 90 days) make sure that the screws are fully tightened.
Care and Cleaning
- Handle with care.
- Use a slightly damp cloth to clean the product. Do not use bleach or use abrasive cleaning material.
- Check all the fittings periodically and re-tighten them as necessary. Do not use the product if any of the parts are damaged or broken.
- Never allow any kind of liquid to remain on your furniture.
- Absorption can make wood warp or delaminate.
- Do not place hot items (e.g. hot drinks) directly onto the wood surface.
- Do not drag and /or pull the furniture.
- Never use harsh chemicals or solvents on your product as this may damage the metal.
- Marks and stains from pens, crayons, and ink markers are difficult to remove. In the event that your products become permanently stained, we recommend that you consult a professional.
Questions, problems, missing parts?
Before returning to the store, call Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
Retain this manual for future use.
The Home Depot
