Technical Data
| Mechanical Data | |
| Material incl. surface coating | Nickel-plated brass |

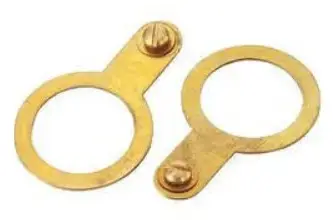

| Construction type | CMP earthing ring |
| Length | 128.7 mm |
| Outer diameter | 82.6 mm |
| Thread (outer) | M63 |
| Inner diameter | M13 |
| Nominal length | 66.8 mm |
| Gauge | 1.5 mm |
| Weight | 0.055 kg |
| Weight | 0.12 lb |
Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
- L = Length
- d2 = Outer diameter
- d1 = Thread (outer)
- D = Inner diameter
- F = Nominal length
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding
