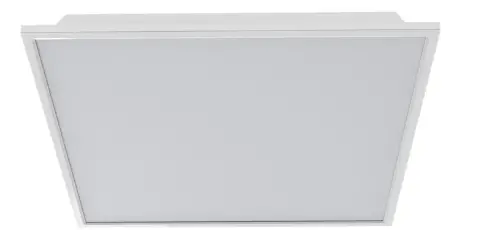

PHILIPS Recessed Full Glow Light RC380 G6 Installation

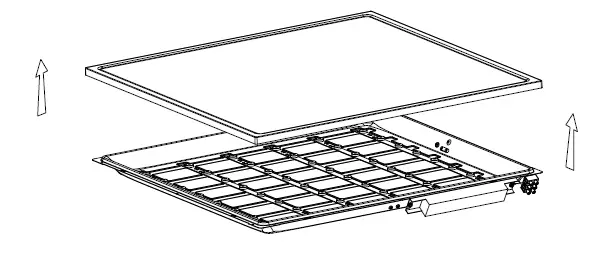

Diffuser frame can be opened, Only for any servicing work, but not recommended

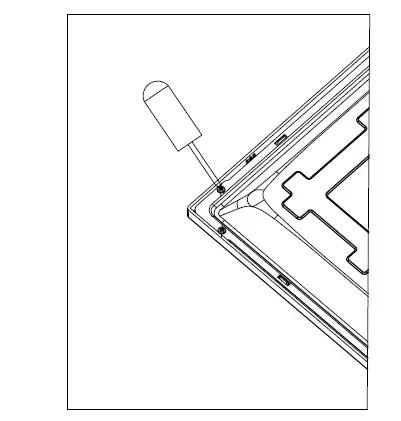

Unscrew frame from 12N of screws to access product from inside.

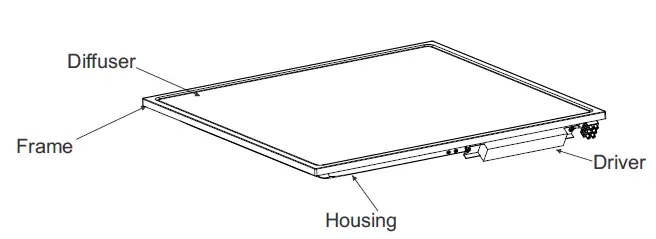

OVERVIEW
TOOLS REQUIRED
- 1-Screw Driver

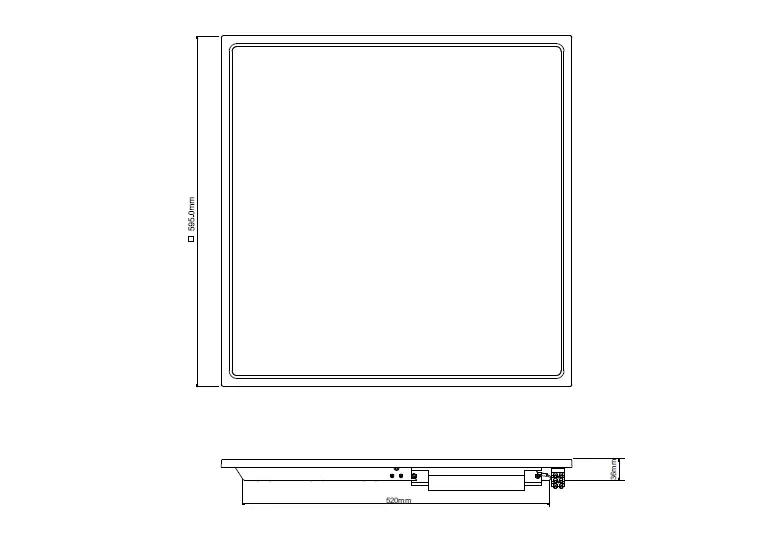

PRODUCT DIMENSIONS

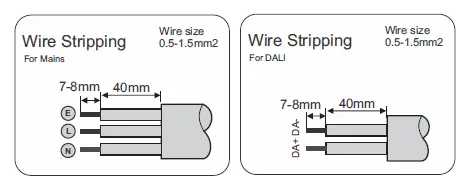

Installation Instructions

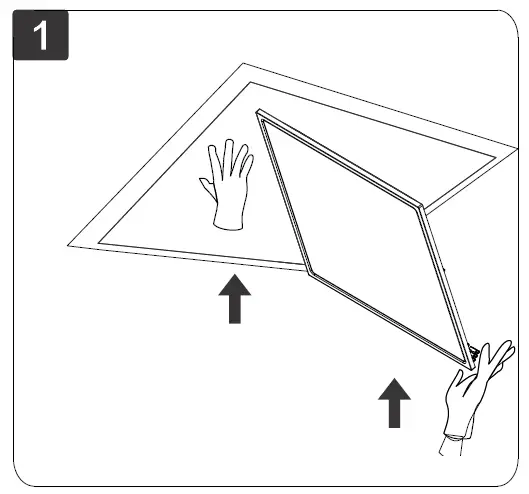

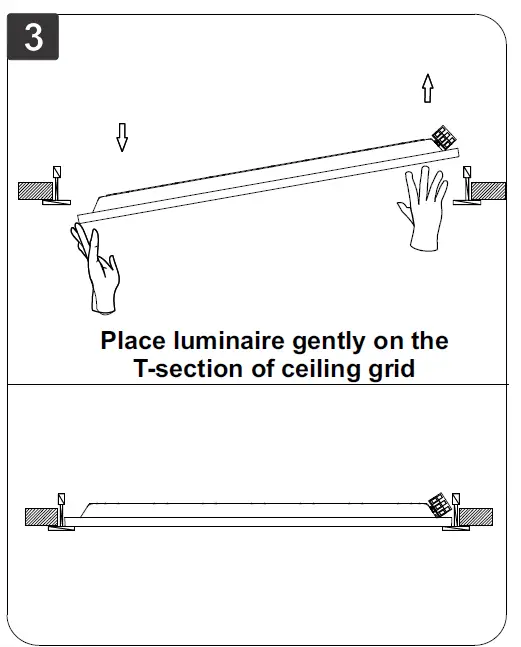

- Complete electrical connection, then push luminaire inside ceiling grid keeping driver side up

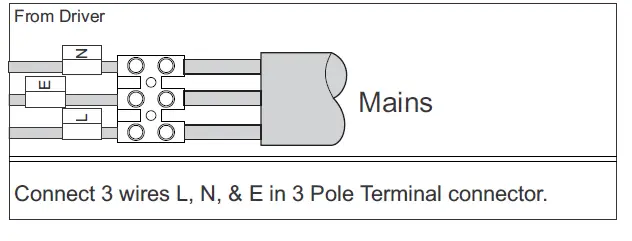

FOR PSU SERIES

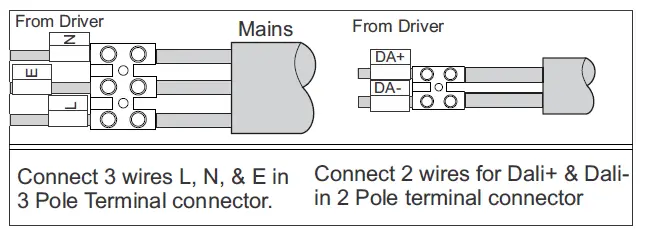

FOR PSD SERIES
NOTE: DO NOT OPEN ANY SCREWS

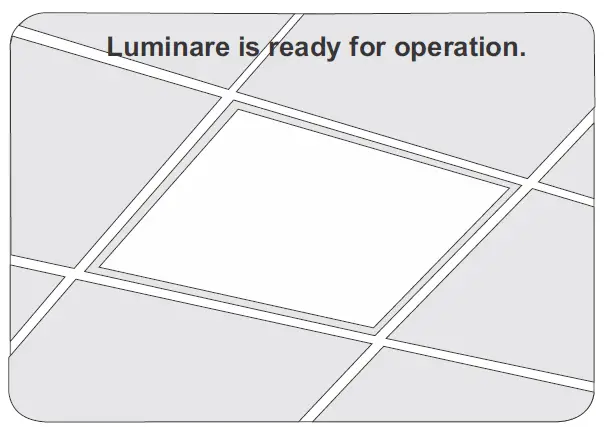

Luminare is ready for operation

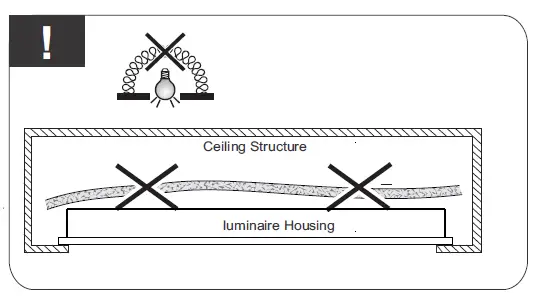

The Luminaire shall, under no circumstances, be covered with any insulating material. It will harm the system
