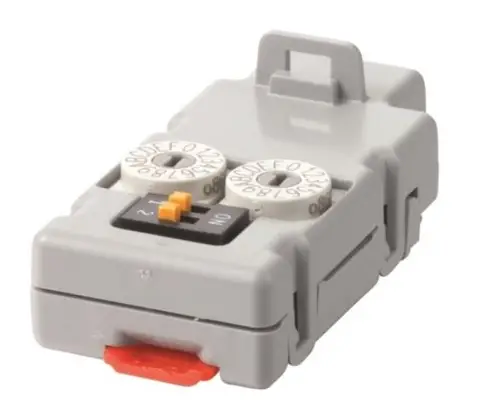

SIEMENSS AZX61 control/changeover of acting direction
Notes on mounting

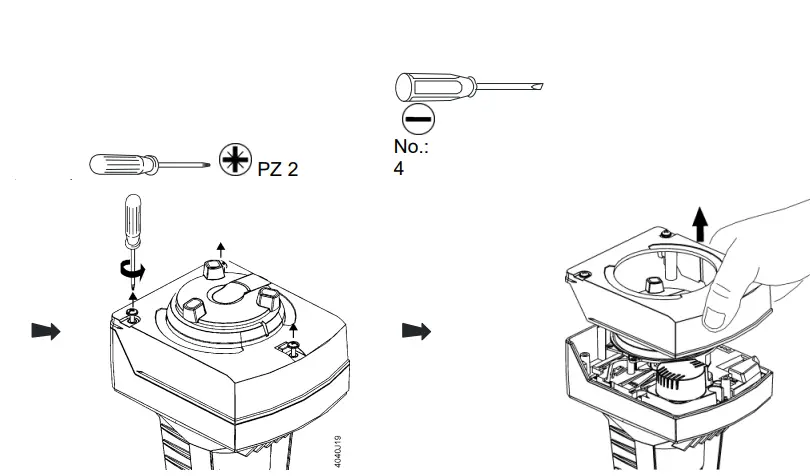

- The actuator is mechanically connected to a Siemens valve.
- Observe compatibility and choice of combinations.
- Disconnect the actuator from power.

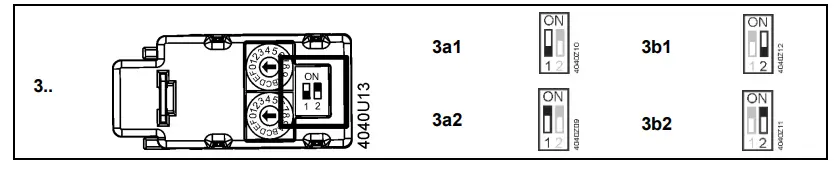

Set function module
- 3a1 Acting direction: Direct
- 3a2 Acting Direction: Reverse
- 3b1 Sequence control: Not active
- 3b2 Sequence control: Active

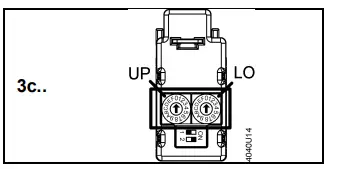

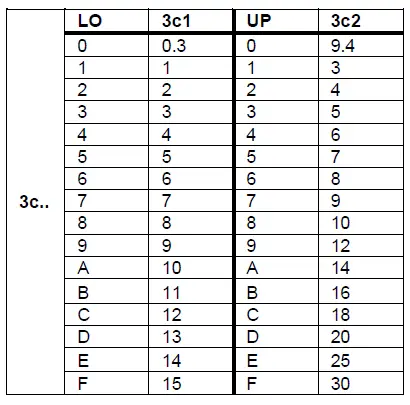

- 3c1 Sequence control: Starting point [M
- 3c2 Sequence control: Working range [V

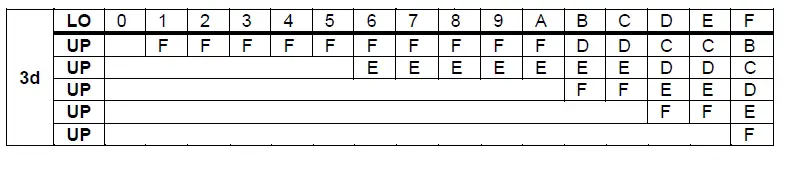

- 3d Invalid HEX switches combinations

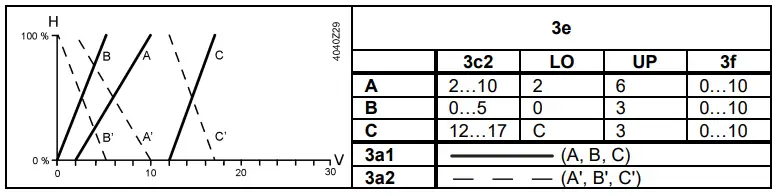

- 3e Example
- 3f Position feedback UVI

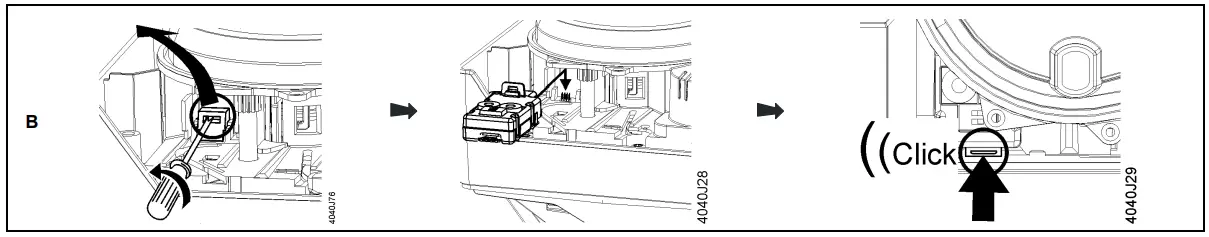

Notes on mounting

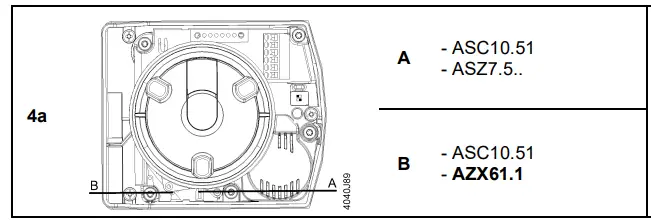

- When mounting two different accessories watch out for correct plug-in space A or B Observe compatibility and choice of combinations.
