QE43QN90BAT 43-Inch 4K HDR
QLED Smart TV
User Guide
QE43QN90BAT 43-Inch 4K HDR QLED Smart TV

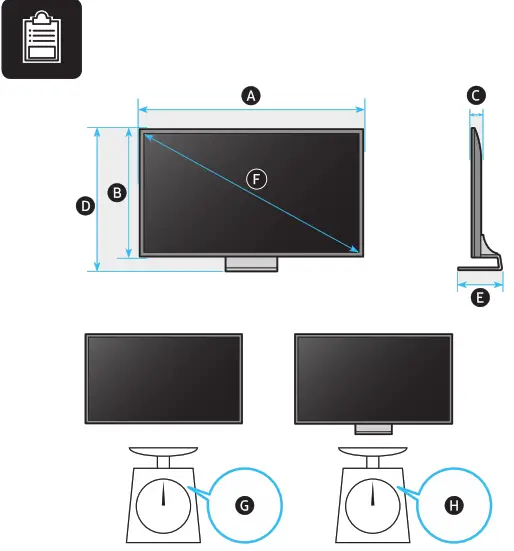

| A | B | C | D | E | F | G | H | |
| 43QN9*B 43QNB9* | 37.8 inches (960.8 mm) (96.08 cm) | 22.0 inches (558.9 mm) (55.89 cm) | 1.1 inches (26.9 mm) (2.69 cm) | 24.5 inches (623.4 mm) (62.34 cm) | 8.8 inches (223.0 mm) (22.30 cm) | 42.5 inches (108 cm) | 20.3 lbs (9.2 kg) | 30.4 lbs (13.8 kg) |
| 50QN9*B 50QNB9* | 43.8 inches (1113.6 mm) (111.36 cm) | 25.4 inches (6441 mm) (64.41 cm) | 1.1 inches (26.9 mm) (2.69 cm) | 27.9 inches (708.9 mm) (70.89 cm) | 8.8 inches (223.0 mm) (22.30 cm) | 49.5 inches (125 cm) | 30.9 lbs (14.0 kg) | 41.0 lbs (18.6 kg) |
| 55QN9*B 55QNB9* | 48.3 inches (1227.4 mm) (122.74 cm) | 27.8 inches (705.6 mm) (70.56 cm) | 1.0 inches (25.9 mm) (2.59 cm) | 30.2 inches (768.0 mm) (76.80 cm) | 9.3 inches (235.6 mm) (23.56 cm) | 54.6 inches (138 cm) | 39.0 lbs (17.7 kg) | 48.2 lbs (21.9 kg) |
| 65QN9*B 65QNB9* | 56.9 inches (1446.3 mm) (144.63 cm) | 32.6 inches (828.7 mm) (82.87 cm) | 1.0 inches (25.9 mm) (2.59 cm) | 351 inches (891.4 mm) (8914 cm) | 11.2 inches (285.7 mm) (28.57 cm) | 64.5 inches (163 cm) | 53.8 lbs (24.4 kg) | 69.2 lbs (31.4 kg) |
* : 0~9, A~Z

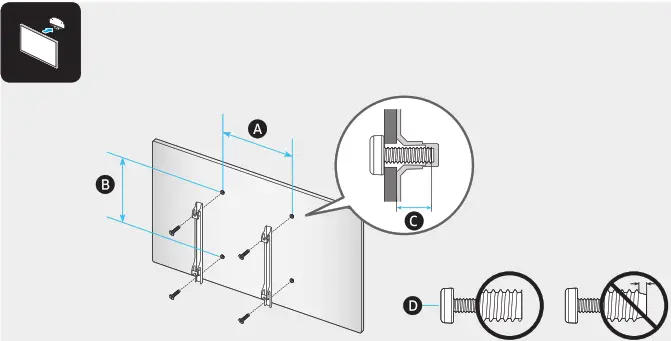

| VESA A x B(mm) | C(mm) | D x 4 | |
| 43QN9*B 43QNB9* | 200 x 200 | 11-13 | M8 |
| 50QN9*B 50QNB9* | |||
| 55QN9*B 55QNB9* | |||
| 65QN9*B 65QNB9* | 400 x 300 |
* : 0~9, A~Z
 |  |
 |  |
 | |

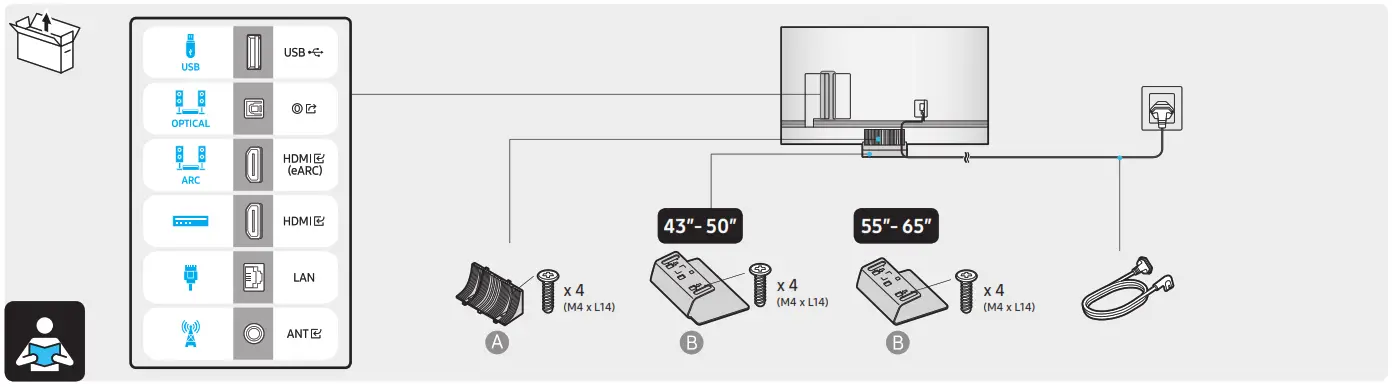

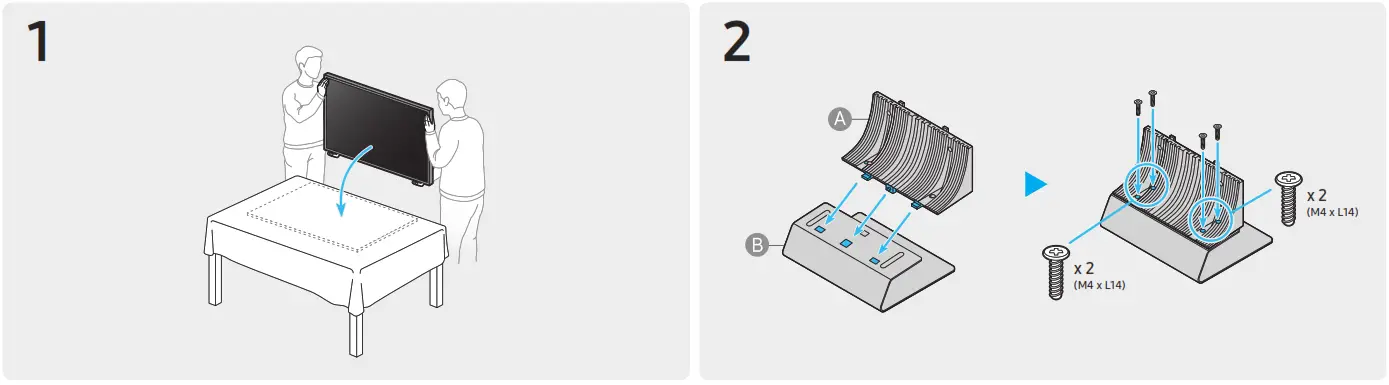

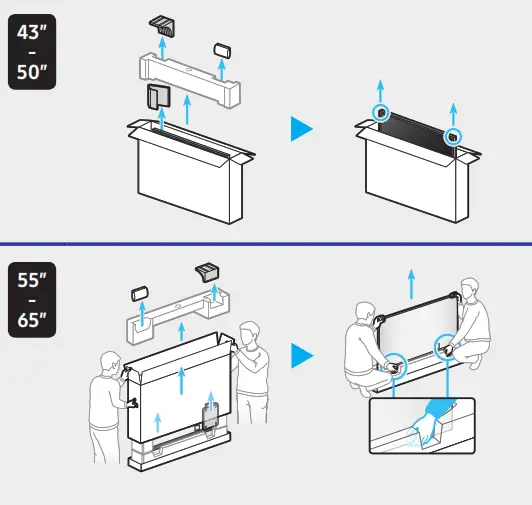

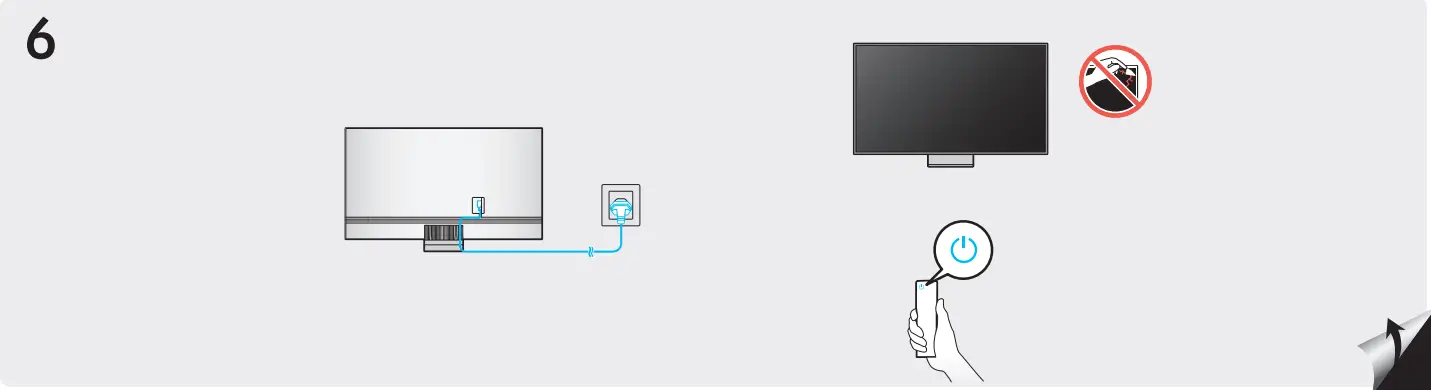

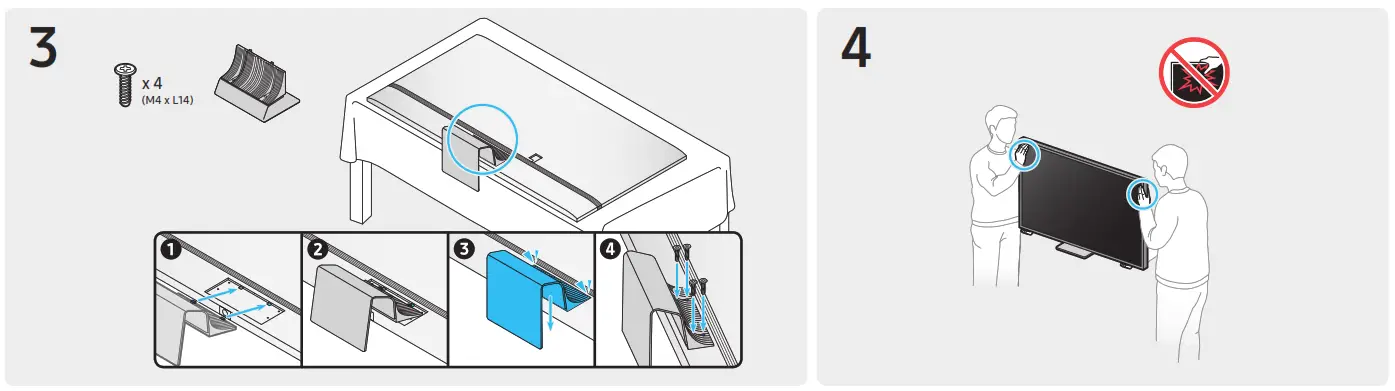

QUICK SETUP GUIDE
