SmartGen Kio22 Analog Input/Output Module
OVERVIEW
KIO22 is a K-type thermocouple to 4-20mA module, which is used to convert 2 analog inputs of K-type thermocouple into 2 current outputs of 4-20mA. Users can use MODBUS protocol to realize parameter configuration and data collection via LINK interface.
PERFORMANCE AND CHARACTERISTICS
Its main characteristics are as follows:
- With 32-bit ARM SCM, high hardware integration, improved reliability;
- DC(8~35)V working voltage;
- 35mm guide rail installation method;
- Modular design and pluggable connection terminals; compact structure with easy mounting.
SPECIFICATION
| Items | Contents |
| Working Voltage Range | DC(8~35)V |
| LINK Interface | Baud rate: 9600bps Stop bit: 1-bit Parity bit: None |
| Case Dimension | 71.6mmx93mmx60.7mm (LxWxH) |
| Working Temperature & Humidity | Temperature: (-40~+70)°C; Humidity: (20~93)%RH |
| Storage Temperature | Temperature: (-40~+80)°C |
| Protection Level | IP20 |
| Weight | 0.115kg |

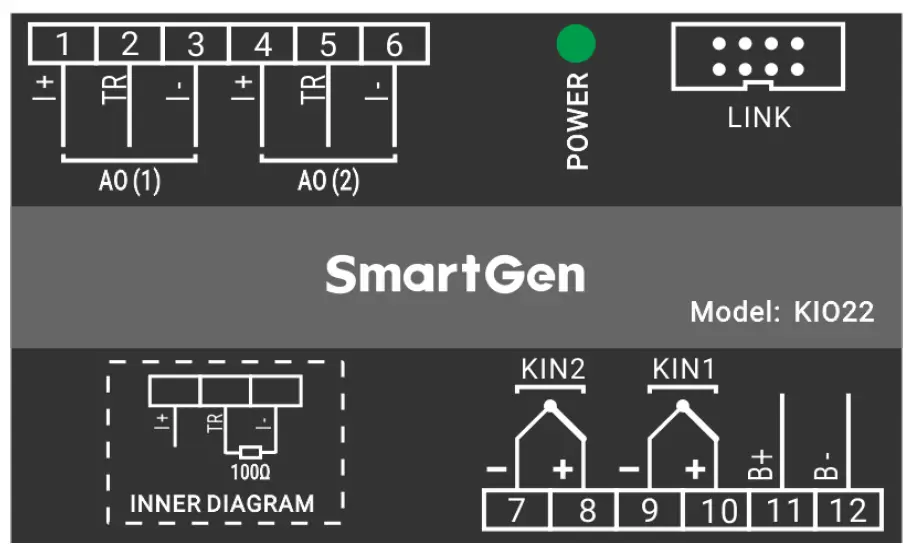

WIRING
| No. | Function | Cable Size | Remark |
| 1. | AO(1) I+ |
1.0mm2 | Current positive output. |
|
2. |
AO(1) TR | TR and I+ are short connection, the internal 100Ω resistance can be connected to the output circuit, and the output signal can be converted into a voltage signal. | |
| 3. | AO(1) I- | Current negative output. | |
| 4. | AO(2) I+ |
1.0mm2 | Current positive output. |
|
5. |
AO(2) TR | TR and I+ are short connection, the internal 100Ω resistance can be connected to the output circuit, and the output signal can be converted into a voltage signal. | |
| 6. | AO(2) I- | Current negative output. | |
| 7. | KIN2 – | 0.5mm2 | K-type thermocouple sensor |
| 8. | KIN2 + | ||
| 9. | KIN1 – | 0.5mm2 | K-type thermocouple sensor |
| 10. | KIN1 + | ||
| 11. | DC Power Input B+ | 1.0mm2 | DC power positive input. |
| 12. | DC Power Input B- | 1.0mm2 | DC power negative input. |
| / | POWER | Power normal indicator. | |
| / | LINK | Communicate with host computer via MODBUS RTU protocol. |
PROGRAMMABLE PARAMETER SCOPE AND DEFINITION
| No. | Item | Range | Default | Description |
|
1 | Output 1 The temperature value corresponding to 4mA |
(0-1000.0)°C |
0 | The temperature value of the thermocouple sensor corresponding to 4mA from the output 1. |
|
2 | Output 1 The temperature value corresponding to 20mA |
(0-1000.0)°C |
1000.0 | The temperature value of the thermocouple sensor corresponding to 20mA from the output 1. |
|
3 | Output 2 The temperature value corresponding to 4mA |
(0-1000.0)°C |
0 | The temperature value of the thermocouple sensor corresponding to 4mA from the output 2. |
|
4 | Output 2 The temperature value corresponding to 20mA |
(0-1000.0)°C |
1000.0 | The temperature value of the thermocouple sensor corresponding to 20mA from the output 2. |

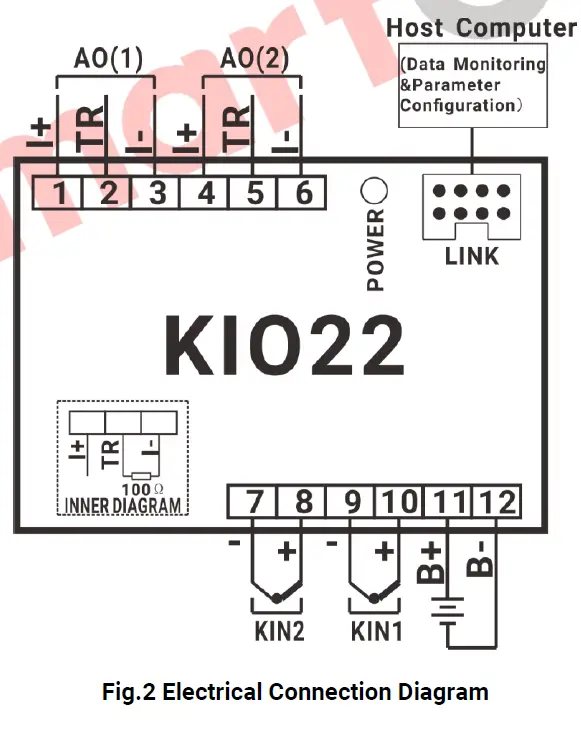

ELECTRICAL CONNECTION DIAGRAM
OVERALL DIMENSION AND INSTALLATION
