Nora Nm2-2rg 2 Inch Round Led Recessed Gimbal Owner's Manual

Source: 6W or 8W LED
400lm or 600lm
NM2-2RG 2 Inch Round LED Recessed Gimbal
Owner’s Manual

NM2-2RG 2 Inch Round LED Recessed Gimbal

Type……………….
Project…………………….
Catalog No……………………..
Notes……………………………………
PRODUCT DESCRIPTION
The M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into square trim with an accessory and produce over 600 lumens.
FEATURES

• No housing required – IC Air-Tight rated
• Easy installation for remodeling or new construction applications
• Square trim available for an alternative appearance
• Quick disconnect allows for extended lengths
• 400lm or 600lm LED packages
• 2700K or 3000K @ 90+ CRI
• Triac or ELV dimming
• 5-year limited warranty
• ENERGY STAR certified
• cETLus Listed for Damp Locations

SPECIFICATION
Construction: Die-cast aluminum trims available in matte black or matte powder white finish. The Gimbal trim is adjustable up to 15°. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from the room into the ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM283  Air-Tight requirements.
Clearance: IC-rated luminaires are rated for direct contact insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connection to LED fixtures for ease of installation. The junction box includes two 1/2″ trade size knockouts and snaps on the cover with 7″ quick connect the wire. The luminaire includes 5″ quick-connect wire.
Mounting: No housing is required, two tension steel spring clips secure the luminaire to the ceiling. Accommodates ceiling thickness up to 3/4″. A new construction frame-in kit is available, see accessories.
ELECTRICALInput Voltage: 120V
Lumens / Wattage: 40 = 400lm / 6W; 60 = 600lm / 8W
Color Temperature: 2700K or 3000K
CRI: 90+CRI
Beam Spread: 40° Flood
Operating Temp.: 0°C to 40°C ambient temperature
Lifetime: 60,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV Click Here or check the complete dimmer list at www.NoraLighting.com on the “Compatibility” page under the “Resources” tab
OPTIONAL TRIM ACCESSORIES

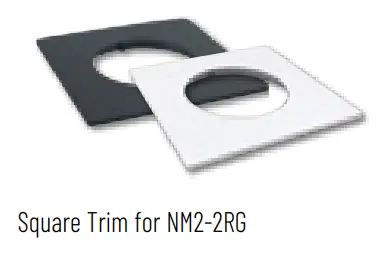

NM2-2SGT: Square Trim for NM2-2RG, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2: Two-Head Multiple Lighting System Plate
NM2-MLS3: Three-Head Multiple Lighting System Plate
NM2-2R-F: New Construction Frame-In Plate
NM2-EW-4: 4′ Quick Connect Linkable Extension Cable
NM2-EW-10: 10’ Quick Connect Linkable Extension Cable
LABELS AND LISTINGS

• cETLus Listed for Damp Locations
• ENERGY STAR certified
• 5-Year Limited Warranty
• FCC compliant
• Certified to the high efficacy requirements of California Title 24 JA8-2019

2″ M2 Round LED Recessed Gimbal

M2 Trim Accessories

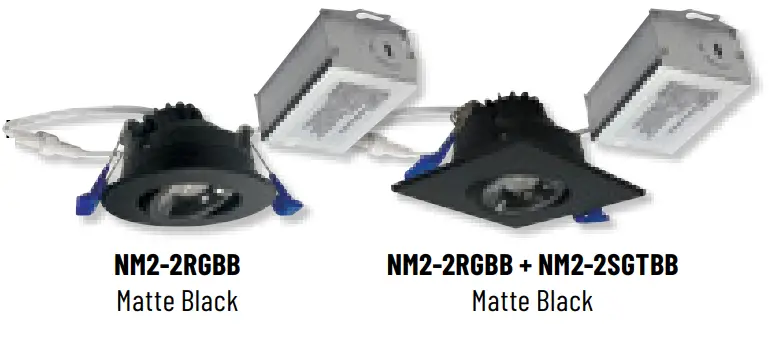

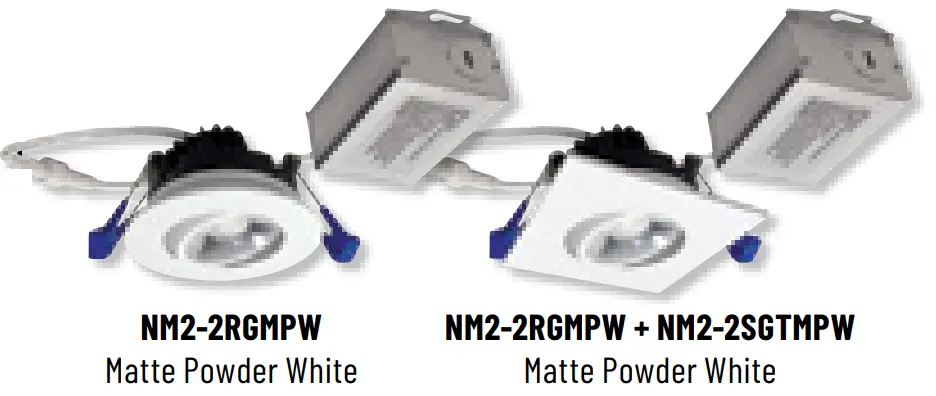

Example: NM2-2RG6030MPW = 2″ M2 Round LED Recessed Gimbal, 600lm / 8W, 3000K / 90 CRI, Matte Powder White

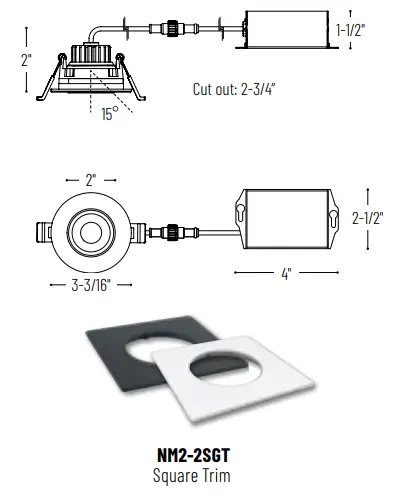

PRODUCT IMAGES AND DIMENSIONS

Optional Mounting Accessories

NM2-2RG

2″ M2 Round LED Recessed Gimbal Accessories
NM2-2SGTB Matte Black
NM2-2SGTMPW Matte Powder White Converts the round trim included with the NM2-2RG gimbal into a square trim

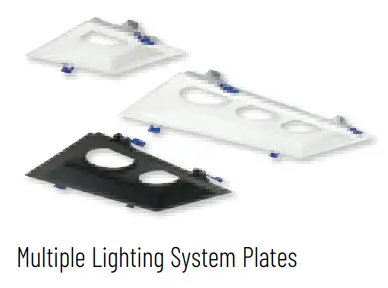

NM2-MLS1B 1 Head / Matte Black
NM2-MLS1MPW 1 Head / Matte Powder White
NM2-MLS2B 2 Head / Matte Black
NM2-MLS2MPW 2 Head / Matte Powder /White
NM2-MLS3B 3 Head / Matte Black
NM2-MLS3MPW 3 Head / Matte Powder White Converts multiple round LED luminaires into multiple lighting systems without a large housing.

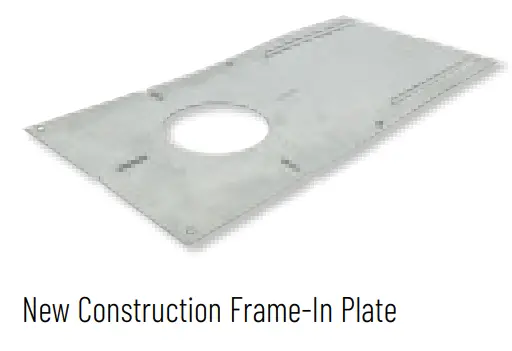

NM2-2R-F
For new construction pre-wiring and easier layout planning.

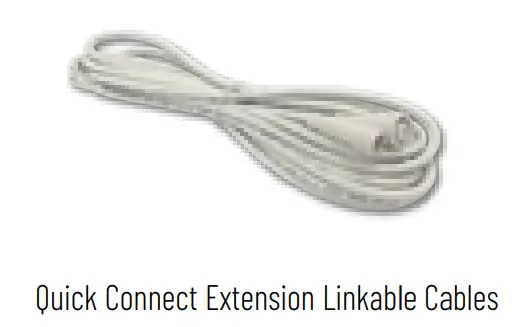

NM2-EW-4 4’ Cable
NM2-EW-10 10’ Cable
Use to extend the length between the luminaire and the driver enclosure. Can be connected together to create custom lengths. The maximum length between the luminaire and the driver is 40’.

PHOTOMETRICS

2″ M2 Round LED Recessed Gimbal
Test Information

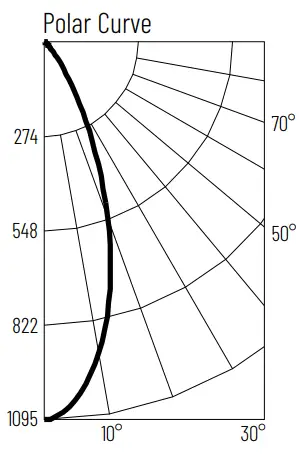

Illuminance at a Distance

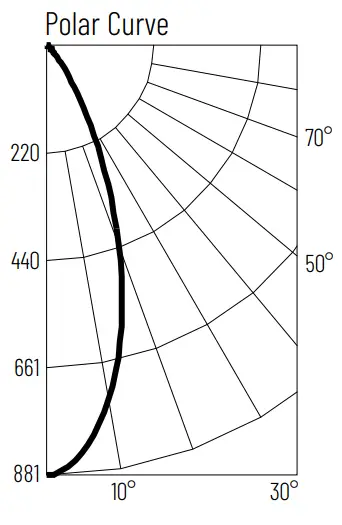

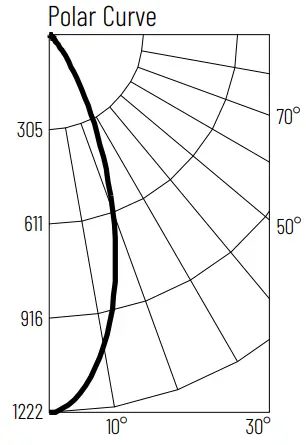

Zonal Lumen Summary

Candela Table

Test Information

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

Test Information

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

Test Information

Illuminance at a Distance

Zonal Lumen Summary

Candela Table
