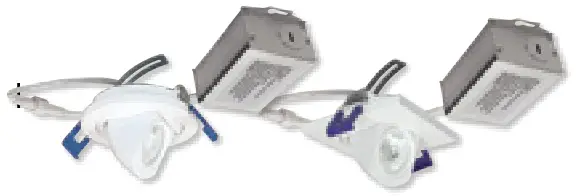

Nora Lighting Nm2-2r270 2" M2 Round Led Recessed Elbow User Manual

NM2-2R270
2″ M2 Round LED Recessed Elbow
Source: 6W LED 500lm

PRODUCT DESCRIPTION

The M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. The luminaire can be configured into square trim with an accessory and produces over 500 lumens.

FEATURES

• Field changeable optics (spot and narrow flood included)
• No housing required – IC Air-Tight rated
• Easy installation for remodeling or new construction applications
• Square trim available for an alternative appearance
• Quick disconnect allows for extended lengths
• 2700K or 3000K @ 90+ CRI
• Triac or ELV dimming
• 5-year limited warranty
• ENERGY STAR certified
• cETLus Listed for Damp Locations

SPECIFICATION

Construction: Die-cast aluminum trims available in matte black or matte powder white finish. Rotates 345° horizontally and extends up to 70°.

Field Changeable Optics: Each luminaire includes a spot (installed) and narrow flood optic. Optics can easily be replaced in the field.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from the room into the ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM283  Air-Tight requirements.

Clearance: IC-rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connection to LED fixtures for ease of installation. The junction box includes two 1/2″ trade-size knockouts and snap-on covers with a 7″ connector length. The luminaire includes a 6″ quick-connect wire.
Mounting: No housing is required, two tension steel spring clips secure the luminaire to the ceiling. Accommodates ceiling thickness up to 3/4″. A new construction frame-in kit is available, see accessories.

ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 500lm / 6W
Color Temperature: 2700K or 3000K
CRI: 90+CRI
Beam Spread: 33° Spot and 48° Narrow Flood
Operating Temp.: 0°C to 40°C ambient temperature
Lifetime: 33,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV Click Here or check the complete dimmer list at www.NoraLighting.com on the “Compatibility” page under The “Resources” tab

OPTIONAL TRIM ACCESSORY
NM2-2SET: Square Trim for NM2-2R270, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2: Two-Head Multiple Lighting System Plate
NM2-MLS3: Three-Head Multiple Lighting System Plate
NM2-2R-F: New Construction Frame-In Plate
NM2-EW-4: 4′ Quick Connect Linkable Extension Cable
NM2-EW-10: 10’ Quick Connect Linkable Extension Cable

LABELS AND LISTINGS

• cETLus Listed for Damp Locations
• ENERGY STAR certified
• 5-Year Limited Warranty
• FCC compliant
• Certified to the high efficacy requirements of California
  Title 24 JA8-2019

2″ M2 Round LED Recessed Elbow

M2 Trim Accessory

Example: NM2-2R2705030MPW = 2″ M2 Round LED Recessed Elbow, 500lm / 6W, 3000K / 90 CRI, Matte Powder White

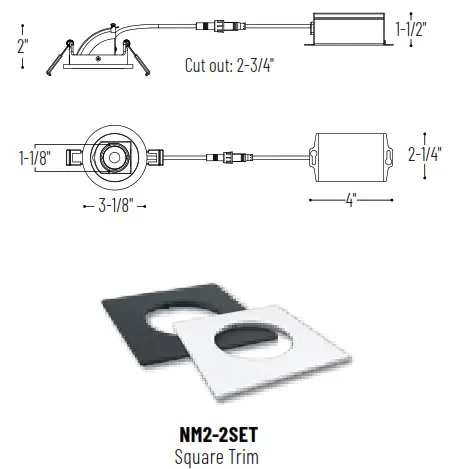

PRODUCT IMAGES AND DIMENSIONS

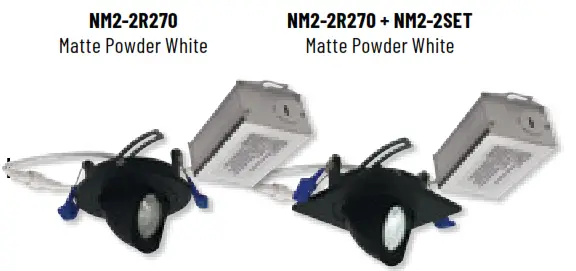

NM2-2R270
Matte Black
NM2-2R270 + NM2-2SET
Matte Black

Optional Mounting Accessories

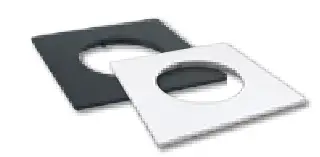

Square Trim for NM2-2R270
NM2-2SETB Matte Black
NM2-2SETMPW Matte Powder White Converts the round trim included with the NM2-2R270 elbow into a square trim

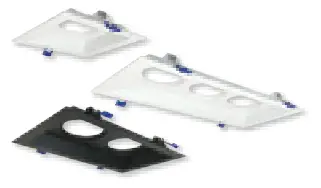

Multiple Lighting System Plates
NM2-MLS1B 1 Head / Matte Black
NM2-MLS1MPW 1 Head / Matte Powder White
NM2-MLS2B 2 Head / Matte Black
NM2-MLS2MPW 2 Head / Matte Powder White
NM2-MLS3B 3 Head / Matte Black
NM2-MLS3MPW 3 Head / Matte Powder White Converts multiple round LED luminaires into multiple lighting systems without a large housing.

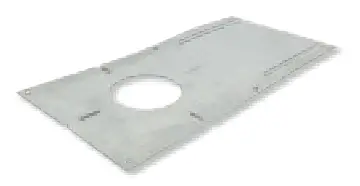

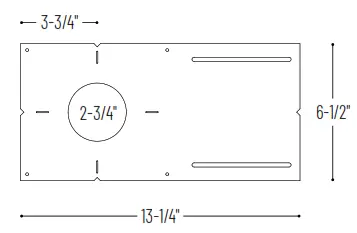

New Construction Frame-In Plate
NM2-2R-F
For new construction pre-wiring and easier layout planning.

Quick Connect Extension Linkable Cables
NM2-EW-4 4’ Cable
NM2-EW-10 10’ Cable
Use to extend the length between the luminaire and driver enclosure. Can be connected together to create custom lengths. The maximum length between the luminaire and the driver is 40’.

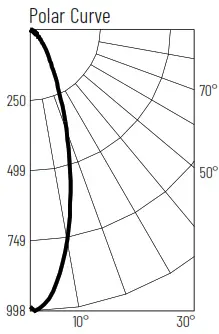

Test Information

Test Number: NTR1571
Part Number: NM2-2R2705027MPW
Beam Spread: 33° Spot
Lumens: 513lm
Wattage: 5.68W
Efficacy: 90lpw
CCT / CRI: 2700K / 90 CRI
Spacing Criteria (0º-180): 0.56
Spacing Criteria (90º-270): 0.56

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

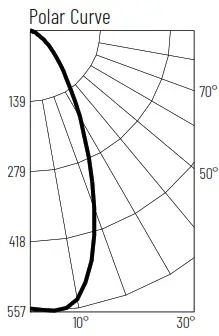

Test Information
Test Number: NTR1570
Part Number: NM2-2R2705027MPW
Beam Spread: 48° Narrow Flood
Lumens: 514lm
Wattage: 5.66W
Efficacy: 91lpw
CCT / CRI: 2700K / 90 CRI
Spacing Criteria (0º-180): 0.78
Spacing Criteria (90º-270): 0.8

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

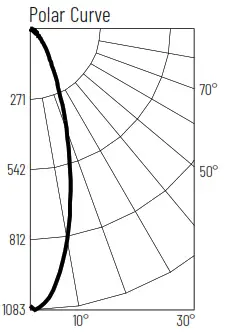

Test Information
Test Number: NTR1573
Part Number: NM2-2R2705027MPW
Beam Spread: 33° Spot
Lumens: 565lm
Wattage: 5.66W
Efficacy: 100lpw
CCT / CRI: 3000K / 90 CRI
Spacing Criteria (0º-180): 0.56
Spacing Criteria (90º-270): 0.56

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

Test Information
Test Number: NTR1572
Part Number: NM2-2R2705027MPW
Beam Spread: 49° Narrow Flood
Lumens: 561lm
Wattage: 5.66W
Efficacy: 99lpw
CCT / CRI: 3000K / 90 CRI
Spacing Criteria (0º-180): 0.78
Spacing Criteria (90º-270): 0.8

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

6505 Gayhart Street, Commerce, CA 90040
Tel 800.686.6672 | www.noralighting.com | e-mail: [email protected]
© 2021 Nora Lighting, Inc. All rights reserved. Specifications are subject to change without notice.
