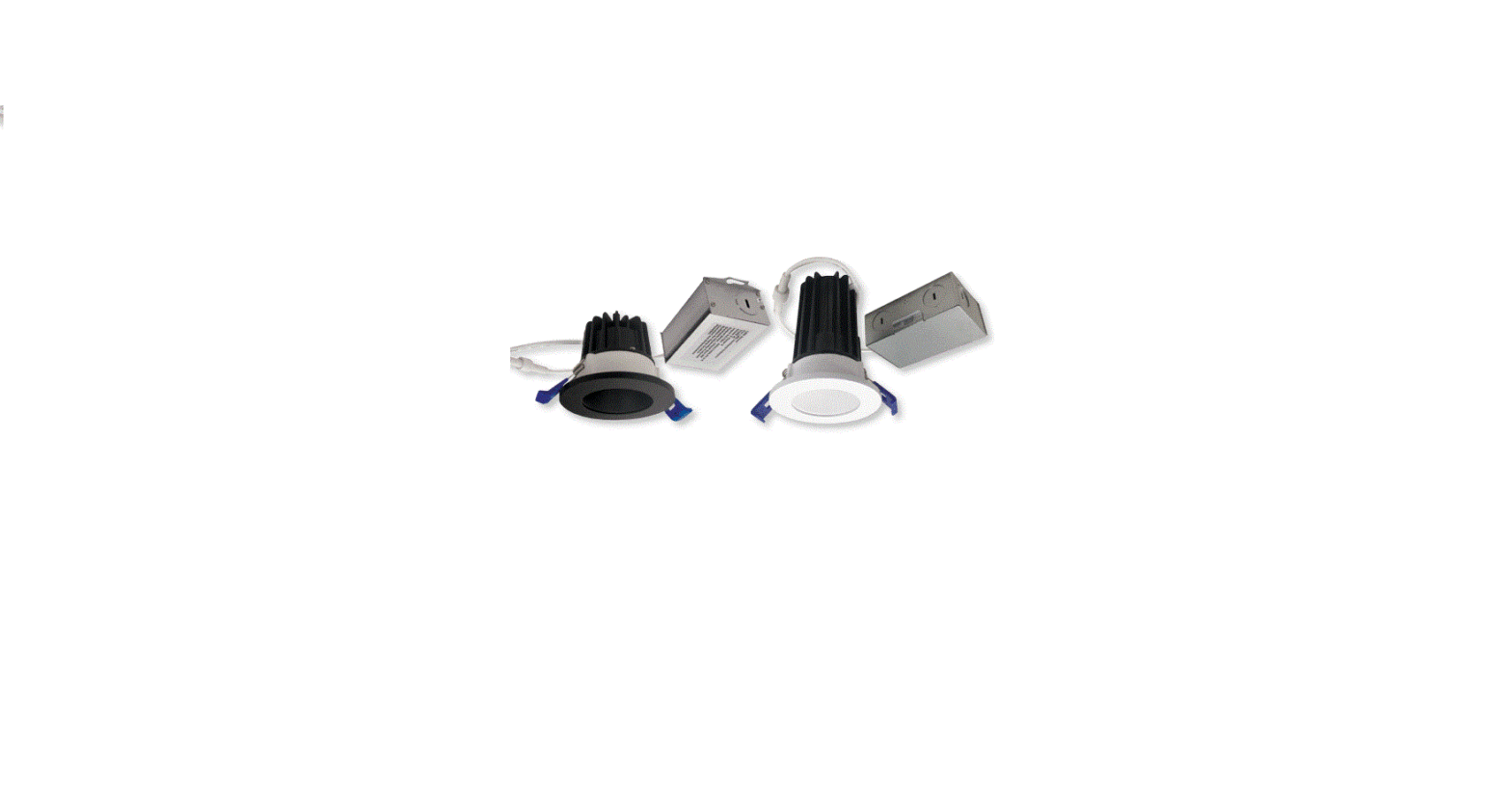

NM2-2RDC
2″ M2 Round LED Recessed Downlight
Source: 6W, 8W or 10W LED
400lm, 600lm or 850lm

PRODUCT DESCRIPTION

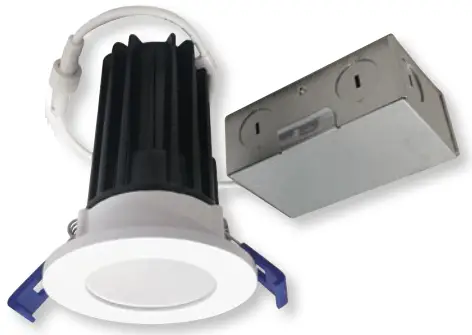

M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.

FEATURES

• No housing required – IC Air-Tight rated
• Easy installation for remodel or new construction applications
• Variety of trim accessories to configure desired appearance
• Quick disconnect allows for extended lengths
• 400lm, 600lm or 850lm LED packages
• 2700K, 3000K or 4000K @ 90+ CRI
• Triac or ELV dimming
• 5-year limited warranty
• ENERGY STAR certified
• cETLus Listed for Damp Locations

SPECIFICATION

Construction: Die-cast aluminum trims available in matte black or matte powder white finish. Open downlight includes a reflector with the same finish as trim; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2″ trade size knockouts and snap on cover with 7″ quick connect wire. Luminaire includes 5″ (400lm/600lm) or 4″ (850lm) quick connect wire.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4″. New construction frame-in kit is available, see accessories.

Trims: M2 series is available in three lumen outputs with LED driver. Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
OPTIONAL TRIM ACCESSORIES

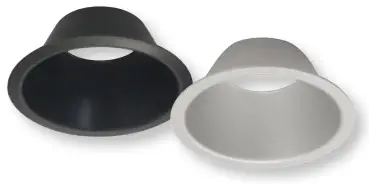

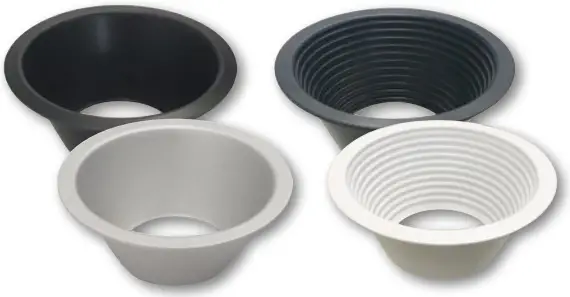

NM2-2REFL: Reflector Insert for NM2-2RDC, Black or Haze

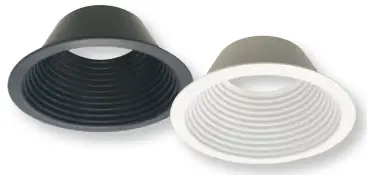

NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White

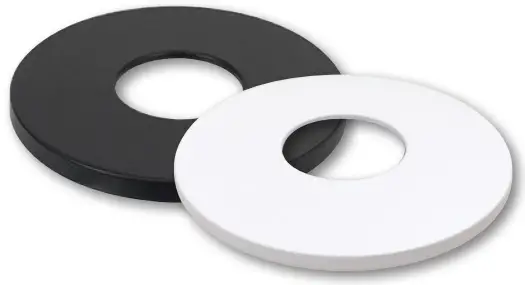

NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White

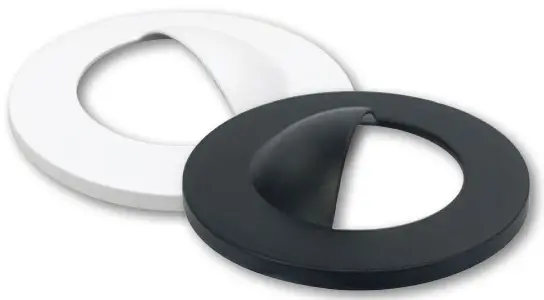

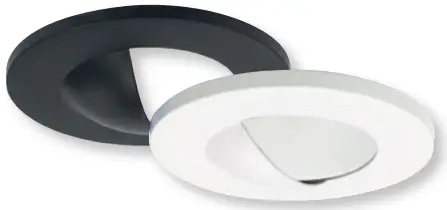

NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White

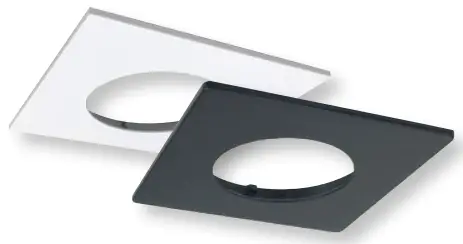

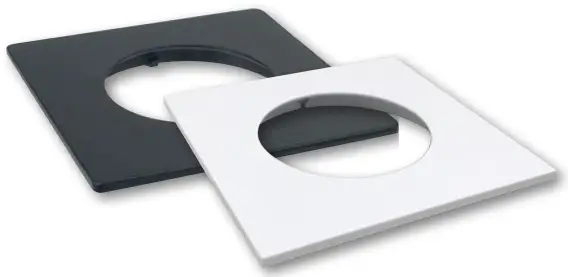

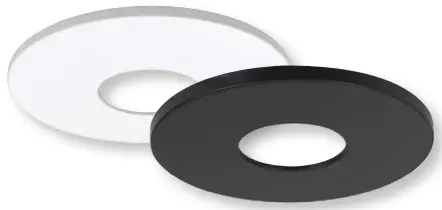

NM2-2SDT: Square Trim for NM2-2RDC, Black or White

OPTIONAL MOUNTING ACCESSORIES

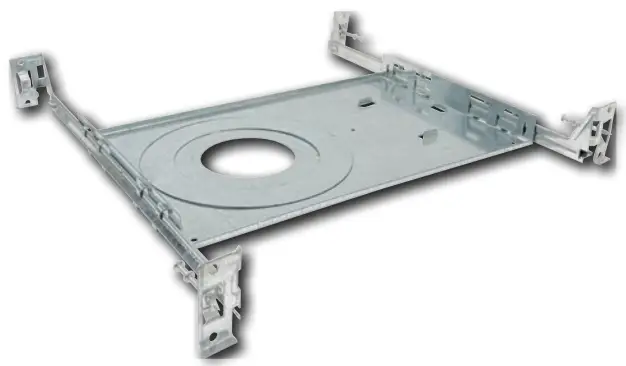

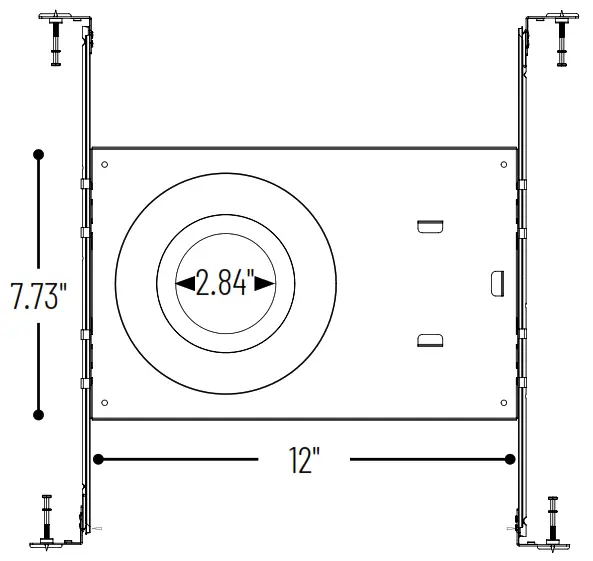

NF-R246: Universal New Construction Frame-In
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2: Two Head Multiple Lighting System Plate

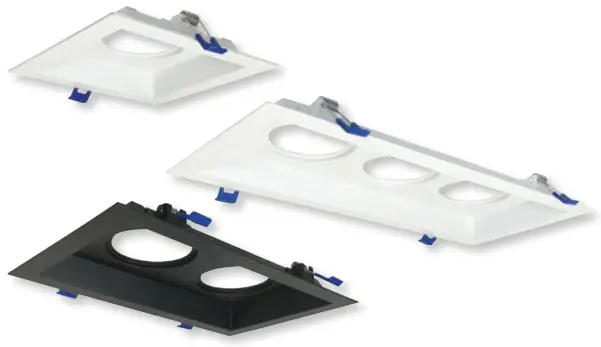

NM2-MLS3: Three Head Multiple Lighting System Plate

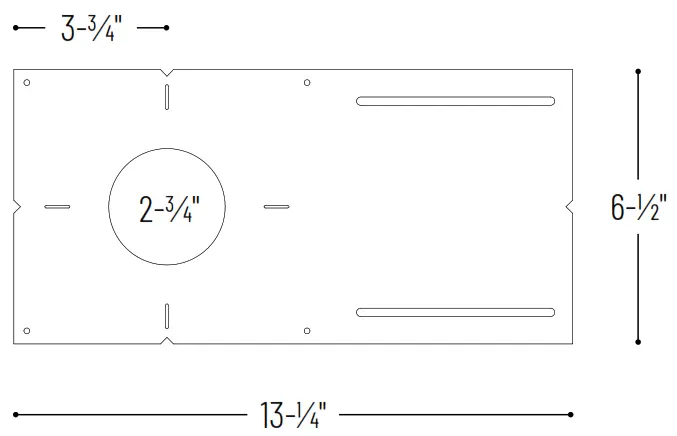

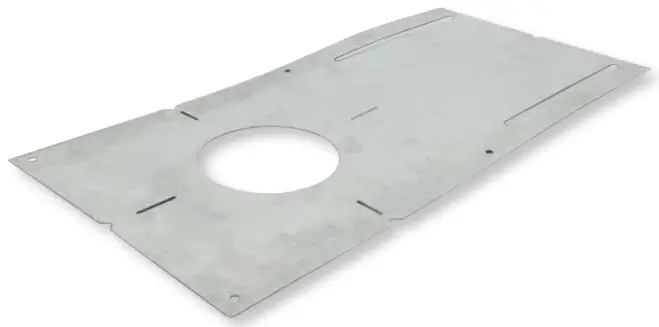

NM2-2R-F: New Construction Frame-In Plate

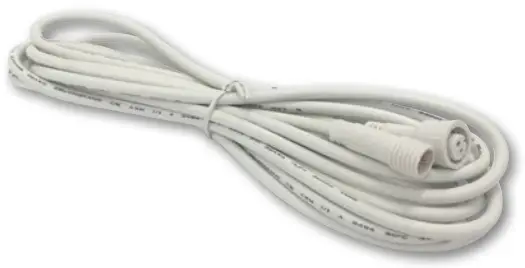

NM2-EW-4: 4′ Quick Connect Linkable Extension Cable
NM2-EW-10: 10′ Quick Connect Linkable Extension Cable

LABELS AND LISTINGS

• cETLus Listed for Damp Locations
• ENERGY STAR certified
• 5-Year Limited Warranty
• FCC compliant
• Certified to the high efficacy requirements of California Title 24 JA8-2019

2″ M2 Round LED Recessed Downlight

Trim Type NM2-2RDC = 2″ Round Downlight

Lumens / Wattage 40 = 400lm / 6W 60 = 600lm / 8W 85 = 850lm / 10W 60 = 600lm / 8W

Color Temperature / CRI 27 = 2700K / 90 CRI 30 = 3000K / 90 CRI 40 = 4000K / 90 CRI

Finish BB = Matte Black MPW = Matte Powder White MPW = Matte Powder White

M2 Trim Accessories

Accessory Type NM2-2REFL = Reflector for NM2-2RDC NM2-2BAF = Baffle for NM2-2RDC NM2-2RPH = Round Pinhole Trim for NM2-2RDC NM2-2RW = Round Wall Wash Trim for NM2-2RDC NM2-2SDT = Square Trim for NM2-2RDC

Finish B = Matte Black HZ = Haze B = Matte Black MPW = Matte Powder White

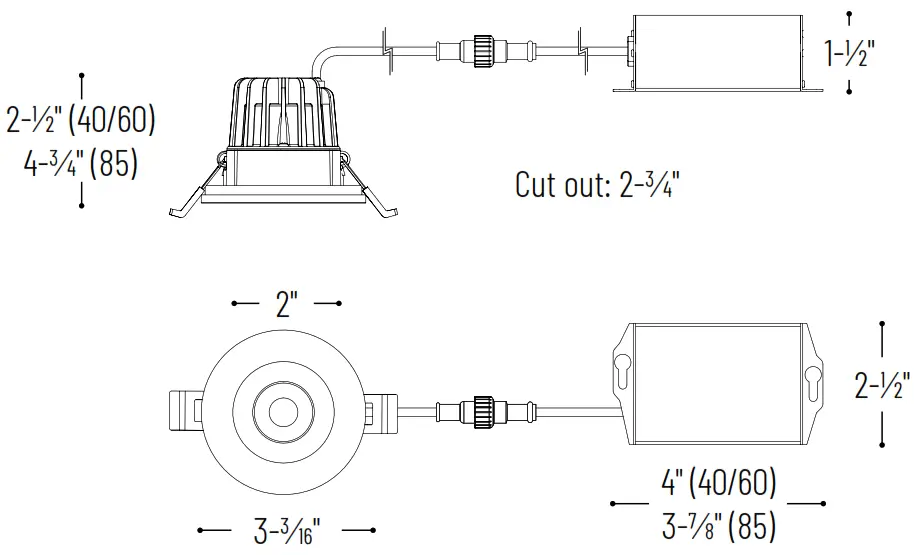

PRODUCT IMAGES AND DIMENSIONS

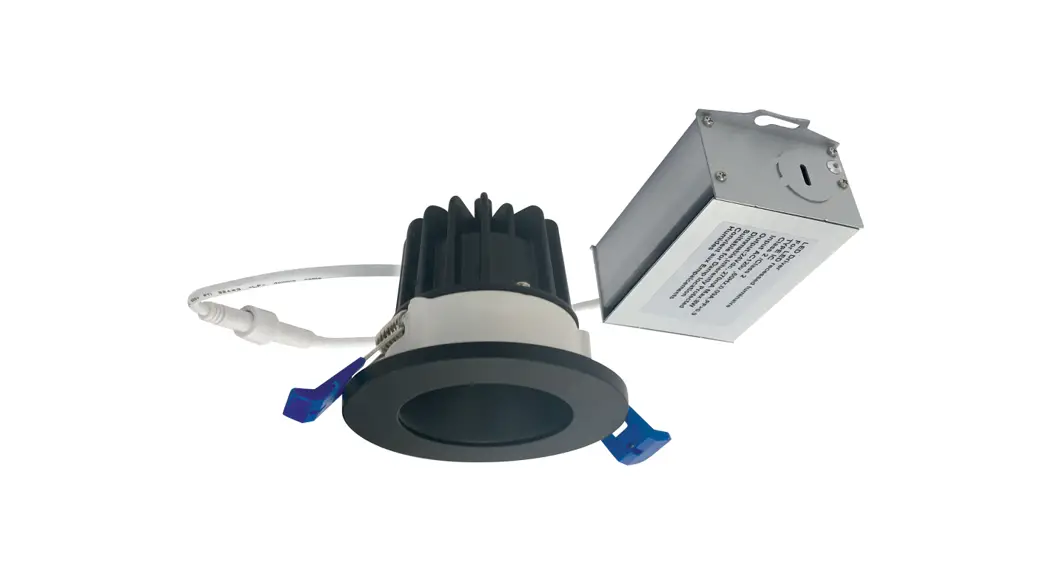

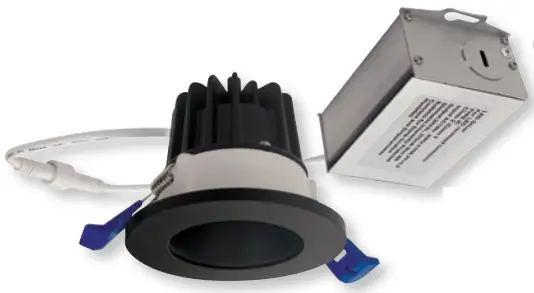

NM2-2RDCXXXXBB 400lm or 600lm Matte Black	NM2-2RDC85XXMPW 850lm Matte Powder White

NM2-2REFL Reflector Insert	NM2-2BAF Baffle Insert
NM2-2RPH Round Pinhole Trim	NM2-2RW Round Wall Wash Trim
NM2-2SDT Square Trim

Optional Mounting Accessories

Accessory Type NM2-MLS1 = One Head MLS Plate NM2-MLS2 = Two Head MLS Plate NM2-MLS3 = Three Head MLS Plate NF-R246 = Universal New Construction Frame-In NM2-2R-F = New Construction Frame-In Plate NM2-EW-4 = 4’ Quick Connect Extension Cable NM2-EW-10 = 10’ Quick Connect Extension Cable

Finish BB = Matte Black MPW = Matte Powder White

Example: NM2-2RDC6030MPW = 2″ M2 Round LED Recessed Downlight, 600lm / 8W, 3000K / 90 CRI, Matte Powder White

Accessories

Reflector/Baffle Insert for NM2-2RDC NM2-2REFLB – Matte Black Reflector NM2-2REFLHZ – Haze Reflector NM2-2BAFB – Matte Black Baffle NM2-2BAFMPW – Matte Powder White Baffle Replaces the reflector included with NM2-2RDC downlight	Square Trim for NM2-2RDC NM2-2SDTB – Matte Black NM2-2SDTMPW – Matte Powder White Converts the round trim included with NM2-2RDC downlight into a square trim	Round Pinhole Trim for NM2-2RDC NM2-2RPHB – Matte Black NM2-2RPHMPW – Matte Powder White Converts the round trim included with NM2-2RDC downlight into a round pinhole	Round Wall Wash Trim for NM2-2RDC NM2-2RWB – Matte Black NM2-2RWMPW – Matte Powder White Converts the round trim included with NM2-2RDC downlight into a round wall wash
Multiple Lighting System Plates NM2-MLS1B – 1 Head / Matte Black NM2-MLS1MPW – 1 Head / Matte Powder White NM2-MLS2B – 2 Head / Matte Black NM2-MLS2MPW – 2 Head / Matte Powder White NM2-MLS3B – 3 Head / Matte Black NM2-MLS3MPW – 3 Head / Matte Powder White Converts multiple round LED luminaires into multiple lighting system without a large housing.	New Construction Frame-In Plate NM2-2R-F For new construction pre-wiring and easier layout planning.	Quick Connect Extension Linkable Cables NM2-EW-4 – 4’ Cable NM2-EW-10 – 10’ Cable Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40’.	Universal New Construction Frame-In NF-R246 Universal new construction frame-in can be used to assist installing can-less recessed downlighting.

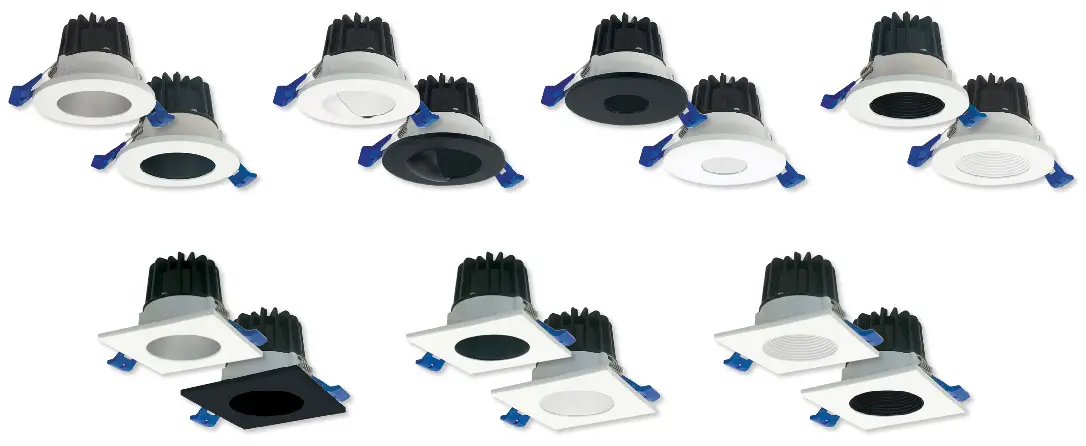

Luminaire Examples

Test Information
Test Number: NTR11363
Part Number: NM2-2RDC4027MPW
Beam Spread: 36° Flood
Lumens: 445lm
Wattage: 6.2W
Efficacy: 72lpw
CCT / CRI: 2700K / 90 CRI
Spacing Criteria (0º-180): 0.6
Spacing Criteria (90º-270): 0.6

Illuminance at a Distance

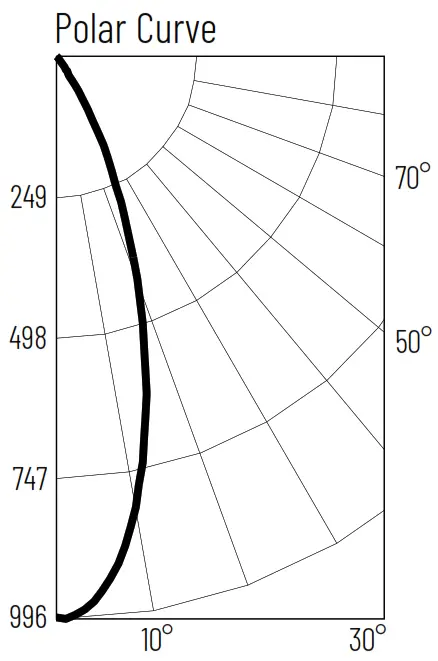

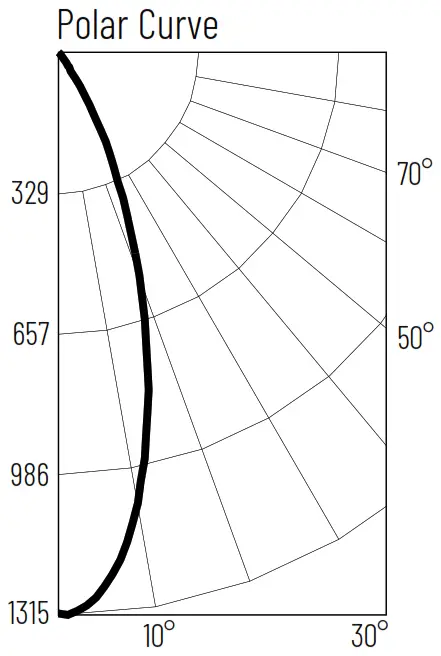

Zonal Lumen Summary

Candela Table

Test Information
Test Number: NTR11350
Part Number: NM2-2RDC4030MPW
Beam Spread: 37° Flood
Lumens: 464lm
Wattage: 6.23W
Efficacy: 75lpw
CCT / CRI: 3000K / 90 CRI
Spacing Criteria (0º-180): 0.62
Spacing Criteria (90º-270): 0.62

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

Test Information
Test Number: NTR11351
Part Number: NM2-2RDC6027MPW
Beam Spread: 37° Flood
Lumens: 594lm
Wattage: 7.8W
Efficacy: 76lpw
CCT / CRI: 2700K / 90 CRI
Spacing Criteria (0º-180): 0.62
Spacing Criteria (90º-270): 0.6

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

Test Information
Test Number: NTR11351
Part Number: NM2-2RDC6030MPW
Beam Spread: 36° Flood
Lumens: 641lm
Wattage: 8.1W
Efficacy: 79lpw
CCT / CRI: 3000K / 90 CRI
Spacing Criteria (0º-180): 0.6
Spacing Criteria (90º-270): 0.6

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

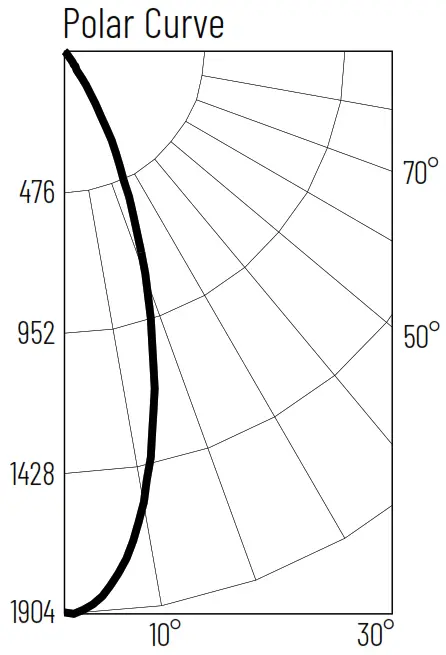

Test Information
Test Number: NTR1431
Part Number: NM2-2RDC8530MPW
Beam Spread: 38° Flood
Lumens: 882lm
Wattage: 10.18W
Efficacy: 87lpw
CCT / CRI: 3000K / 90 CRI
Spacing Criteria (0º-180): 0.62
Spacing Criteria (90º-270): 0.62

Illuminance at a Distance

Zonal Lumen Summary

Candela Table

6505 Gayhart Street, Commerce, CA 90040
Tel 800.686.6672
www.noralighting.com
e-mail: [email protected]
© 2021 Nora Lighting, Inc. All rights reserved.
Specifications subject to change without notice.110521P4
