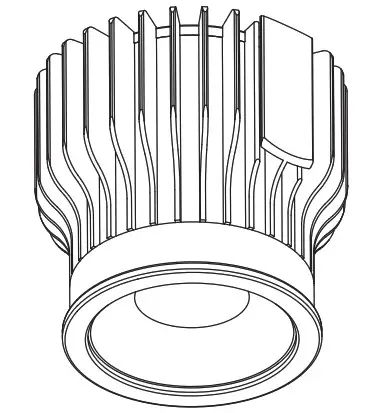

INSTALLATION MANUAL
13W LED COB
DOWNLIGHT
DM13W-36DEG, DM13W-60DEG
Important Safety Instructions
Important Safety InstructionsBasic safety precautions should always be followed when installing, including the following:
- Read instructions & check you have all the tools & accessories to complete the installation correctly.
- Licensed electrician for installation only.
- Always ensure the power is OFF and the fitting has cooled down before performing any maintenance, cleaning, changing the globe or adjustment to the fitting.
- Do not install any luminaire near the heat source.
- Do not exceed the nominal supply voltage or amperage ratings.
- To avoid injury or damage to the fitting, please ensure that power leads and screws are secure before connecting the power.
- The light source contained in this luminaire shall only be replaced by the manufacturer or a qualified person.
Installation Instruction
Fig 1: Installation Spacing

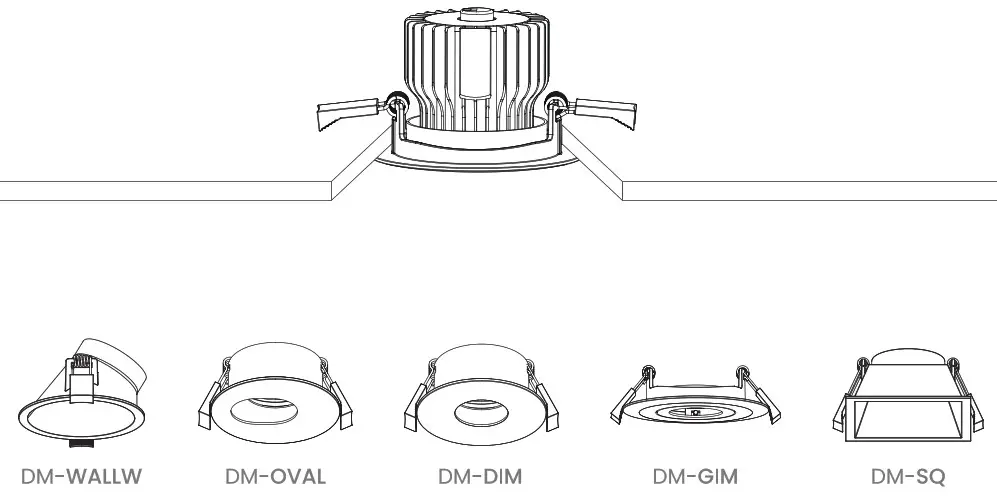

Ceiling cutout table
| Downlight Trims | DM-OVAL | DM-DIM | DM-WALLW | DM-GIM | DM-SQ |
| Ceiling Cutout (mm) | 70-80 | 70-80 | 90-95 | 90-95 | 90-95 |
| Context table | Before installation, please check the IP label on the luminaire to choose the right place to install. |
| IP20/IP40 | Indoor use only, do not use in wet or damp place. |
| IP44/IP54 | Suitable for indoor areas including bathrooms and covered/sheltered areas such as porches. |
| IP65 | Suitable for outdoor areas, not suitable for water immersion. |
| Context table | Before installation, please check the information of driver as below. |
| Non-dim | Can not be used with any dimmer. |
| Triac dim | Compliable with recommended TRIAC dimmers, dimming range 8-100%. |
| 0/1-10V | Only work with 0/1-10V dimming system, dimming range 8-100%. |
| DALI | Only work with DALI dimming system, dimming range 8-100%. |
Installation Procedure
WARNING
- Switch off before installation.
- Switch on only after complete installation and examination of the circuit.
- Professional electrician for installation and maintenance only.

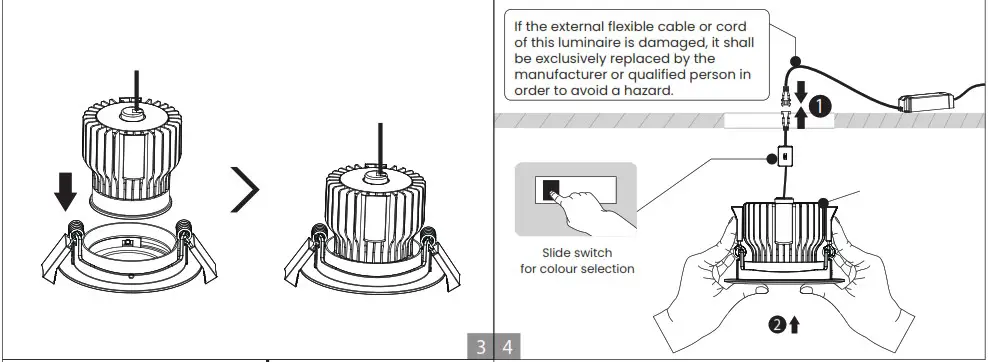

Downlight with external driver

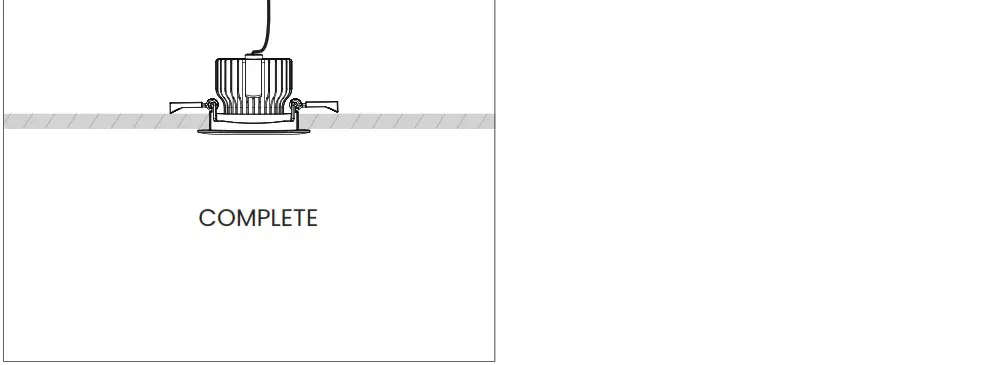

COMPLETE
The light source contained in this luminaire shall only be replaced by the manufacturer or a qualified person.
Warning: Production modification and improper installation are not valid for warranty.
