Godox Fls5 Fresnel Attachment For Cob Led Lights Instruction Manual

FLS5/FLS8/FLS10
Fresnel Attachment for COB LED lights
Instruction Manual

Foreword

FLS10 and FLSB are focusable opical accessories with Bowens mount, The inner diameters of FLS10 and FLSS are 10 inches (254mm) and 8 inches (203mm),their adjustable light angles are 10°-35° and 10°-40″ respectively. When collocating with video fights, the center iluminance of FLS10 and FLS8 increase 4 (flood) to 19 (spor) times and 3 (flood) t0 19 (spotjtimes respectively. Spotting light effect and flooding light effect are switchable by fotating the focusing dial in the center of the lens. The Fresnel Attachment extends, the light spot becomes smaller and iluminance increases if you rotate clockwise, while the Fresnel Godox LED lights. retracts, the light spot becomes larger, and the irradiation range is wideif you rotate counterclockwise. The separately sold Barn Door LB-01/L8-02 can help achieve better light effects.
Fresnel Attachment FLSS is a focusable optical accessory exclusively for the Godox-mount ts adjustable fight angle is 10° to 35 °. With Barn Door LB-03, you can achieve better light effect.
FLS10 is compatible with Godox LED lights with Bowens mount
FLSB is compatible with Godox LED lights with Bowens mount except for M600D and MGO0BI
FLSSis compatible with Godox LED lights with Godox-mount

Warning
When collocating with LED lights, do not use against the eyes Othervise visual impairment may occur.
Fresnel Attachment is fragile, please be careful and avoid crashes!
Be ware of high temperature when using collocated with LED lights!
Piease focus after the Fresnel Attachment is securely fixed!

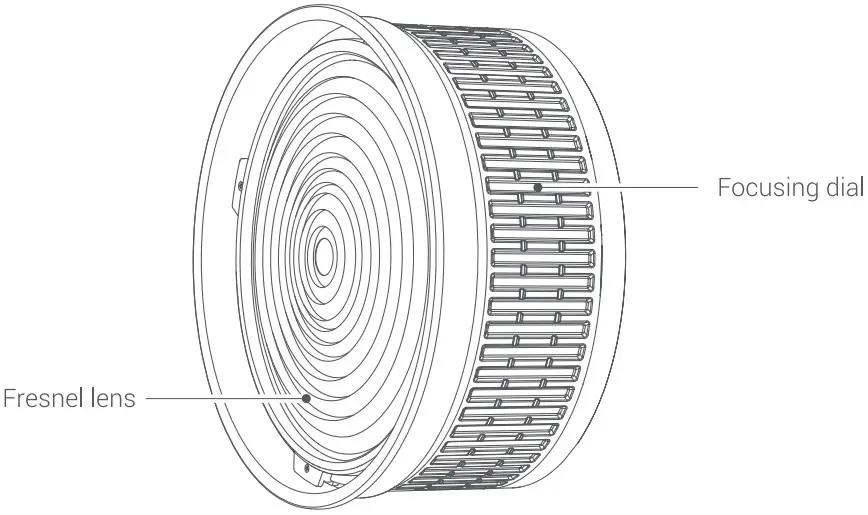

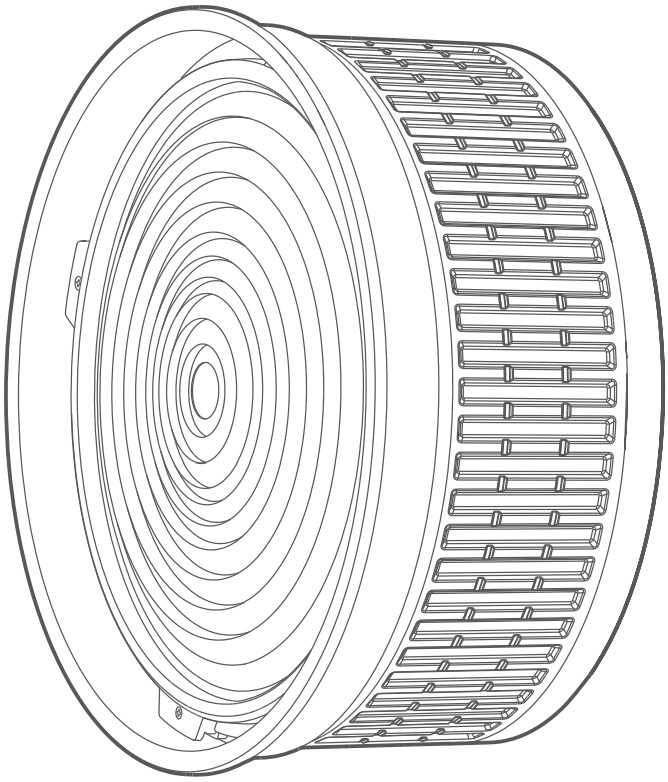

Name of parts

Fresnel Atachmen for OB LED Lights

Barn Door

Note: FLS10,FLS8 standard tems do not incude barn door, FLS5 standard fems inclue barn door.

Included Items

FLS10 Fresnel Attachment for COB LED Lights

FLS10	Portable Bag CB43 x1	Instruction Manual X1

FLS8 Fresnel Attachment for COB LED Lights

FLS8	Portable Bag CB44  x1	Instruction Manual  x1

FLS5 Fresnal Attachment for COB LED Lights

FLS5  x1	Barn Door LB-03 x1	Portrable Bag CB86 x1	Instruction Manual x1

Separately Sold Accessories

Barn Door LB-02 Suitable for FLS10	Barn door LB-01 Suitable for FLS8

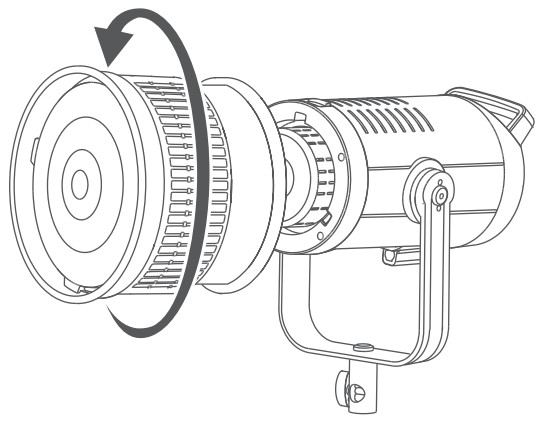

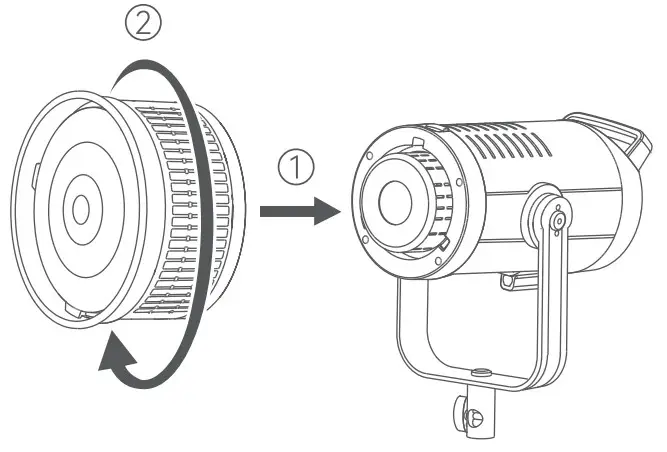

Installing Instruction (take Godox SL15011 as an example)

Insert into the mount of SL15011 and rotate clockwise to install the Fresnel Attachment
Note: The above steps are applicable 1 all hree. ‘models, Difference: FLS10 and FLS® are suitable for Bowens-mount, while FLSS s sutable for Godox-moun

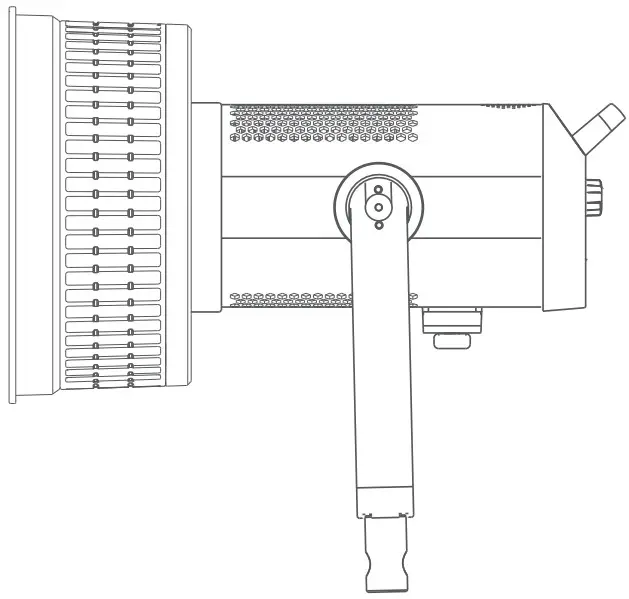

Detaching Instruction (take Godox SL150Ⅱ as an example)
Push the fixing button of SL15011 then rotate counterclockwise to detach the Fresnel Attachment
Note: The above steps are applicable o all hree. madels. Difference: FLS10 and FLS8 are suitable for Bowens-mount, while FLSS i sutabe for Godox-mount

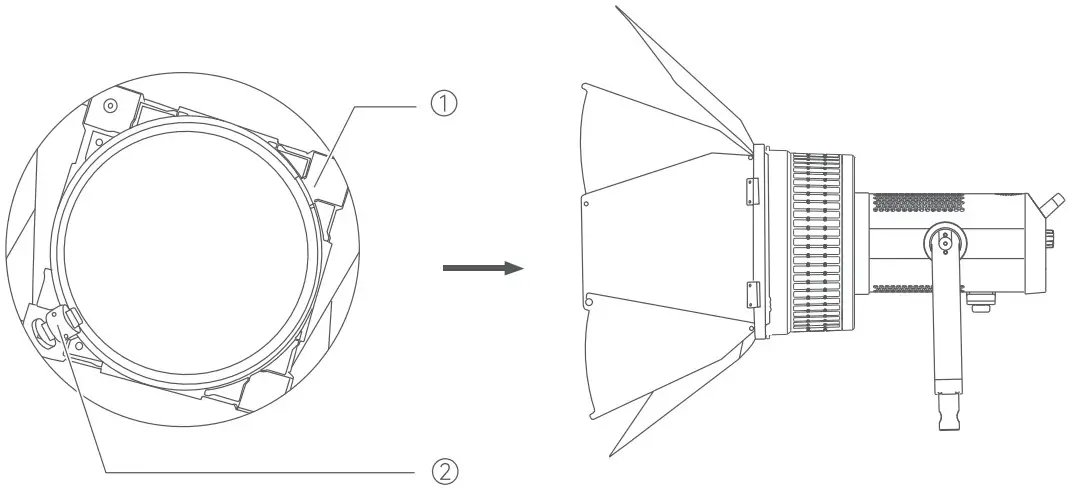

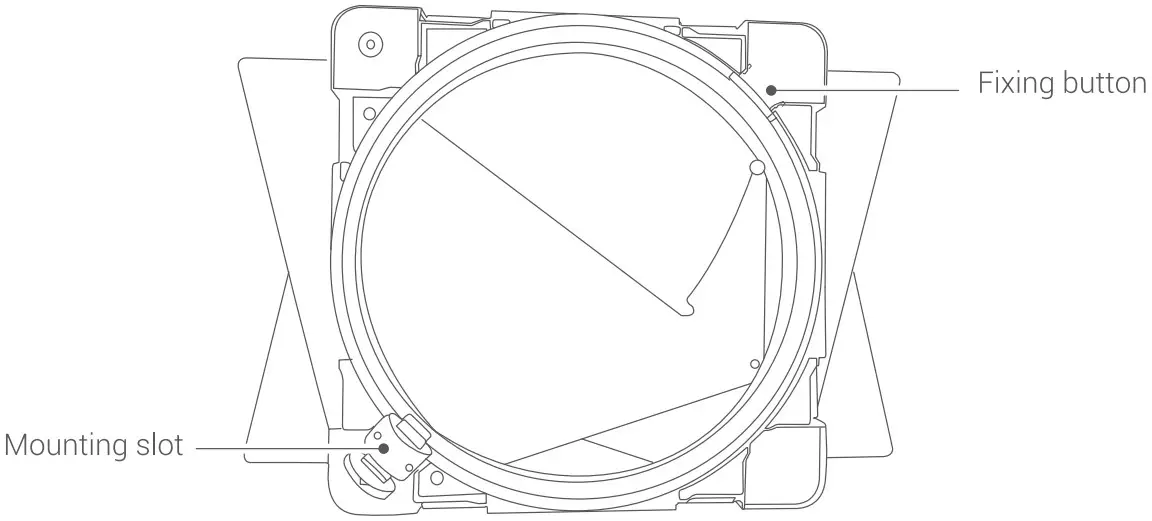

Barn Door Installation Instruction

1. Installthe Fresnel attachment to the LED light
2. Align the mounting siot of barm door with the edge of Fresnel Attachment, pullthe fixing button and release it to buckle up.

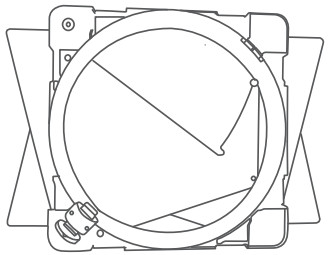

   1. Align the mounting siot of barn door with the edge of Fresnel Attachment
   2. Pull the fixing button

Note: The Barn Door should be installec with gloves 1o avoid scratches I i suggested to secure the safety fope t0.avoid fallng f the Barn Door.

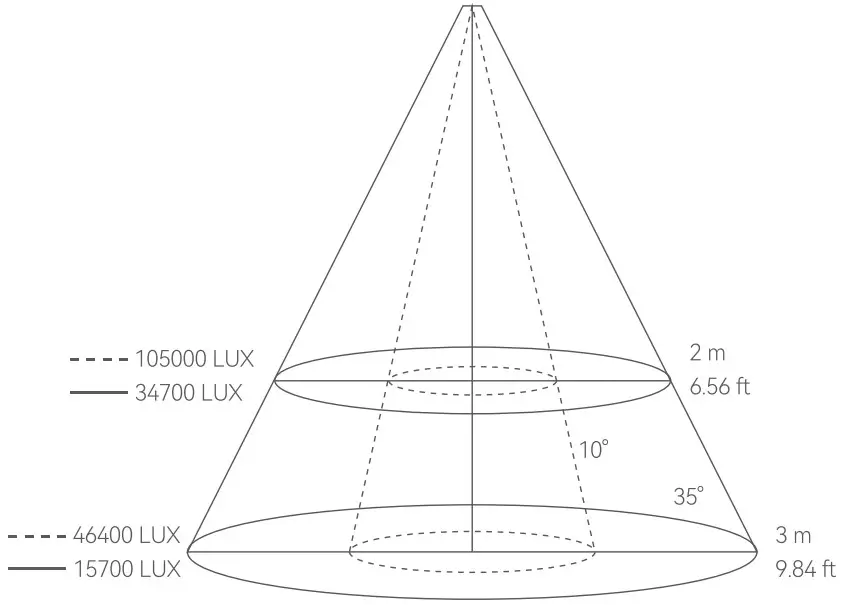

Center llluminance Diagram of FLS10 (collocate with M600D)

‘The above data is average illuminance instead of absolute illuminance when collocated with M00D, and there are differences between different lights.
—- spot
fiood

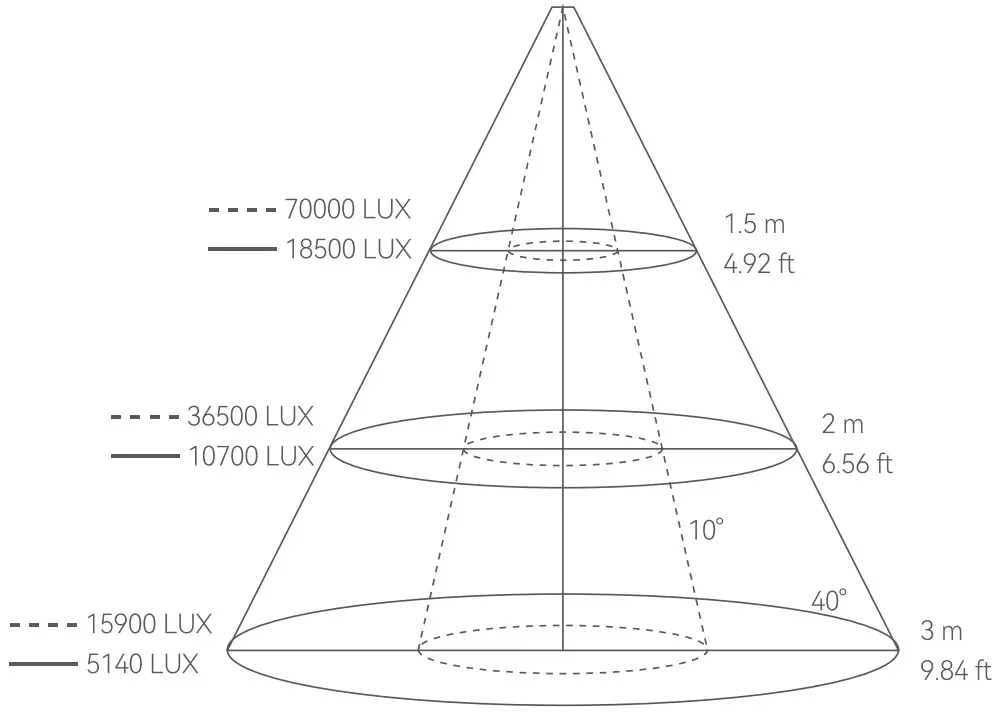

Center Illuminance Diagram of FLS8 (collocate with VL300)

“The above data s average illuminance instead of absolute iluminance when collocated with VL300, and there are differences between different lights.
—- spot
fiood

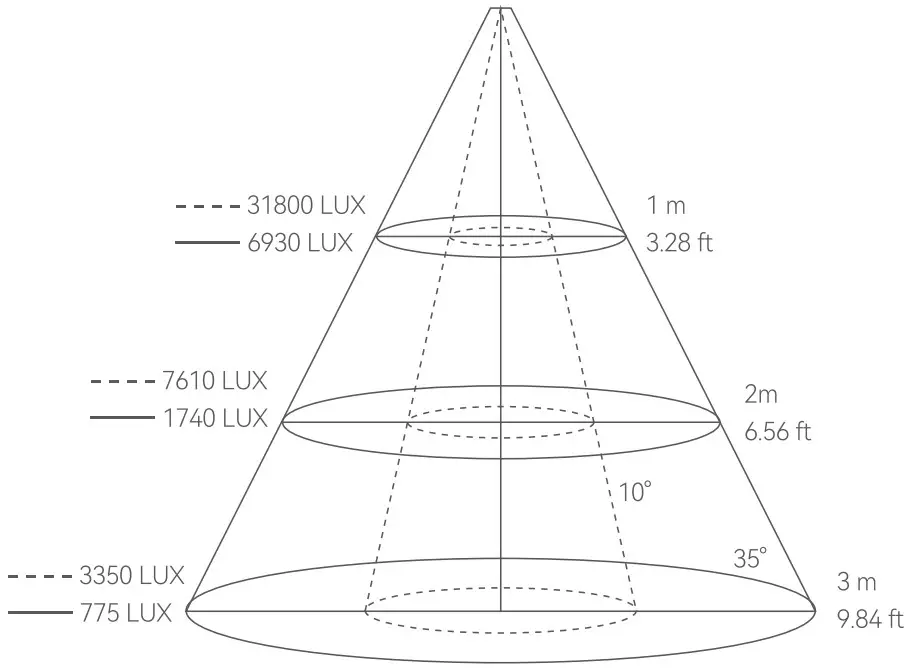

Center Illuminance Diagram of FLS5 (collocate with ML60)

‘The above data is average luminance instead of absolute illuminance when collocated with MLBO There are differences in lumination between different ights.
—- spot
fiood

Warranty

Dear customers, as this warranty card is an important certficate to apply for our  maintenance service, piease fll in the following form in coordination with the seller and safekeep it Thank you!

Note: This form shall be sealed by the seller.
Applicable Products
The document applies to the products listed on the Product Maintenance Information (see below for further information). Other products or accessories (e.g. promotional items, giveaways and additional accessories attached, etc.) are not included in this warranty scope.
Warranty Period
The warranty period of products and accessories is implemented according to the relevant Product Maintenance Information. The warranty period is calculated from the day(purchase date) when the product is bought for the first time, And the purchase date is considered as the date registered on the warranty card when buying the product.
How to Get the Maintenance Service
If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide valid warranty card. If you cannot provide valid warranty card, we may offer you maintenance service once confirmed that the product or accessory Is involved in the maintenance scope, but that shall not be considered as our obligation.
The guarantee and service offered by this document are not applicable in the following cases:

1. The product or accessory has expired its warranty period;
2. Breakage or damage caused by inappropriate usage, maintenance or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by external force, contacting or exposing to the improper temperature, solvent, acid, base, flooding and damp environments, etc;
3. Breakage or damage caused by non-authorized institution or staff in the process of installation, maintenance, alternation, addition and detachment;
4. The original identifying information of product or accessory is modified, alternated, or removed;
5. No valid warranty card;
6. Breakage or damage caused by using illegally authorized, nonstandard or non-public released software;
7. Breakage or damage caused by force majeure or accident;
8. Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories and software that beyond the warranty period or scope is not included in our maintenance scope. The normal discoloration, abrasion and consumption are not the breakage within the maintenance scope.

Maintenance and Service Support Information

The warranty period and service types of products are implemented according to the following Product Maintenance Information:
