Medirent Lx9-lf900 Compression Pumps User Guide

LX9-LF900 Compression Pumps
User Guide

LX9-LF900 Compression Pumps

	Place the device somewhere easily accessible.  You may wear non-bulky clothes under the LX9-LF900 sleeve.	Plug your power lead in, ensuring it is not a trip hazard. (Often you will need to visit  the bathroom during treatment due to the fluid extraction).

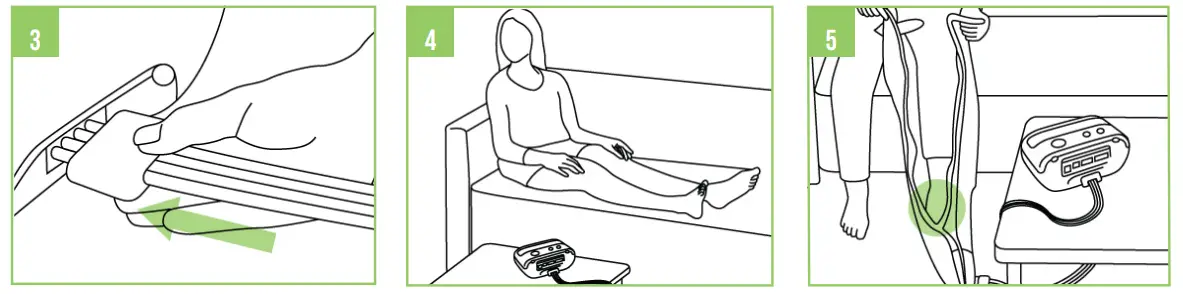

Connect cuff hose to the device and  the smaller end of  the hose to the cuff.	Position your body on a bed or couch where yourleg/s is/are elevated and supported.	Place your leg into the sleeve by unzipping it part-way.
If you have an adjustable  arment with an extension zipper: Add the  extension zipper/s before putting the garment on. Overlapping garments cannot be widened in this method.	Fasten cuff zip and Velcro tabs.	Turn the controller on by pressing “Power”.

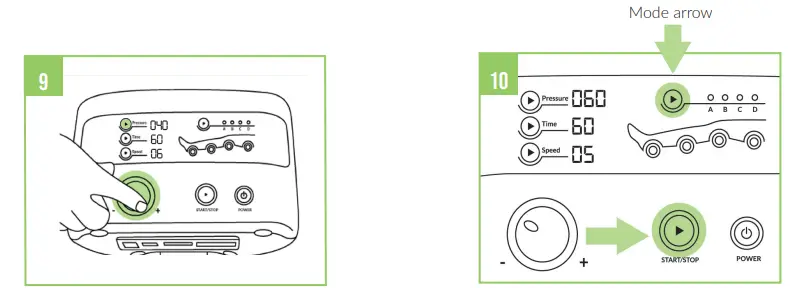

Adjust the settings to match those prescribed by your healthcare professional. To adjust Pressure/Time/Speed: Tap the arrow icon to select the setting. Turn the +/- dial to change the value.	To change the Mode: Press the Mode arrow icon to change the selection. Keep tapping to cycle through modes A – D, until your required mode is highlighted.

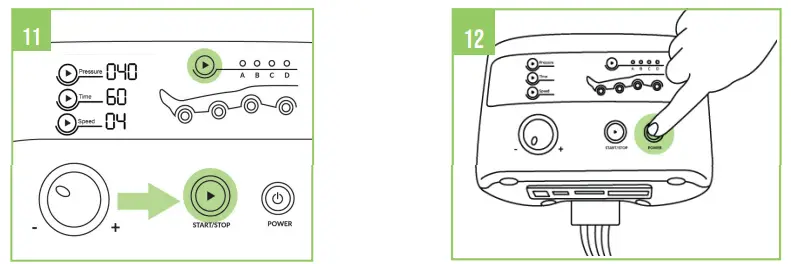

If no settings have been prescribed, start with the settings displayed above. Pressure 40mmHg Time 60min Speed 4 Mode B Press the start button. To stop therapy at any time, press the Start button again.	When therapy is complete, turn off the power button and unzip your garment.

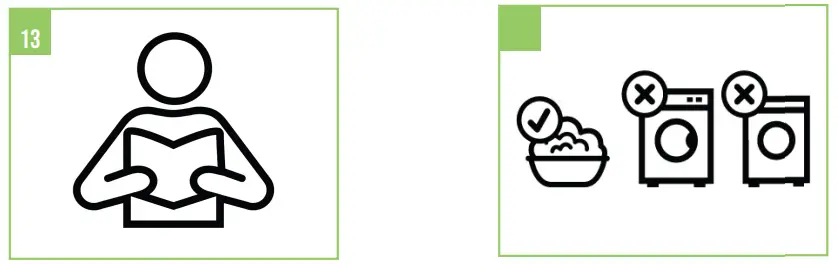

Whilst the compression pump is running please read the ‘Settings Navigation Guide.’ Allow the device run for at least 10 minutes after each change for the full effect to be felt.	If you wish to clean the garment at any time, simply use warm  soapy water or Clinell wipes. These specific cleaning wipes can be purchased from Medi-Rent  and do not contain alcohol like many other sanitising wipes which can damage the garments. Do not place in washing machine or dryer.

WARNING
* Be advised by your Health Professional on setting selection, pressure and duration.
** Always check your body for any pressure areas after treatment. If using the pump for prolonged periods adhere to pressure area prevention techniques such as changing  position regularly and sitting/lying on a supportive surface.
CONTRAINDICATIONS FOR USING A COMPRESSION PUMP

• Known or suspected deep vein thrombosis
• Pulmonary embolism
• Thrombophlebitis
• Cellulitis or other infection not treated with antibiotics
• Uncontrolled/severe cardiac failure
• Pulmonary oedema
• Active metastatic disease affecting oedematous region

IF YOU CHOOSE TO USE THE LX9 WITH ANY OF THE ABOVE CONDITIONS YOU MUST DO SO UNDER THE SUPERVISION OF YOUR TREATING  HEALTH PROFESSIONAL.
have questions?
Call us on AU PH 1300 726 666 or NZ PH 0800 725 555

	Place the device somewhere easily accessible. You may wear non-bulky  clothes under the LX9-LF900 sleeve.	Plug your power lead in, ensuring it is not a trip hazard. (Often you  will need to visit the bathroom during treatment due to the fluid extraction).

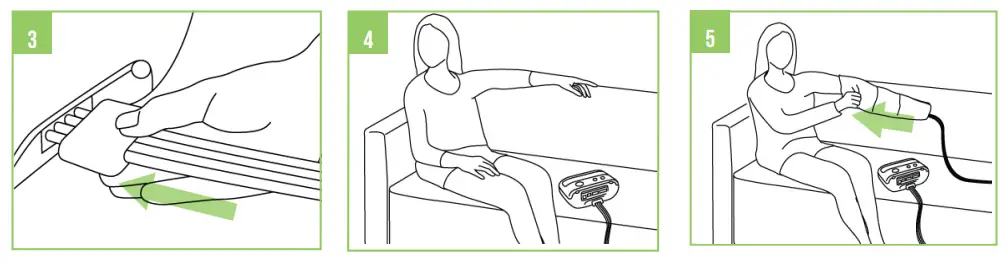

Connect cuff hose to the  device and the smaller end of the hose  to the cuff.	Position your body on a bed or couch where your arm is elevated and supported.	Place your limb into the sleeve.
If you have an adjustable garment with an extension  zipper: Add the extension  zipper/s before putting the  garment on. Overlapping garments cannot be widened in this way.	Ensure the garment is right up on your shoulder. The garment needs to be held in place before you begin, but once  inflated it will stay in position independently.	Turn the controller on by pressing “Power”.

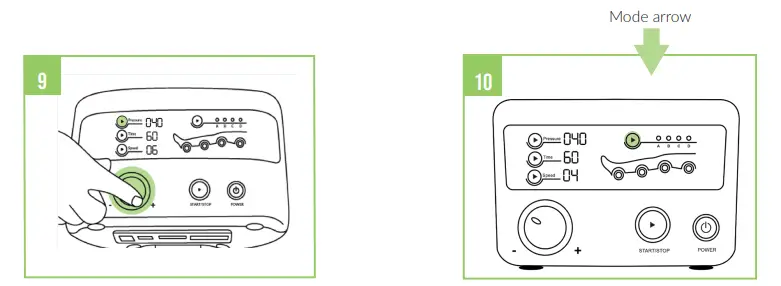

Adjust the settings to match those prescribed by your healthcare professional. To adjust Pressure/Time/Speed: Tap the arrow icon to select the setting. Turn the +/- dial to change the value.	To change the Mode: Press the Mode arrow icon to change the selection. Keep tapping to cycle through modes A – D, until your required mode is highlighted.

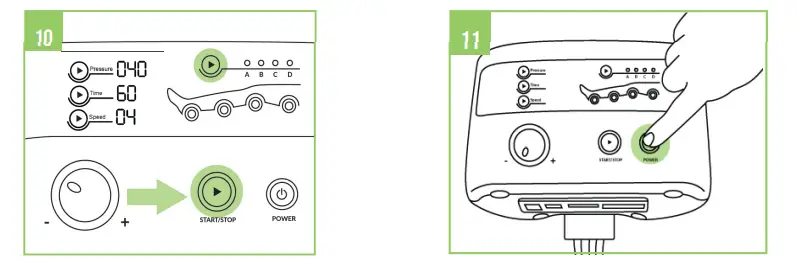

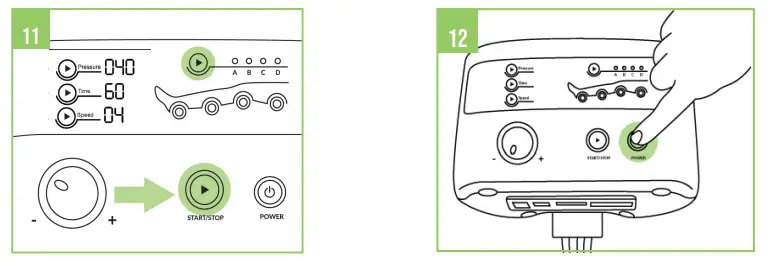

If no settings have been prescribed, start with the settings displayed above. Pressure 40mmHg Time 60min Speed 4 Mode B Press the start button. To stop therapy at any time, press the Start button again.	When therapy is complete, turn off the power button and unzip your garment.

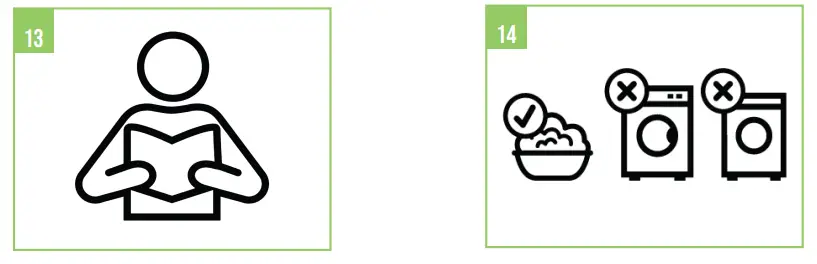

Whilst the compression pump is running please read the ‘Settings  Navigation Guide.’ Allow the device run  for at least 10 minutes after each change for the full  effect to be felt.	If you wish to clean the garment at any time, simply use  warm soapy water or Clinell wipes. These specific cleaning  wipes can be purchased from Medi-Rent and do not contain alcohol like many other sanitising wipes which can damage the garments. Do not  place in washing machine or dryer.

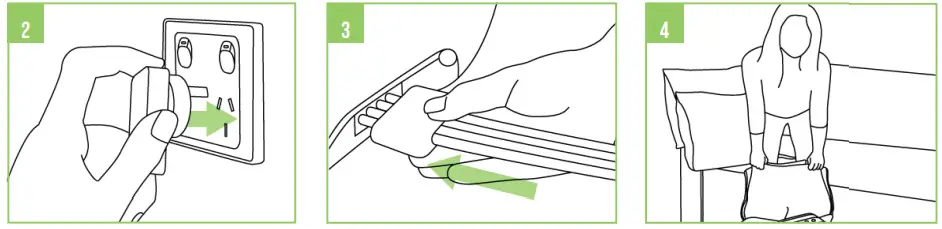

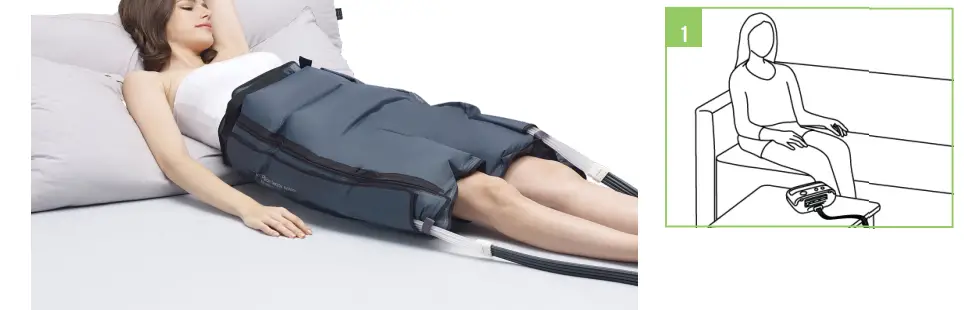

Place the device somewhere easily accessible. You may wear non-bulky clothes under the LX9-LF900 sleeve.

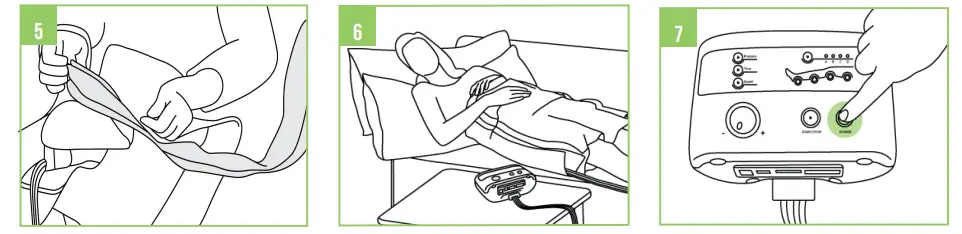

Plug your power lead in, ensuring it is not a trip hazard. (Often you will need to visit the bathroom during treatment due to the fluid extraction).	Connect cuff hose to the device and the smaller end of the hose to the cuff.	Place your legs into the garment and then zip up the side.
The garment provides 3 different sizes depending on which zippers are selected. You may also further widen the garment with extra extension pieces (sold seperately).	Lie down comfortably on your bed.	Turn the controller on by pressing “Power”.

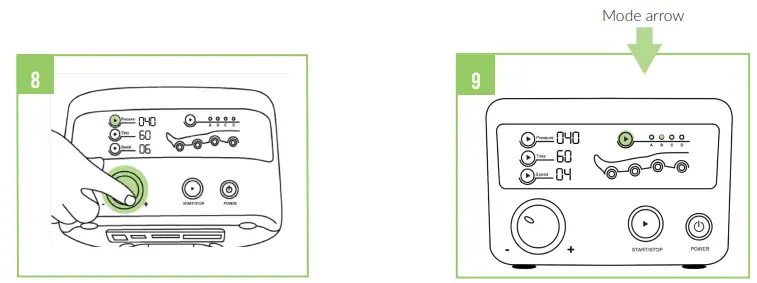

Adjust the settings to match those prescribed by your healthcare professional. To adjust Pressure/Time/Speed: Tap the arrow icon to select the setting. Turn the +/- dial to change the value.	To change the Mode: Press the Mode arrow icon to change the selection. Keep tapping to cycle through modes A – D, until your required mode is highlighted. Although please note, Mode B is only ever recommended for the trunk garment.
If no settings have been prescribed, start with the settings  displayed above. Pressure 40mmHg Time 60min Speed 4 Mode B Press the start button. To stop therapy at any time, press the Start button again.	When therapy is complete, turn off the powerbutton and unzip your garment.

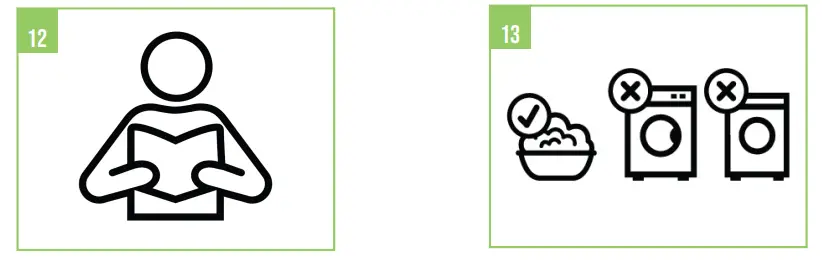

Whilst the compression pump is running please read the ‘Settings  Navigation Guide.’ Allow the device run for at least 10 minutes after each change for the  full effect to be felt.	If you wish to clean the garment at any time, simply use warm  soapy water or Clinell wipes. These specific cleaning wipes can be purchased from Medi-Rent  and do not contain alcohol like many other sanitising wipes which can damage the garments. Do not place in washing machine or dryer.

Medi-Rent Pty Limited
ABN: 37 603 454 360
[email protected]
AU PH: 1300 726 666
HEAD OFFICE:
Unit 3, 61 Beauchamp Rd
Matraville NSW 2036
Unit 3, 93 Riverside Avenue
Werribee VIC 3030
Unit 3, 8 Emplacement Crescent
Hamilton Hill WA 6163
AUSTRALIA
F: 02 9316 9998
NZ PH: 0800 725 555
PO Box 40724
Upper Hutt 5140
NEW ZEALAND
www.medirent.com.au
www.medirent.co.nz
