POTTER PAD100-4DB/6DB 4” 6” Addressable Detector Base
Features
- Terminals Marked with Polarity to assist with installation
- Duplicate terminals for in and out SLC wiring
- Terminals accept 22 to 12 AWG wire sizes
- Installs on single gang, double gang, octagon or 4” square box
- Locking tab prevents unauthorized detector removal
- Product includes 5 year warranty
Application

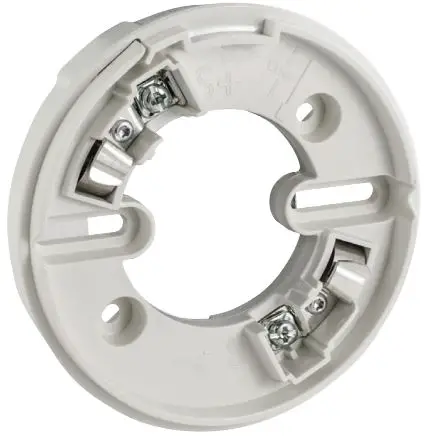

The Potter PAD100-6DB and PAD100-4DB detector bases are used to install Potter’s addressable smoke and heat detectors. The PAD100-6DB will mount on a single gang, double gang, octagon or 4” square electrical box.
Description
The PAD100-6DB and PAD100-4DB are low-profile, surface mount bases used with Potter’s addressable detectors. The base uses screw-clamp terminals that accept wire ranging from 22 to 14 AWG. When installed on recessed electrical boxes the PAD100-6DB is wide enough to completely cover the back box and the immediate surrounding area. The base is equipped with a locking tab to deter unauthorized removal of the attached detector.
Technical Specifications
| Mounting Options | Single gang, double gang, octagon, and 4” square box |
| Terminals | Screw-Clamp Type |
| Wire Guage | 22 to 12 AWG |
| Dimensions | Diameter: 6.3 in (166 mm) Height 0.72 in (18 mm) |
| Shipping Weight | 87g (3.07 oz) |
| Material | Durable plastic |
Locking Feature
The PAD100-6DB and PAD100-4DB include a locking feature that prevents removal of the detector without using a tool.

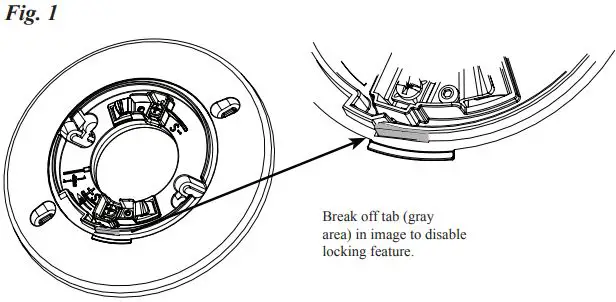

1. To eliminate this feature, break off the locking tab (refer to Figure 1), and then install the detector.

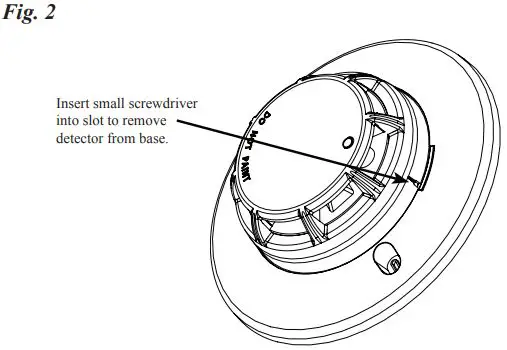

2. To remove the detector from the base when the locking feature has been enabled, insert a small screw driver into the slot on the base to push the plastic tab while simultaneously turning the detector head counter-clockwise.

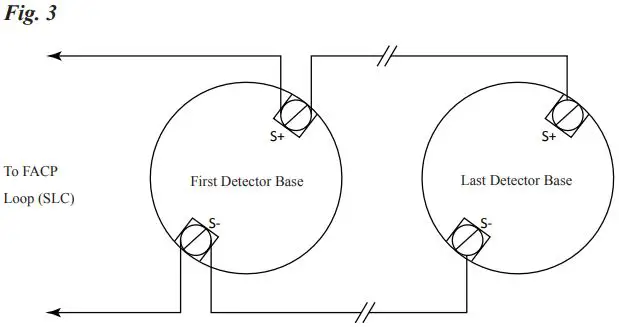

Wiring Diagram
Ordering Information
| Model | Description | Stock No. |
| paD100-6DB | 6” Sensor Base | 3992732 |
| paD100-4DB | 4” Sensor Base | 3992731 |
