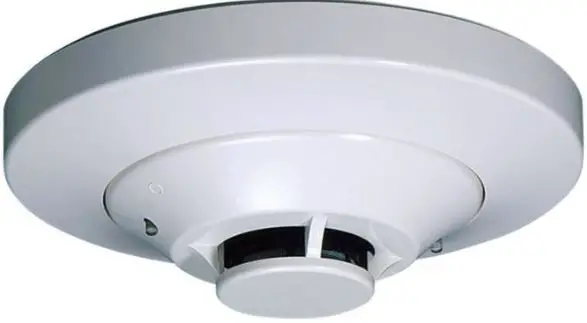

Mircom SD SERIES Photoelectric Smoke Detectors

Description

The SD Series photoelectric smoke detectors are engineered to meet strict UL fire safety codes and effectively respond to a wide spectrum of fires. The SD Series smoke detectors are suitable for use in commercial, industrial, institutional and residential occupancies. The sleek low-profile design of thedetectors emphasizes ease of installation and field maintenance. The SD Series consists of six models: SD-2WP / SD-2WT / SW-2WP-LED / SD-2WT-LED The SD-2WP is a two-wire photoelectric smoke detector for use with electrically compatible fire alarm control units. The SD-2WT is a two-wiresmoke detector that uses photoelectric technology in conjunction with a fixed temperature heat sensor to further extend its sensing capabilities. Additional two wire models (SD-2WP-LED and SD-2WT-LED) are available with a remote LED output. SD-4WP / SD-4WT The SD-4WP is a four-wire photoelectric smoke detector. The SD-4WT is a four-wire photoelectric smoke detector with a fixed temperature heat sensor.

Features

Two and four wire models
Photoelectric smoke sensing technology
Uses a smoke sensor in conjunction with a fixed-temperature heat sensor to extend reliability
Durable sensor head, no need for replacement
Remote LED output on select 2-wire models
N/C (normal close) or N/O (normally open) selectable relay output
Easy installation and maintenance
Attractive sleek housing
UL listed

All SD Series smoke detectors come equipped with a sleek low-profile design and durable sensor head. Utilizing advanced detection and discrimination algorithms, the SD Series smoke detectors provide quality and reliability.

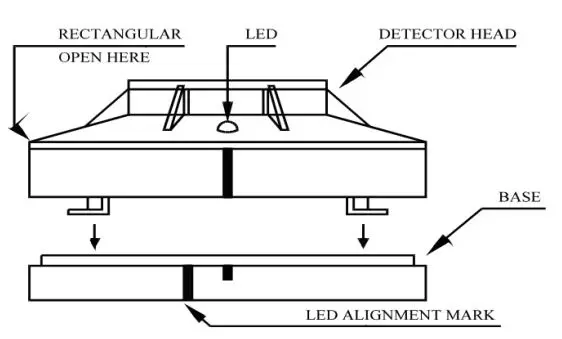

Installation Diagram

NOT TO BE USED FOR INSTALLATION PURPOSES.
Mircom reserves the right to make changes at any time without notice in prices, colours, materials, components, equipment, specifications and models and also to discontinue models.

firealarmresources.com

Electrical Specifications

Model	2/4 wire	Heat Sensor	Voltage DC	Standby Current (Max.)	Alarm Current (Max.)	Surge Current (Max.)	Star-Up Time (Max.)	Permissible Current (Max.)	Frequency	Alarm contact
SD-4WT	4	135°F	12/24V	370μA	35mA		60 Seconds	80mA	3-5 Seconds	Form A
SD-4WP	4		12/24V	370μA	35mA		60 Seconds	80mA	3-5 Seconds	Form A
SD-2WT	2	135°F	12~28V	150μA	70mA	160μA	60 Seconds	80mA	3-5 Seconds	—
SD-2WP	2		12~28V	150μA	70mA	160μA	60 Seconds	80mA	3-5 Seconds	—
SD-2WT-LED	2	135°F	12~28V	150μA	70mA	160μA	60 Seconds	80mA	3-5 Seconds	—
SD-2WP-LED	2		12~28V	150μA	70mA	160μA	60 Seconds	80mA	3-5 Seconds	—

Smoke Sensitivity	2.66+/- 1.11% FT Obscuration (UL standard)
Detection Range	50 foot rating for heat sensor
Start-Up Current	70 µA Maximum
Alarm Impedance	For 2-wire models: 100Ω+3V max; 560Ω+3V max (red LED open circuit)
Reset Voltage	Less than 1 volt
Reset Time	Less than 1 sec
Alarm Indicator	Continuously emitting red light
Temperature range	-10°C to 50°C
Humidity	0 to 95% RH, non condensing
Alarm Contact	For 4-wire: N/O or N/C Operation
Alarm Contact	Form A: 1.0A@30VDC/0.5A@125VAC
Dimensions	100mm (dia) x 46mm (ht) with base
Weight	130g/set with base

Ordering Information

Model	Description
SD-2WP	2-wire photoelectric smoke detector. Includes 4-inch base.
SD-2WT	2-wire photoelectric smoke detector with heat sensor. Includes 4-inch base.
SD-2WP-LED	2-wire photoelectric smoke detector with heat sensor and remote LED output. Includes 4-inch base
SD-2WT-LED	2-wire photoelectric smoke detector with heat sensor and remote LED output. Includes 4-inch base.
SD-4WP	4-wire photoelectric smoke detector c/w 4-inch base
SD-4WT	4-wire photoelectric smoke detector with heat sensor c/w 4-inch base

NOT TO BE USED FOR INSTALLATION PURPOSES.

Canada 25 Interchange Way Vaughan, Ontario L4K 5W3 Telephone: (905) 660-4655 Fax: (905) 660-4113

Web page: http://www.mircom.com

Email: [email protected]

THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNI-CALLY. For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains the intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness.
