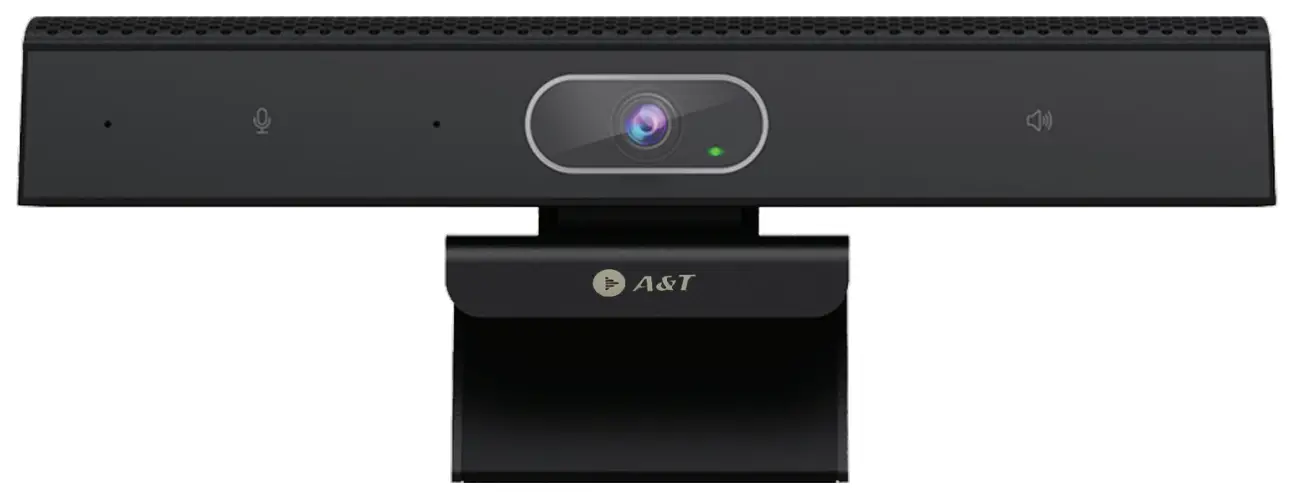

IKON 100
All-in-One Video Soundbar
Reliable Video Collaboration
The complete kit for collaboration from any huddle room or small meeting room. The IKON 100 combines a QHD camera with powerful speakers and microphones that pick up the voice with total clarity. Simple to install, this easy mounting video soundbar enables you to collaborate reliably and quickly.
Huddle Room
Small Conference Room
Online Classroom
Reimagine your huddle room
Add Clarity To Your Video Conferences
 | Powerful Sensor Smooth video experience with full HD quality |
 | Crisp Audio Hi-fidelity speakers that deliver balanced, noiseless audio |
SPECIFICATION
| 2K ePTZ Camera | |
| Camera | 2560 x 1440 Pixels €0 30 fps |
| FOV | 90° Wide View |
| Video Format | MJPEG |
| Resolution | 1920 * 1080 |
| Frame rate | 30fps |
| Integrated Audio | |
| Speaker | Built-in 3W Speaker |
| Subwoofer | Yes |
| Microphone | Built-in 2 Microphones |
| Voice Pickup Range | Up to 3 meters |
| Other Features | Acoustic echo cancellation and noise reduction, face tracking |
| Interface | |
| USB | 1 x 1.8M USB 2.0 Cable. Plug & Play |
| Other Functions | |
| Indicator | Red & Green light indicator |
| Protocol | UVC (US8 Video class) |
| Physical Parameters | |
| Product size | 230mm x 60mm x 56mm |
| Package size | 244mm x 98.5mm x 78mm |
| Power Supply | US8 |
| Operating Temperature | 10 degrees to +40 |
| Working Humidity | 10% to 90% |
*OPTIONAL ACCESSORIES – WALL MOUNT, CABLES
