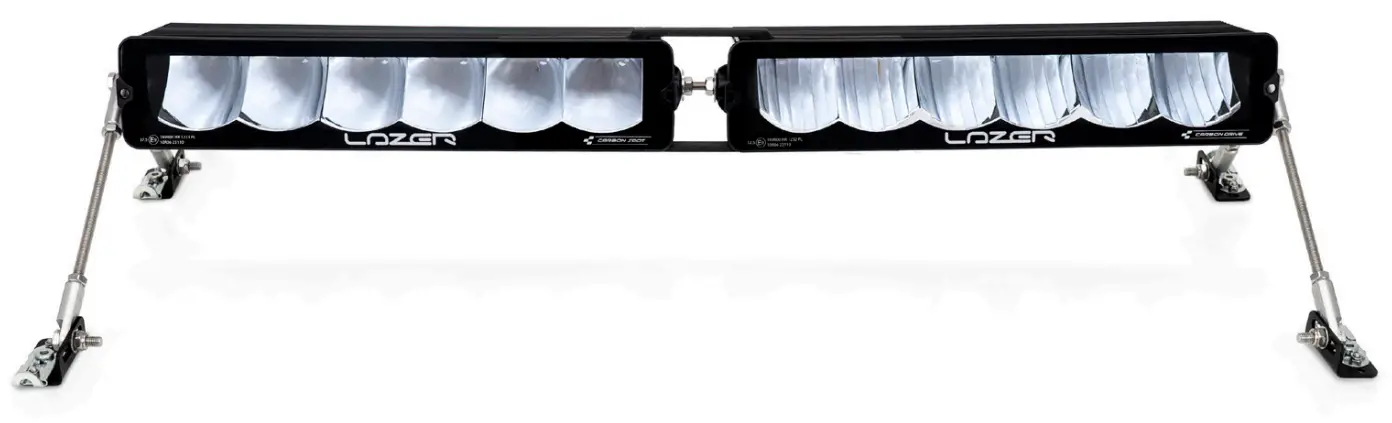

Laser 0062 Boomer Single Led Light Instruction Manual

BOOMER SINGLE
FOR CARBON-6 (GEN3)
FITTING INSTRUCTIONS

WHAT’S INCLUDED

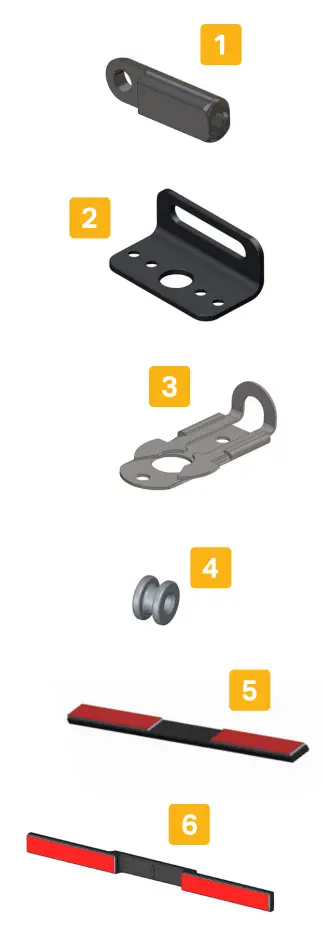

PARTS

1. ROD END (X8)
2. DZUS BASE (X4)
3. DZUS CONNECTOR (X4)
4. DZUS CONNECTOR PIN (X4)
5. CONNECTOR – LOWER (X1)
6. CONNECTOR – UPPER (X1)

FIXTURES
1x VHB CLEANING SACHE
1x M6 X 50 STUD
2x M6 X 70 STUD
2x M6 X 120 STUD
6x M6 X 20 BOLT
4x M6 NYLOC NUT
8x M3 X 8 CSK SCREW
8x M3 NYLOC NUT
4x M4 X 15 WASHER
4x M4 NYLOC NUT
4x M4 X 20 SCREW
10x M6 HEX NUT
4x M6 X 20 WASHER
4x M6 X 12 WASHER

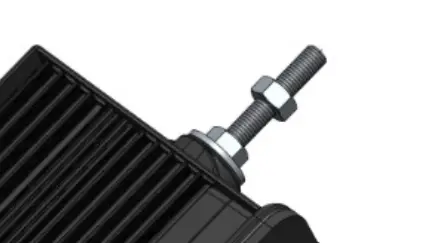

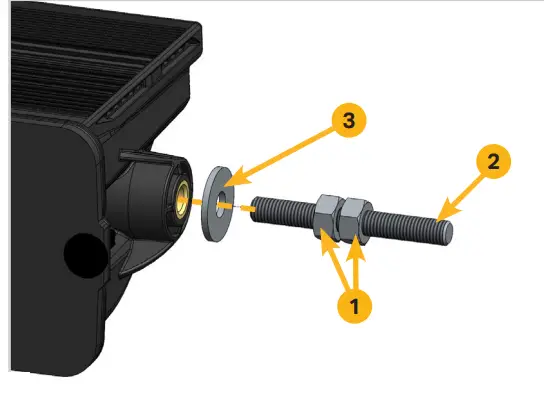

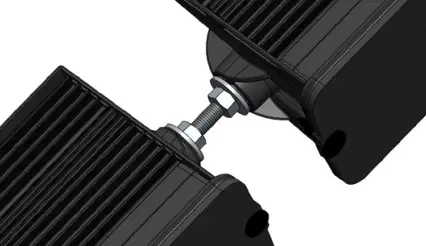

STEP 1.

PARTS

1. M6 NUT
2. M6 X 50 STUD
3. M6 X 20 WASHER

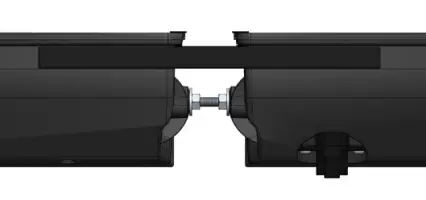

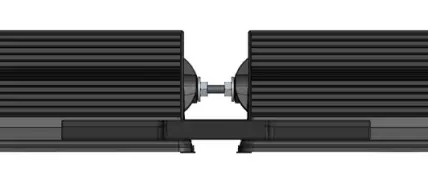

STEP 2.

PARTS

1. M6 X 20 WASHER

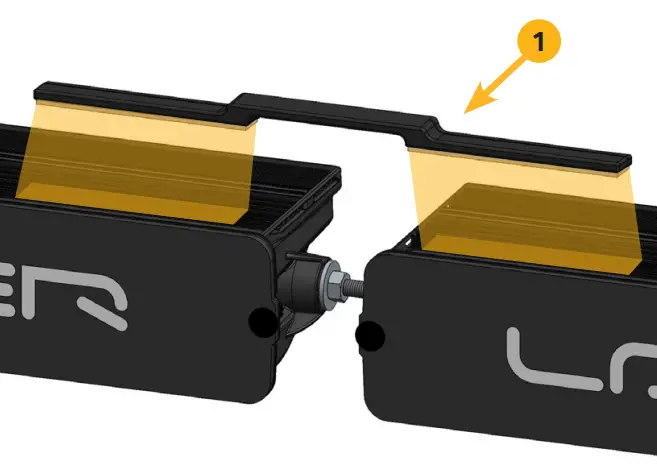

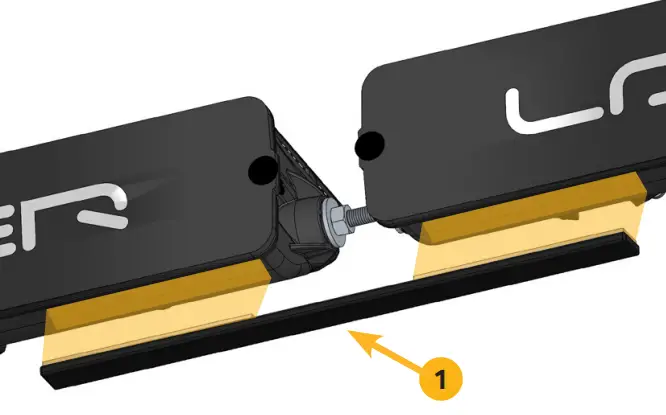

STEP 3.

PARTS

1. CONNECTOR – LOWER (Remove red backing tape)

STEP 4.

PARTS

1. CONNECTOR – UPPER (Remove red backing tape)

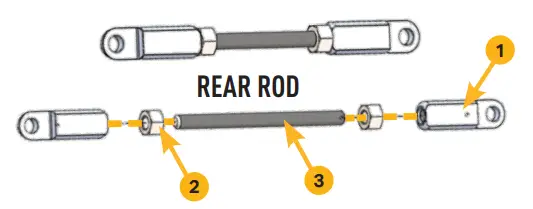

STEP 5.
PARTS

1. ROD END
2. M6 NUT
3. M6 X 70 STUD

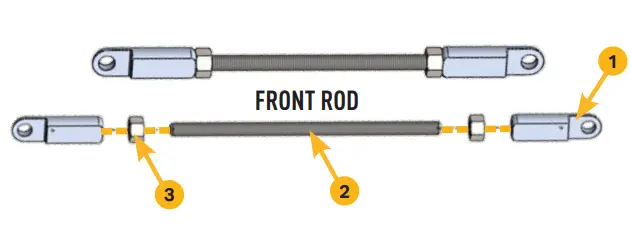

STEP 6.
PARTS

1. ROD END
2. M6 X 120 STUD
3. M6 NUT

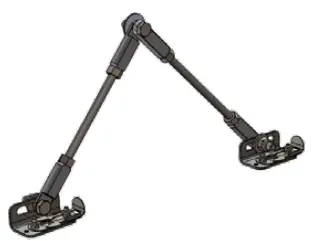

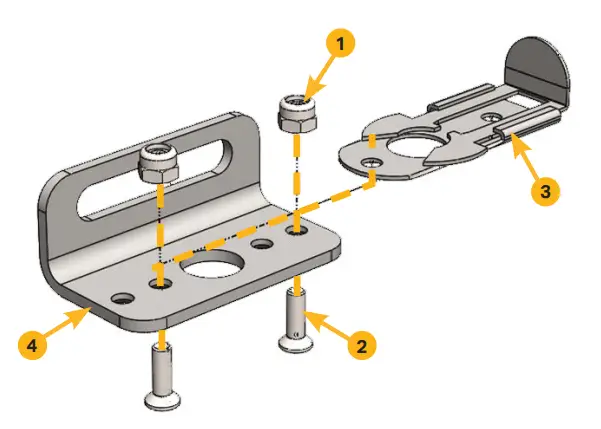

STEP 7.
PARTS

1. M3 NYLOC NUT
2. M3 X 8 CSK SCREW
3. DZUS CONNECTOR
4. DZUS BASE

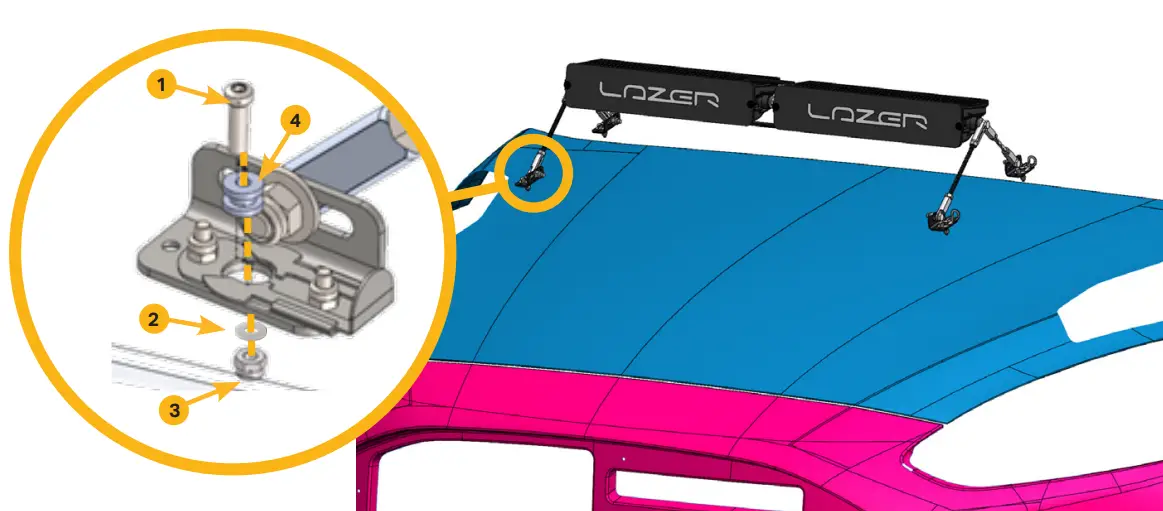

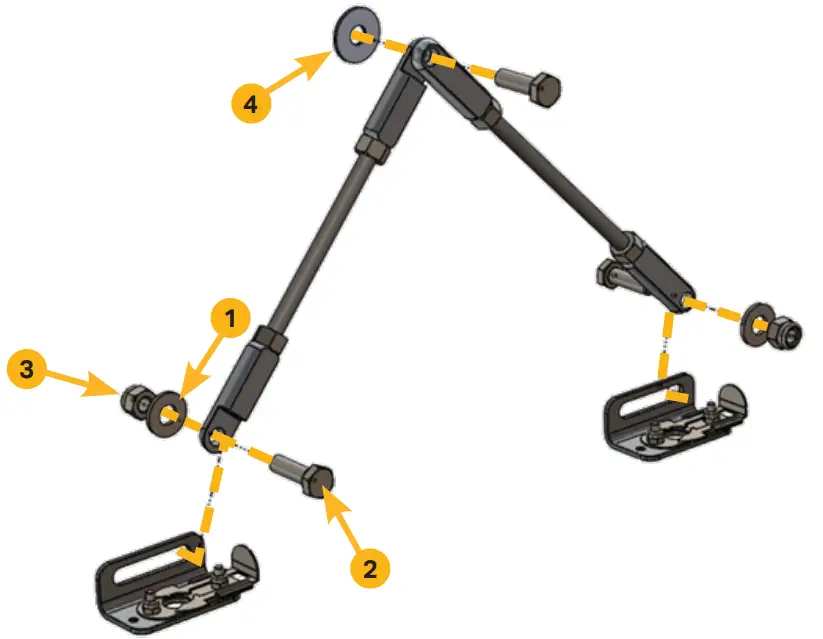

STEP 8.
PARTS

1. M6 X 12 WASHER
2. M6 X 20 HEX BOLT
3. M6 NYLOC NUT
4. M6 PENNY WASHER

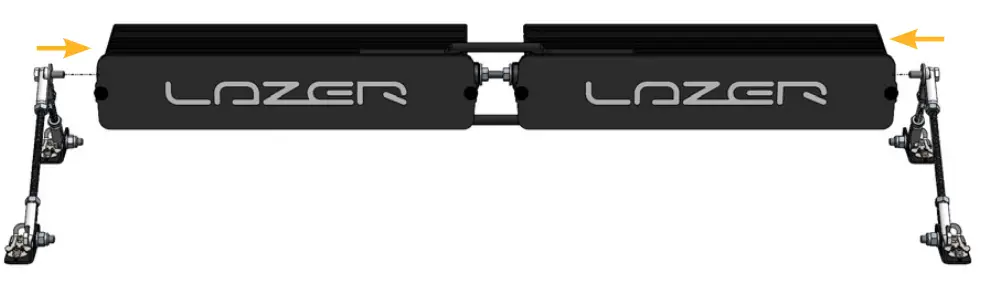

STEP 9.

STEP 10.

PARTS

1. M4 X 20 SCREW
2. M4 WASHER
3. M4 NYLOC NUT
4. DZUS CONNECTOR PIN
