RIDGID R87701 18 Volt Subcompact Right Angle Drill
REPAIR SHEET
BRAND
MODEL NO. R87701
The model number and manufacturing location will be found on a label attached to your product. Always mention this information in all communications regarding this product and when ordering parts.

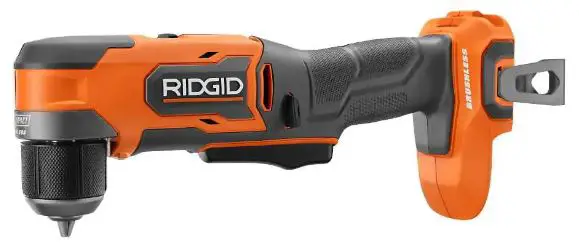

PRODUCT DESCRIPTION

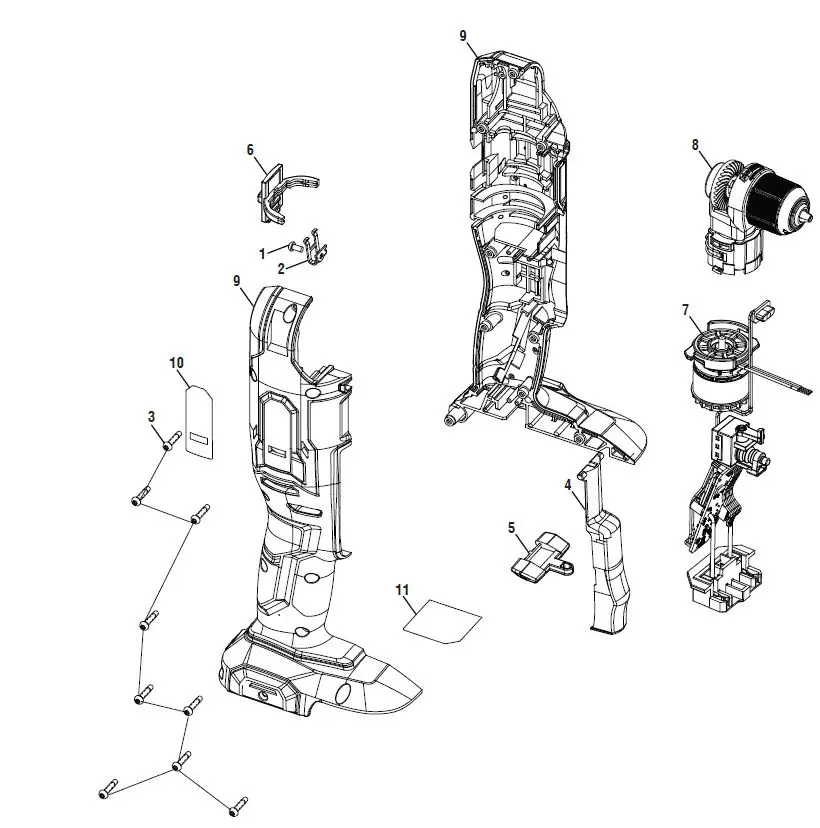

PARTS LIST
| KEY NO. NO. DE RÉF. NÚM. REF. | PART NO. NO. DE PIÈCE NÚM. PIEZA | DESCRIPTION |
| 1 | 660211067 | Screw (M3 x 6 mm, T10 Torx Pan Hd.) |
| 2 | 658872001 | High/Low Button Clip |
| 3 | 660570004 | Screw (M3 x 14 mm, T10 Torx Pan Hd.) |
| 4 | 543546001 | Paddle Switch |
| 5 | 543547001 | Forward/Reverse Button |
| 6 | 543545001 | High/Low Button |
| 7 | 206888003 | Motor and Circuit Board Assembly |
| 8 | 206888002 | Gear Box Assembly |
| 9 | 204888005 | Housing Assembly (Inc. Key Nos. 10-11) |
| 10 | 941123781 | Data Label |
| 11 | 941120942 | Instruction Label |
| Not Shown: | ||
| 998000735 | Operator’s Manual (961153537) |

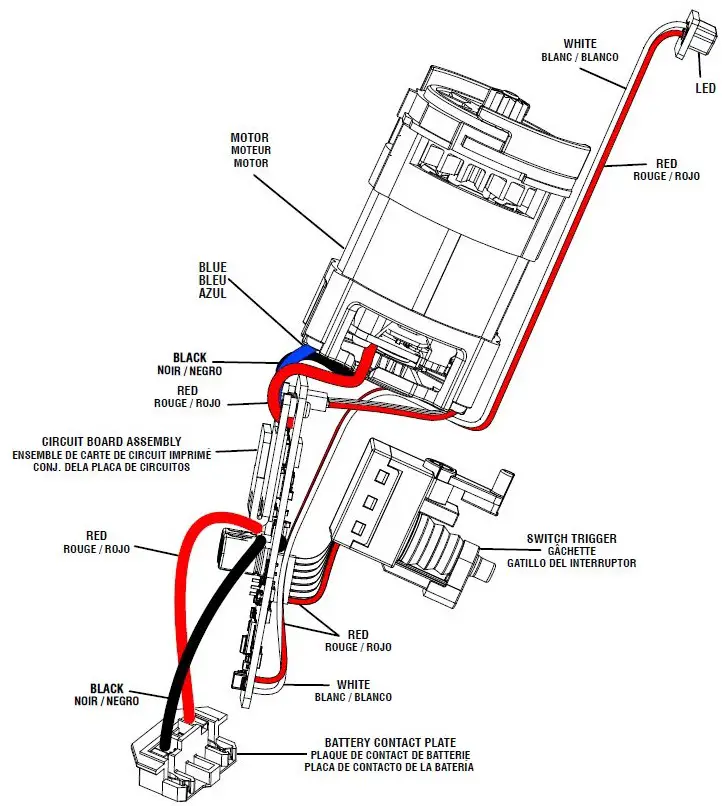

WIRING DIAGRAM
TTI CONSUMER POWER TOOLS, INC.
P.O. Box 1427, Anderson, SC 29622
1-866-539-1710
