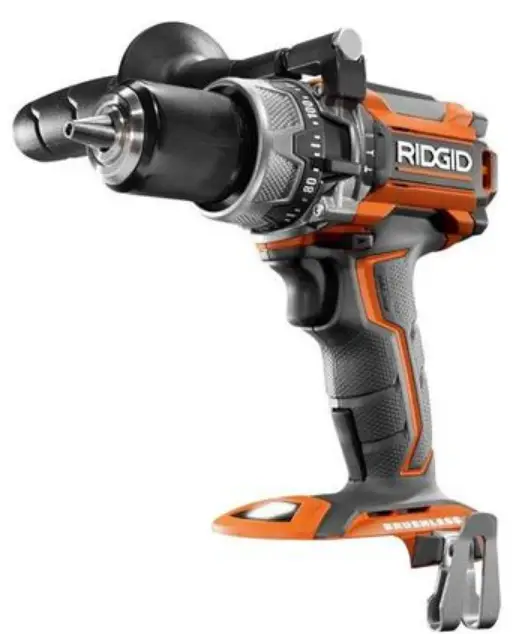

RIDGID R86116 18 Volt Hammer Drill
REPAIR SHEET
- BRAND
- RIDGID
- MODEL NO
- R86116
- DESCRIPTION
- 18 Volt Hammer Drill
- The model number and manufacturing location will be found on a label attached to your product. Always mention this information in all communications regarding this product and when ordering parts.

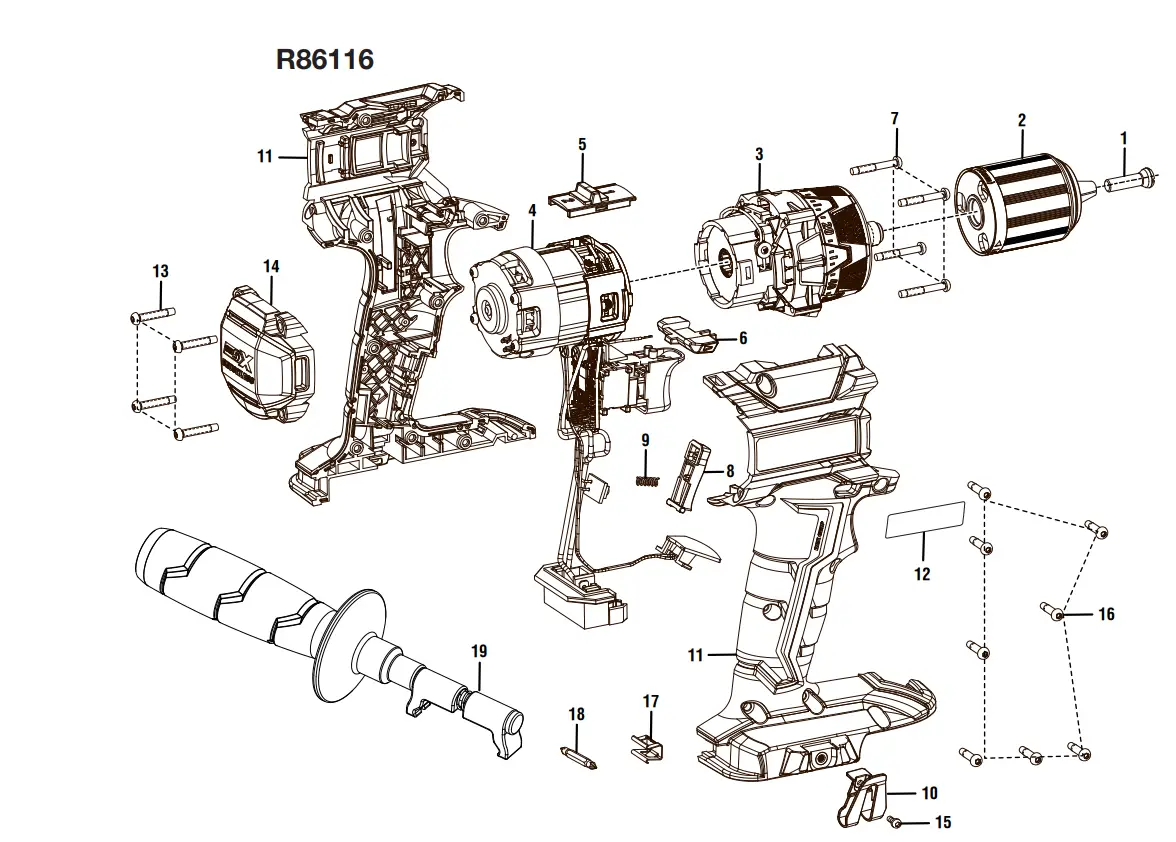

PARTS LIST
| KEY NO. NO. DE | PART NO. NO. DE | DESCRIPTION |
| 1 | 660134006 | Screw (M6 x 18 mm, Pan Hd. Left-Hand Threads) |
| 2 | 670769004 | Chuck Assembly |
| 3 | 206369009 | Clutch and Gearbox Assembly |
| 4-CN | 206569005 | Motor, Switch, and Circuit Board Assembly |
| 4-VN | 206569007 | Motor, Switch, and Circuit Board Assembly |
| 5 | 534409001 | Hi/Lo Speed Selector |
| 6 | 534408001 | Forward/Reverse Selector |
| 7 | 660031022 | Screw (M.5 x 24 mm, T10 Torx Pan Hd.) |
| 8 | 527788001 | Shark Fin Button (Switch Trigger) |
| 9 | 692784001 | Compression Spring |
| 10 | 636181001 | Belt Hook |
| 11 | 204368005 | Housing Assembly (Inc. Key No. 12) |
| 12-CN | 941122034 | Data Label (994655001) |
| 12-VN | 941122745 | Data Label (994655001) |
| 13 | 660435006 | Screw (M3.5 x 18 mm, T15 Torx Pan Hd.) |
| 14 | 360070003 | End Cap |
| 15 | 660212001 | Screw (M4 x 6 mm, Pan Hd.) |
| 16 | 660031012 | Screw (M3 x 14 mm, T10 Torx Pan Hd.) |
| 17 | 630206007 | Bit Clip |
| 18 | 670820045 | Double Ended Bit |
| 19 | 304328016 | Auxiliary Handle Assembly |
| Not Shown: | ||
| CN | 903209091 | Tool Bag |
| VN | 903209084 | Tool Bag |
| 995000545 | Operator’s Manual (961152911) |
- If a key number has multiple part numbers, please order the part that corresponds with the country of origin shown on the product’s data label. CN = China VN = Vietnam

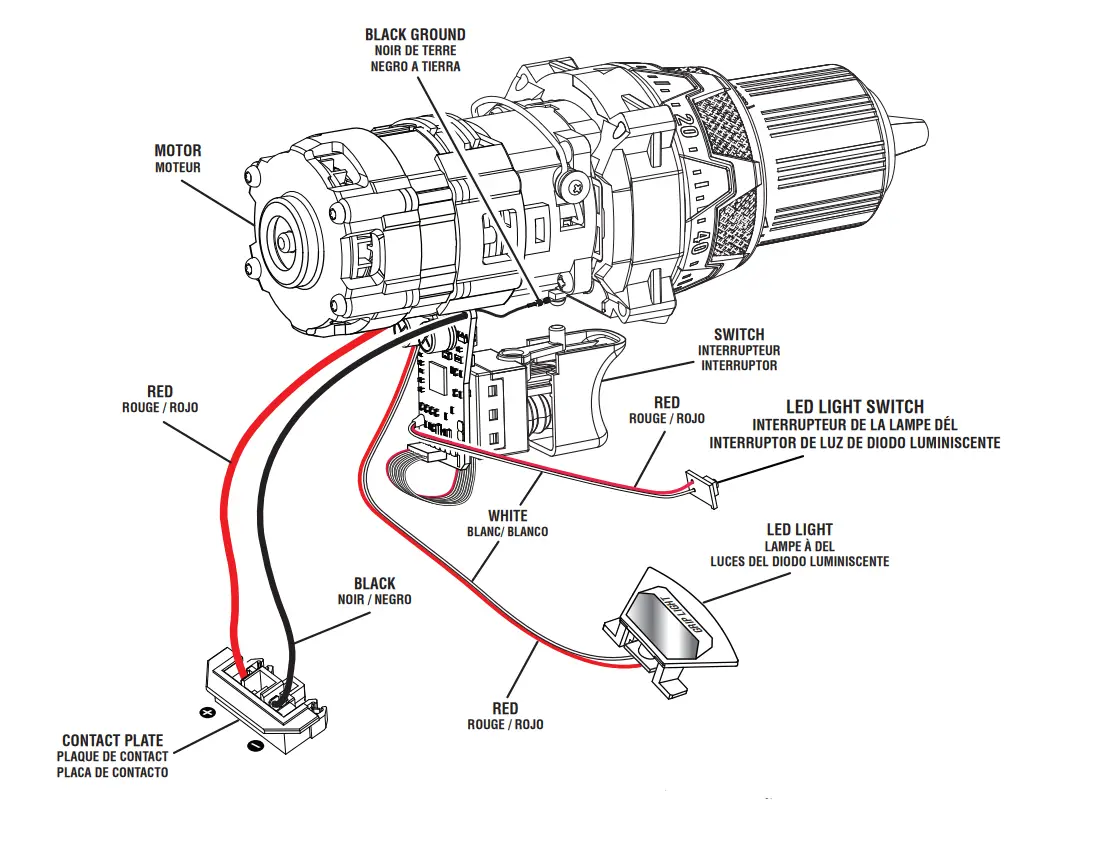

WIRING DIAGRAM
- For use after date code CS18045DA90200
