Ridgid R8723 18 Volt Subcompact Brushless Impact Driver User Manual

Ridgid R8723 18 Volt Subcompact Brushless Impact Driver User Manual

RIDGID R8723 18 Volt Subcompact Brushless Impact Driver-logo

RIDGID R8723 18 Volt Subcompact Brushless Impact Driver

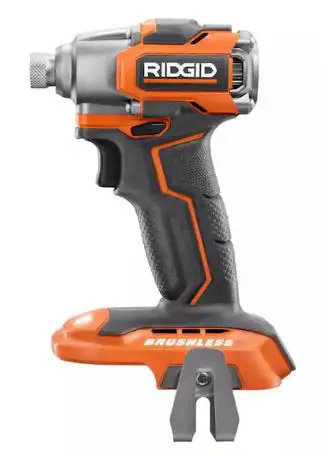

RIDGID R8723 18 Volt Subcompact Brushless Impact Driver-product

INSTALLATION INSTRUCTION

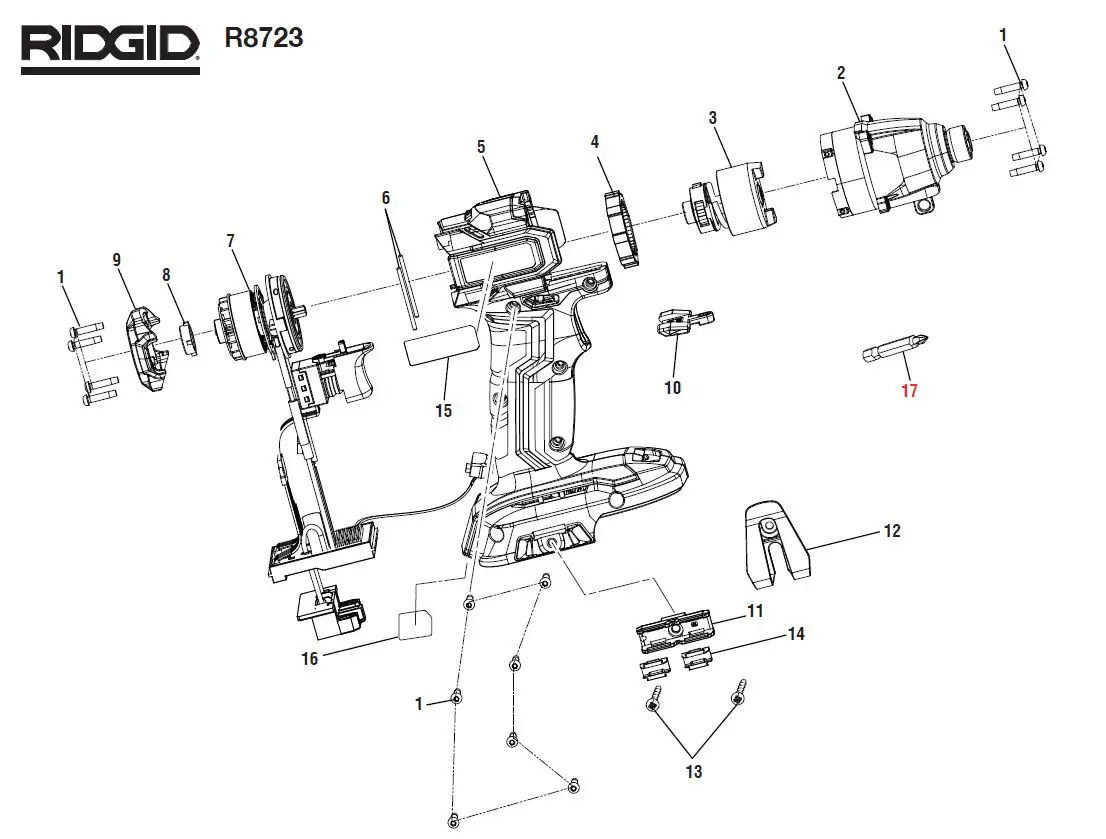

RIDGID R8723 18 Volt Subcompact Brushless Impact Driver-fig-1

The model number and manufacturing location will be found on a label attached to your product. Always mention this information in all communications regarding this product and when ordering parts.

REPAIR SHEET

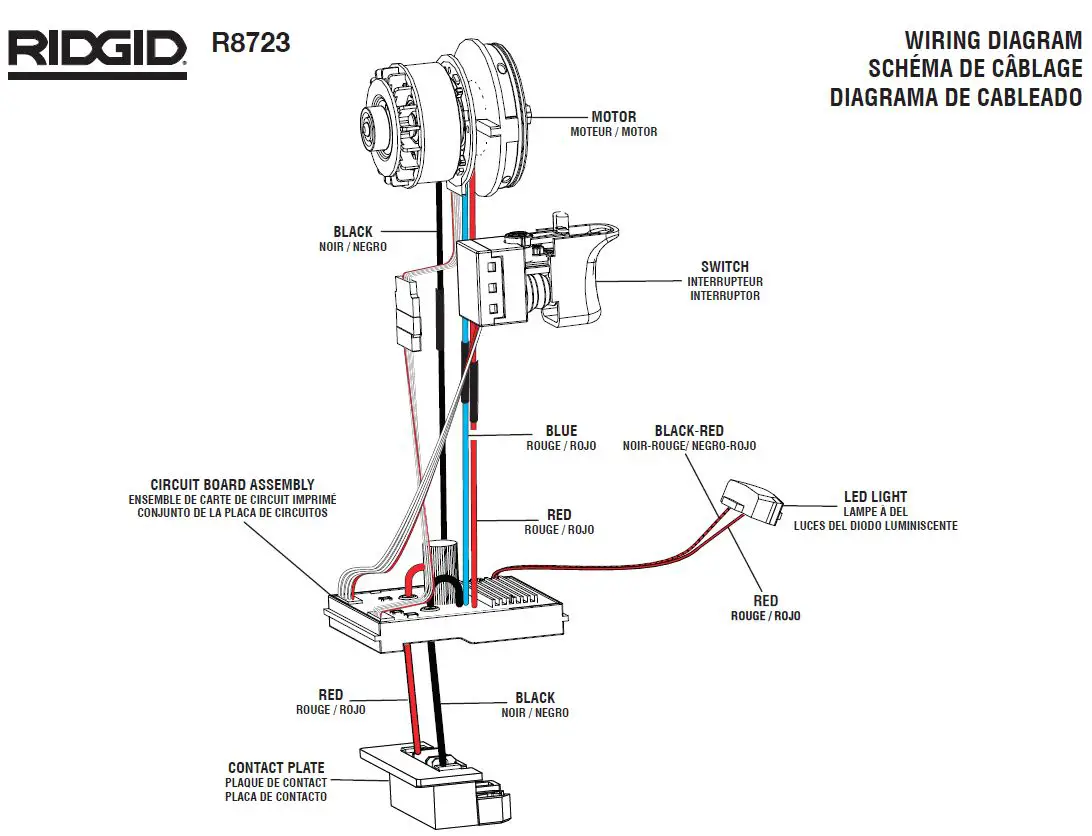

RIDGID R8723 18 Volt Subcompact Brushless Impact Driver-fig-3

DESCRIPTION

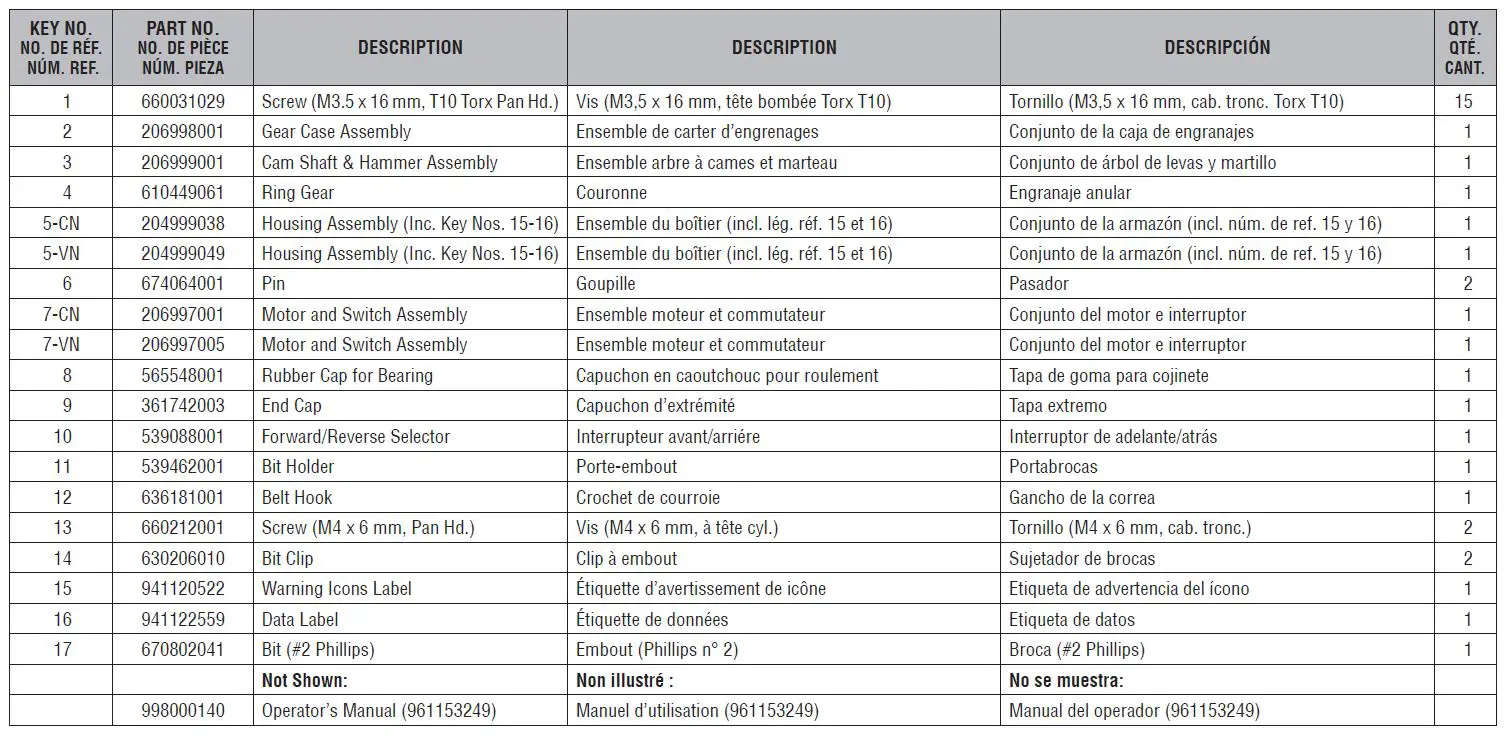

RIDGID R8723 18 Volt Subcompact Brushless Impact Driver-fig-2

BRAND
RIDGID

MODEL NO.
R8723

TTI CONSUMER POWER TOOLS, INC.
P.O. Box 1427,
Anderson,
SC 29622
1-866-539-1710
powertools.RIDGID.com
