S3 Electric Hoverboard and Scooter
User Manual
Electric Scooter
Please red the user manual and get to know the performance of the intelligent electric scooter before using the product. Don’t lend the scooter to the people who can’t handle it.

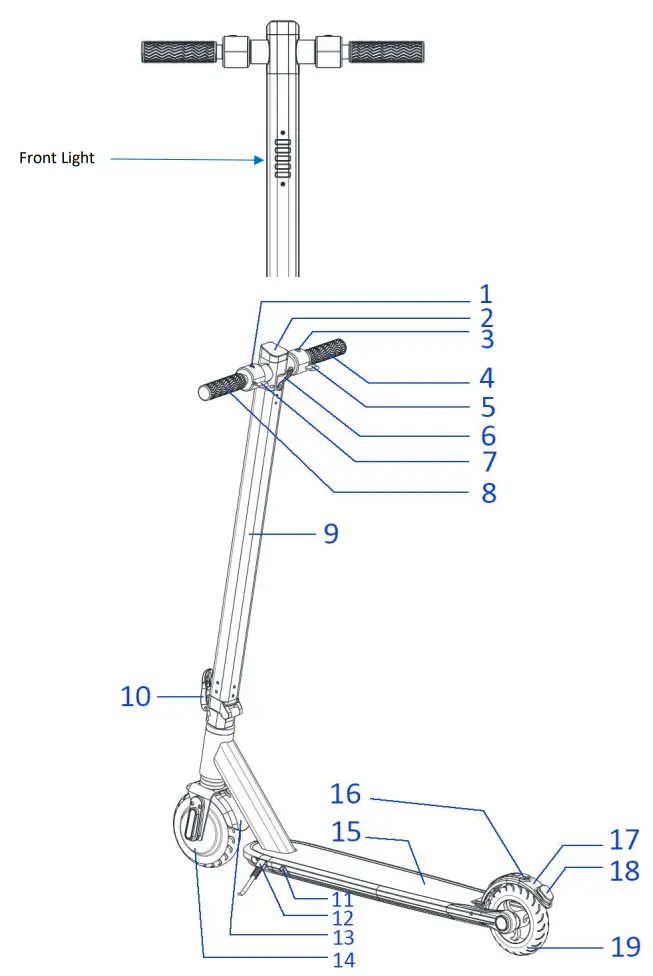

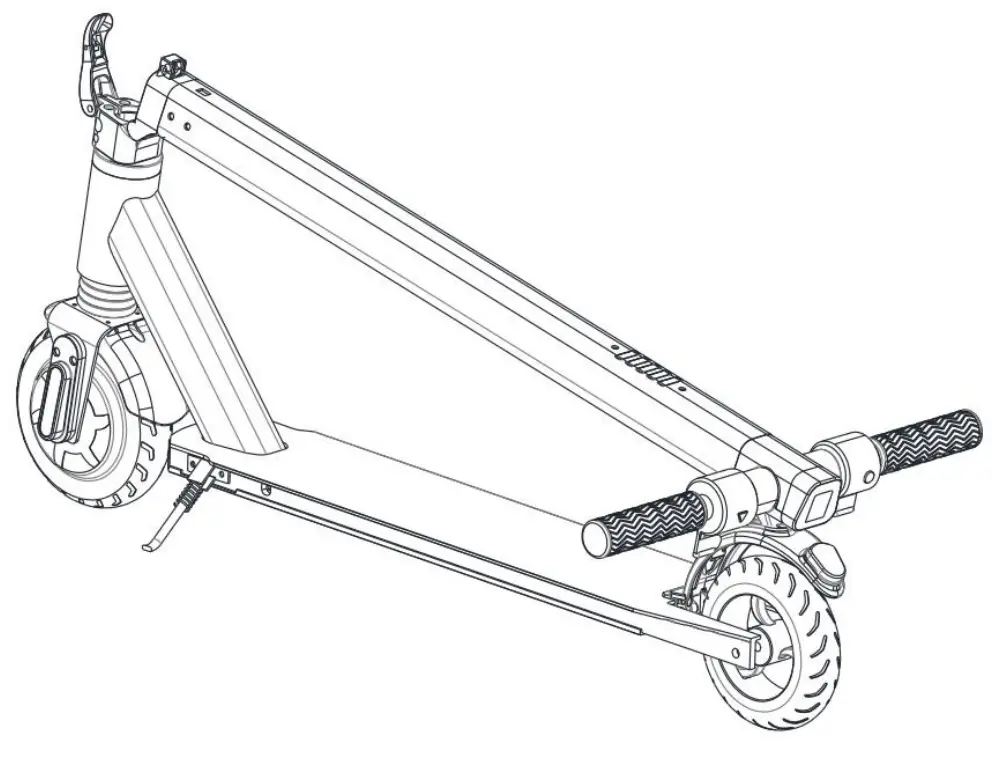

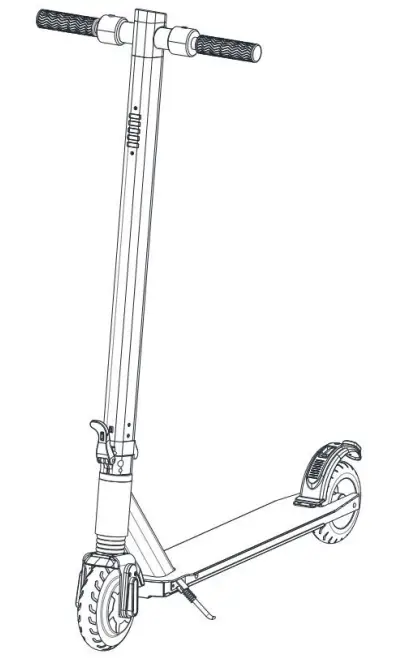

Product diagram
| 1- Switch Button 2- Display 3- Power/Front Light 4- Right handlebar 5- Accelerator 6- Hook 7- Brake 8- Left handlebar 9- Front tube 10- Front Latch | 11- Charging port 12- Kickstand 13- Front fender 14- Front-wheel 15- Deck 16- Hook Hole 17- Rear fender 18- Rear Light 19- Rear wheel |
Specification
| Performance Index | Item | Specs |
|
Materials & Size | Color | Black/Red/White |
| Material | Aluminum Alloy | |
| Folded Size (mm) | 970*200*480mm | |
| Unfolded size (mm) | 970*200*1170mm | |
| Deck Height (mm) | 75mm | |
| Weight | User height | 155-200cm |
| N.W | 9.5kg | |
| Max Load | 100kg | |
|
Scooter | Max speed (km/h) | 25km/h |
| Max incline | 7-15° | |
| Using temperature | 0°C–45°C | |
| Using Terrain | Flat road with incline <20° Step height ≤1cm | |
| Using temperature | 0°C–45°C | |
| Waterproof level | IP54 | |
|
Motor | Rated power (W) | 250W |
| Rated Volt (V) | 24V | |
| Rated Currency (A) | 13A | |
| Rated torsion (N.m) | 5N.m | |
| No-load currency | ≤0.9A | |
| No-load rotate speed | 620±5 | |
| Front Wheel Size | 6 inch | |
| Rear Wheel Size | 6 inch | |
|
Battery | Brand | 18650 battery cells 2P7S 14PCS |
| Capacity (Ah) | 5.0Ah | |
| Rated Volt (V) | 24V | |
| Input Volt (V) | 29.4V | |
| Intelligent BMS | Equilibrium/overcharge/over-discharge/Over current/short circuit protection | |
| Rechargeable times | 500-800times | |
|
Charger | Rated Power (W) | 58.8W |
| Rated Volt (V) | 110-240V AC 50/60Hz 2A | |
| Rated Currency (A) | 1.5A | |
| Charging time | 3~ 4H | |
| Rated output volt (V) | 29.4V | |
| Front light | Working volt | 12V |
| Working currency | 100mA | |
| Rear light | Working volt | 12V |
| Working currency | 30mA |

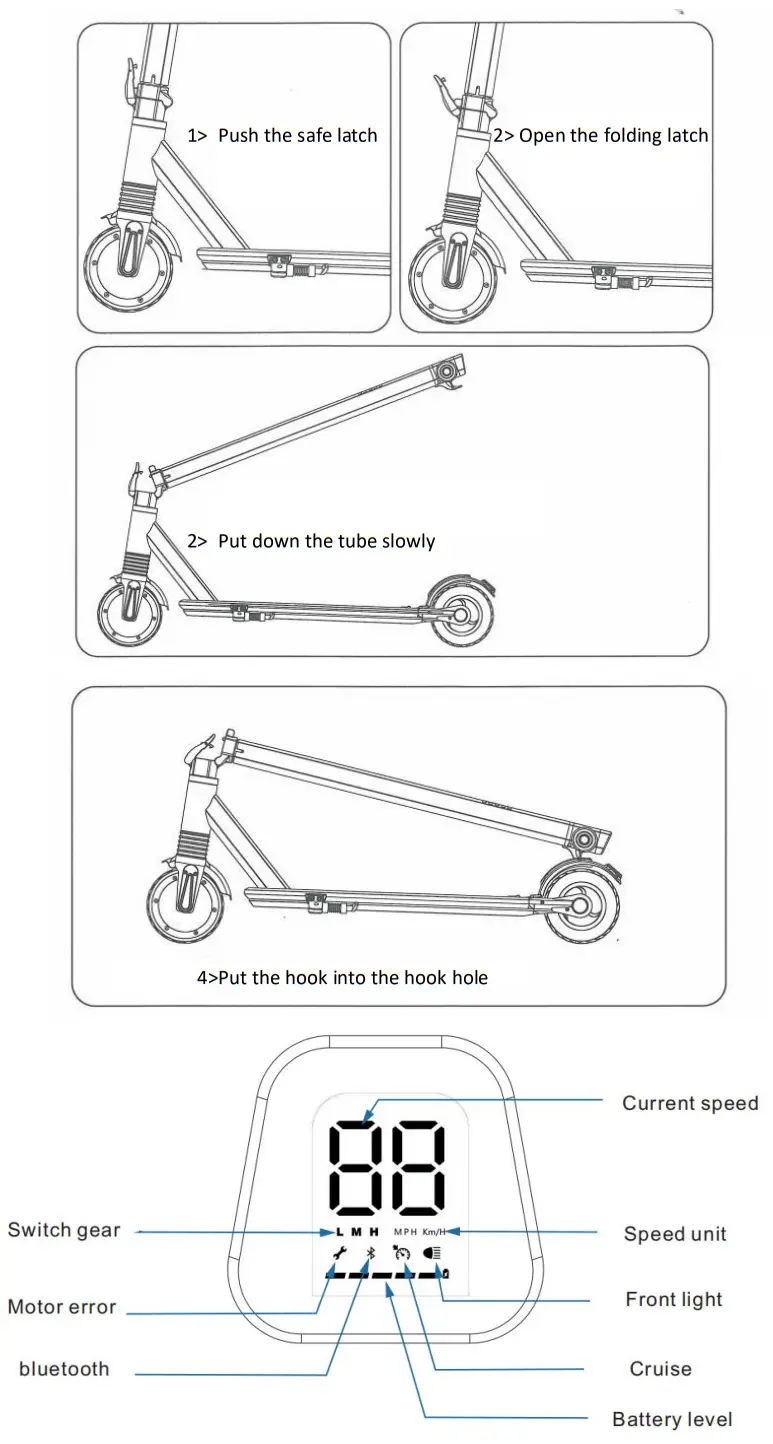

Operation steps
Power button function description
- Power on/off
Power on/off: Long press the red button
on the right side to turn it on,
Long press again to turn it off. - Gear switch
Gear switch： Short press the left red button
, and the system can be switched among L-M-H three gears - Lighting
Turn on/off: In the state of power-on, a short press on the right key can turn it on/off - Setting status
Long press the key and the key at the same time to enter the “Settings” interface. In the setting state, the short press the key to switch between C1(unit)—C2(Startup mode)—C3(cruise control).
a) Unit settings
Switch to the C1 state in the “Settings” state: Short press the button to switch between KM/H and MP/H
b) Startup mode setting
Switch to the C2 state in the “Settings” state: Short press button to set the start mode of the scooter (Slide start/Zero start)
c) Cruise control setting
Switch to C3 state in “Settings” state: Short press key to set turn on/off cruise control
, and the system can be switched among L-M-H three gearsSafe Driving
- Avoid accentuating the body while accentuating or decelerating and do not keep the body weight on the handle
- Riding a standing position, please keep the two feet one after the other, so that riding is more stable and easy to step on the rear brake
- Keep your body and handle parallel when turning. Please confirm the road condition before turning and keep safe.
- Brake – when braking, please shift your body weight back. You’d better learn to control your body’s center of gravity when you brake. Otherwise, it will cause two situations:
1 Scooter forward, causing personal injury.
2 Braking and steering system damage.
Strictly abide by local laws and regulations and traffic laws
Do not rid this scooter under the condition of low visibility
Do not use this car to do stunts, wheel or take-off, it will increase the probability of injury and damage to the scooter. Do not carry passengers.
There is a risk of falling down and injury during the course of study. Please wear a helmet and protective gear throughout the study.
Charging precautions
When charging the electric scooter S3, please pay attention to the following points:
- Ensure that is changed in a dry and clean environment, the input voltage is guaranteed between 110v-240v and the other end connects to the charging port of S3 electric scooter. The red light indicates the scooter is being charged.
- The indicator light of the charger shows the green light, indicating that the charging is completed.
- Don’t turn on the scooter during charging for your safety.
- Disconnect the scooter from the charger when the charging is complete.
Maintenance
a. Battery maintenance: In order to guarantee the battery life, when the battery level is low, please change the scooter timely (Note: when it is not in use for a long time, it is recommended that charge it once a month). If you want to check or replace the battery, please do it with the assistance of professionals. The most suitable temperature of the battery storage is 15°C – 25°C; don’t use and place the scooter when the environmental temperature is higher than 40°C, in order to avoid the lithium battery’s failure, and even lead to the combustion. Do not place the scooter in the car during the hot seasons, because it may lead to the lithium battery’s failure or even combustion.
b. Tire maintenance: In order to guarantee the tire life, please check the tires of the scooter regularly. Once the wheel is abnormal, please repair or replace timely. Sp as mt to cause unnecessary damage during the riding.
c. Appearance maintenance: Swab the scooter body with water or mild detergent, it will make your scooter clean. Please do not clean the scooter with irritating points or chemical reagents.
Common Failures and Solutions
| 1)The display board is working but the motor doesn’t work | |
Reason Analysis | Solutions |
| The break handle is damaged | Pull out the socket of the brake handle (normally open type brake handle), if the motor works, then it is the failure of the brake handle, should replace the brake handle. |
| The speed regulating steering handle is damaged | Firstly check whether the speed regulating steering handle and motor hall switch are short circuits or not. Generally, it is easier to cause the joint to the short circuit after rain-affected with dampness, so notice the short circuit of the steering handle and the motor hall switch. Otherwise, there will be continuous damage of the replacement controller! |
| The motor is damaged | If the motor doesn’t work turn, please inspect the motor’s hall switch and turning handle’s signal. Once the power on, the controller shall be very hot, generally it is a short circuit of the controller’s internal power tube, which should immediately cut off the power. |
| 2) Charging doesn’t work | |
| Reason Analysis | Solutions |
| l The battery charging port is loose | Change a good charging port |
| l The connection of the charger plug is not well | Change a good charger connector |
| 3) Can’t turn on the scooter | |
| Reason Analysis | Solutions |
| l The battery is dead | Charge the scooter for 1-2 hours according to the user manual. |
| l The power button is out of order | Check whether the power button has got stuck or not. |
Thank you for your reading!
Electric Scooter
