MICROCHIP ATA8510 Serial Peripheral Interface Command Sheet User Guide
Introduction
This user guide provides a summary of all Serial Peripheral Interface (SPI) commands available with the ATA8510 Ultra High Frequency (UHF) product family, including a detailed command description, the setup procedure, command coding, and descriptions of the available parameters. This document also includes the SPI timing calculation, which helps to ensure proper timing in the application. This document is applicable for the following products:
- ATA8510
- ATA8515
- ATA8210
- ATA8215
- ATA8710
Quick References
Reference Documentation
For further details, refer to the ATA8510/15 Industrial User’s Guide (DS50003142).
Acronyms and Abbreviations
Table 1-1. Acronyms and Abbreviations
| Acronyms/Abbreviations | Description |
| EEPROM | Electrically Erasable Programmable Read-only Memory |
| FIFO | First-In First-Out |
| FW | Firmware |
| IRQ | Interrupt Request |
| ROM | Read-only Memory |
| RSSI | Received Signal Strength Indicator |
| RX | Receiver |
| SPI | Serial Peripheral Interface |
| SRAM | Static Random Access Memory |
| SCK | Serial Clock |
| SFIFO | Support First In First Out |
| TX | Transmitter |
| uC | Microcontroller |
| UHF | Ultra High Frequency |
SPI Commands Overview
Figure 2-1. SPI Commands
Read Fill Level RX FIFO
Host uC
ATA8510
| CMD [0x01] | 0x00 | 0x00 |
| events.system | events.events | data |
| Requested information |
| System status |
| Not used from FW |
Read Fill Level TX FIFO
Host uC
ATA8510
| CMD [0x02] | 0x00 | 0x00 |
| events.system | events.events | data |
Get Event Bytes
Host uC
ATA8510
| events. | Bit 7 | Bit 6 | Bit 5 | Bit 4 | Bit 3 | Bit 2 | Bit 1 | Bit 0 |
| system | SYS_ERR | CMD_RDY | SYS_RDY | AVCCLOW | LOWBATT | SFIFO | DFIFO_RX | DFIFO_TX |
| events | IDCHKA | WCOKA | SOTA | EOTA | IDCHKB | WCOKB | SOTB | EOTB |
| power | PWRON | – | NPWRON6 | NPWRON5 | NPWRON4 | NPWRON3 | NPWRON2 | NPWRON1 |
| config | PathB | PathA | ch[1:0] | – | ser[2:0] | |||
Read RSSI FIFO
Host uC
ATA8510
| CMD [0x05] | length | 0x00 | 0x00 | … | 0x00 | This co (length | |
| events.system | events.events | dummy | data | … | data |
Read RX FIFO
Host uC
ATA8510
| CMD [0x06] | length | 0x00 | 0x00 | … | 0x00 | This co (length | |
| events.system | events.events | dummy | data | … | data |
Read RX FIFO
Host uC
ATA8510
| Name | Bit 7 | Bit 6 | Bit 5 | Bit 4 | Bit 3 | Bit 2 | Bit 1 | Bit 0 |
| serviceChannelConfig | enaPathB | enaPathA | channel[1:0] | – | service[2:0] | |||
| Name | Bit 7 | Bit 6 | Bit 5 | Bit 4 | Bit 3 | Bit 2 | Bit 1 | Bit 0 |
| serviceChannelConfig | – | – | – | – | startPollingIndex | |||
| Name | Bit 7 | Bit 6 | Bit 5 | Bit 4 | Bit 3 | Bit 2 | Bit 1 | Bit 0 |
| tuneCheckConfig | EN_ANT_TUNE | EN_TEMP_MEAS | EN_SRCCAL | EN_FRCCAL | EN_VCOCAL | – | EN_SELFCHECK | – |
| CMD [0x12] | 0x00 | 0x00 |
| events.system | events.events | rom version |
The increment mechanism needs to be performed as followed to ensure that the right data will be provided:
Parameter at byte n-x [x>=2] = 0x01
Parameter at byte n-y [y<=1] = 0x00
[n = number of bytes transmitted via SPI]
| CMD [0x17] | value |
| events.system | events.events |
| 0x00 | disable |
| 0x01 | 2.0V |
| 0x02 | 2.1V |
| 0x03 | 2.2V |
| 0x04 | 2.3V |
| 0x05 | 2.4V |
| 0x06 | 2.5V |
| 0x07 | 2.6V |
| 0x08 | 2.7V |
| 0x09 | 2.8V |
| 0x0A | 2.9V |
| 0x0B | 3.0V |
| 0x0C | 3.1V |
| 0x0D | 3.2V |
| 0x0E | 3.3V |
| 0x0F | 3.4V |

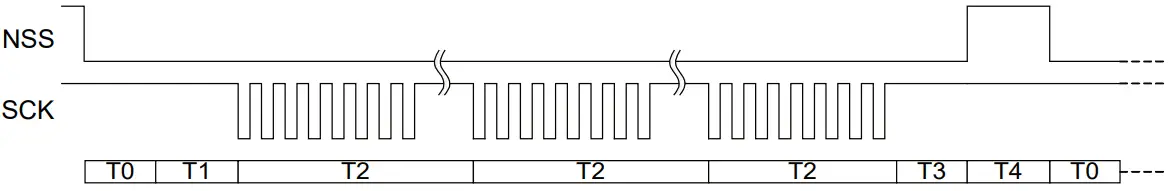

SPI Timing Calculation
Figure 3-1. SPI Timing Calculation
| Time | Timing at 40%interrrupt usage | Description | Depend on | Timing |
| T0 | 0 or 25 µs | Time from NSS LOW to AVRactive sleep mode is enabled | 0 µs if no sleep mode is used or25 µs for any sleep mode | 25 μs |
| T1 | 17.6 µs | Time from AVR active tobeginning of first telegram byte | INT1 IRQ (falling edge) | 45 cycles (ISR) + 15 cyclesinterrupt response time |
| T2 | 16 µs | Time to shift in one SPI-bytewith f_SCK | f_SCK at 500 kHz (maximum) | 8 bit / 500 kbit/s |
| T3 | 35.1 µs | Time to handle last byte | SPI RX/TX buffer IRQ Note:Depends on SPI command | max. 120 cycles (*2) |
| T4 | 16.1 µs | SPI idle time telegram | INT1 IRQ (rising edge) | 40 cycles (ISR) + 15 cyclesinterrupt response time |
Timing calculation done with AVR core clock of 5.7 MHz
*2) needed for SPI command “Read RX Buffer” and “Read RSSI Buffer”
| Read Fill Level RX FIFO | 0 |
| Read Fill Level TX FIFO | 0 |
| Read Fill Level RSSI FIFO | 0 |
| Get Event Bytes | 0 |
| Read RSSI FIFO | 120 |
| Read RX FIFO | 120 |
| Write SRAM Register | 110 |
| Read SRAM Register | 120 |
| Write EEPROM | 55 |
| Read EEPROM | 0 |
| Write TX FIFO | 110 |
| Write TX Preamble FIFO | 110 |
| Set System Mode | 55 |
| Calibrate and Check | 50 |
| Patch SPI | XX |
| Get Version ROM | 0 |
| Get Version Flash | 0 |
| Customer Configurable Commmand | XX |
| System Reset | 0 |
| Trigger EEPROM Secure Write | 65 |
| Set Voltage Monitor | 85 |
| OFF Command | 0 |
| Read Temperature Value | 0 |
| Init SRAM Service | 50 |
| Start RSSI Measurement | 55 |
| Get RSSI Value | 0 |
| Read RX FIFO Byte Interrupt | 70 |
| Read RSSI FIFO Byte Interrupt | 70 |
Document Revision HistorY
| Revision | Date | Section | Description |
| A | 12/2021 | Document | Initial release |
